High Rule Auto Bender with Nicking
  • High Rule Auto Bender with NickingHigh Rule Auto Bender with Nicking

High Rule Auto Bender with Nicking

(ABM-A850)l High Rule Auto Bender with Nicking included functions:Bending,Bridge,Nicking,Lipping and Cutting. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-A850

Send Inquiry

Product Description

(ABM-A850)l High Rule Auto Bender with Nicking

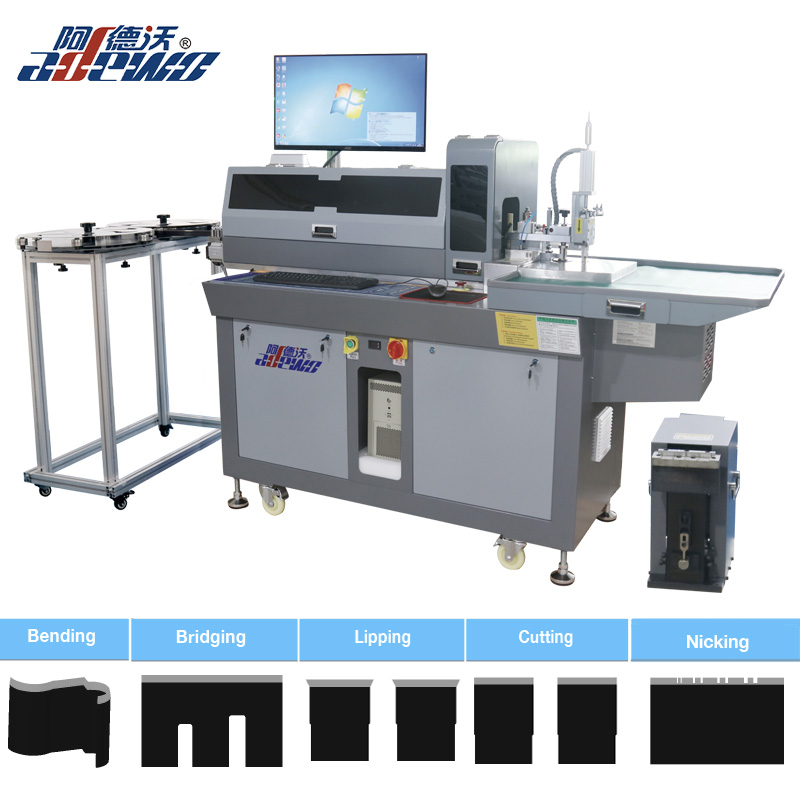

Picture of (ABM-A850)High Rule Auto Bender for reference:


Product Features:

1.Multi-Functions:(ABM-A850)l High Rule Auto Bender included Bending,Bridge,Nicking,Pneumatic Lipping and Cutting.

2.This (ABM-A850)High Rule Auto Bender with Nicking,Nicking size 0.2mm-1mm.


3.Stable servo control feeding system, fast and accurate bending, powerful bridging, precise cutting and nicking.


4.Smart software and easy to operate, multi language operations;


5.This (ABM-A850)l High Rule Auto Bender Machine available for the max 60mm height,1.42mm(4pt) thickness steel rule.

Technical Parameters of (ABM-A850)High Rule Auto Bender:

Supported rule thickness(mm)

0.71/1.05/1.42mm(2pt,3pt,4pt)

Supported rule height(mm)

23.80-50mm

Bridge height

13-18mm

Bridge width

Over 5.5mm any sizes available.

(customizable)

Max. bending angle

95°

Min. ARC radius of 90 degree

±0.3MM

Front Min. bending size

1.5MM

Back Min. cutting size

1.0MM

Feeding precision

±0.03mm

Bending flatness

±0.2mm

Functions

Bending,Bridging,Nicking,Pneumatic Lipping,Cutting

Cutting methods

Twist off and Auto flat cutting

Optimal pattern format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

Single Phase AC220V,13.6A,50-60Hz

Machine total power

3KW

Weight

458KGS

Overall dimension

2.3×0.80×1.52m(L×W×H)

H.S. Code

8462219000


FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of Stripping Dies Auto Bending Machine?
7-10 working days.

4.How about installation and training of High Rule Die Cut Plastic Molded Auto Bending Machine  ?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at [email protected]


5.Any spare tools are included of High Rule Die Cut Plastic Molded Auto Bending Machine  ?
Yes,the new order machine with free spare tools.
