The ABM-860C2 high rule automatic bending machine handles diverse die types – from corrugated shipping cases and folding cartons to high-end cigarette packaging and pharmaceutical cartons. This die board bending machine offers flexible broaching and tooling configurations to suit different processing requirements.
Optiomal Rule Thickness:
0.71,1.05,1.42mmSupported Rule Height:
23.8-60mmBasic Functions:

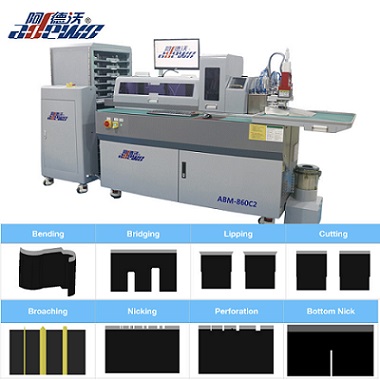

Bending,Broaching,Nicking,Lipping,Mold Cut,Bridge,,Flat CutOptional Functions:
Perforation,Hole,Cut Crease,Bottom NickProduct Overview

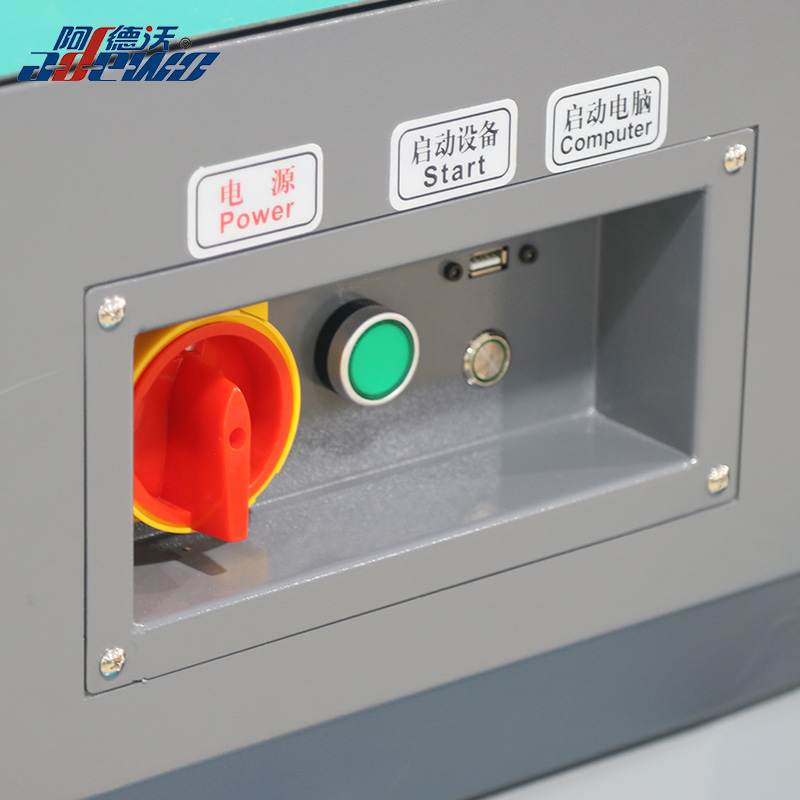

The ABM-860C2 High Rule Automatic Bending Machine is a comprehensive die‑making solution engineered for processing steel rules with heights ranging from 23.8 mm to 60 mm. It is designed to meet the demands of modern die‑making workshops that handle a wide variety of order types – from corrugated packaging and carton dies to high‑end display fixtures and specialty folding cartons.
Unlike conventional benders that focus solely on bending, the ABM‑860C2 integrates bending and cutting with multiple auxiliary die‑making functions into a single production system. This integrated approach streamlines the entire rule‑processing workflow, reducing the need for separate machines, minimizing material handling, and improving overall production efficiency.
The machine is particularly well‑suited for workshops that frequently switch between different die types, rule thicknesses, and processing requirements. Its flexibility allows operators to move from one job to the next with minimal setup time, making it a practical choice for both short‑run custom orders and larger production batches.
Key Advantages
1. Bending & Cutting in One
With the integrated design of the ABM‑860C2, the machine automatically cuts the steel rule to the required length immediately after bending is completed. This eliminates the need for manual knife joining, reduces labor input, and ensures that every bend and cut is precisely aligned according to the digital design file.
The result is faster production cycles, fewer handling errors, and more consistent die quality – especially important for complex dies with multiple bends and precise joint requirements.
2. Optional Bottom Nick
The Bottom Nick function is available as an optional feature on the ABM‑860C2. This function is specifically designed to address flatness issues that can occur on die boards, particularly when working with thicker materials or larger die sizes.
This feature is especially valuable in applications where precision and board flatness are critical, such as high‑end packaging, pharmaceutical cartons, and electronic component trays.
3. Efficient Continuous Nicking
The ABM‑860C2 supports continuous nicking, a function that allows the machine to apply multiple nicks along the steel rule in a single pass. This is particularly useful for creating tear lines, easing bending in tight radius areas, or preparing rules for complex die structures.
This software‑driven approach eliminates trial‑and‑error adjustments and ensures consistent nicking results across different production runs, reducing waste and improving overall process reliability.

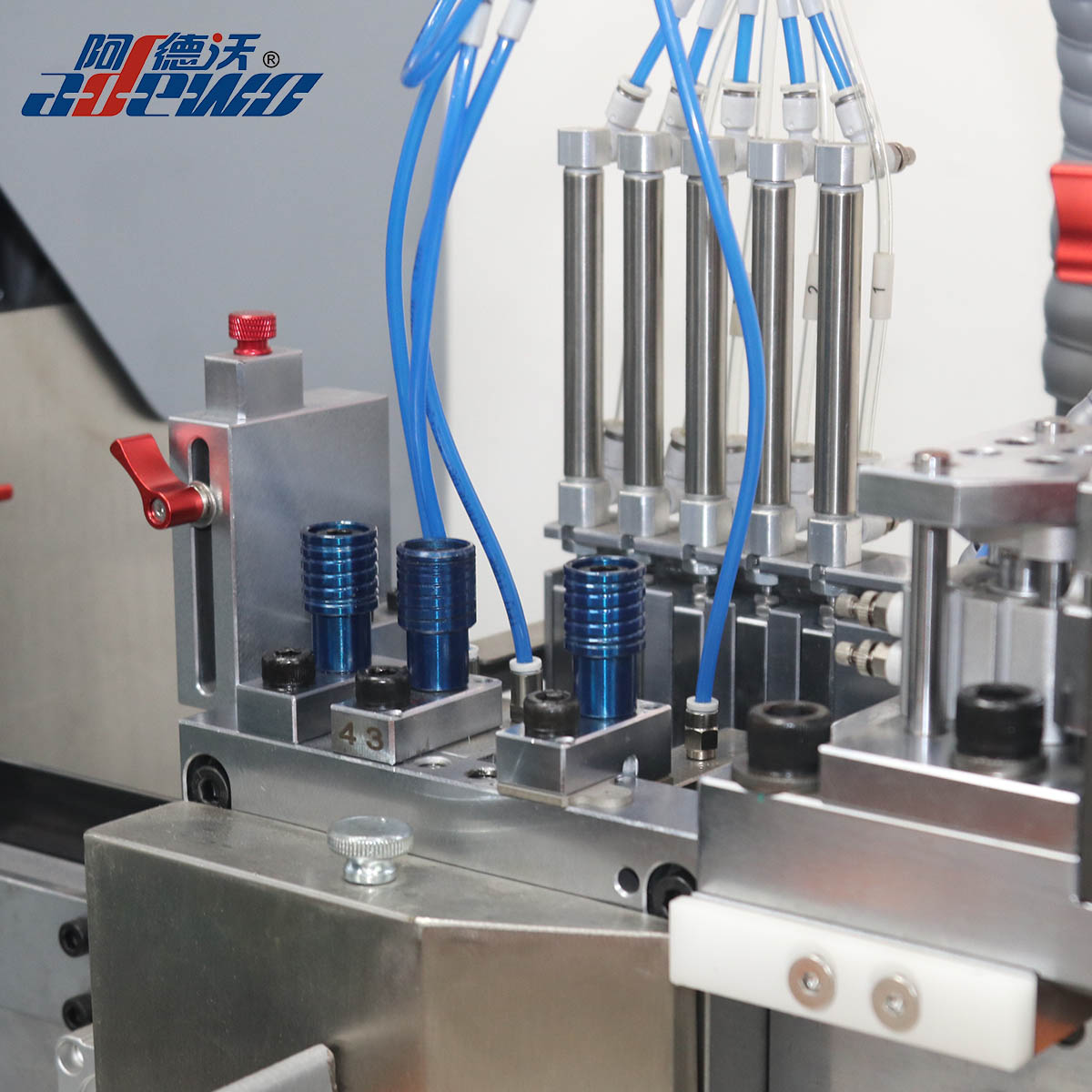

4. Multiple Optional Tools
Multiple punching and cutting tools are available, including Perforation,Hole, Cut Crease,Bottom Nick.
Hole – for handle holes, ventilation openings, or hang tabs.
Perforation – for perforation and tear‑line applications.
Independent tools – designed for quick and convenient replacement, allowing the machine to switch between different processing needs without extensive downtime.
5. Multiple Broaching & Nicking Options
The machine supports multiple broaching and nicking configurations, including front and back broaching, wide and narrow broaching, suitable for high-end cigarette packaging, pharmaceutical boxes and electronic boards.
These configurations make the machine particularly suitable for high‑precision applications such as:
· High‑end cigarette packaging – where fine details and tight tolerances are essential.
· Pharmaceutical boxes – requiring clean, consistent cuts and creases for product safety and presentation.

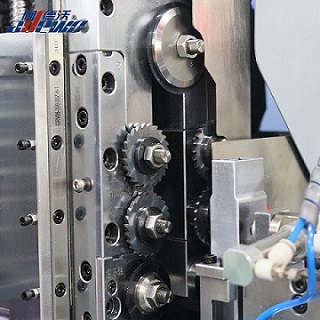

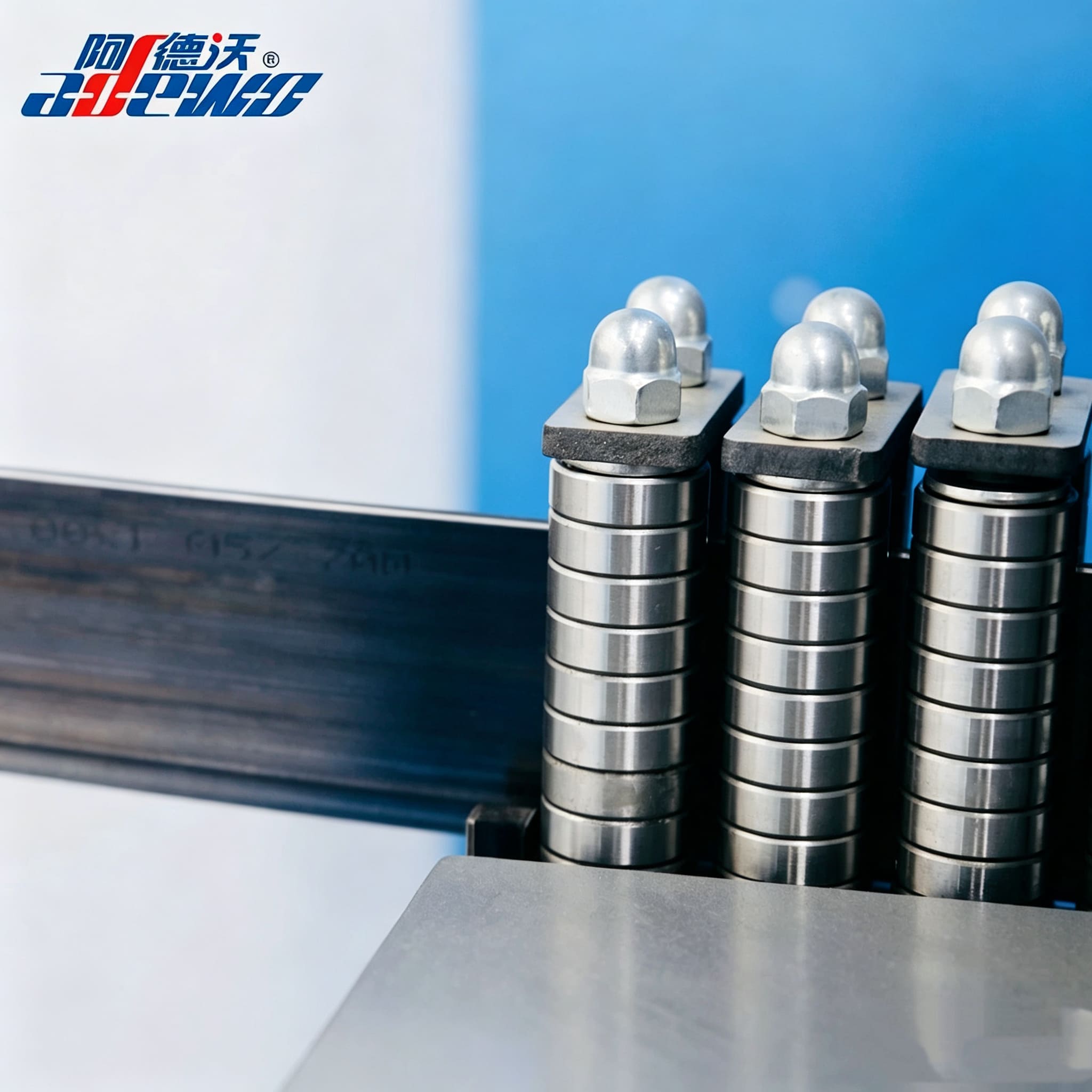

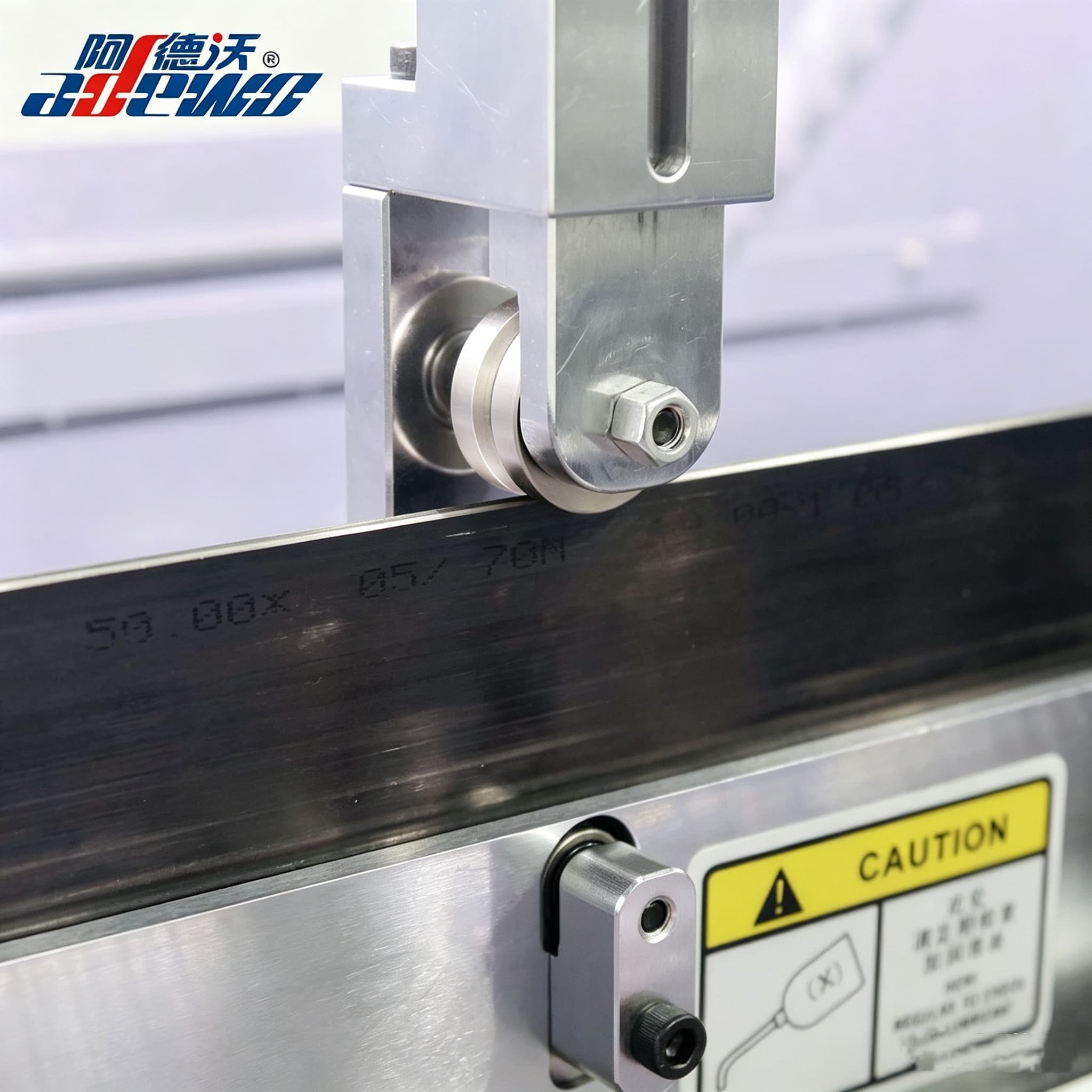

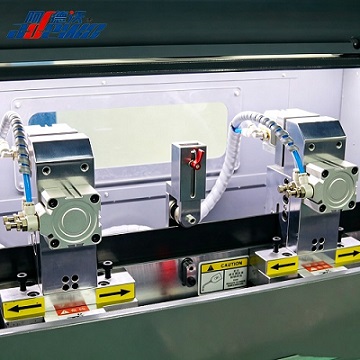

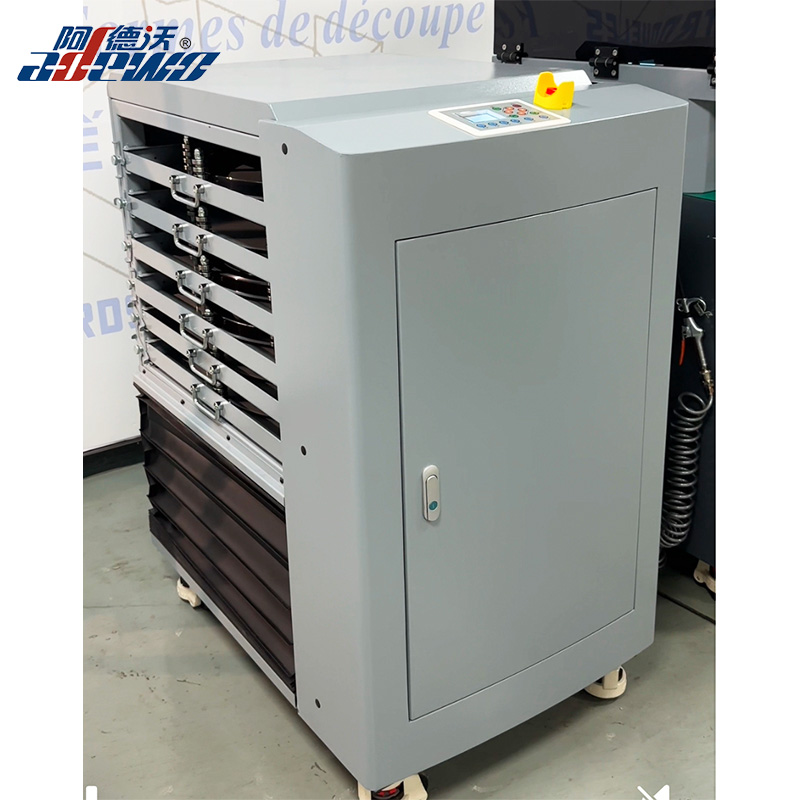

6. Dual-Clamp Screw Continuous Feeding
he dual-clamp screw feeding system enables continuous, stable rule feeding with high precision, improving overall working efficiency.

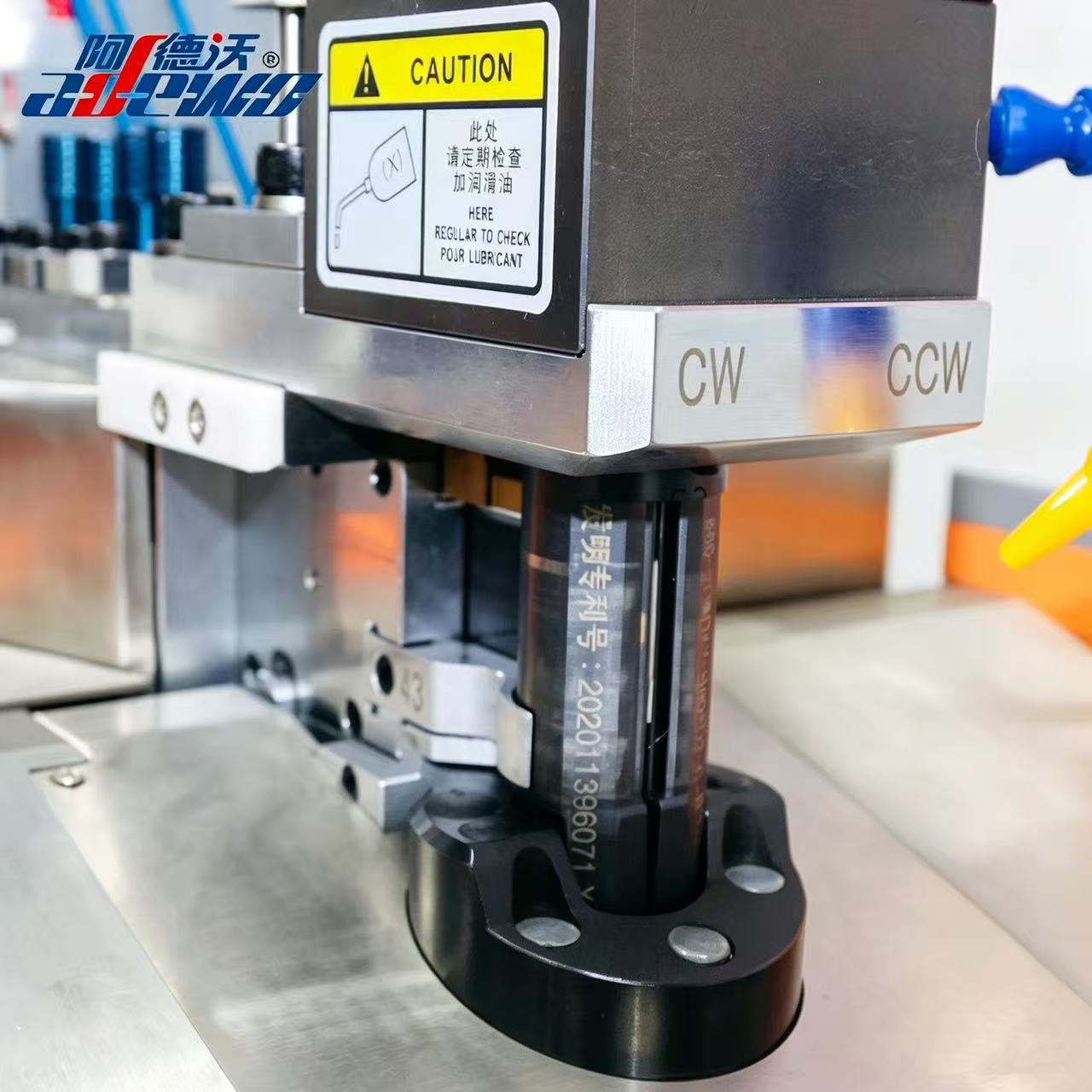

7. Pro Model – 2pt & 3pt in One
The Pro Model combines 2pt and 3pt in one, eliminating the need to replace the bending tool when processing different thicknesses.
The bending flatness can be adjusted for cutting rules with different hardness.
| Optional Rule Thickness | 0.71,1.05,1.42mm |
| Supported Rule Height | 23.8-60mm |
| Front Min.Bending Size | 1.5mm |
|
Back Min.Bending Size |
1.0mm |
| Feeding Precision | ±0.03mm |
| Bending Flatness | 0.2mm |
| Basic Functions | Bending,Broaching,Nicking,Lipping,Mold Cut,Bridge,Flat Cut |
| Optional Functions | Perforation,Hole,Cut Crease,Bottom Nick |
| Broaching Set | Single set Broaching/Double set Broaching |
| Supported File Format | DXF,DWG |
Applications
The ABM-860C2 is designed for High Rule die-making applications and can be used where multiple die rule processing operations are required.
Its multi-function configuration is suitable for applications including:
High-end cigarette packaging
Requires fine‑detail cutting, precise creasing, and consistent quality across large production volumes. The ABM‑860C2's precision feeding and multi‑function capabilities ensure that each die meets the exacting standards of the tobacco packaging industry.
Pharmaceutical boxes
Demand clean, accurate cuts and creases to ensure product safety and compliance with regulatory standards. The machine's ability to maintain tight tolerances and produce burr‑free results makes it ideal for this sector.
Die board production
The machine can be used for producing die boards themselves, particularly when combined with laser cutting equipment for board profiling.
Packaging die making
General packaging applications – including consumer goods, personal care, and household products – benefit from the machine's versatility and ability to handle a wide range of die structures.
Other die-making applications
The machine can also be adapted for specialty dies used in automotive, medical, and industrial packaging applications, subject to specific processing requirements.
roduct Summary
The ABM-860C2 High Rule Automatic Bending Machine combines bending and cutting with multiple die-making functions in one integrated system. With flexible broaching, nicking and multi-function tool configurations, the machine is designed to simplify different die rule processing operations. Its automatic feeding system and Pro Model configuration further provide flexibility for High Rule die-making applications.
FAQ:
1.Do you provide after-sales support?
Yes. We provide after-sales technical support to help customers with machine operation and related technical questions.
2.How can customers choose the appropriate broaching configuration?
The ABM-860C2 offers Single Set and Double Set broaching options, as well as front and back, wide and narrow broaching configurations.
3.Is it necessary to replace the whole tool when changing between different processing requirements?
Not necessarily. The machine supports independent tools, which can be replaced separately according to different processing requirements.
4.How does the machine handle different nicking requirements?
The nicking width and depth can be set through the software, allowing the required nicking configuration to be selected during processing.
5.hat should customers consider when choosing the machine configuration?
Customers can consider the required rule thickness, rule height, broaching configuration and optional processing functions when selecting the appropriate ABM-860C2 configuration.
