Stripping Tool Auto Bending Machine

ABM-860B2 Stripping Tool Auto Bending Machine included functions:Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-860B2

Send Inquiry

Product Description

Stripping Tool Auto Bending Machine

As the professional manufacture, we would like to provide you Stripping Tool Auto Bending Machine. And we will offer you the best after-sale service and timely delivery.We do everything we can to add value to our customers' experiences, allowing us to be their best option.

Video of On-Site Customer’s Company:

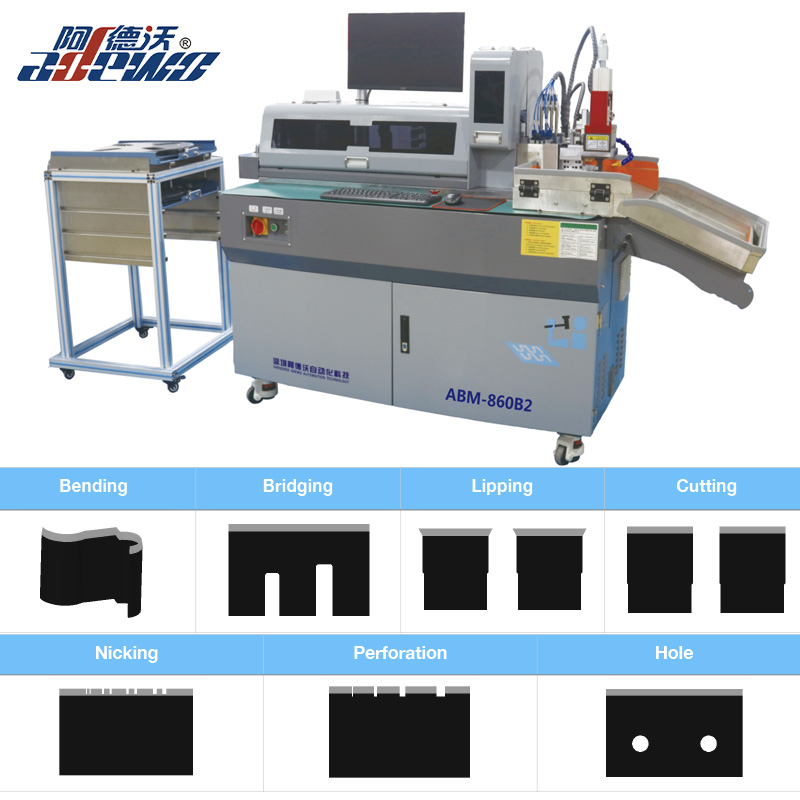

Picture of (ABM-860B2) Stripping Tool Auto Bending Machine for reference:

Product Features:

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.

2.Multi-Nicking size for choice,minimum 0.2mm, the width and depth can be setting through software.

3.Multi-Punch tool for choice:Lipping,Mold Cut, Bridge,Hole or Perforation, independent tool, easy toreplace.

4.Double clamps,screw guide feeding continuously, improves work efficiency5.Smart software,easy to operate,multi language available.

Technical Parameters of Stripping Tool Auto Bending Machine

Supported rule thickness(mm)	0.71,1.05,1.42mm (2pt&3pt&4pt)
Supported rule height(mm)	23.80-60mm
Bridge height	18mm&15mm adjustable
Bridge width	Over 5mm any sizes available. (Can be customized)
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	0.2mm
Basic Functions	Bending,Bridge,Nicking,Lipping,Mold Cut, Flat Cut
Optional Functions	Perforation/Hole
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8MPa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	540KG
Overall dimension	2850x800x1600mm(LxWxH)
H.S. Code	8462230000
