(ABM-860A2) High Rule Auto Bender with Perforation included functions:Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

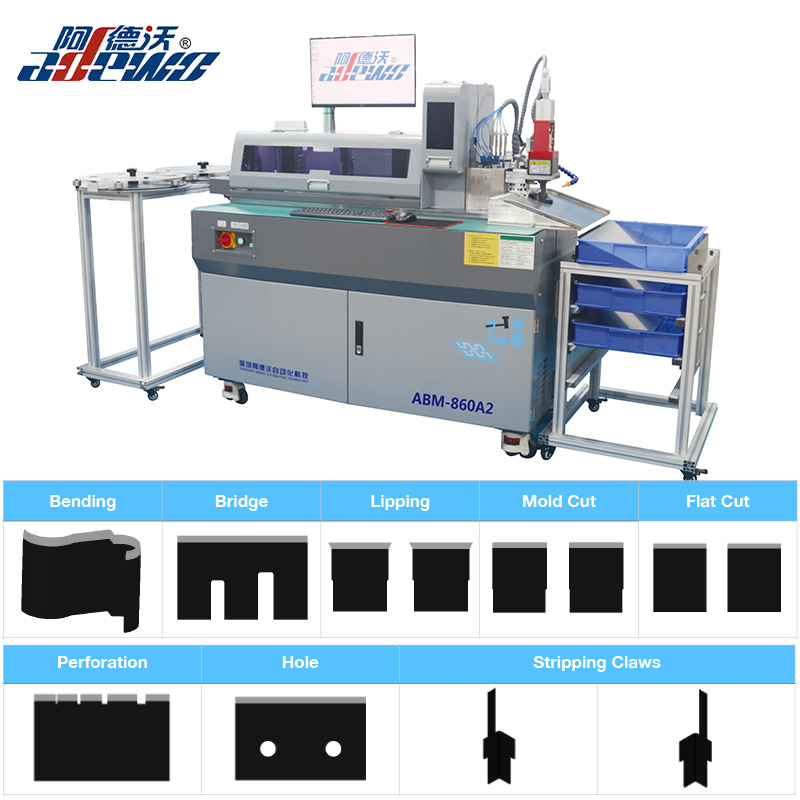

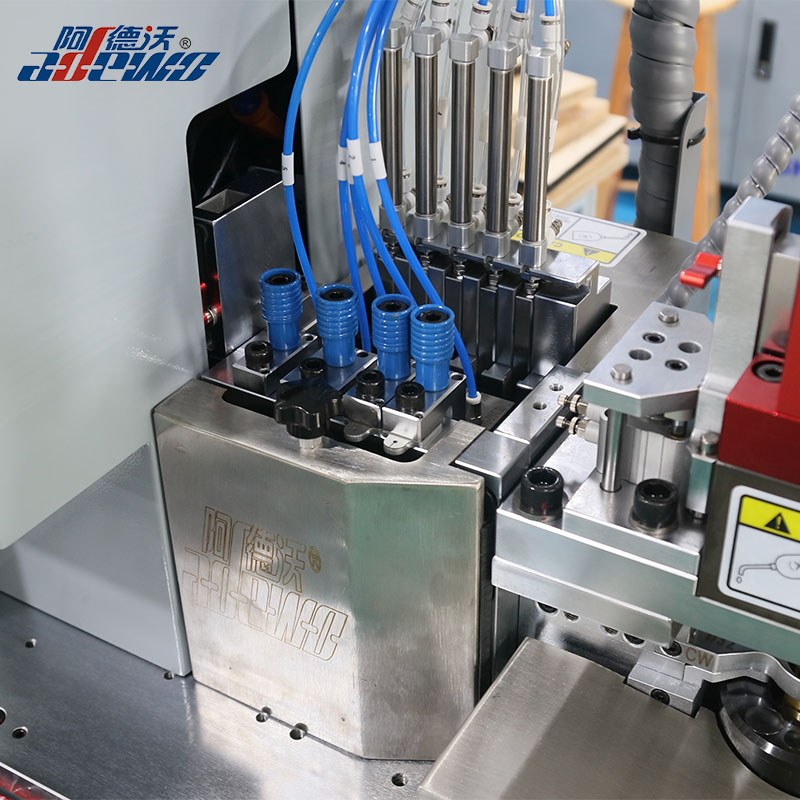

Picture of (ABM-860A2) High Rule Auto Bender for reference:

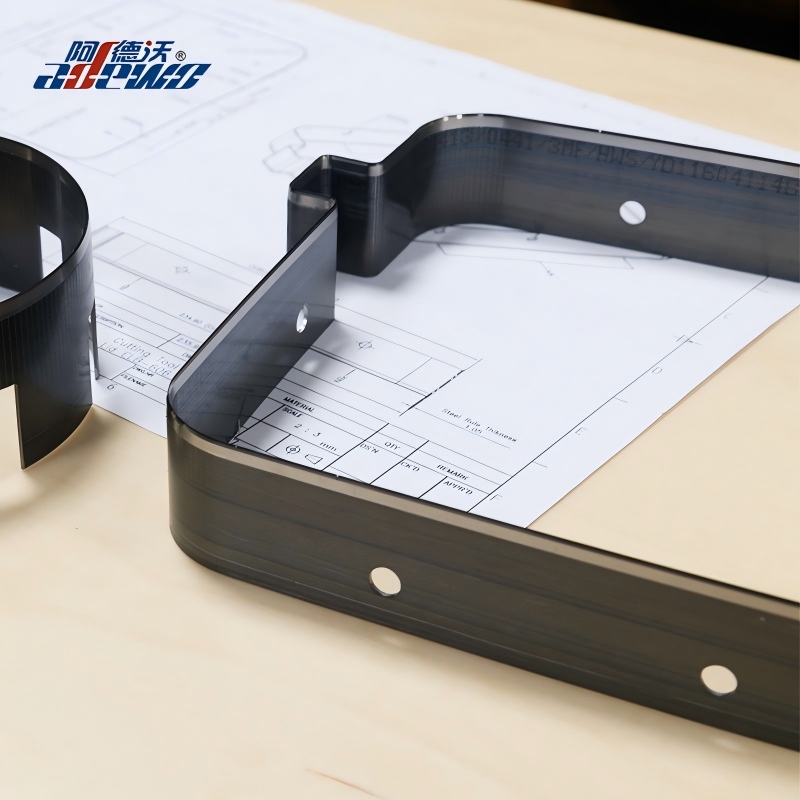

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.

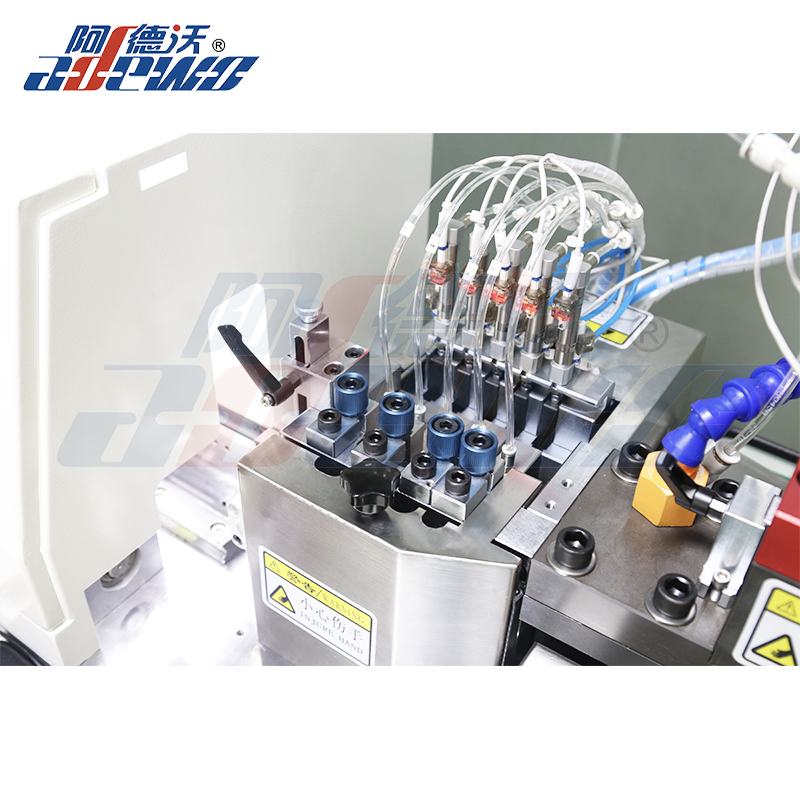

2.Multi-Punch tool for choice:Lipping,Mold Cut, Bridge,Hole or Perforation, independent tool, easy toreplace.

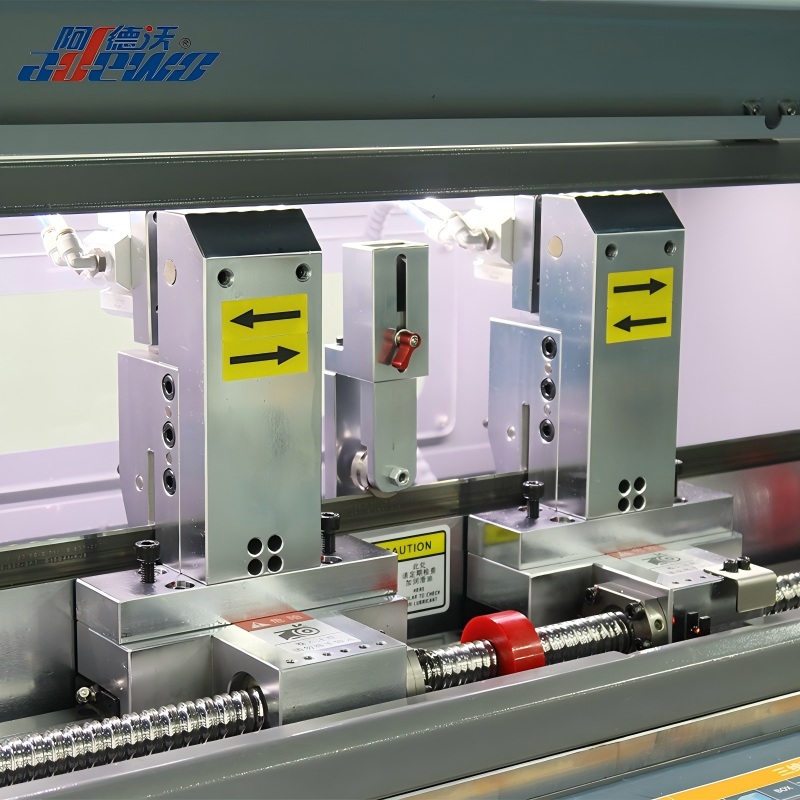

3.Double clamps,screw guide feeding continuously, improves work efficiency.
4.Smart software,easy to operate, multi language available.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm (2pt&3pt&4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. (Can be customized) |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Nicking,Lipping,Mold Cut, Flat Cut |
|
Optional Functions |
Perforation/Hole |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
528KG |
|
Overall dimension |
2850x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
Our technical service is always available at services@china-adewo.com
