(ABM-832A1) Auto Bender Machine for Die Cutting included functions：Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 0.71,1.05mm(2pt&3pt),height 8-32mm. China Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.

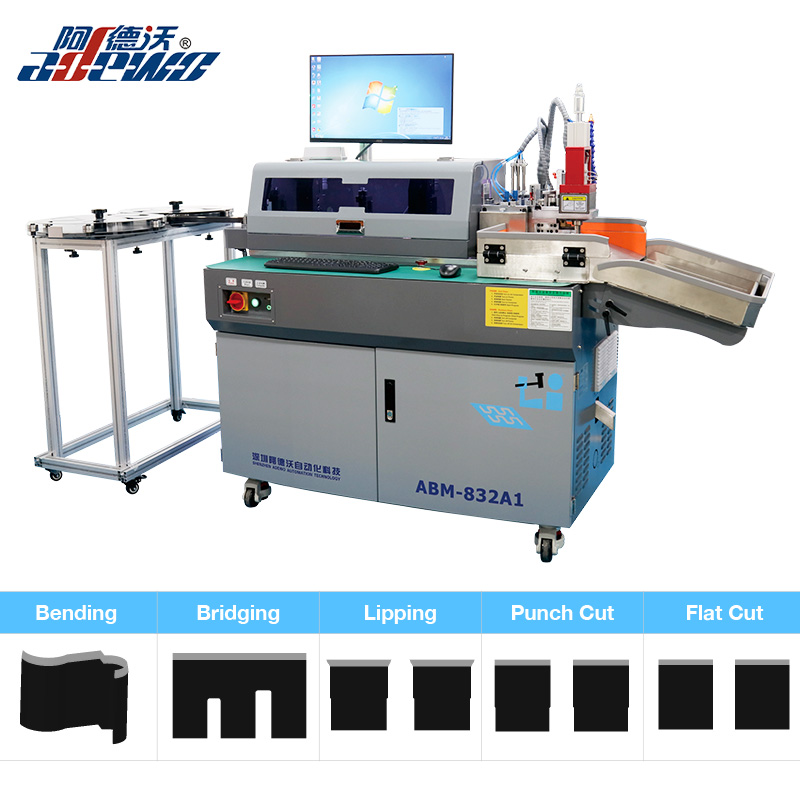

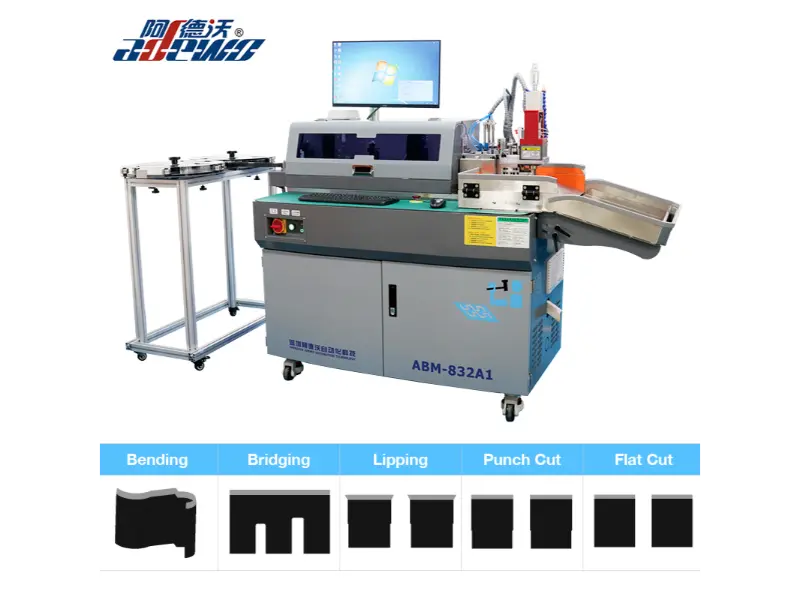

(ABM-832A1)Auto Bender Machine for Die Cutting

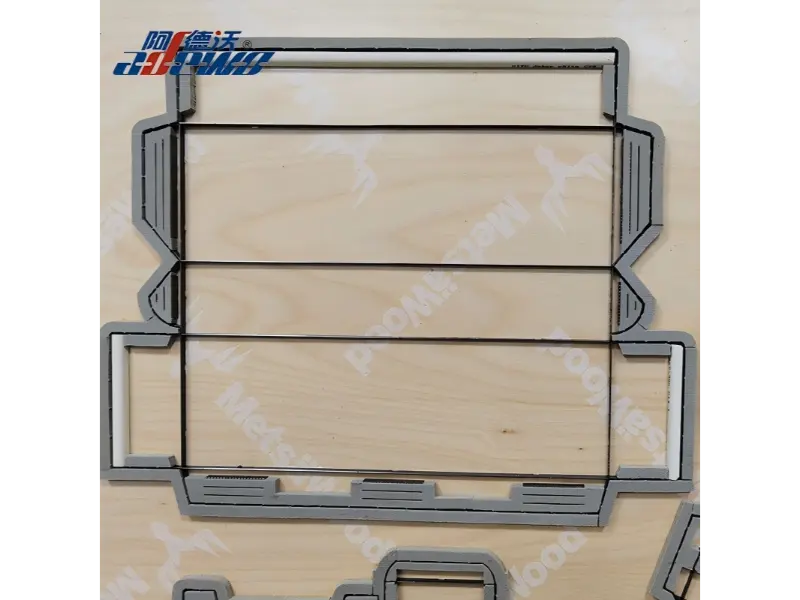

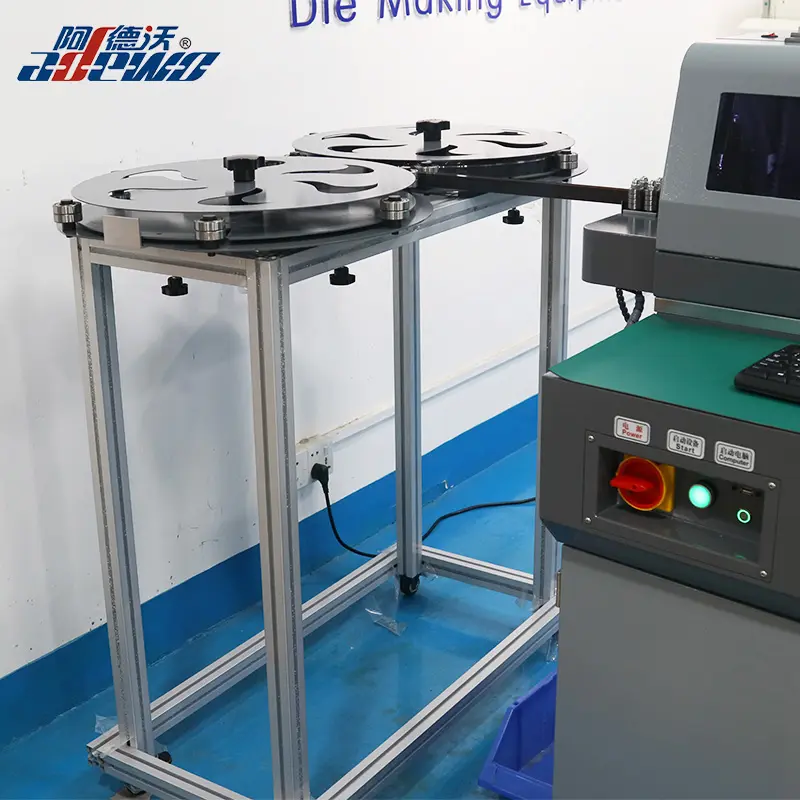

Picture of (ABM-832A1)Auto Bender Machine for Die Cutting with Perforation for reference:

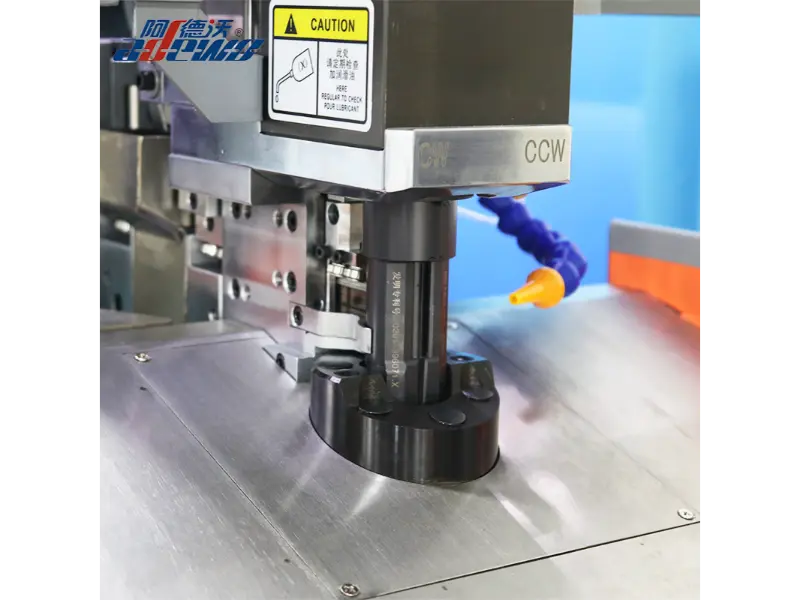

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting

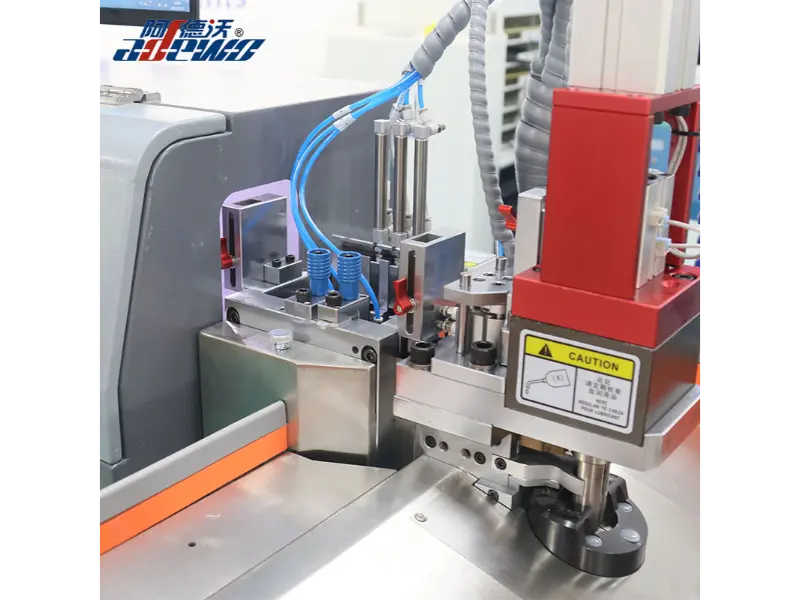

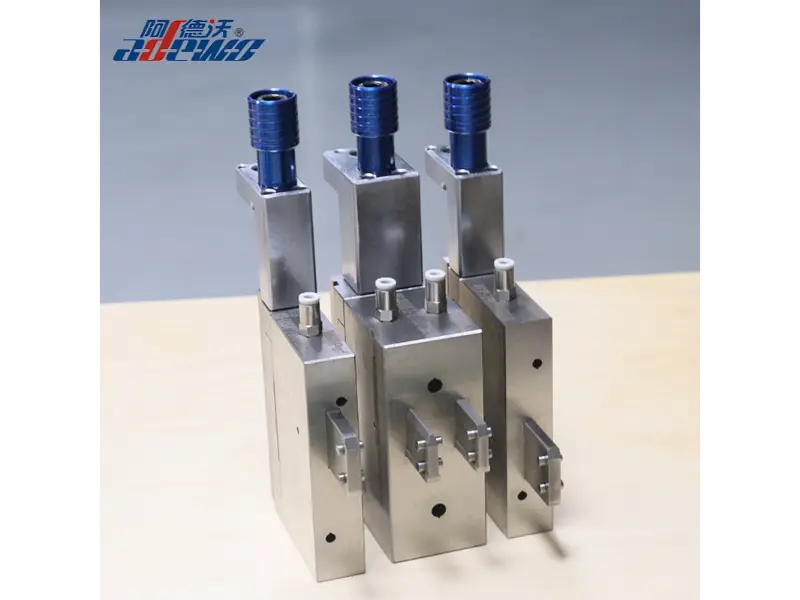

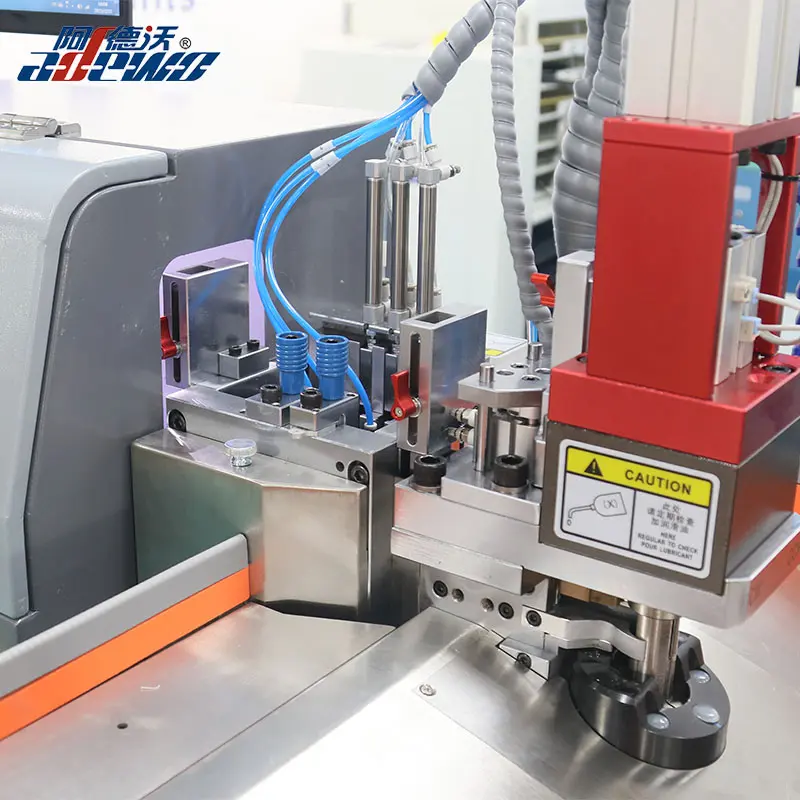

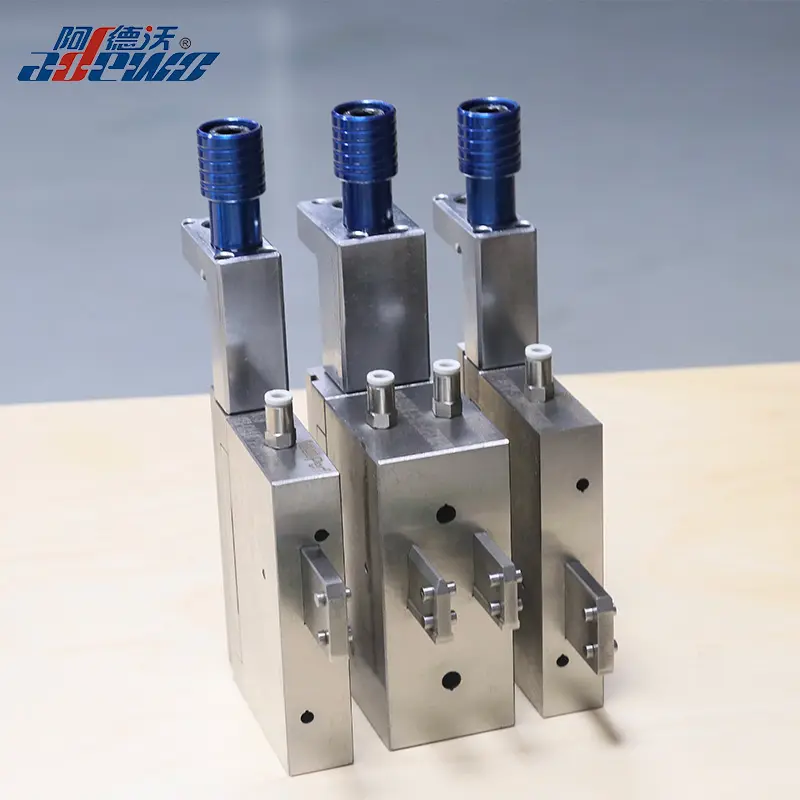

2.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation, independenttool, easy to replace.

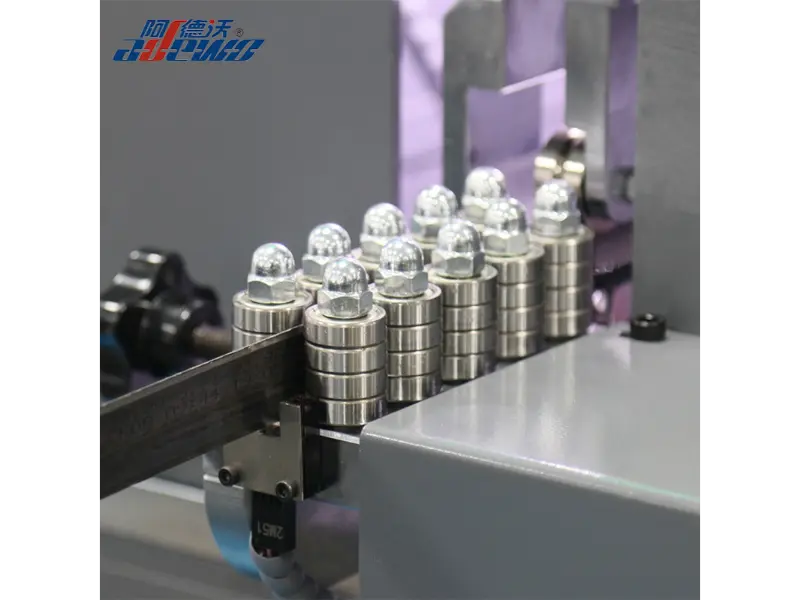

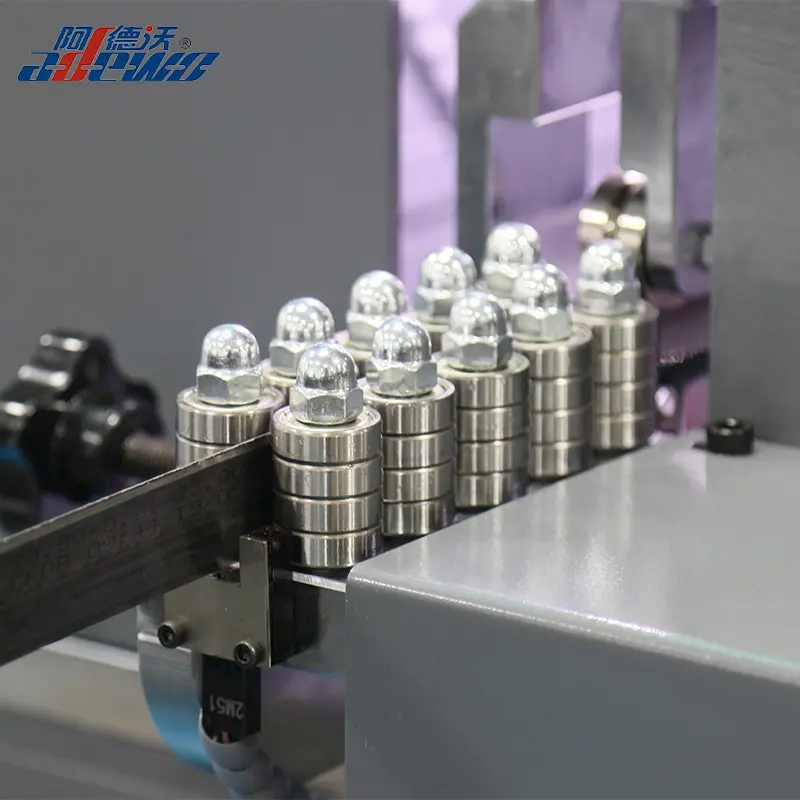

3.Double clamps,screw guide feeding continuously, improves work efficiency.
4.Small footprint,save space,cost effective.
|
Supported rule thickness(mm) |
0.45, 0.53, 0.71, 1.05mm |
|
Supported rule height(mm) |
8-32mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. (Can be customized) |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Lipping,Cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
480KG |
|
Overall dimension |
2600x750x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |

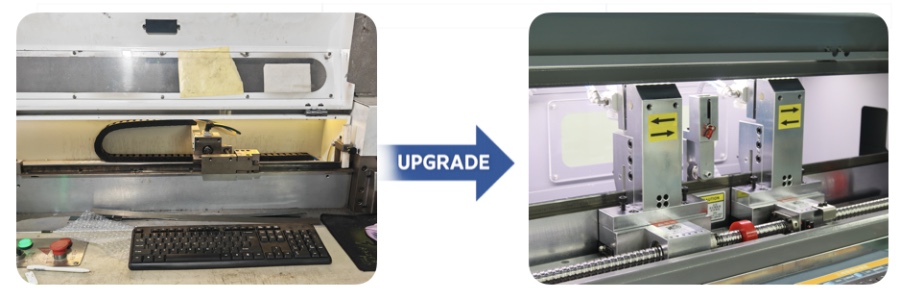

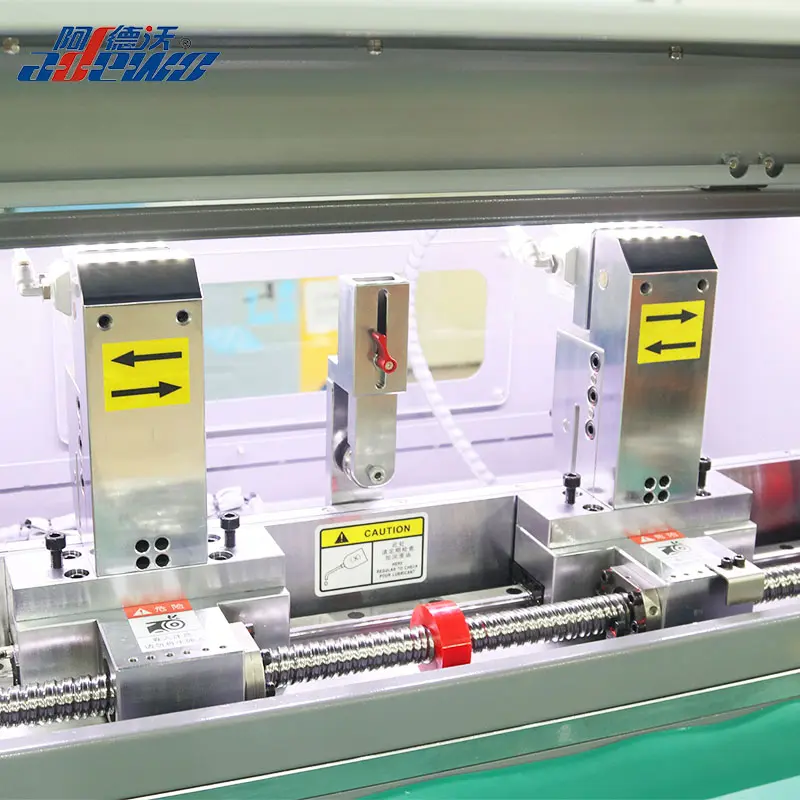

1. Feeding System Upgrade
From Single Clamp Feeding to Double Clamp Screw Feeding
Traditional Auto Bender:
Older machines commonly used a single clamp feeding system.
Limitations:
Modern Auto Bender:
New-generation machines use a double clamp screw feeding system.
Advantages:
✔ Stronger grip on steel rules
✔ More stable feeding
✔ Higher bending accuracy
✔ Better repeatability
This improvement is especially important for continuous production and precision die manufacturing.

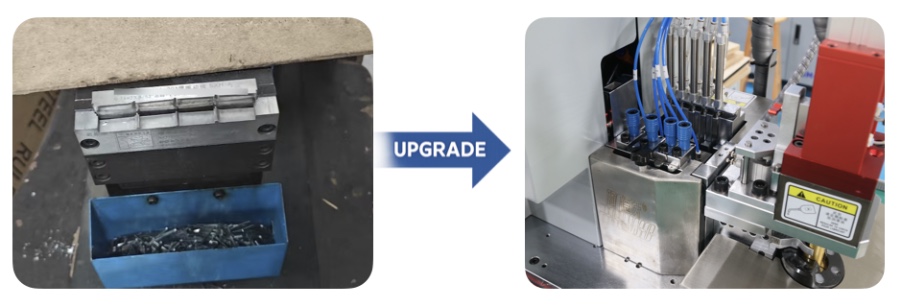

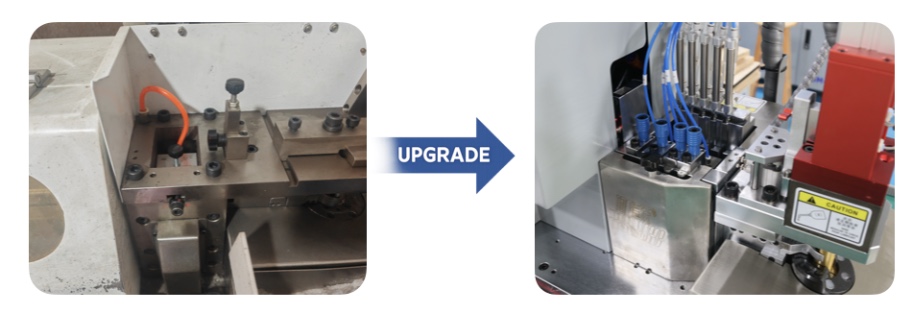

2. External Lipping Tool to Automatic Lipping Processing
Traditional Design:
Older machines required operators to install external Lipping tools manually.
Problems:
Modern Automatic Lipping System:
The new generation of automatic rule bending machines integrates automatic Lipping
Benefits:
✔ Faster setup
✔ More consistent processing
✔ Reduced operator dependence
✔ Improved production efficiency
3. Single Bridge Function to Multi-Function Processing System
Ten years ago, many automatic benders mainly focused on basic bending and simple bridge processing.
