Basic Model Auto Bender Machine

(ABM-832A1)Basic Model Auto Bender Machine included functions：Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 0.71,1.05mm(2pt&3pt),height 8-32mm. China Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.

Model:ABM-832A1

Send Inquiry

Product Description

(ABM-832A1)The Basic Model Auto Bender Machine

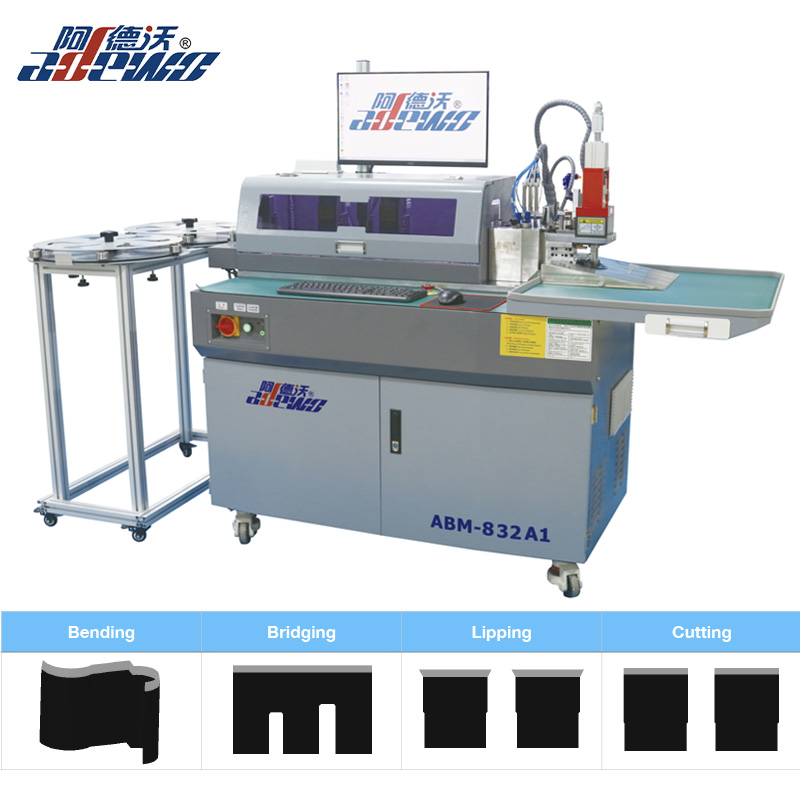

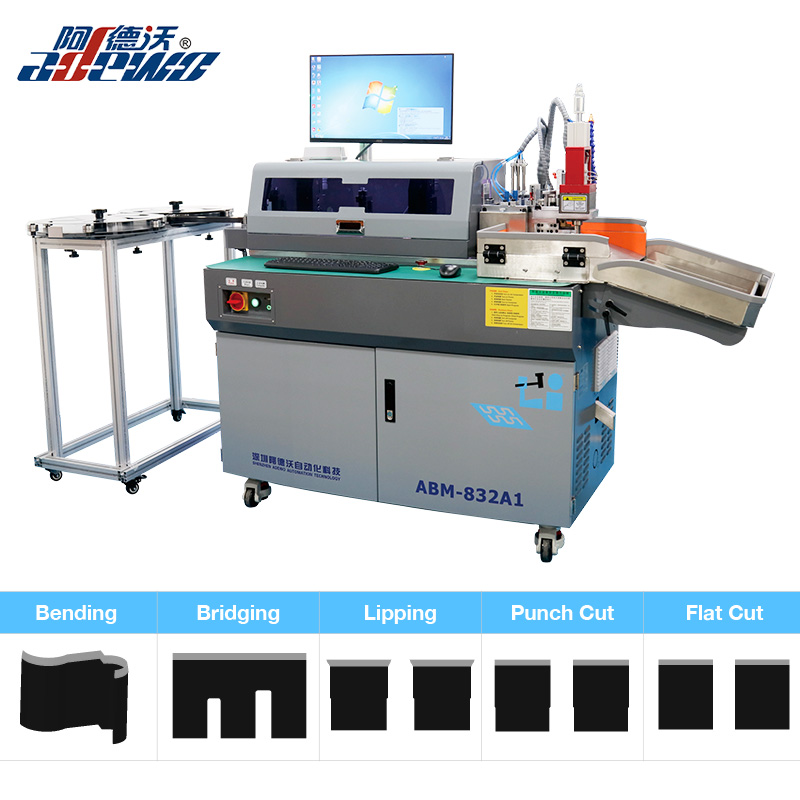

Picture of (ABM-832A1)The Basic Model Auto Bender Machine with Perforation for reference:

Product Features:

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting

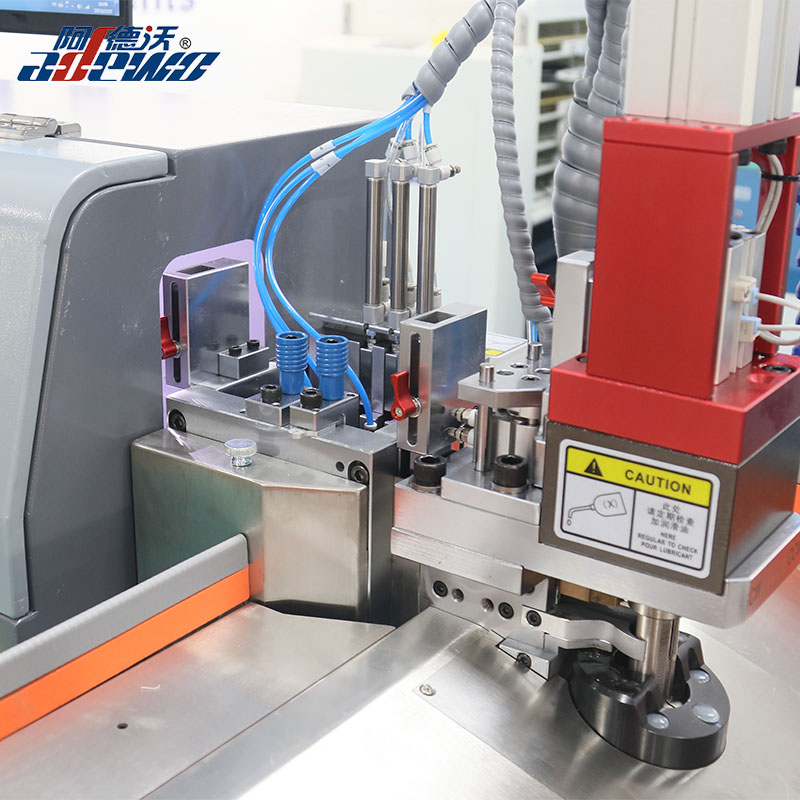

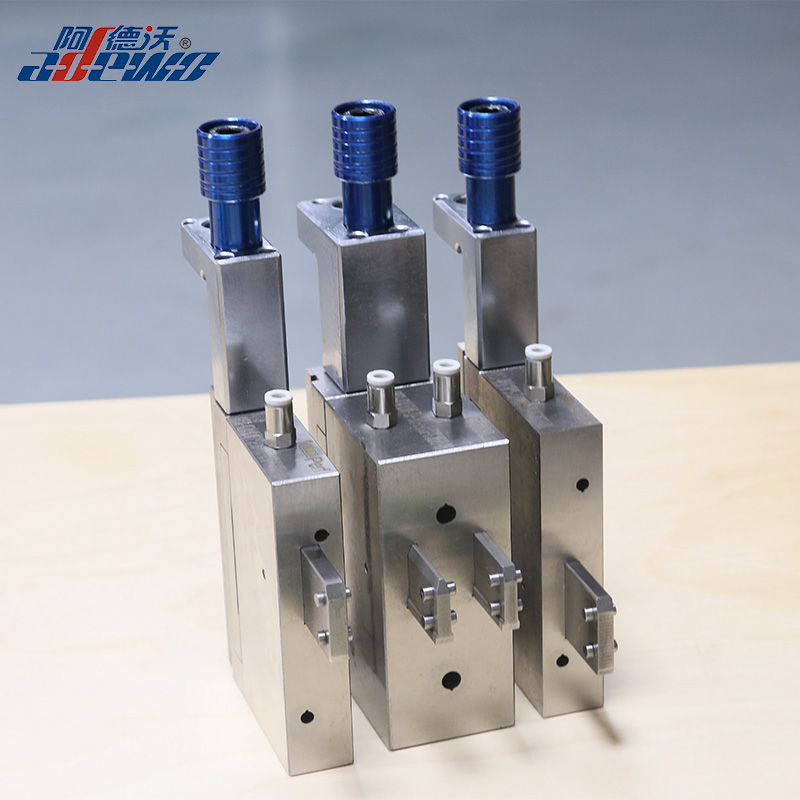

2.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation, independenttool, easy to replace.

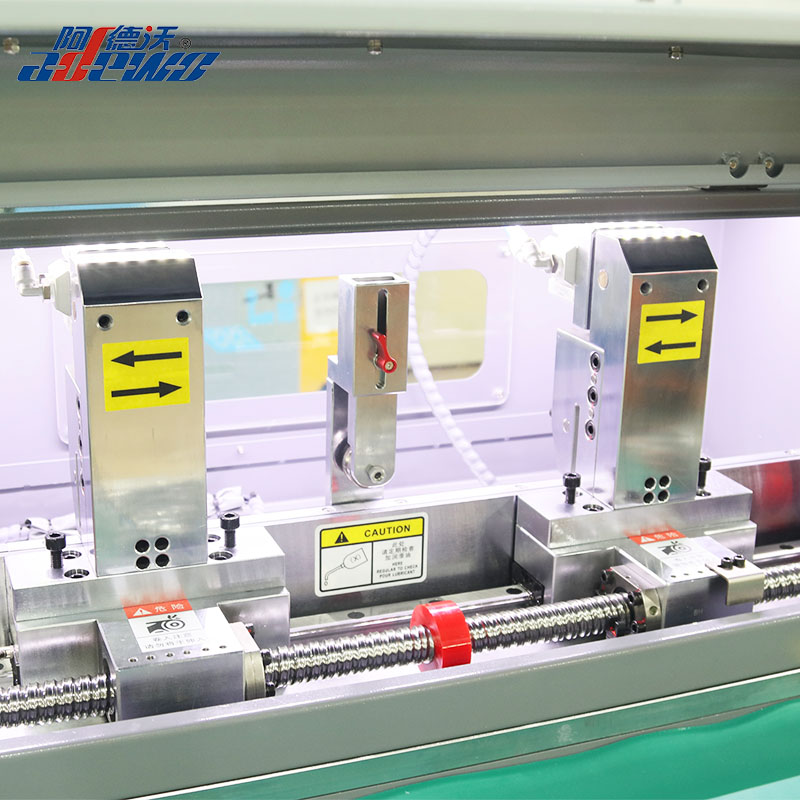

3.Double clamps,screw guide feeding continuously, improves work efficiency.

4.Small footprint,save space,cost effective.

Technical Parameters of (ABM-832A1)The Basic Model Auto Bender Machine

Supported rule thickness(mm)	0.45, 0.53, 0.71, 1.05mm
Supported rule height(mm)	8-32mm
Bridge height	18mm&15mm adjustable
Bridge width	Over 5mm any sizes available. (Can be customized)
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	0.2mm
Basic Functions	Bending,Bridge,Lipping,Cutting
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8MPa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	480KG
Overall dimension	2600x750x1600mm(LxWxH)
H.S. Code	8462230000

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time?
7-10 working days.

4.How about installation and training of (ABM-832A1)The Basic Model Auto Bender Machine？
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of The Basic Model Auto Bender Machine?
Yes,the new order machine with free spare tools.
