Basic Cutting Dies Auto Bending Machine

(ABM-8105A) Basic Cutting Dies Auto Bending Machine

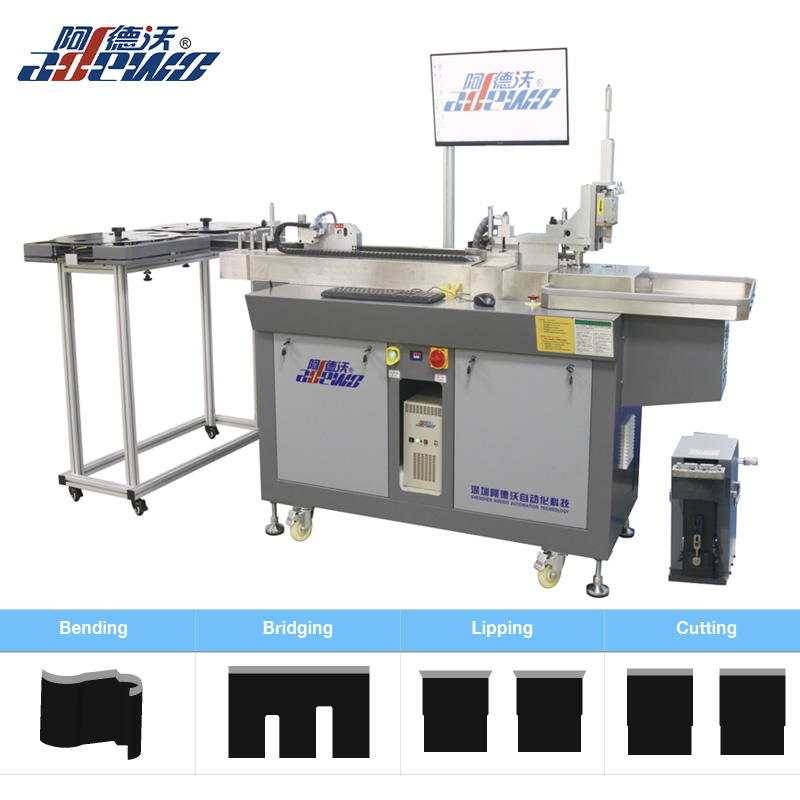

Picture of (ABM-8105A)Basic Cutting Dies Auto Bending Machine for reference:

Product Features:

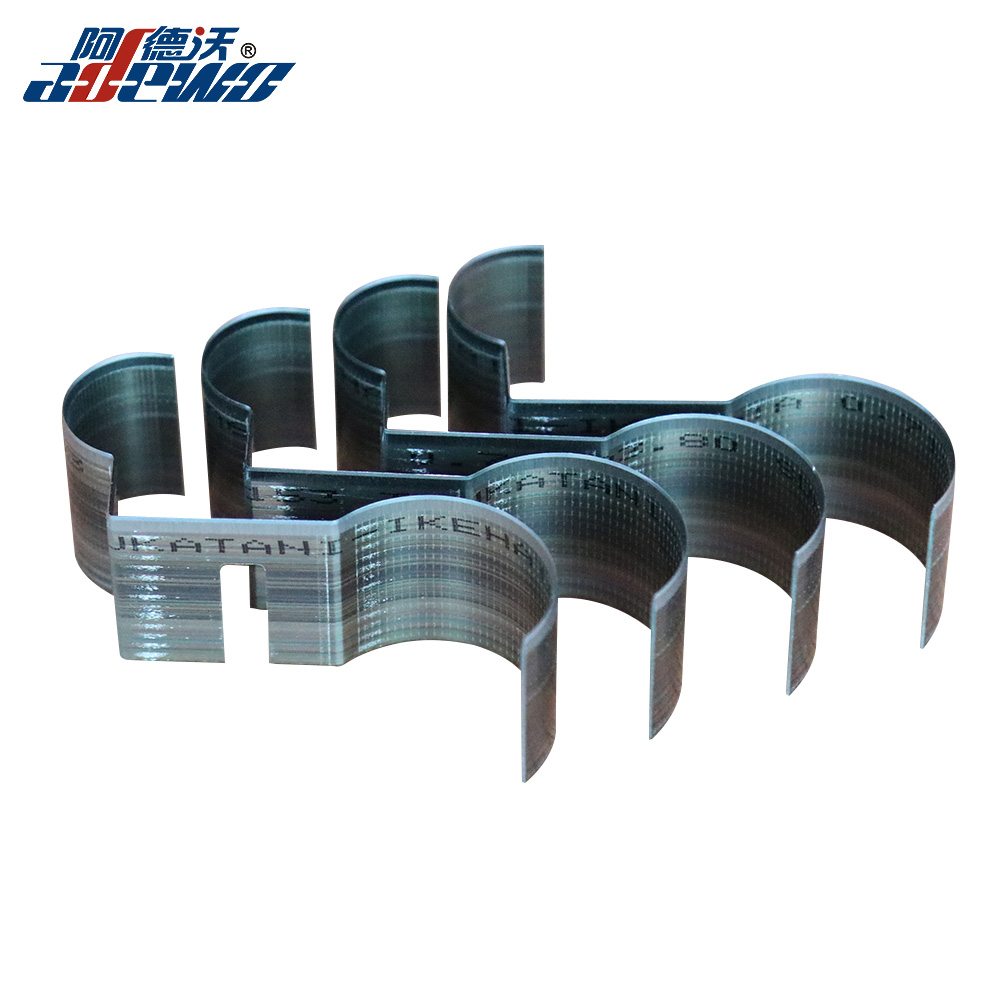

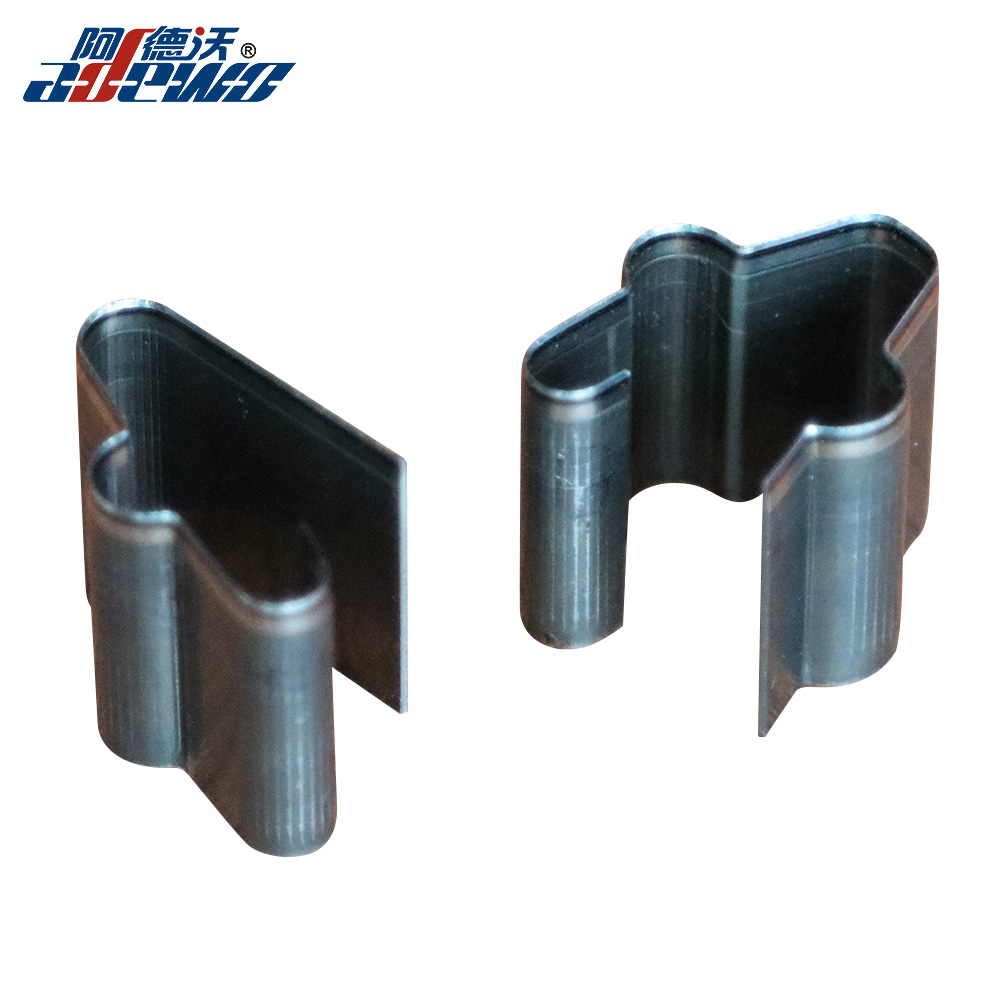

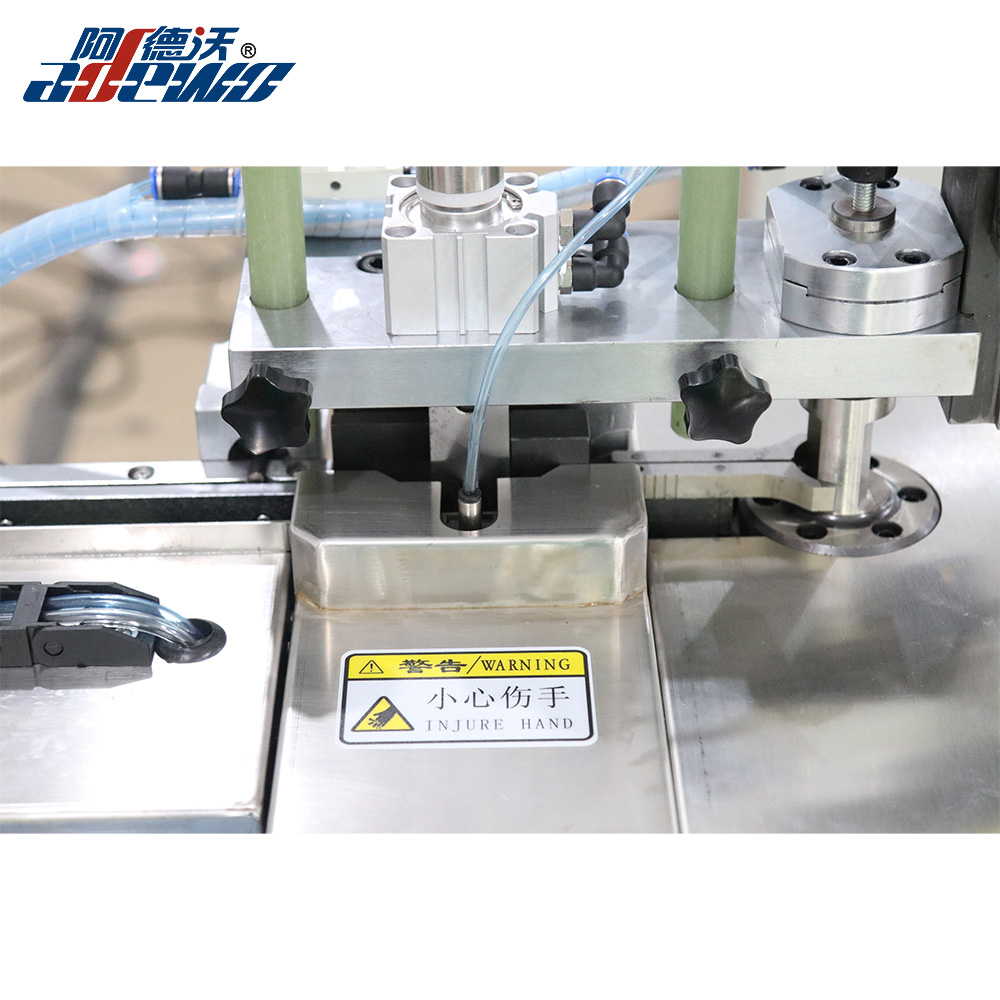

1.Multi-Functions：(ABM-8105A) Basic Cutting Dies Auto Bending Machine with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.

2.(ABM-8105A)Basic Cutting Dies Auto Bending Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.

3.Smart software and easy to operate, multi language operations;

4. Save production time and easy for die making by (ABM-8105A) Basic Cutting Dies Auto Bending Machine.

5.(ABM-8105A) Basic Cutting Dies Auto Bending Machine apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.

Technical Parameters of (ABM-8105A) Basic Cutting Dies Auto Bending Machine :

Supported rule thickness(mm)	0.45/0.71/1.05mm
Supported rule height(mm)	8-30mm
Bridge height	15-18mm
Bridge width	Over 5mm any sizes available. (customizable）
Min. ARC radius of 90 degree	±0.3MM
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	Bending, Bridging,Offline Pneumatic lipping, Cutting
Cutting methods	Twist off and Auto flat cutting
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8mpa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	458KGS
Overall dimension	2.1×0.81×1.22m(L×W×H)
H.S. Code	8462219000



FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of (ABM-8105A) Basic Cutting Dies Auto Bending Machine ?
7-10 working days.

4.How about installation and training of (ABM-8105A) Basic Cutting Dies Auto Bending Machine ?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of (ABM-8105A) Basic Cutting Dies Auto Bending Machine ?
Yes,the new order machine with free spare tools.

6.Application
•Puzzles
•Gaskets
•Folding Cartons
•Corrugated Boxes
•Cardboard
•Etc…
