(ABM-832B1) Multi-Functions Auto Bender Machine included basic functions：Bending,Nicking, Bridge, Lipping, Mold Cut, Flat Cut. Supported steel rule thickness 0.45, 0.53, 0.71,1.05mm(1pt&1.5pt&2pt&3pt),height 8-32mm. China Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.
Optional Rule Thickness:
1pt/1.5pt/2pt/3ptSupported Rule Height:
8-32mmBasic Functions:
Bending,Bridging,Lipping,Mold Cut,Flat Cut,NickingOptional Functions:
Perforation,HoleIf you are in the packaging industry or serve packaging‑related sectors,
we would like to recommend our 832B1.

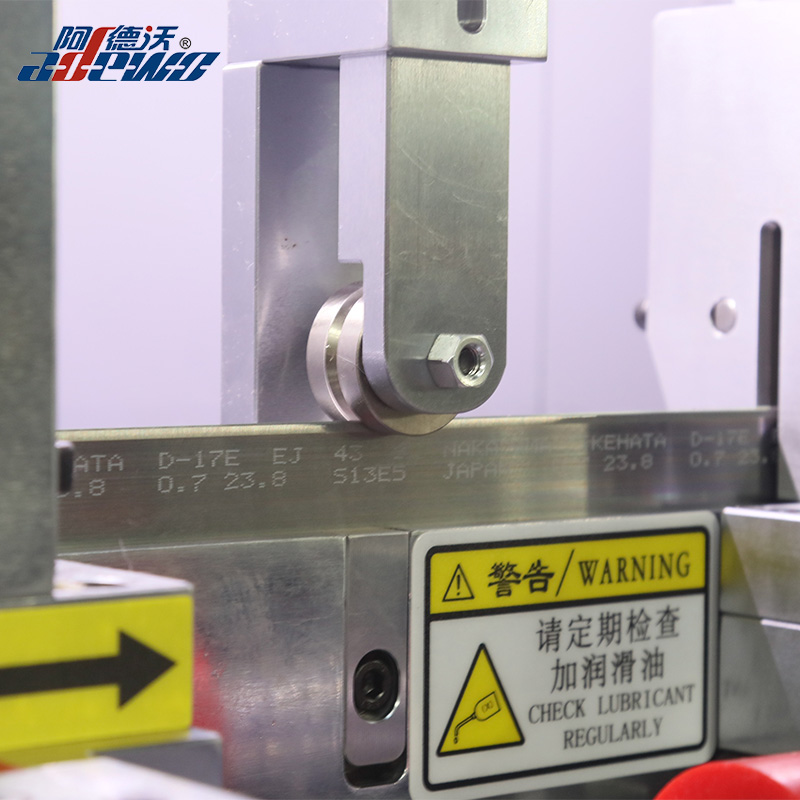

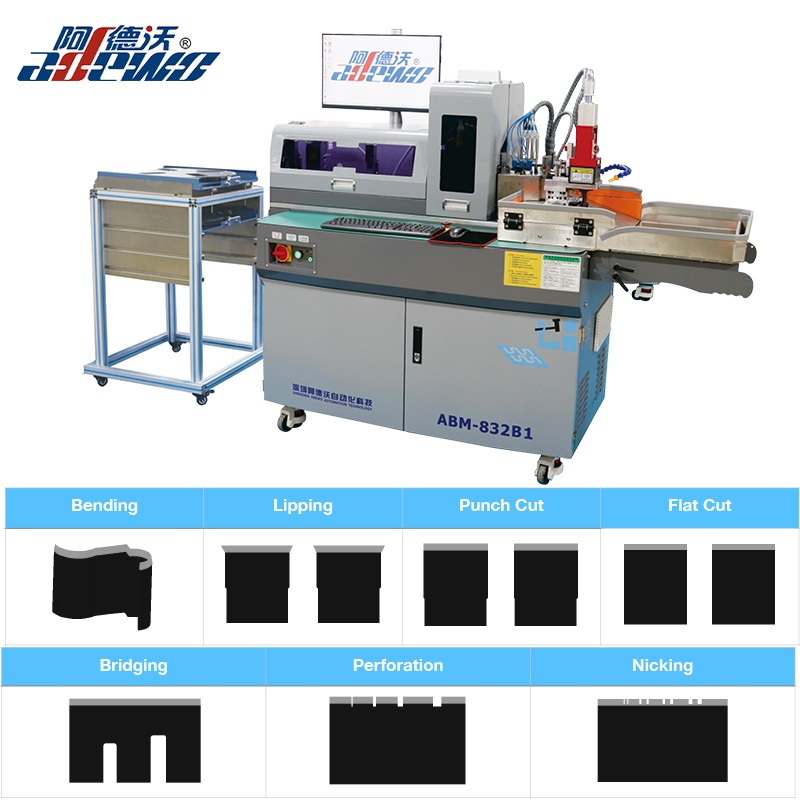

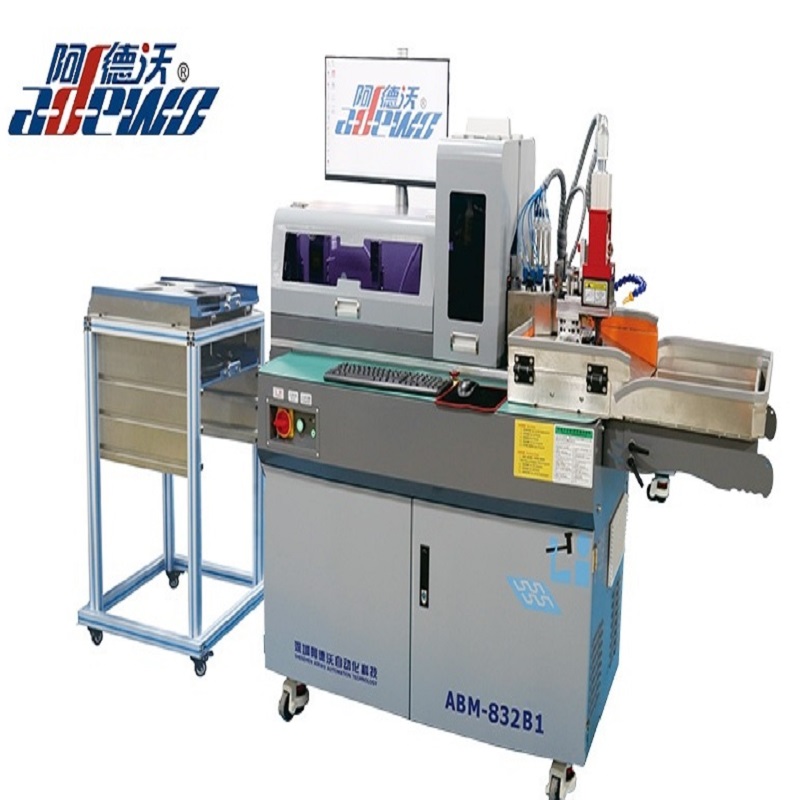

Picture of (ABM-832b1)Multi-Functions Auto Bender Machine for reference:
Technical Parameters:
| Optional Rule Thickness | 0.45/0.53/0.71/1.05mm |
| Supported Rule Height | 8-32mm |
| Front Min. Bending Size | 1.5mm |
| Back Min. Bending SIze | 1.0mm |
| Feeding Precision |
±0.03mm |
| Bending Flatness | 0.2mm |
| Basic Functions | Bending,Bridging,Mold Cut,Flat Cut,Lipping,Nicking |
| Optioanl Functions | Perforation,Hole |
| Supported File Supply | DXF,DWG |
| Air Supply | 0.4-0.8Mpa |
| Power Supply | AC 220V,13.6A,50-60Hz |
| Total Power | 3KW |
Compared to the A series, the B1 adds a Nicking function — a process that is critically important in packaging production, as it significantly improves folding accuracy and downstream efficiency. Built upon the cost‑effective reliability of the A series, the B1 completes the most essential link in your packaging line.
Feature:
1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.
2.Multi-Nicking size for choice,minimum 0.2mm,the width and depth can be setting through software.

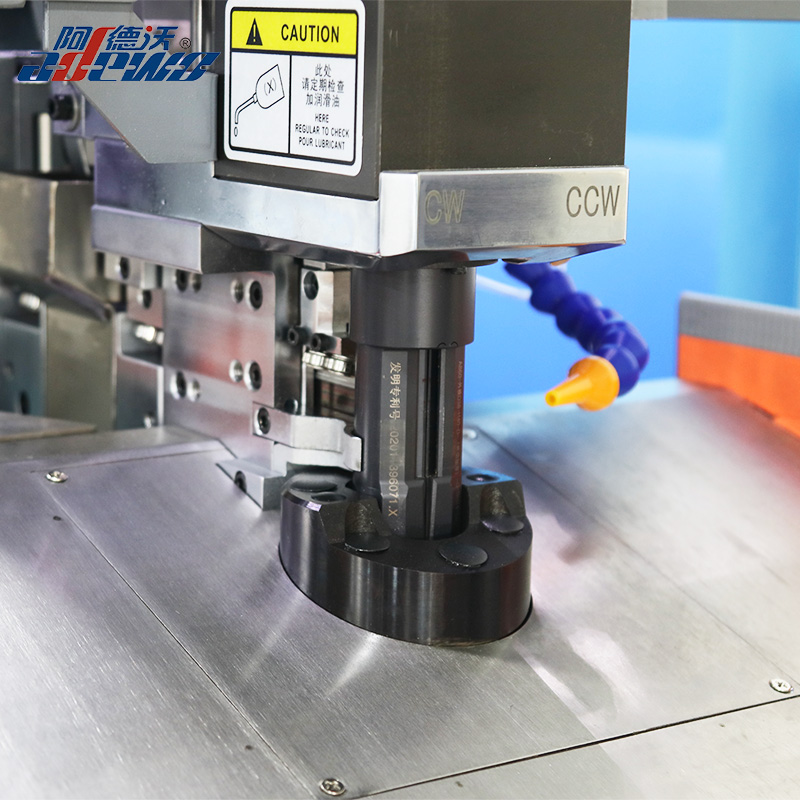

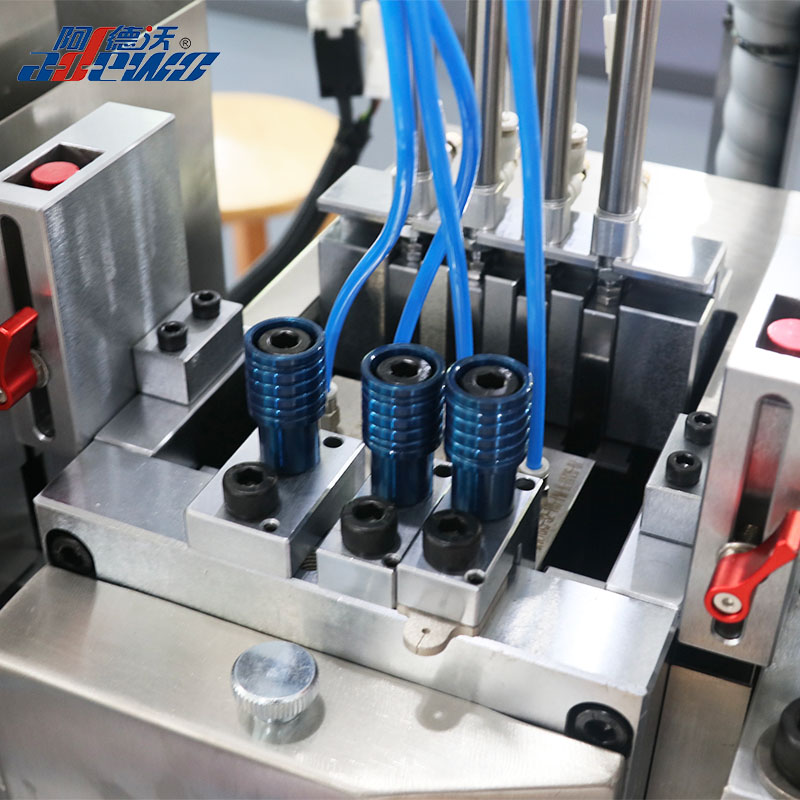

3.Multi-Punch tool for choice,:Lipping,Mold Cut,Bridge,Hole or Perforation,independent tool,easy to replace.

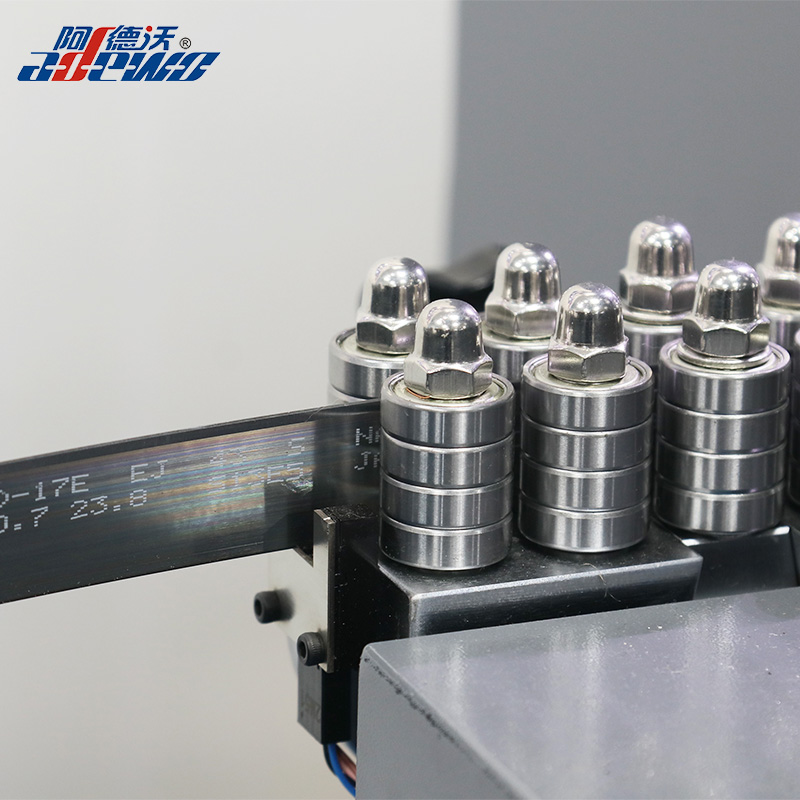

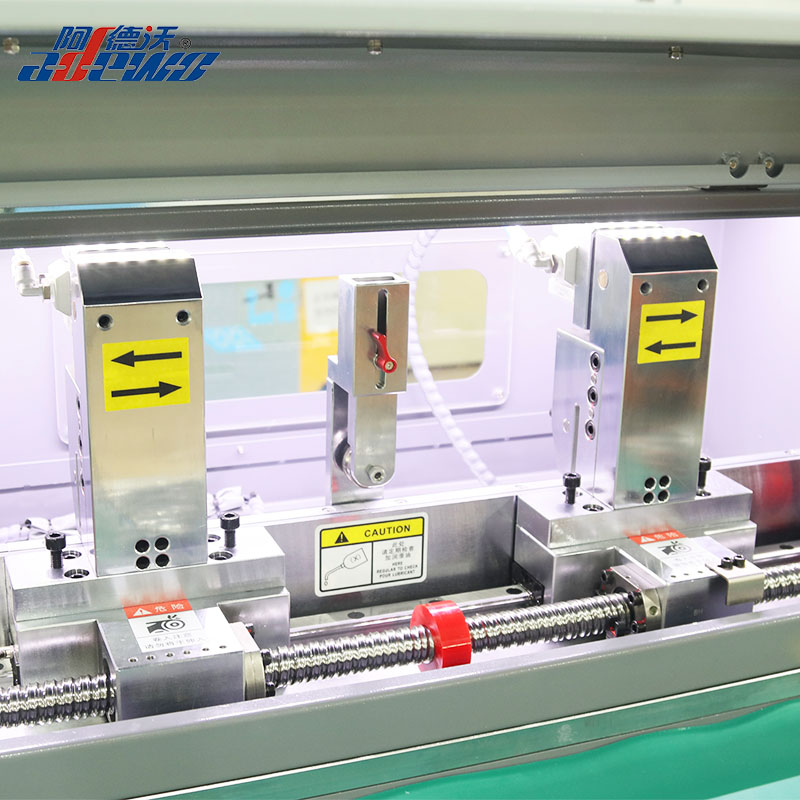

4.Double clamps,screw guide feeding continuously,improves work efficiency.
5.Small footprint ,save space cost effective.
FAQ；
Q:What is the minimum nicking depth achievable with the 832B1?

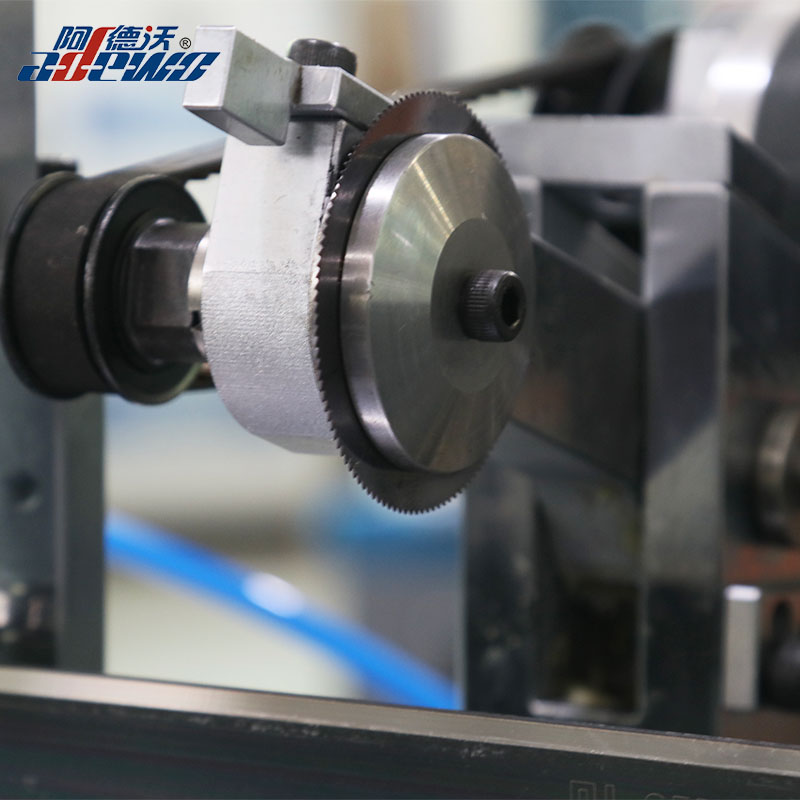

A:Auto Nicking done by tungsten steel saw disc.The minimum nicking 0.2mm;
Q:How to add Nicking?
A:there are two methods to set nicking.The first method :set nicking width by software.The second method :identify the marked line of nicking.
Q:Is the independent tool easier to replace?
A:Yes, absolutely. Our independent tool design makes changeovers remarkably simple — you only need to unscrew one single bolt and disconnect the air hose to remove the old tool; installing a new tool is equally quick. The entire process takes about one minute and requires no specialized maintenance technician — regular operators can handle it with minimal guidance, effectively reducing downtime and boosting production efficiency.
Q:If I switch from 3pt to 4pt rule , do I need to change the punch tool?
A: No, you don't. Our punch tool is designed with broad compatibility — within the rule height range of 23.8mm to 32mm, the same punch tool works perfectly without any additional purchase or replacement. You only need to swap the corresponding bending inner tool based on the rule thickness, which is a quick and straightforward operation.
Furthermore, if you desire even greater convenience and efficiency, we can also upgrade your machine to the Pro version upon request, offering a smarter automated adaptive solution for seamless production changes.
