2PT 3PT 4PT Steel Rule Auto Bender

(ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender included functions:Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 2pt ,3pt,4pt, height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-A8142

Send Inquiry

Product Description

(ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender

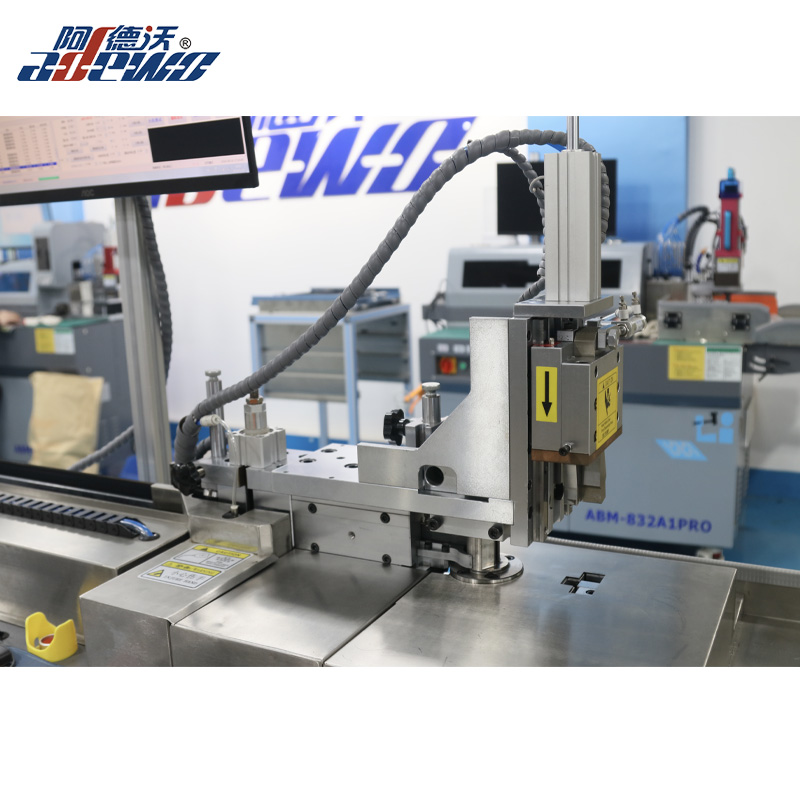

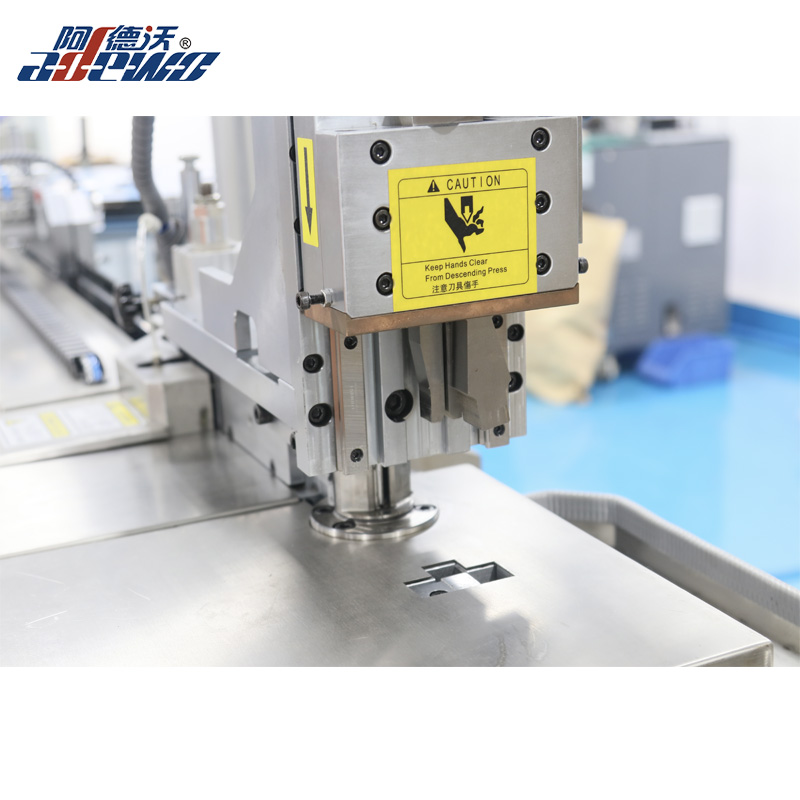

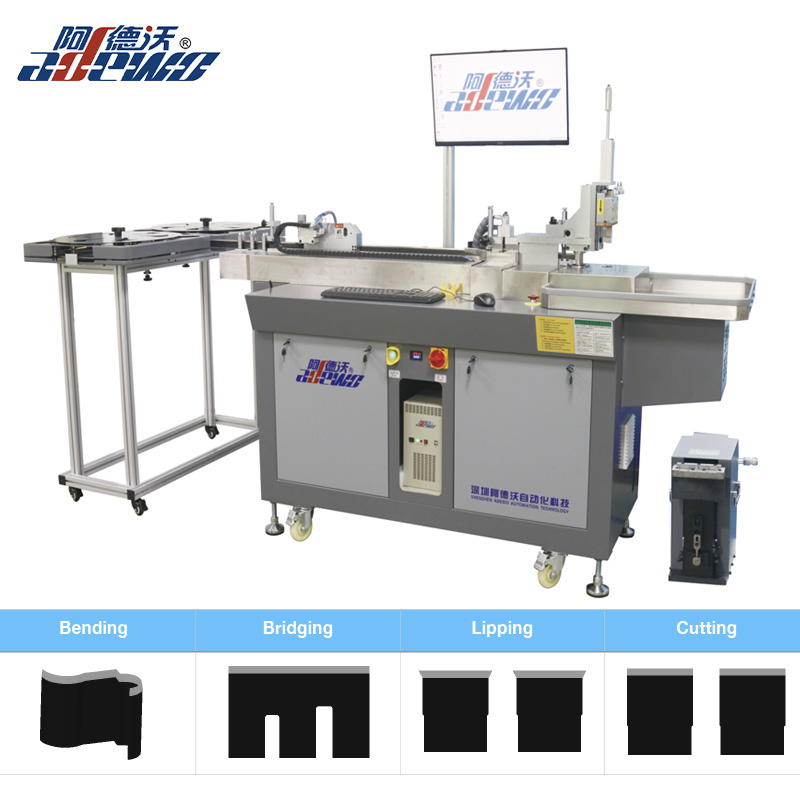

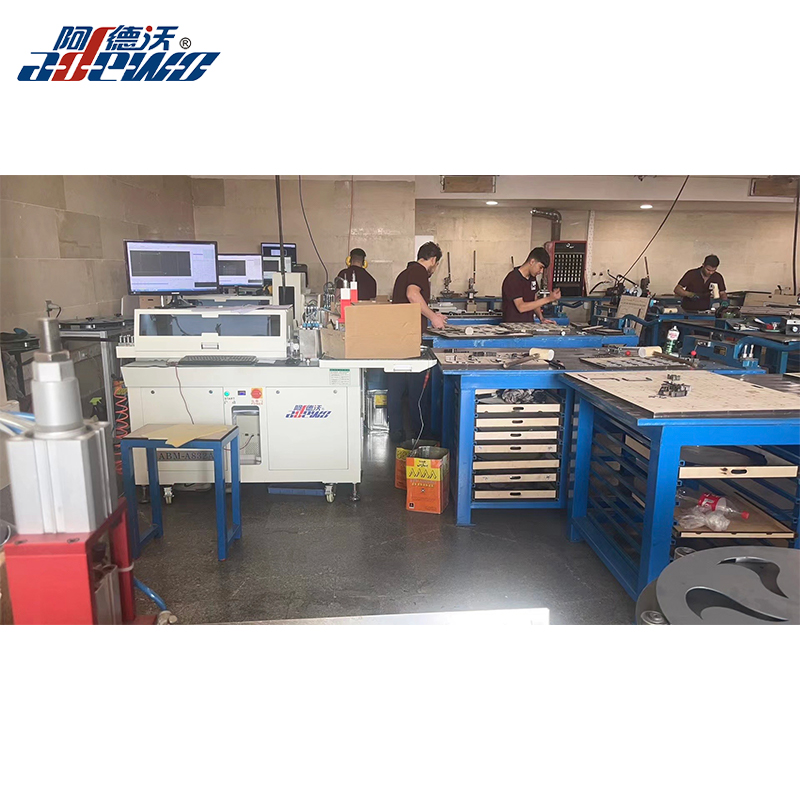

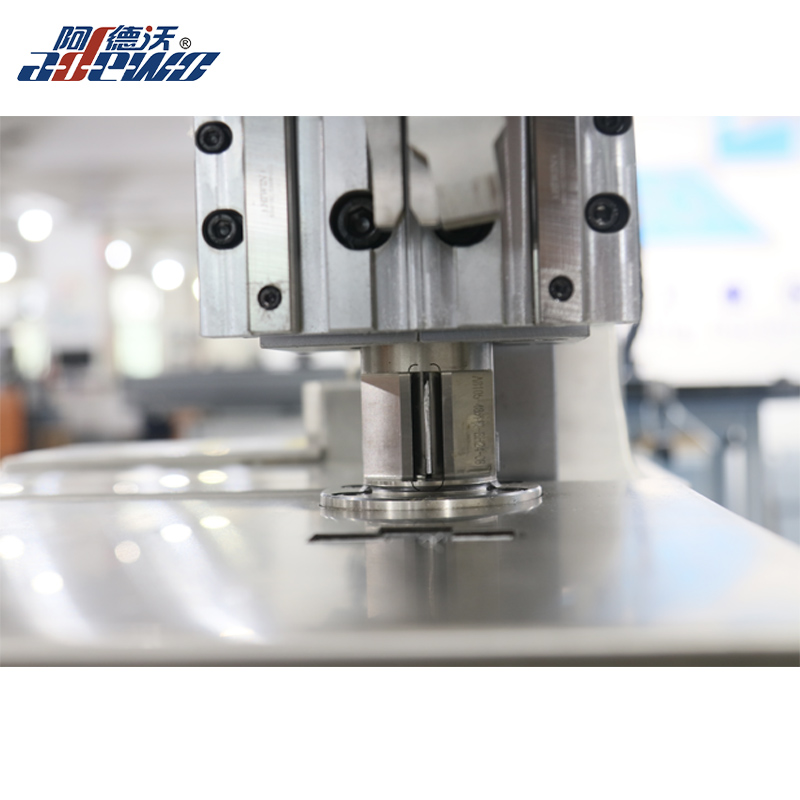

Picture of (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender for reference:



Product Features:

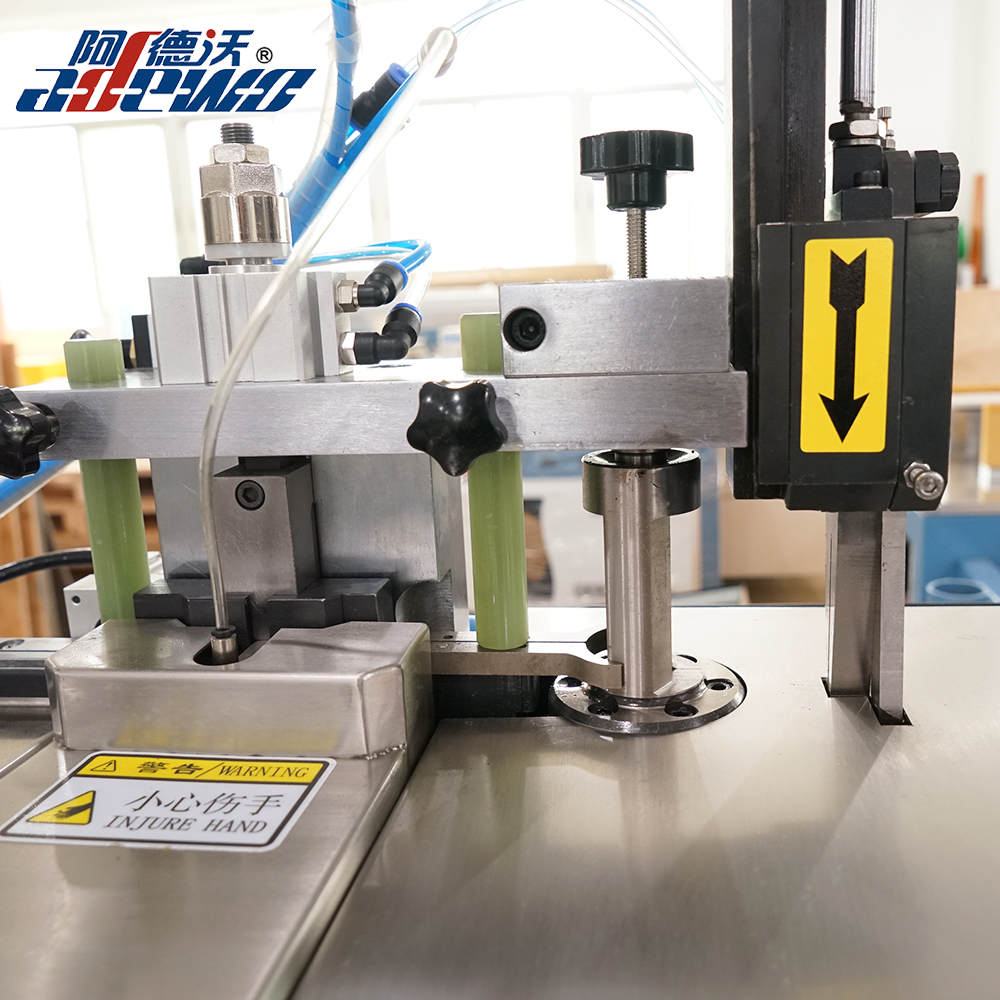

1.Multi-Functions:(ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.

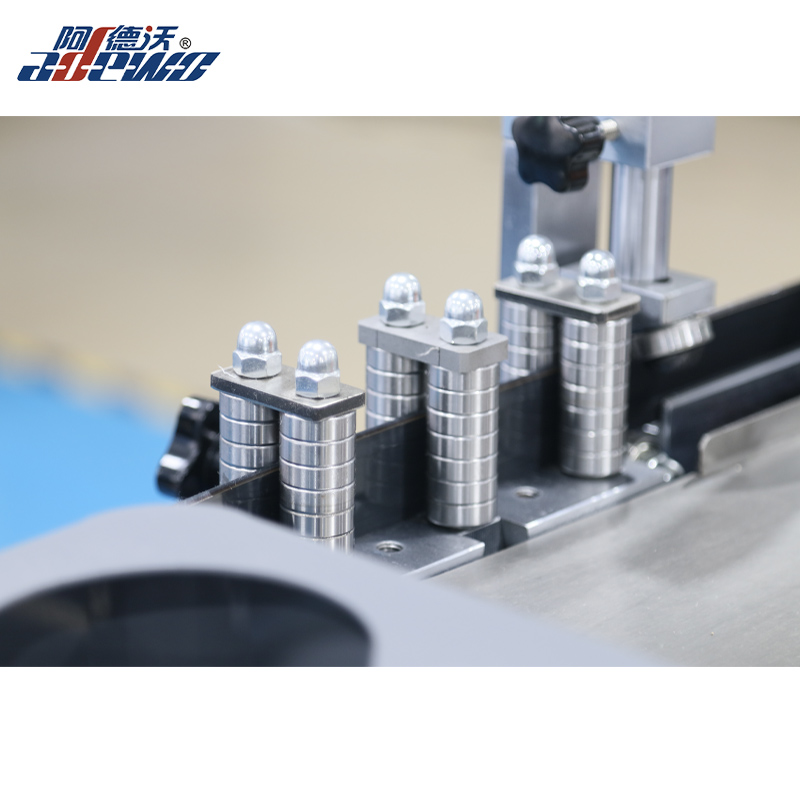

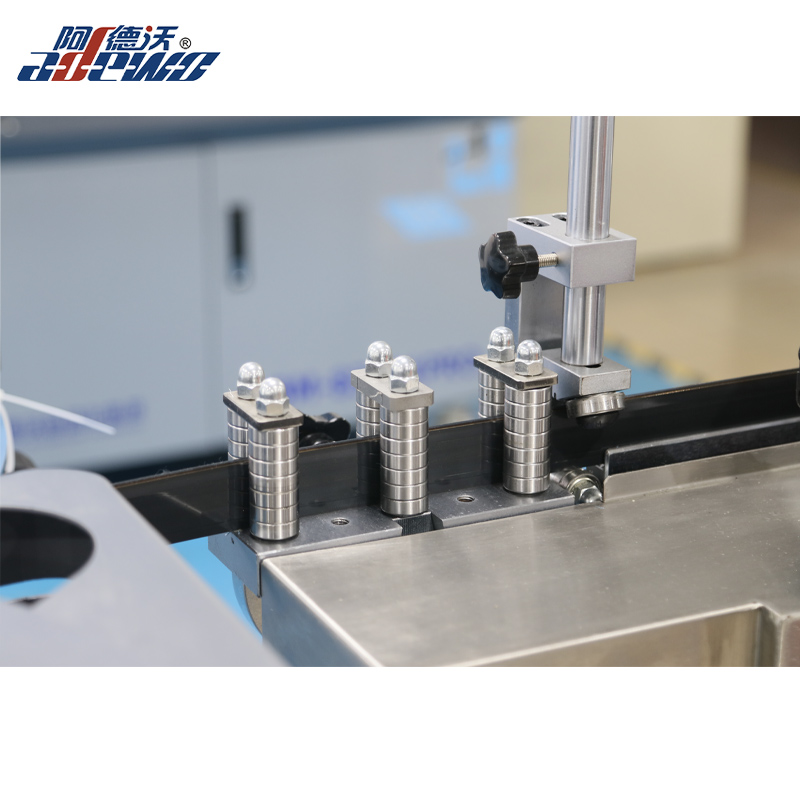

2.This (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender uses Panasonic Servo motor system, high precise ball-screw guide feeding system.


3.Smart software and easy to operate, multi language operations;


4. Save production time and easy for die making by (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender.


5.This (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.

Technical Parameters of (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender:

Supported rule thickness(mm)

0.71,1.05,1.42mm(2pt,3pt,4pt)

Supported rule height(mm)

23.80-60mm

Bridge height

13-19mm

Bridge width

Over 5.5mm any sizes available.

(customizable)

Min. ARC radius of 90 degree

±0.3MM

Front Min. bending size

1.5MM

Back Min. cutting size

1.0MM

Feeding precision

±0.03mm

Bending flatness

±0.2mm

Functions

Bending,Bridging,Cutting,Pneumatic Lipping

Cutting methods

Twist off and Auto flat cutting

Optimal pattern format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

Single Phase AC220V,13.6A,50-60Hz

Machine total power

3KW

Weight

458KGS

Overall dimension

2700x1050x1600(L×W×H)

H.S. Code

8462230000


FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender ?
7-10 working days.

4.How about installation and training of (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at [email protected]


5.Any spare tools are included of (ABM-A8142)2PT 3PT 4PT Steel Rule Auto Bender?
Yes,the new order machine with free spare tools.

6.Application

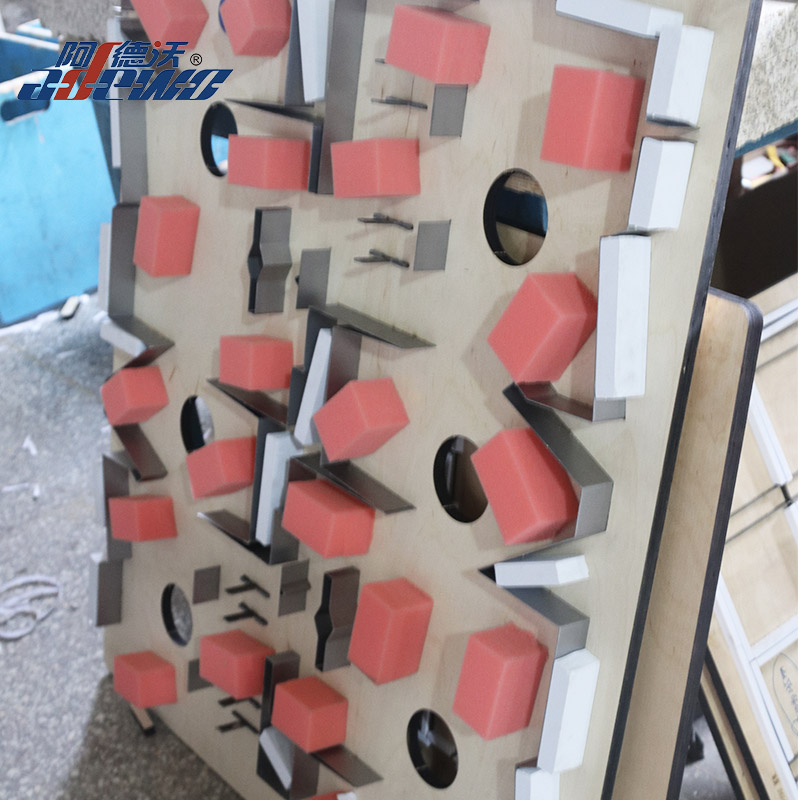

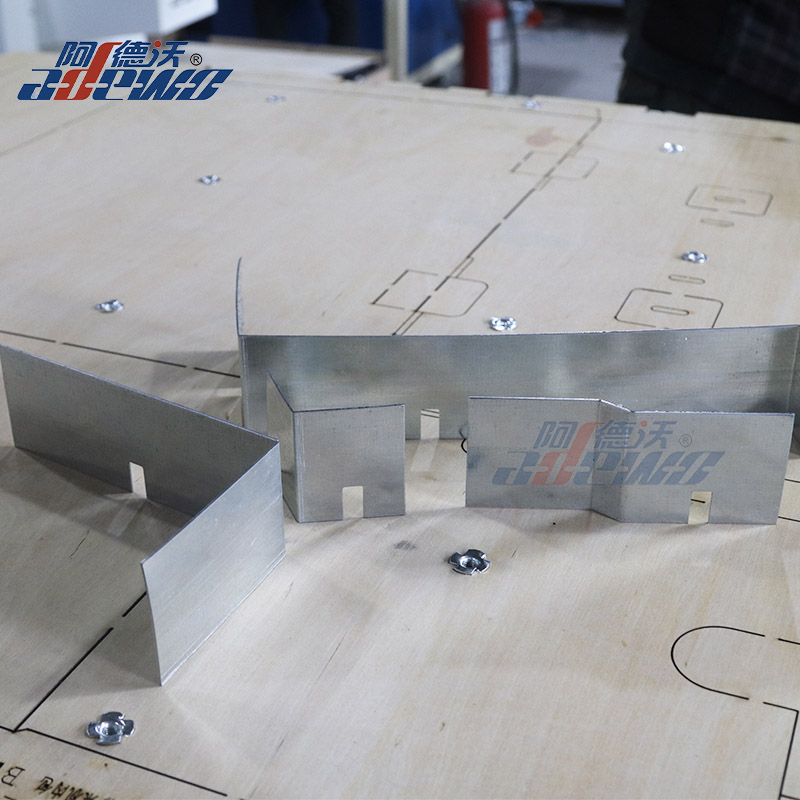

•Stripping Dies
•Rotary Dies
•Puzzles
•Gaskets
•Folding Cartons
•Corrugated Boxes
•Cardboard
•Etc…
