(ABM-832A3) Label Rule Auto Bending Machine – standard functions: Bending, Bridge, Lipping, Mold Cut, Flat Cut; optional functions: Perforation, Notch. Supported rule thickness: 0.45mm, height: 8-12mm. Supported file formats: DXF, DWG, CF2. Adewo has been successful for many domestic and foreign die making & printing companies to provide advanced Auto Bender Machines, cost effective, technical support and excellent after sales service.

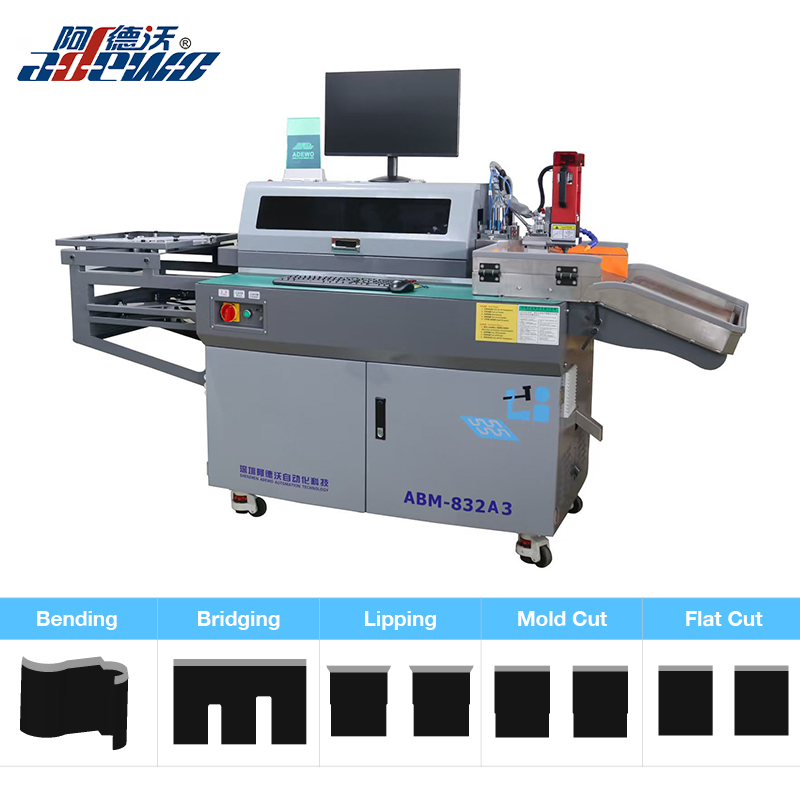

(ABM—832A3) Label Rule Auto Bending Machine

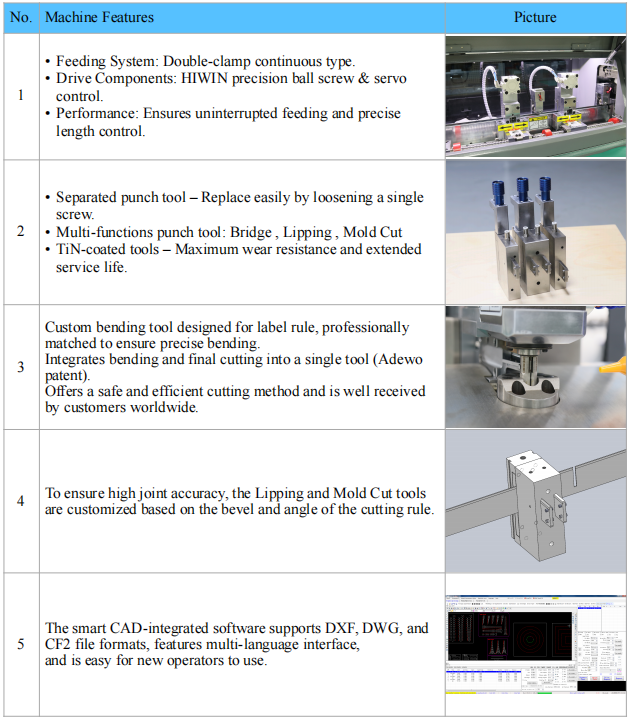

Features:

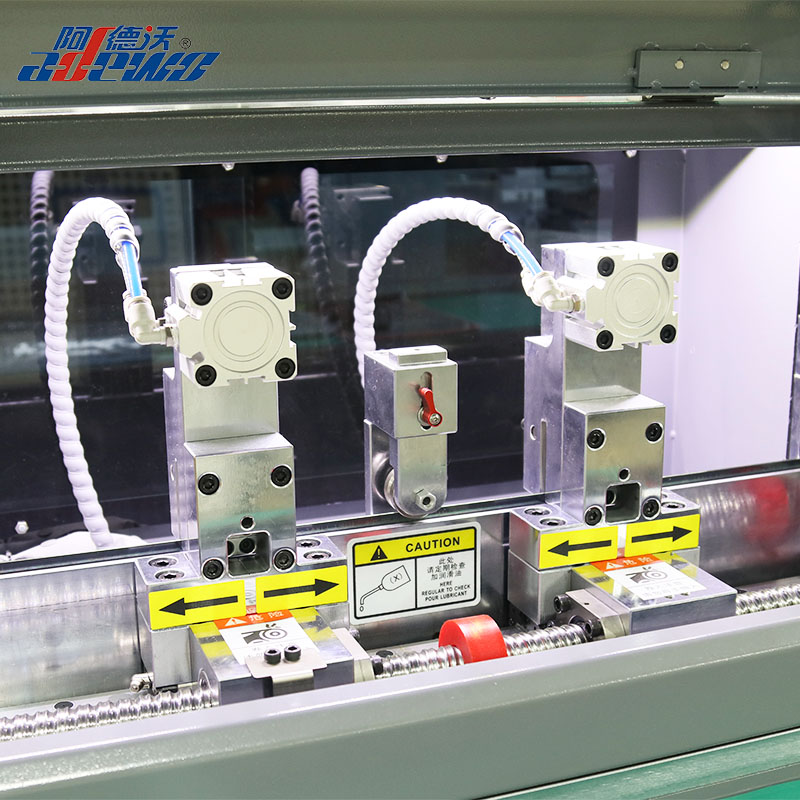

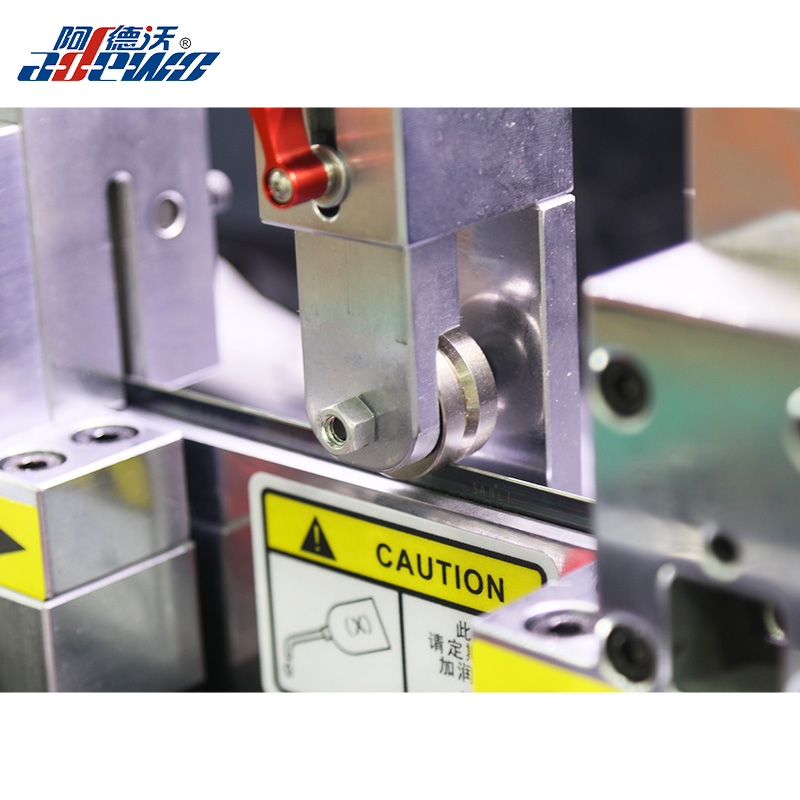

1. Double-clamp continuous feeding system with HIWIN precision ball screw & servo control – ensures uninterrupted feeding and precise length control.
2. Separated punch tool: easy replacement by loosening one screw; multi‑functions: bridge, lipping, mold cut; TiN‑coated for maximum wear resistance and extended service life.

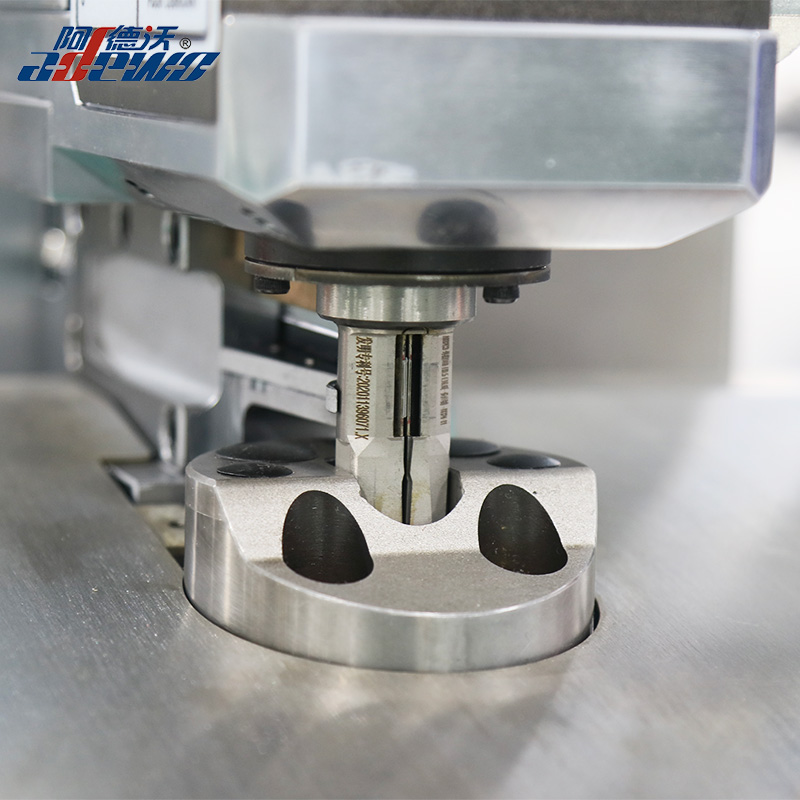

3. Custom bending tool for label rule – professionally matched for precise bending; integrates bending and final cutting in one tool (Adewo patent); offers safe, efficient cutting; well received by customers worldwide.
4. To ensure high joint accuracy, lipping and mold cut tools are customized based on the bevel and angle of the cutting rule.
5. Smart CAD‑integrated software supports DXF, DWG, CF2; multi‑language interface; easy for new operators to use.
Technical Parameters of ABM—832A3 Auto Bending Machine：
|
Supported Rule Thickness |
0.45mm |
|
Supported Rule Height |
8-12mm |
|
Front Min. Bending Size |
1.5mm |
|
Back Min. Bending Size |
1.0mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
0.2mm |
|
Basic Functions |
Bending, Bridge, Lipping, Mold Cut(Punch Cut), Flat Cut |
|
Optional Functions |
Perforation/Hole |
|
Supported File Formats |
DXF, DWG, CF2 |
|
Air Supply |
0.4-0.8Mpa |
|
Power Supply |
AC220V, 13.6A, 50-60Hz |
|
Total Power |
3KW |
|
Overall Dimension |
2700*800*1650mm(LxWxH) |
|
Machine Weight |
450KG |
|
HS CODE |
8462230000 |
FAQ:
1. Does the machine come with software? What languages are supported?
Yes. All bending machines include a computer with ADEWO software. Languages: Chinese, English, Spanish, Japanese, Korean, Portuguese, and more.
2. What are the installation requirements?
Electricity and an air compressor.
3. Can I install it myself?
Yes. ADEWO provides installation videos, manuals, and online guidance.
4. Can I request on-site installation and training?
Yes. ADEWO team offer on-site support and have die-making experience.
5. Is remote technical support available?
Yes. ADEWO team provides remote support.
6. What file formats does the software support?
DXF, DWF, CF2.
7. What is the warranty period?
One year.
8. Which machine can cut plywood and acrylic?
9. What equipment is needed to set up in-house die-making for a label printing company?
Laser Cutting Machine
Auto Bender Machine
Multi Functions Manual Bender
