Multi-Functions Auto Bender Machine (Broach, Nick) included functions：Bending,Bridge,Broaching,Nicking,Perforation,Hole,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71mm,height 8-32mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

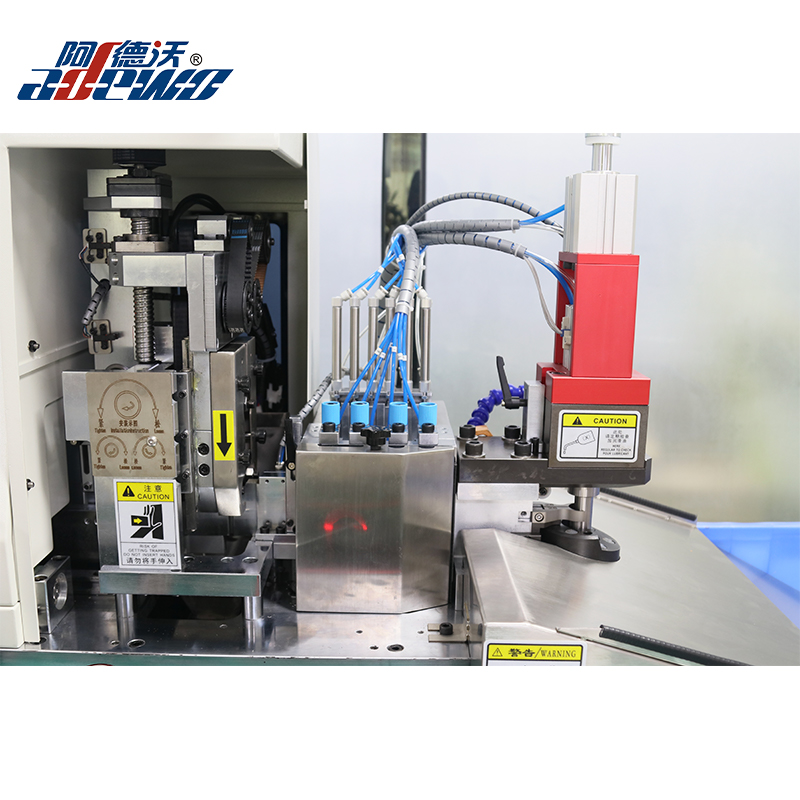

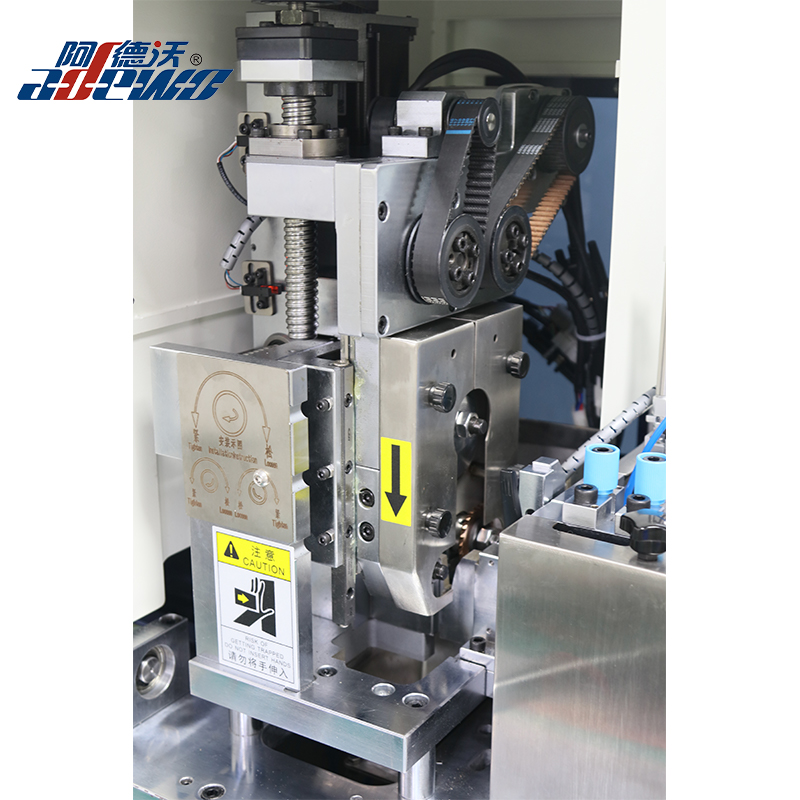

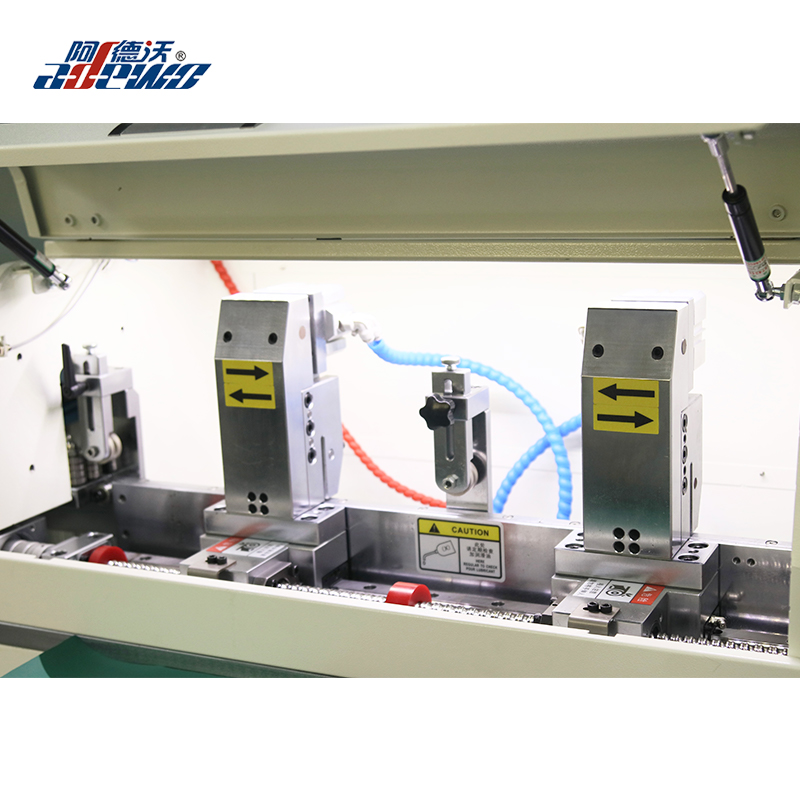

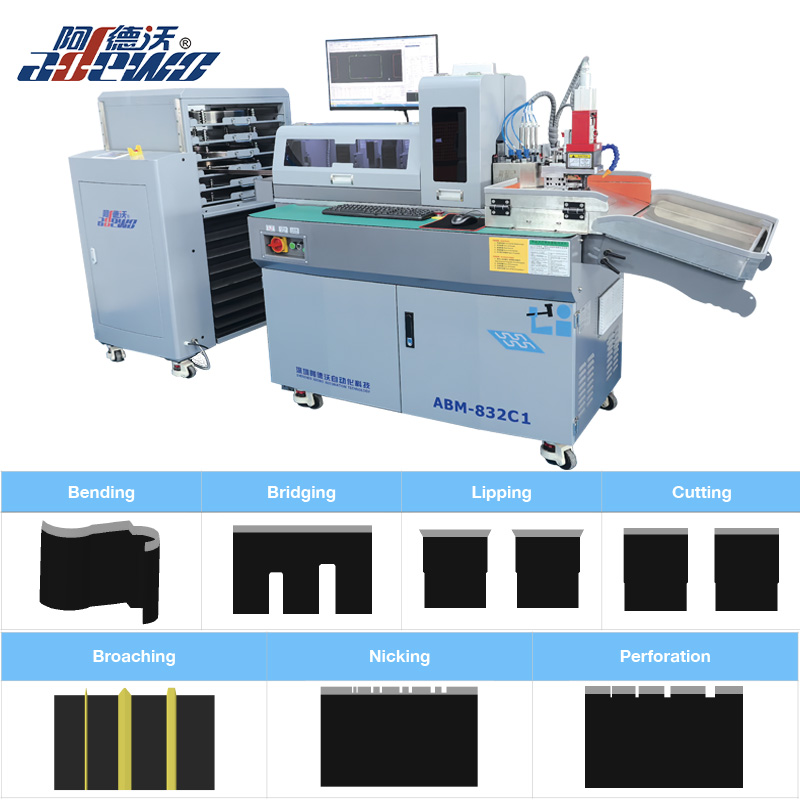

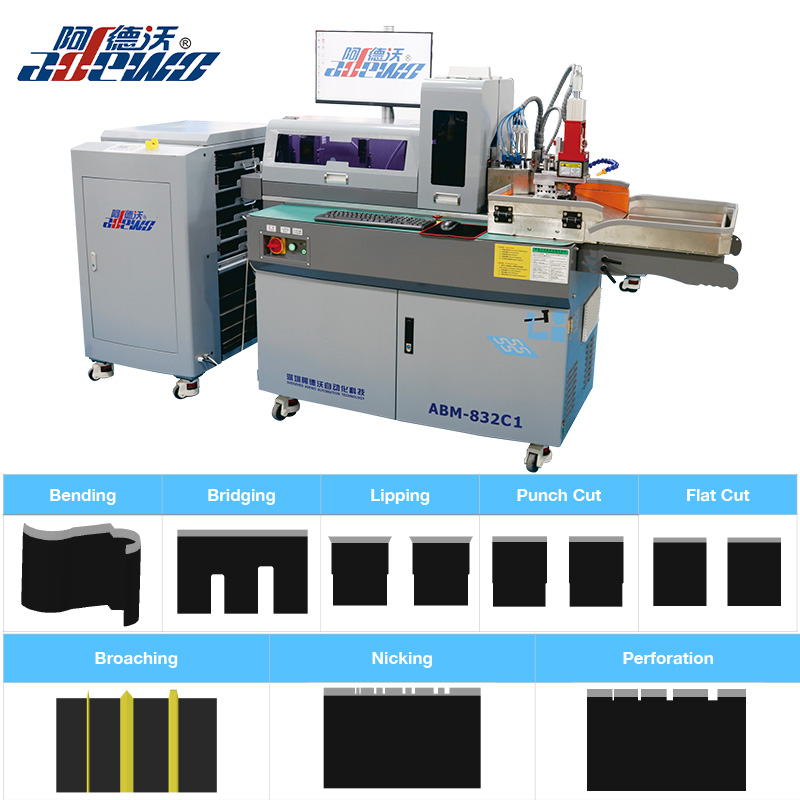

(ABM—832C1)Multi-Functions Auto Bender Machine (Broach, Nick)

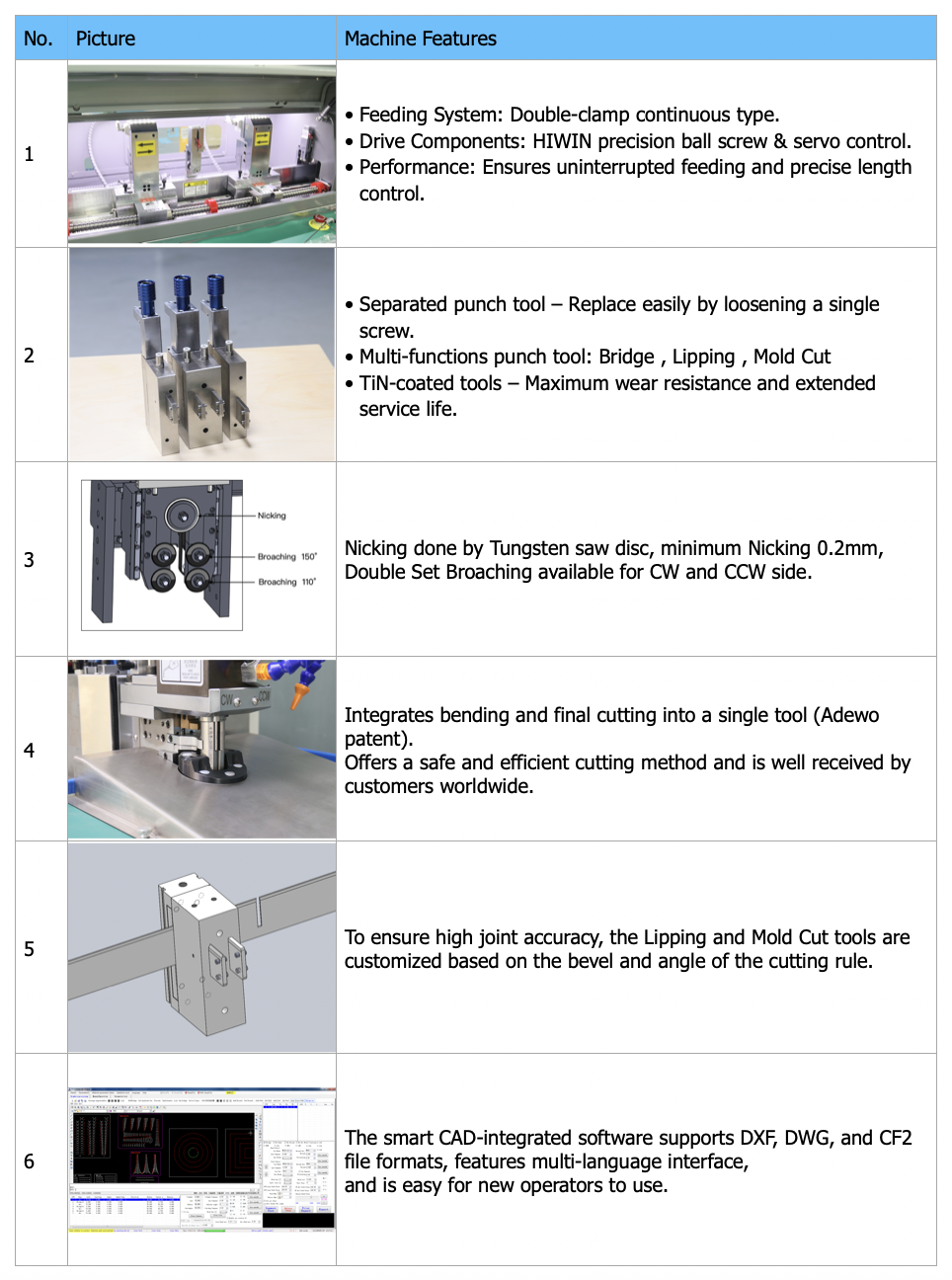

Features:

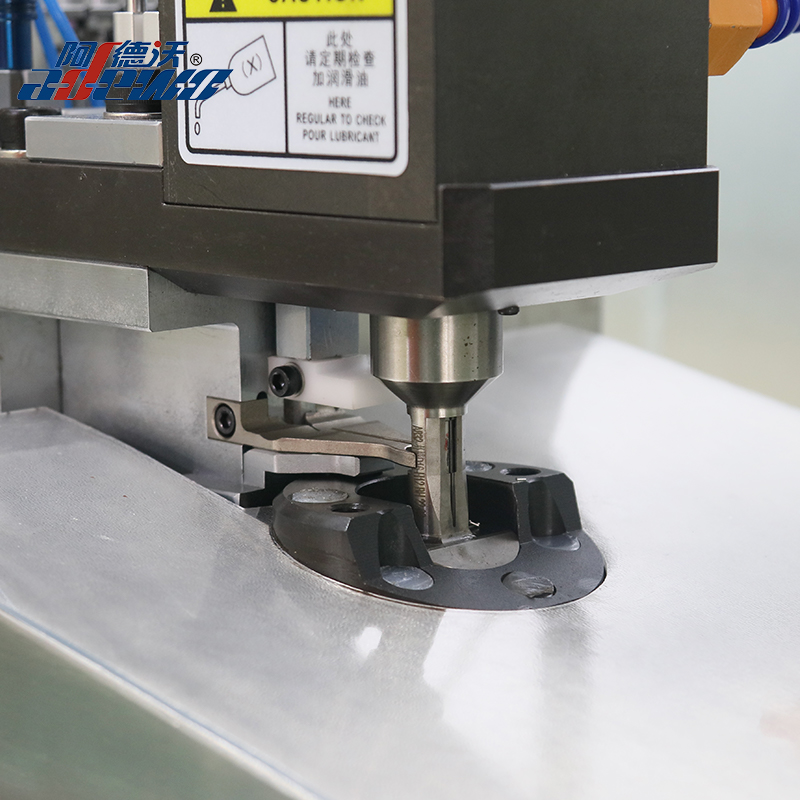

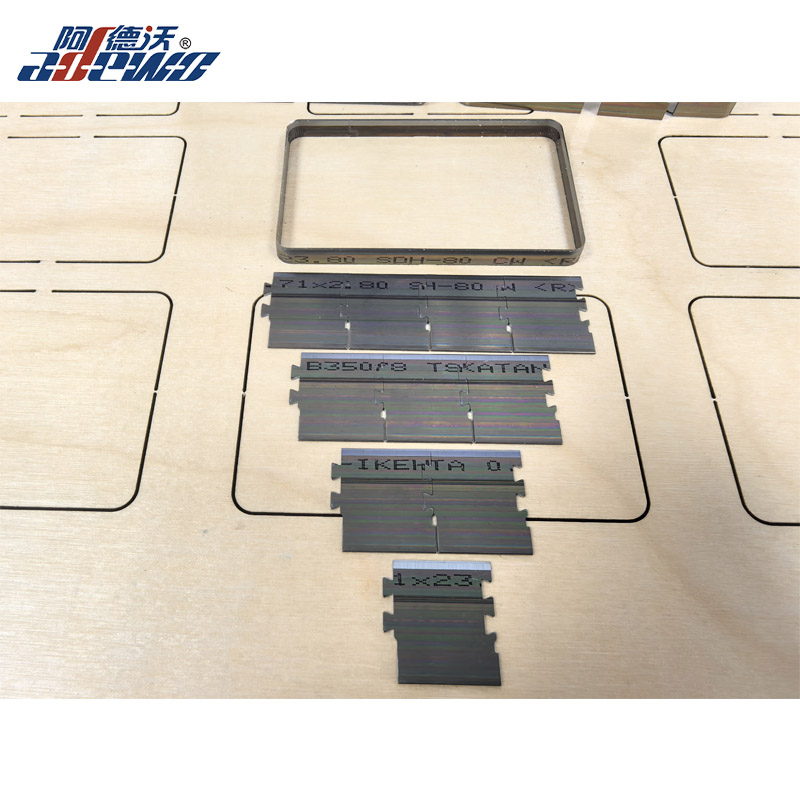

5.Lipping & Punch Cut tools – customized to cutting rule bevel and angle.Achieves high joint accuracy.
|
Supported Rule Thickness |
0.45, 0.53, 0.71, 1.05mm |
|
Supported Rule Height |
8-32mm |
|
Front Min. Bending Size |
1.5mm |
|
Back Min. Bending Size |
1.5mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
0.2mm |
|
Basic Functions |
Broaching,Nicking,Bending, Bridge, Lipping, Mold Cut(Punch Cut), Flat Cut |
|
Optional Functions |
Perforation/Hole |
|
Broaching |
Single set Broaching/Double set Broaching can be selected |
|
Supported File Formats |
DXF, DWG |
|
Air Supply |
0.4-0.8Mpa |
|
Power Supply |
AC220V, 13.6A, 50-60Hz |
|
Total Power |
3KW |
|
Overall Dimension |
2600*750*1600mm(LxWxH) |
|
Machine Weight |
480KG |
|
HS CODE |
8462230000 |
FAQ:
1.Which cutting die making is this model suitable for?
This model supports rule with thicknesses from 0.45mm to 1.05mm and heights from 8mm to 32mm.

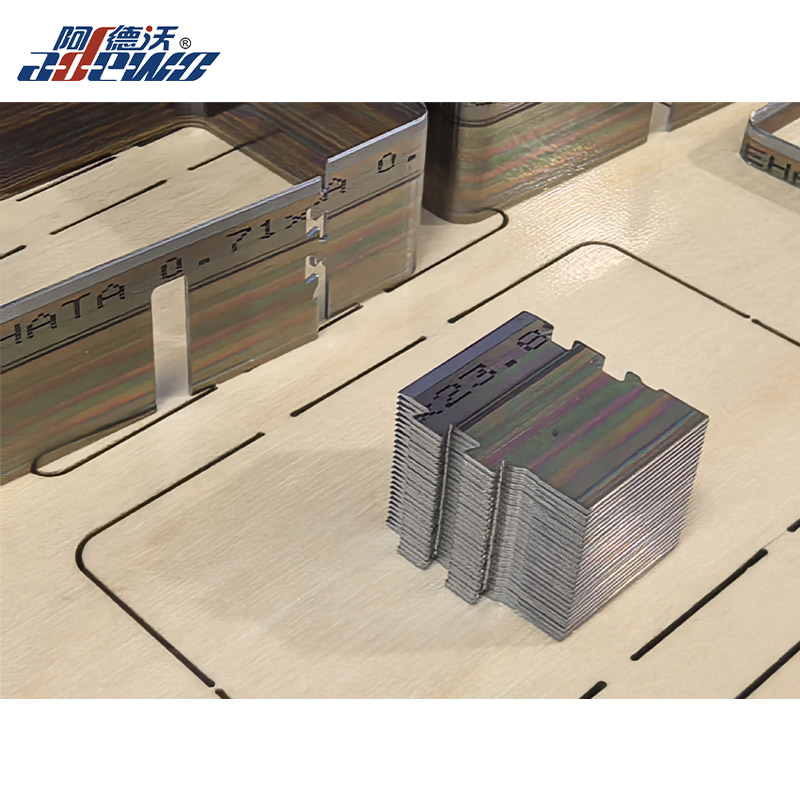

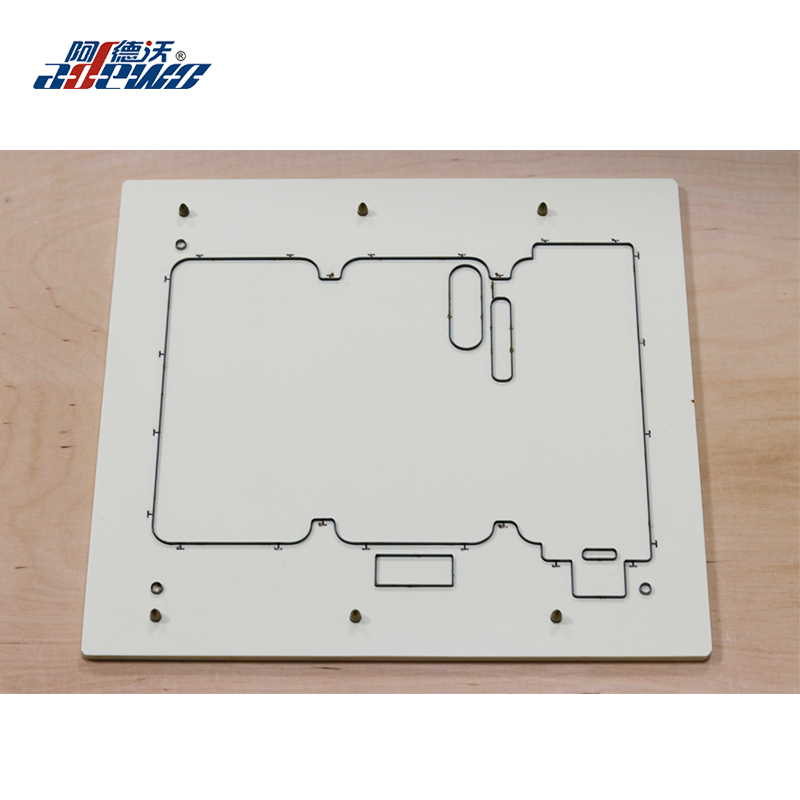

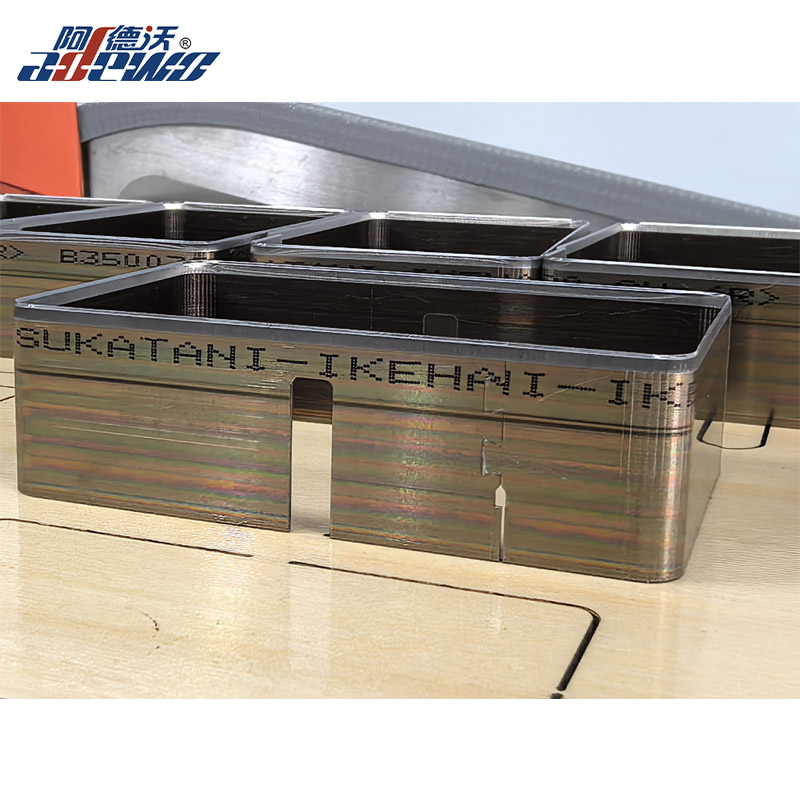

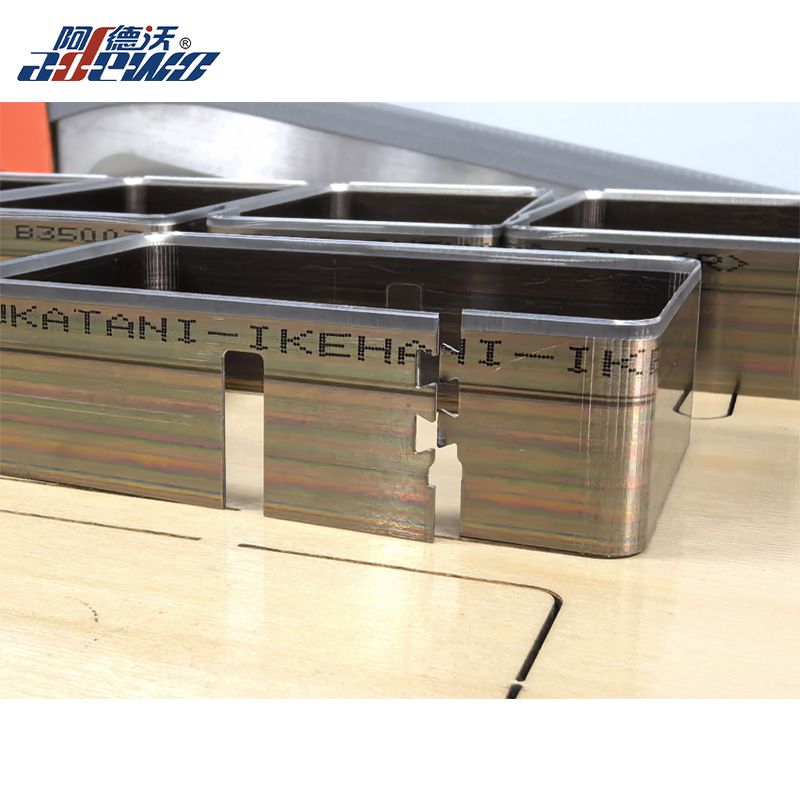

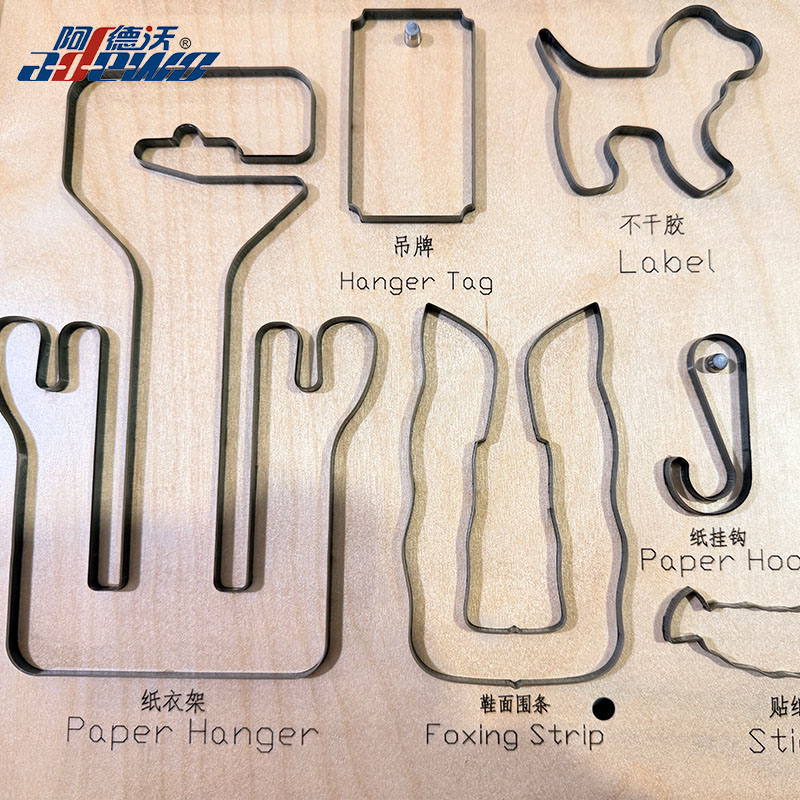

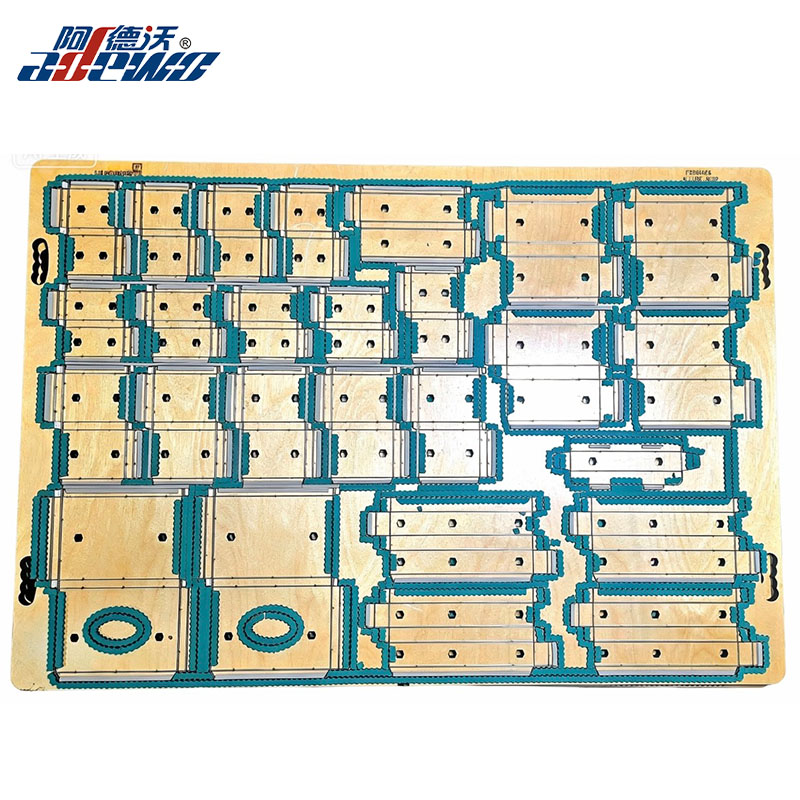

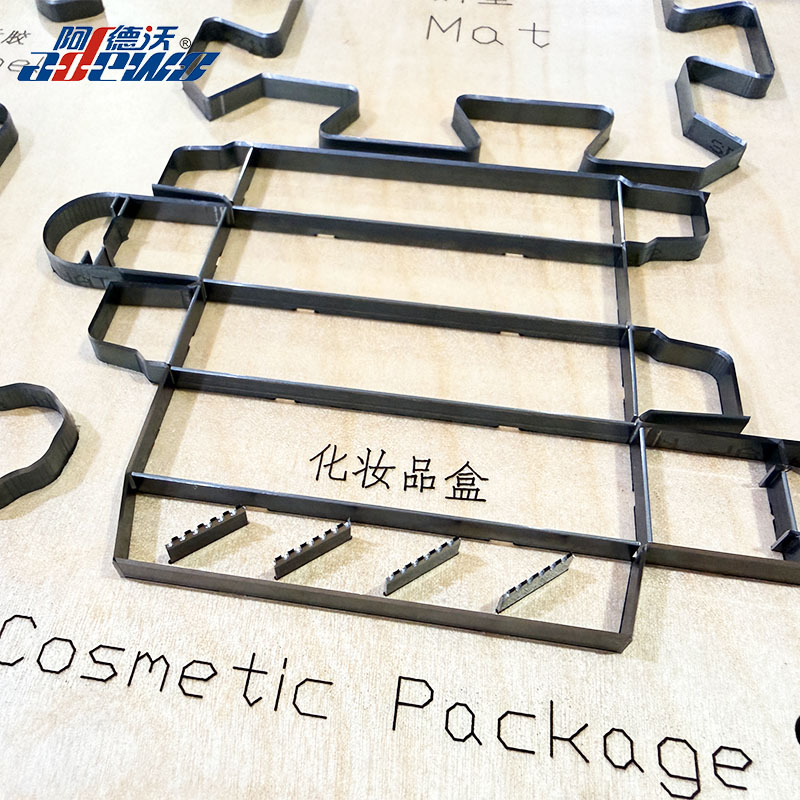

It is capable of producing the majority of flat dies — from standard paper boxes and carton packaging to high-cut pharmaceutical carton dies.
It is also compatible with label dies, puzzle dies, blister packaging dies, electronic board dies, and more.
If you're looking for a fully-featured Auto Bending Machine to expand your current die-making production, this is the ideal model for you!
2.What is Mold Cut? (Punch Cut)
3.Does the machine come with software? What languages are supported?
Yes. All bending machines include a computer with ADEWO software.
Languages: Chinese, English, Spanish, Japanese, Korean, Portuguese, and more.
4. What are the installation requirements?
Electricity and an air compressor.
5. Can I install it myself?
Yes. ADEWO provides installation videos, manuals, and online guidance.
