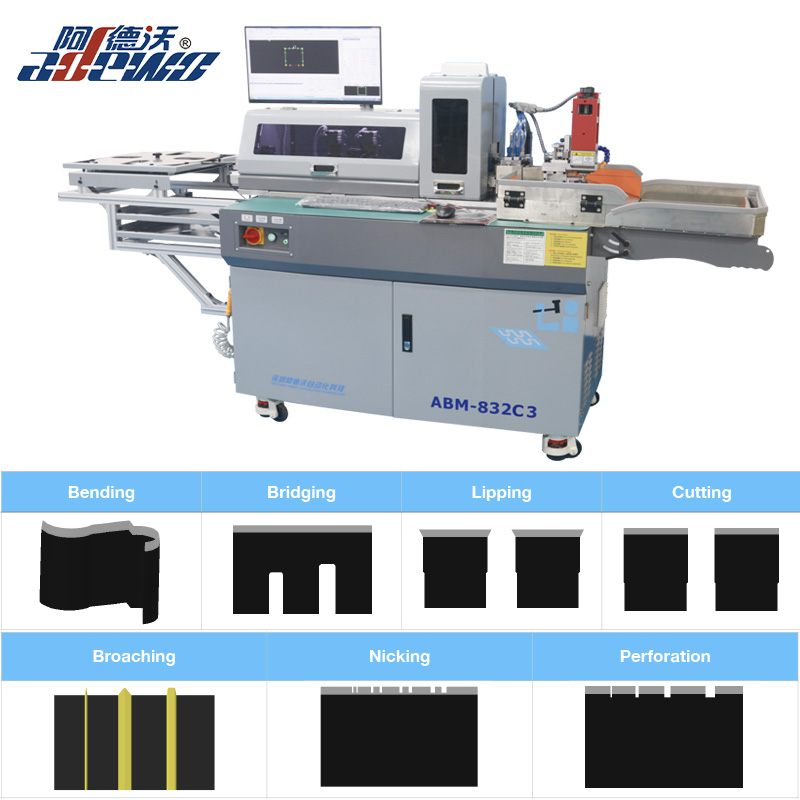

(ABM-832C3) Multi-Functions Label Rule Auto Bender Machine included functions:Broaching,Nicking,Bending,Bridge,Lipping, Punch Cut and Flat Cut. Supported steel rule thickness 0.45, height 8-12mm. Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.

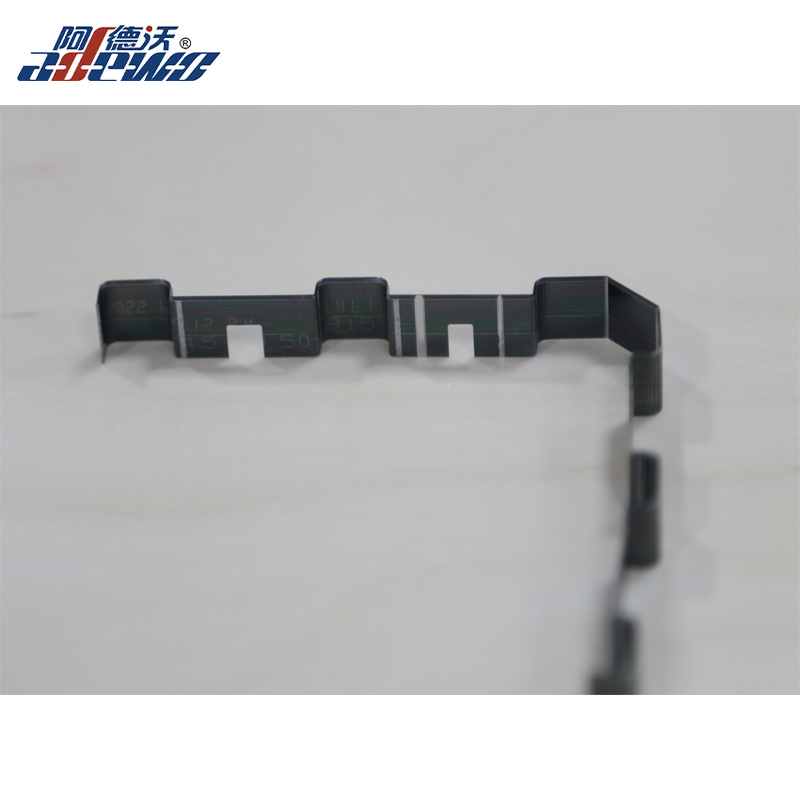

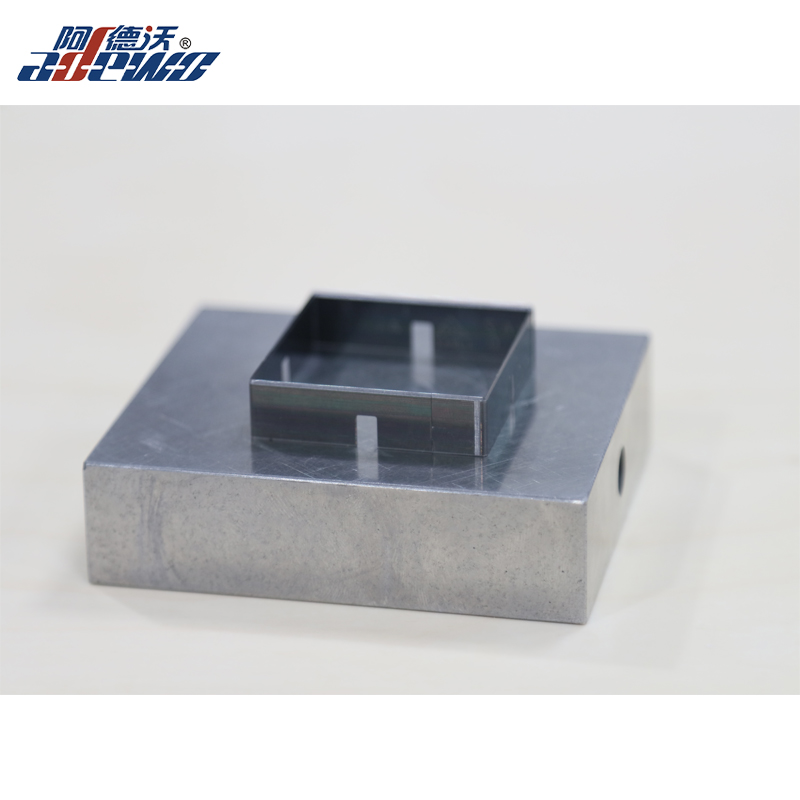

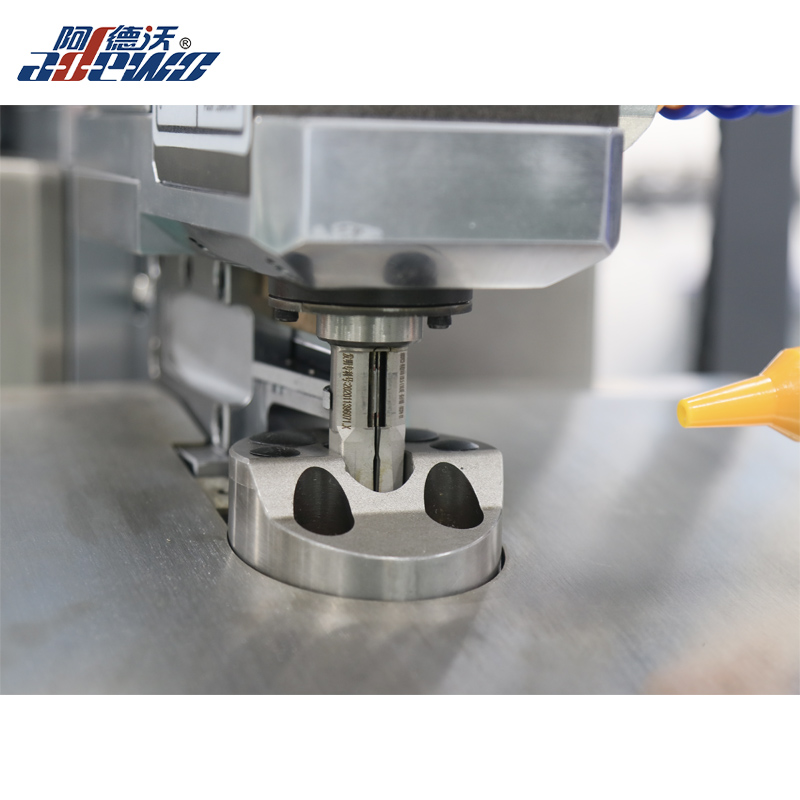

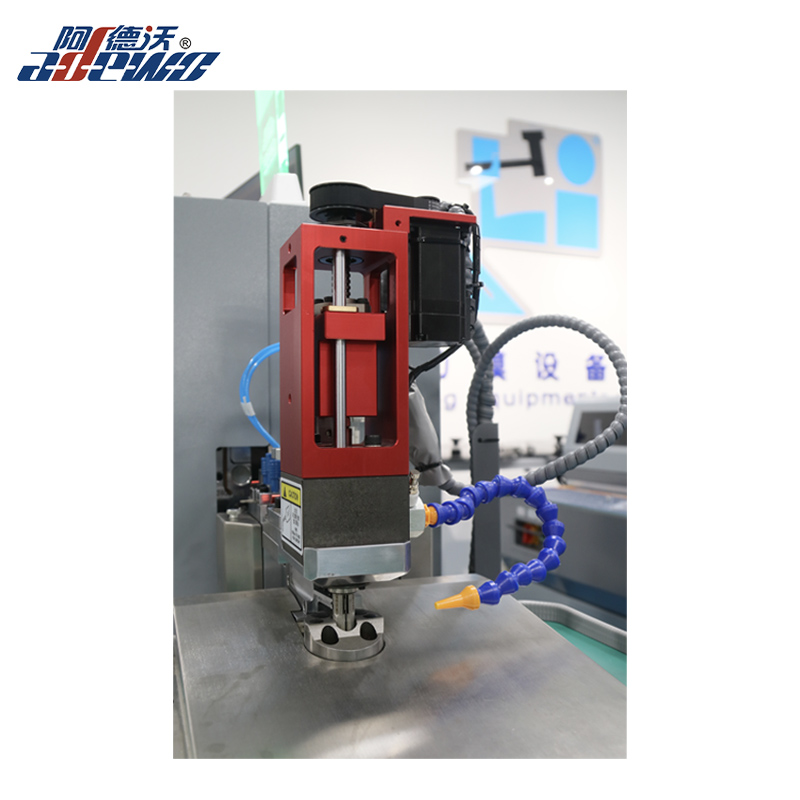

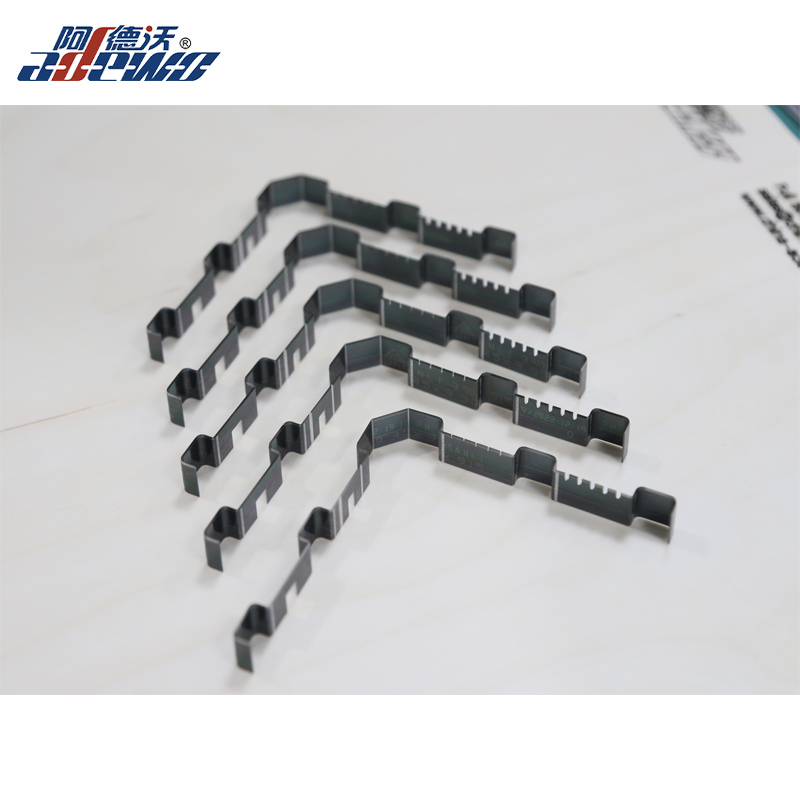

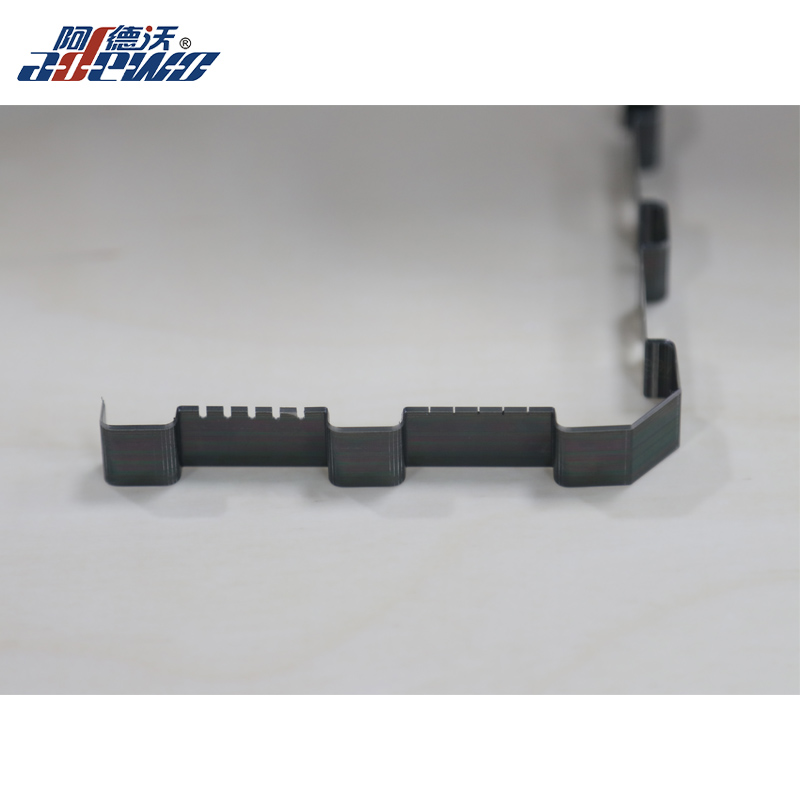

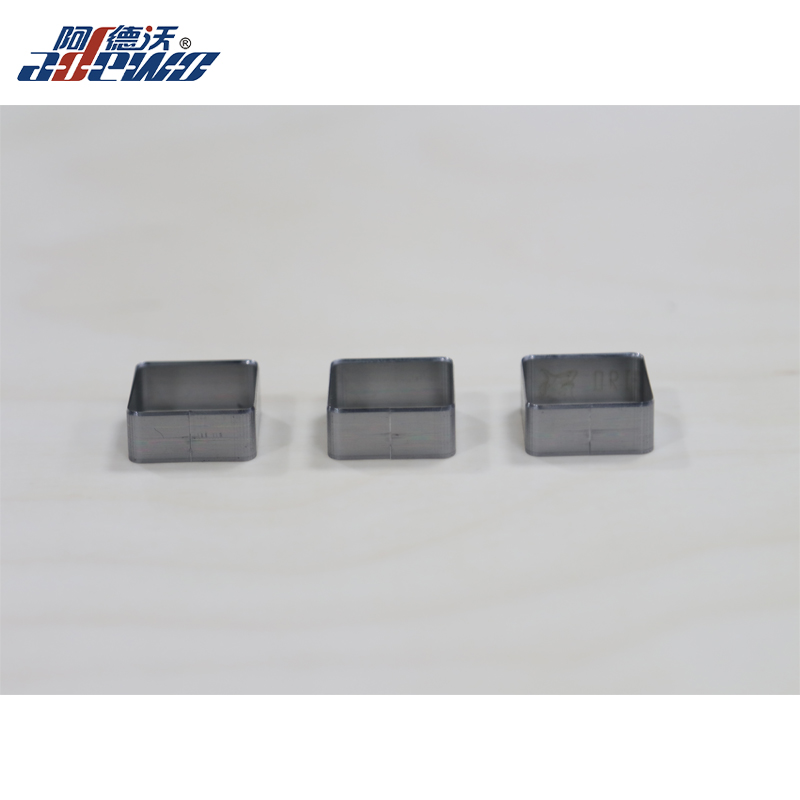

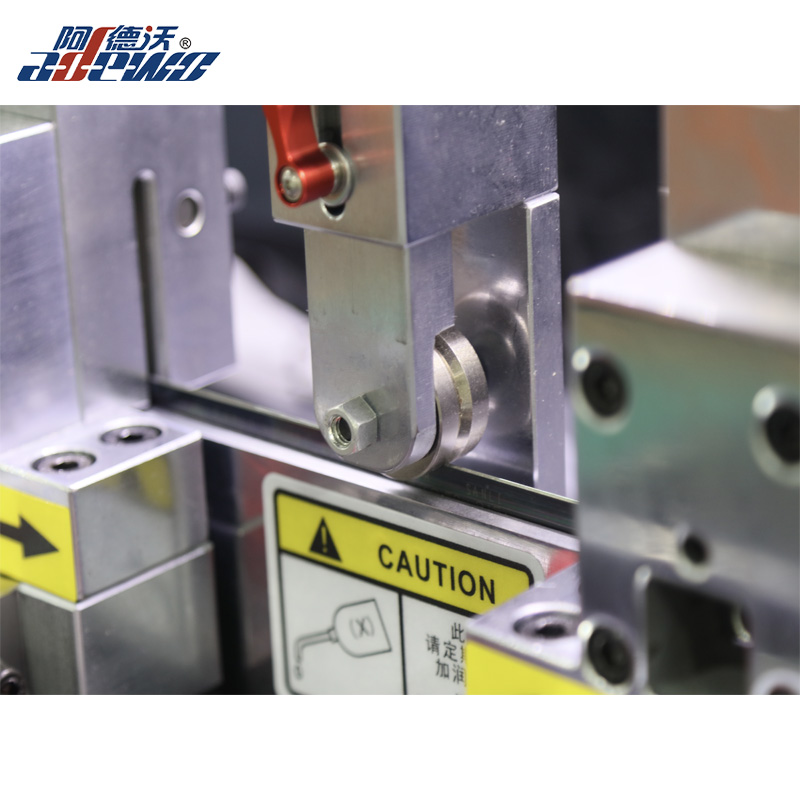

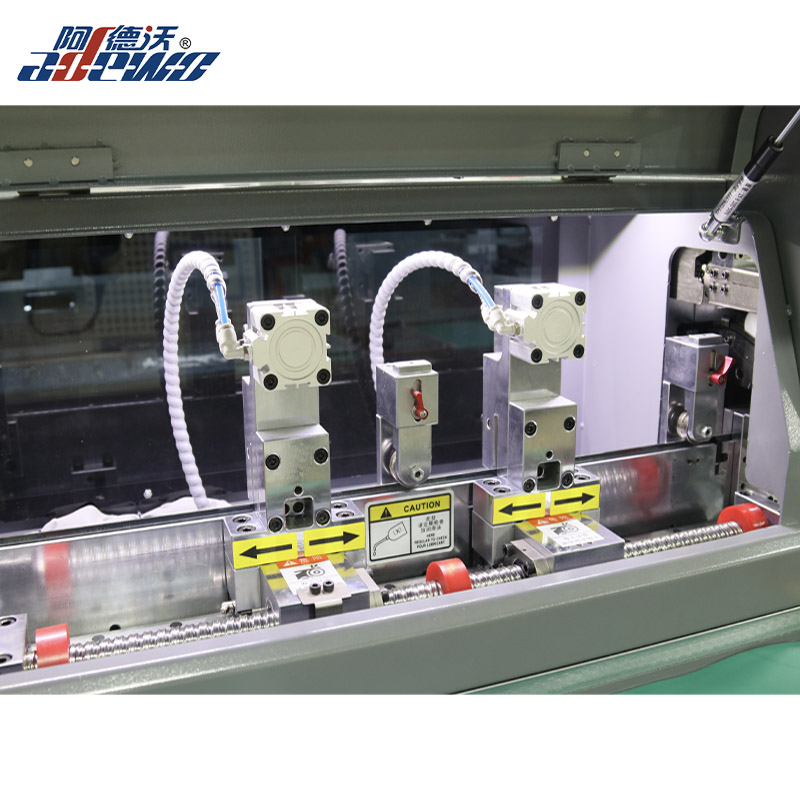

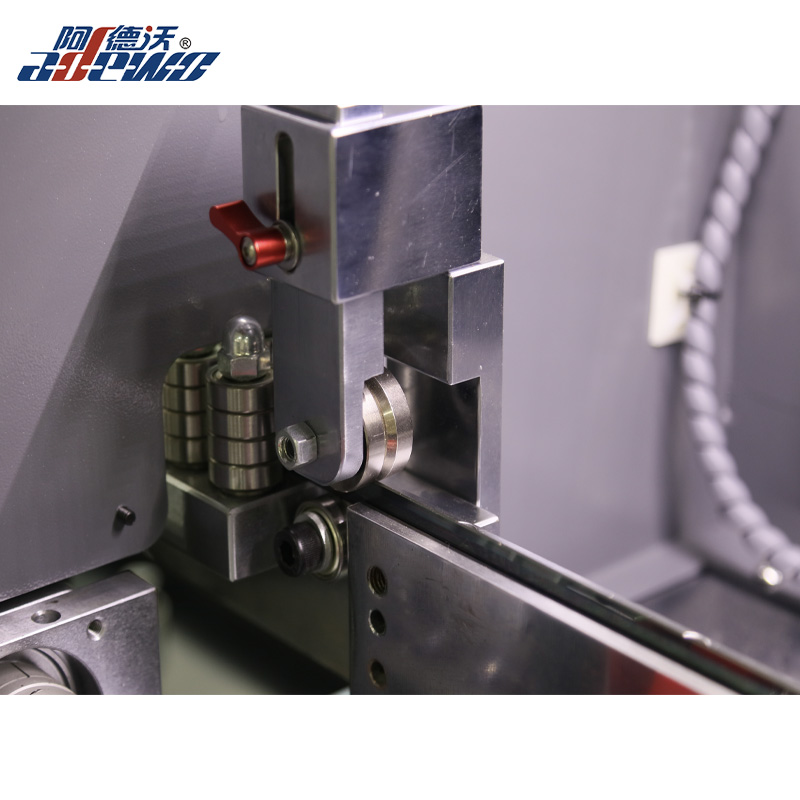

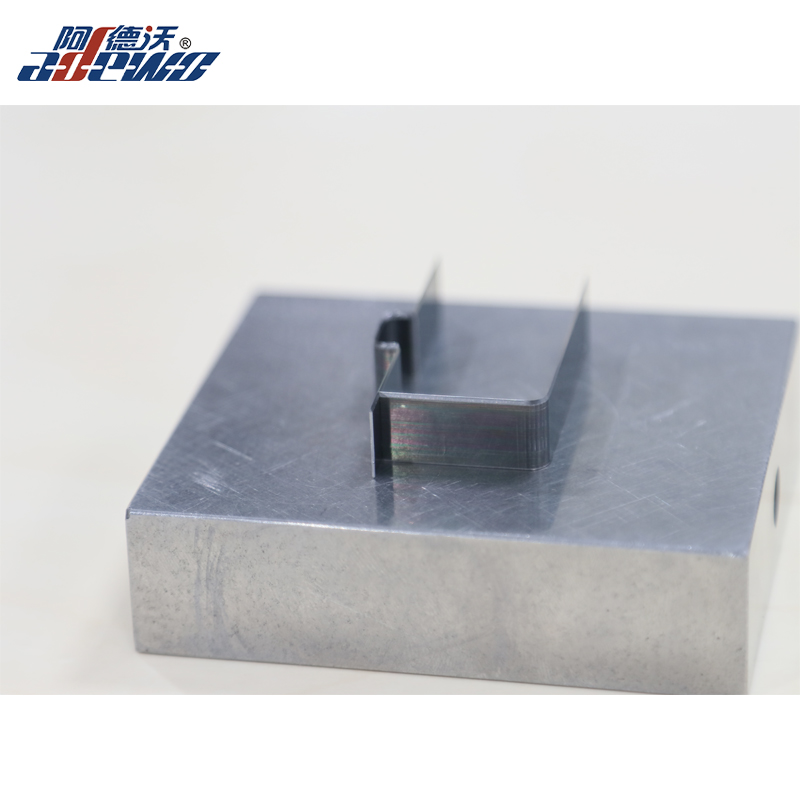

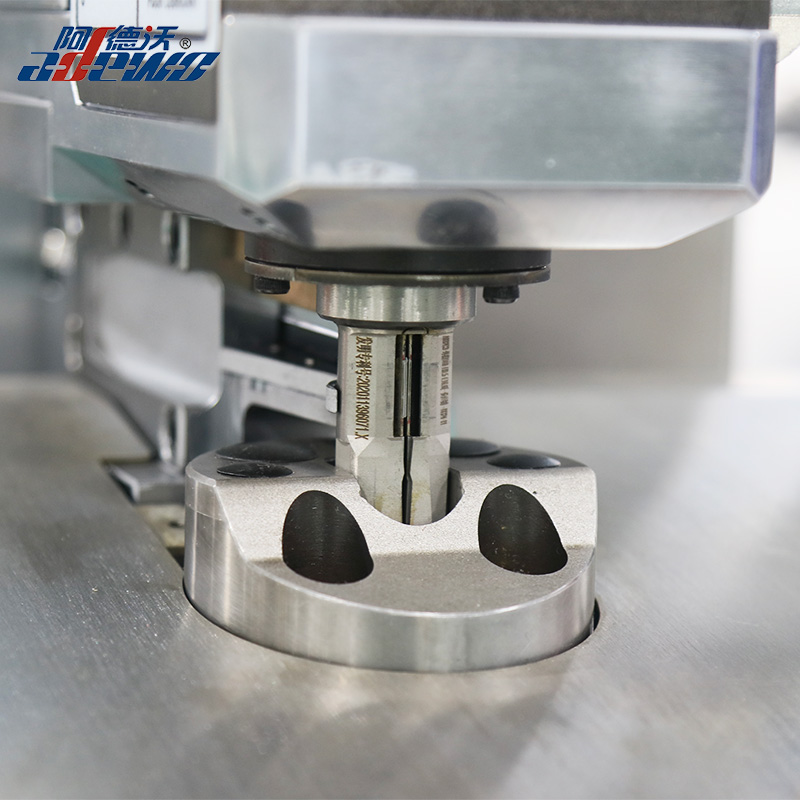

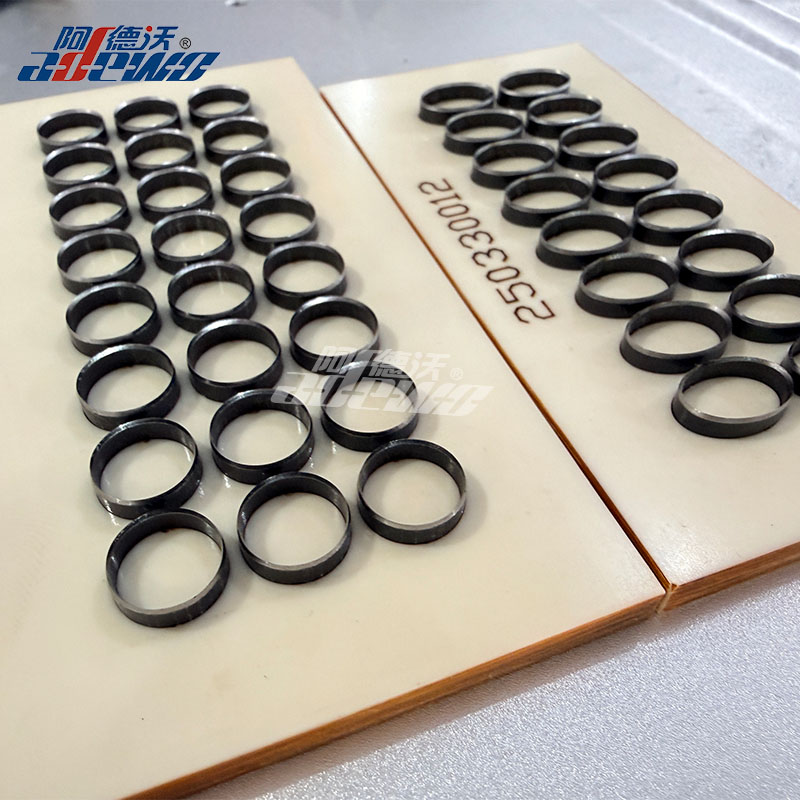

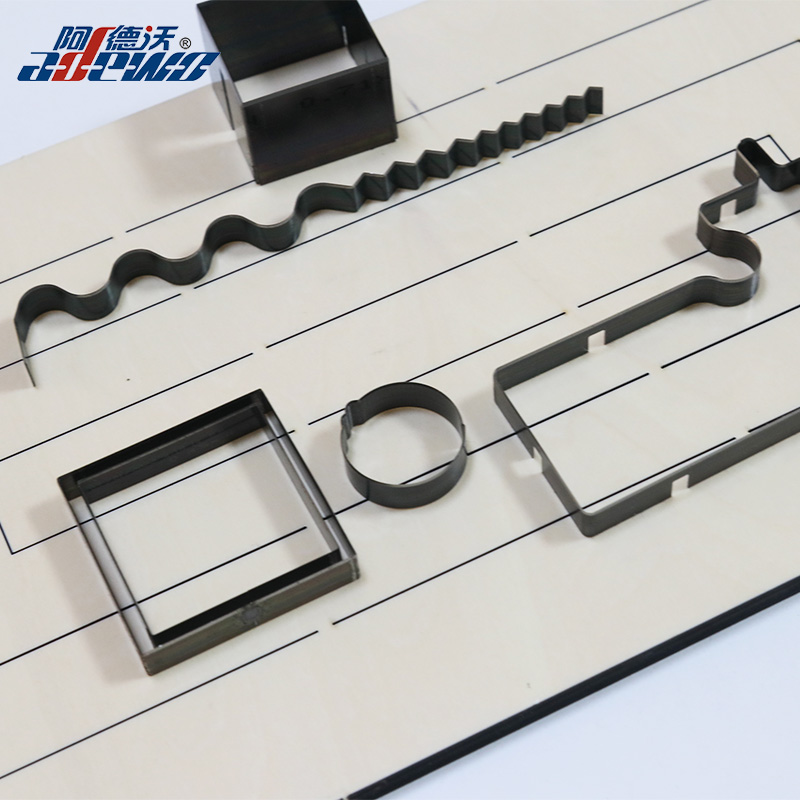

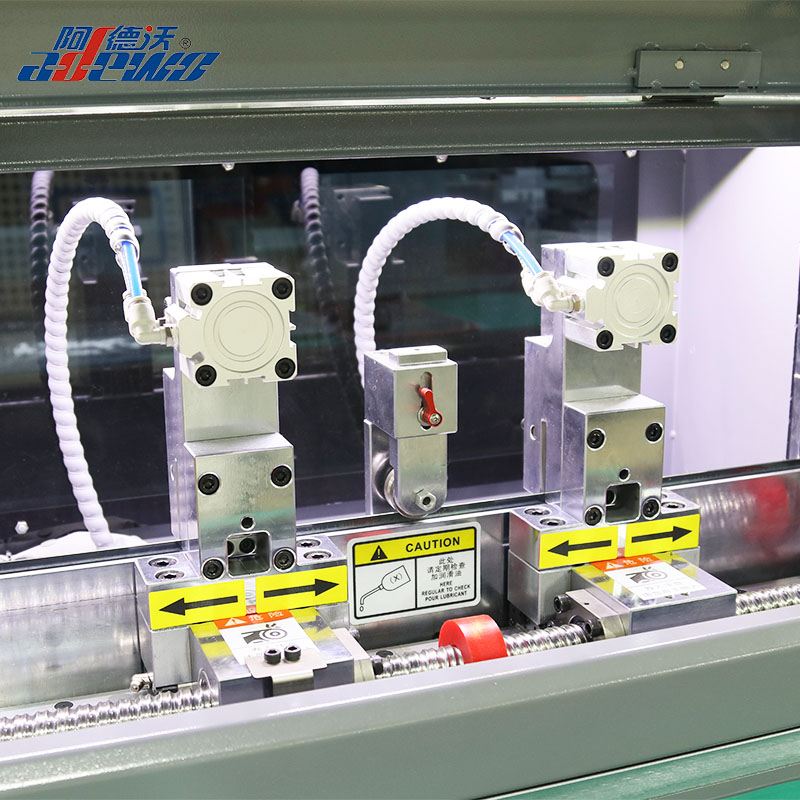

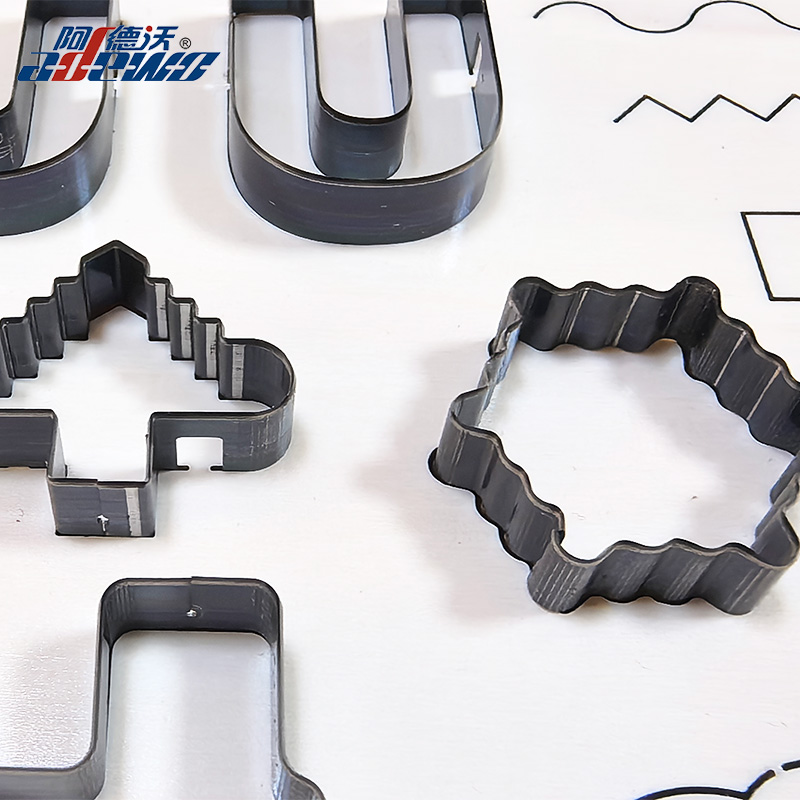

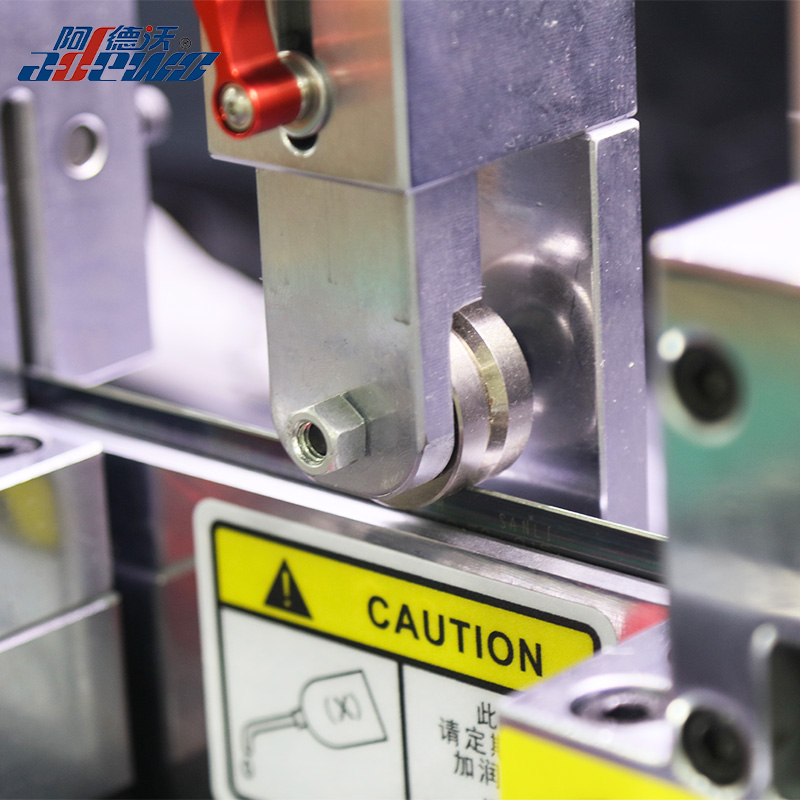

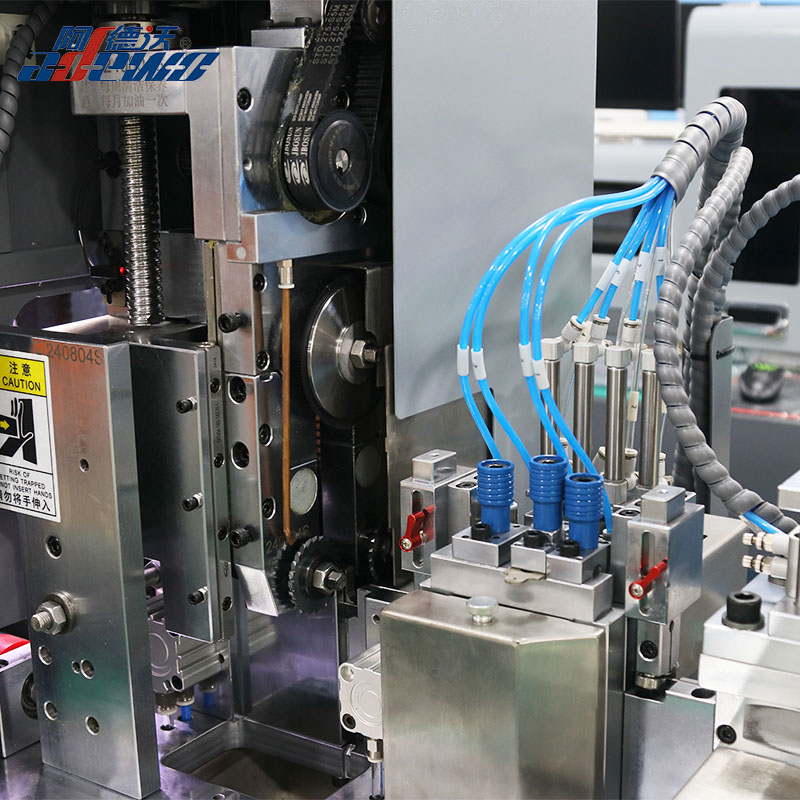

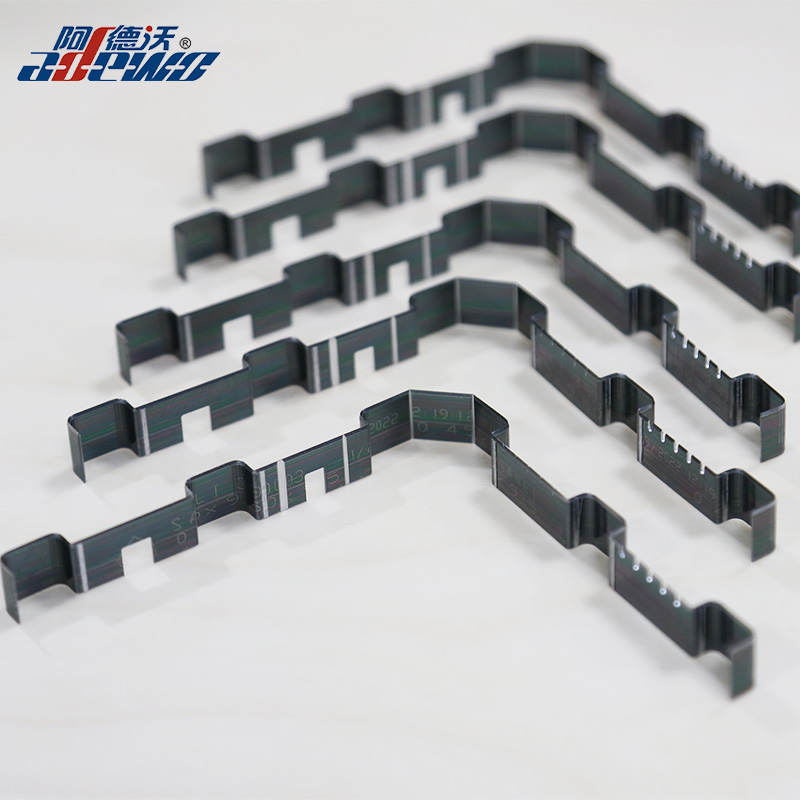

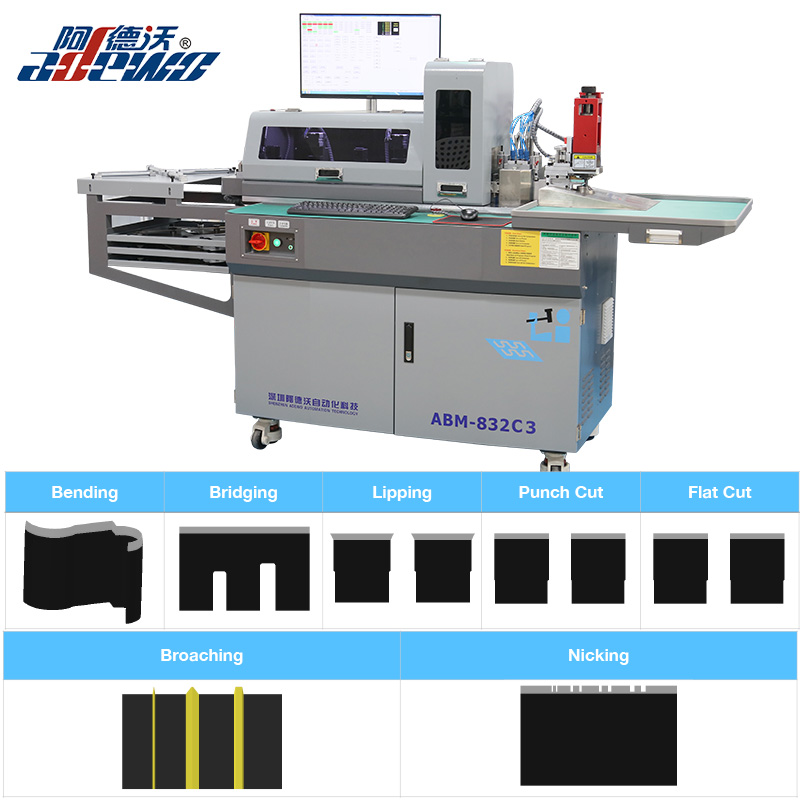

Picture of (ABM-832C3)Multi-Functions Label Rule Auto Bender Machine for reference:
|
Supported rule thickness(mm) |
0.45mm(1pt) |
|
Supported rule height(mm) |
8-12mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
| Max. Bending Angle | 100° |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Functions |
Broaching,Nicking,Bending,Bridge,Lipping,Punch Cut,Flat Cut |
| Broaching |
Single set Broaching/Double set Broaching can be selected (110 degree and 150 degree) |
|
Optimal pattern format |
DXF,DWG,CF2 |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KG |
|
Overall dimension |
2700x800x1650mm(LxWxH) |
|
H.S. Code |
8462230000 |
1. Does the machine come with software? What languages are supported?
Yes. All bending machines include a computer with ADEWO software.
Languages: Chinese, English, Spanish, Japanese, Korean, Portuguese, and more.
2. What are the installation requirements?
Electricity and an air compressor.
3. Can I install it myself?
Yes. ADEWO provides installation videos, manuals, and online guidance.
4. Can I request on-site installation and training?
Yes. ADEWO team offer on-site support and have die-making experience.
5. Is remote technical support available?
Yes. ADEWO team provides remote support.
6. What file formats does the software support?
DXF, DWF, CF2.
7. What is the warranty period?
One year.
8.Which machine can cut plywood and acrylic?
9.What equipment is needed to set up in-house die-making for a label printing company?
Laser Cutting Machine
Auto Bender Machine
Multi Functions Manual Bender
