832C1 Auto Steel Rule Bender for Carton and Color Box Making included functions：Bending,Bridge,Broaching,Nicking,Perforation,Hole,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71mm,height 8-32mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

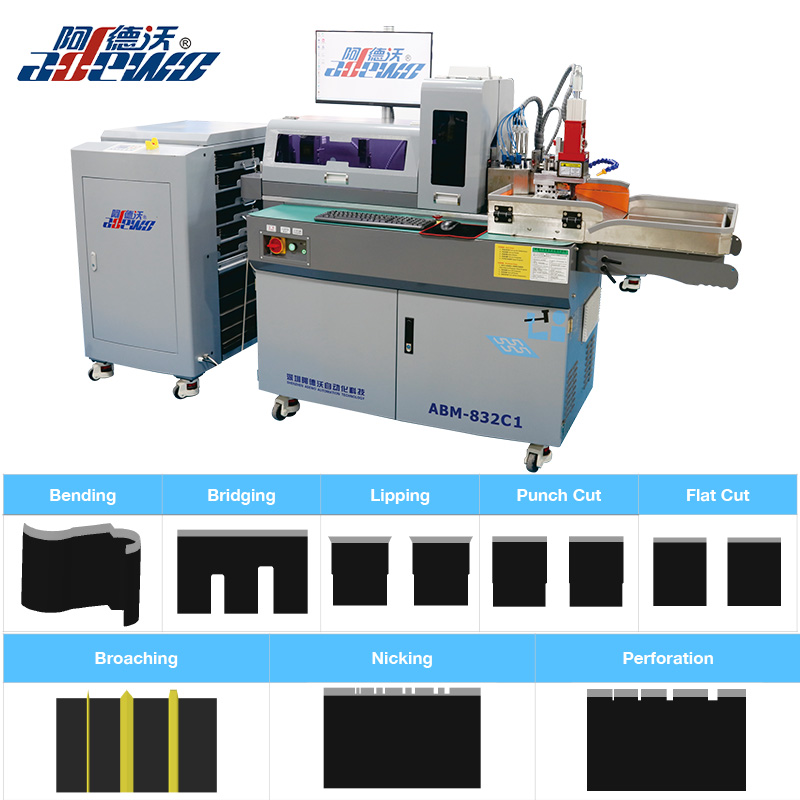

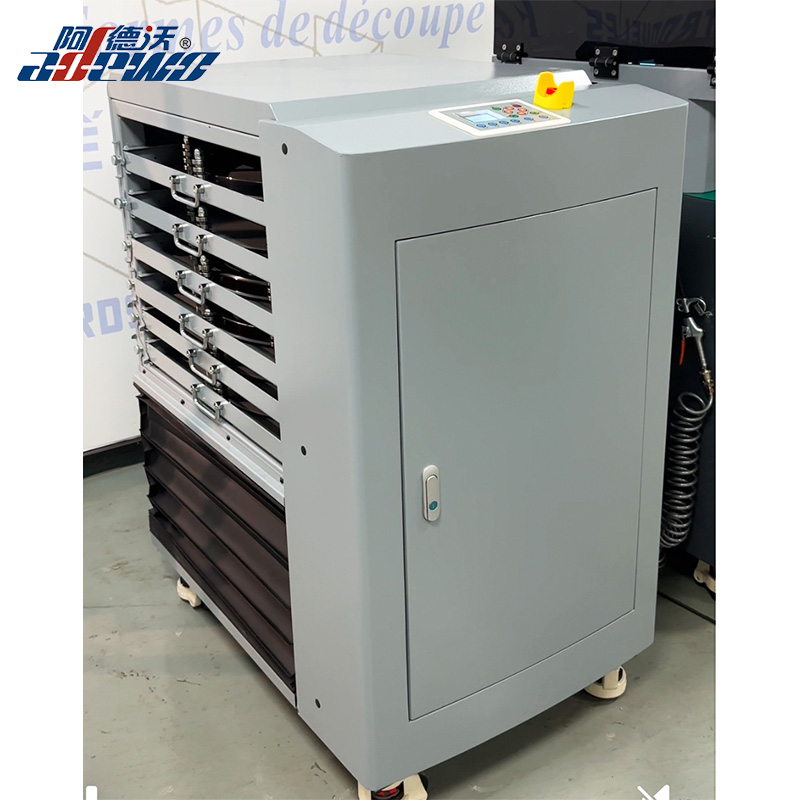

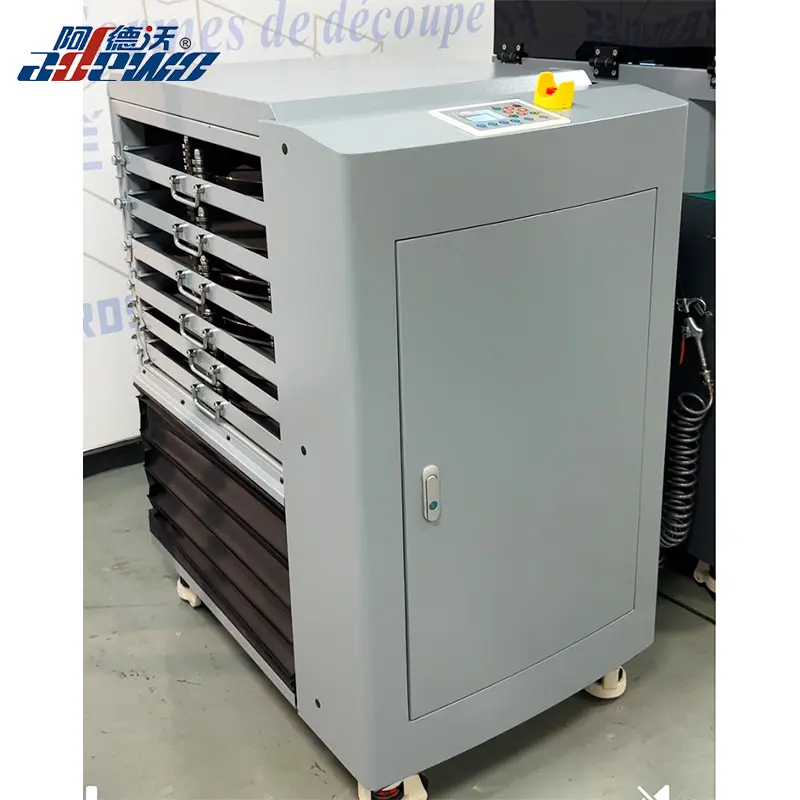

(ABM—832C1) Auto Steel Rule Bender for Carton and Color Box Making
Features:

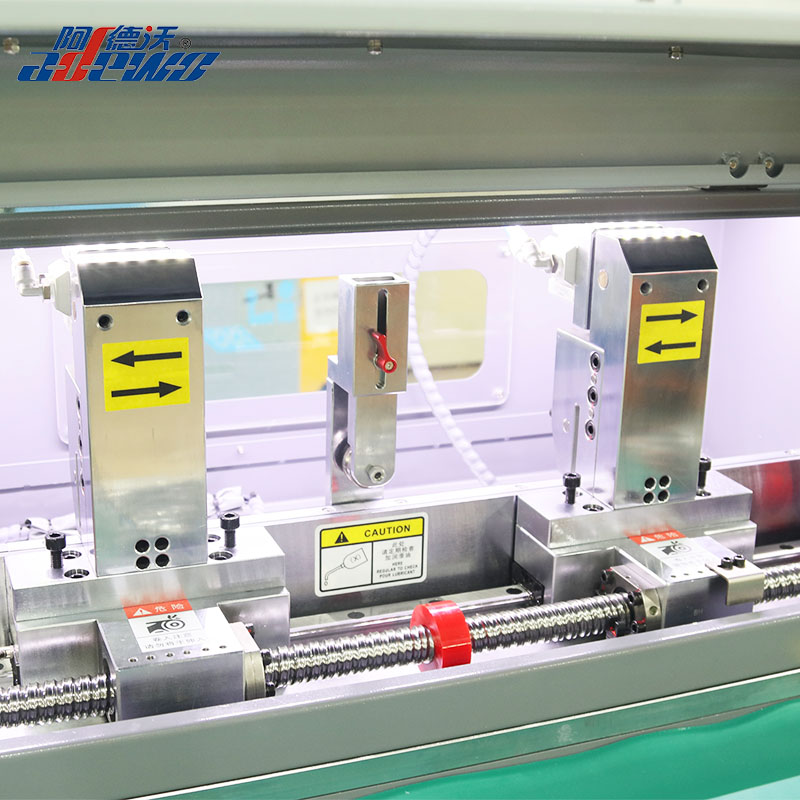

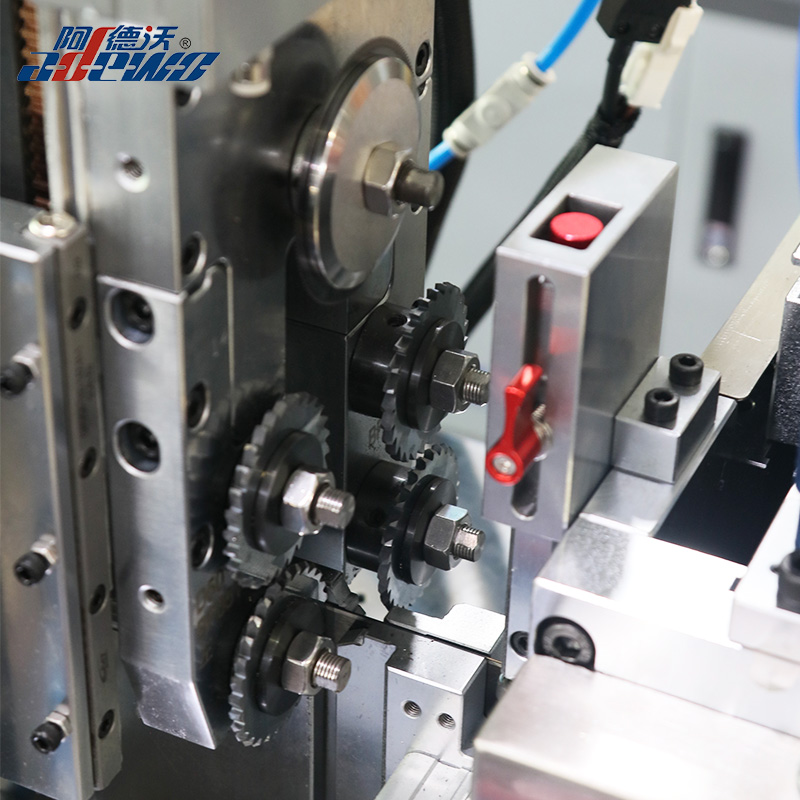

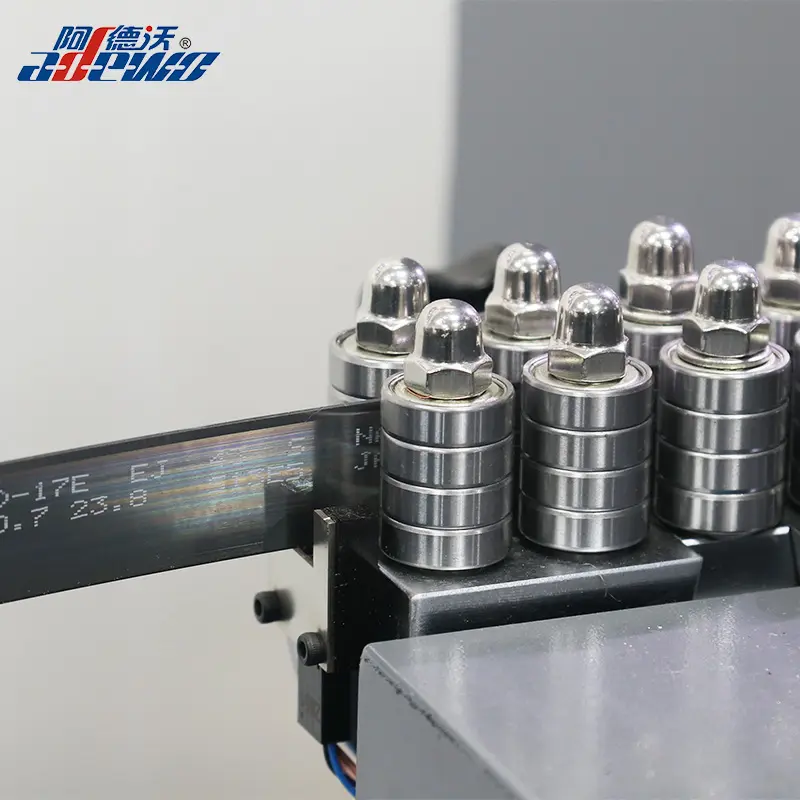

1.Double clamps + HIWIN screw guide – continuous feeding.Panasonic servo control – increased feeding speed.
2.Broaching & Nicking – for high-accuracy cutting dies. Ideal for complex-shaped cutting die boards, pharmaceutical package, cigarette box package.

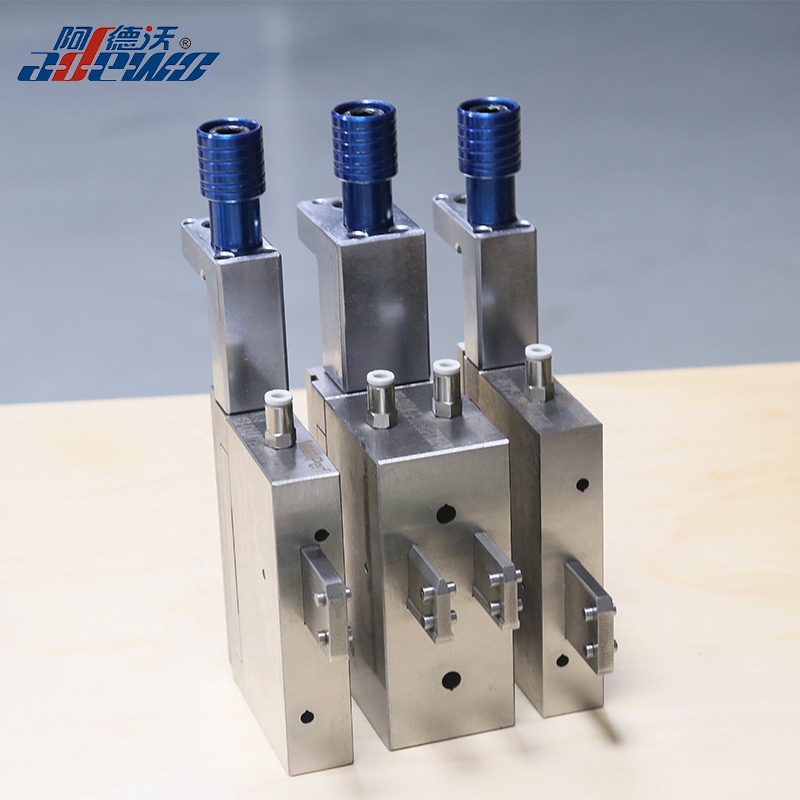

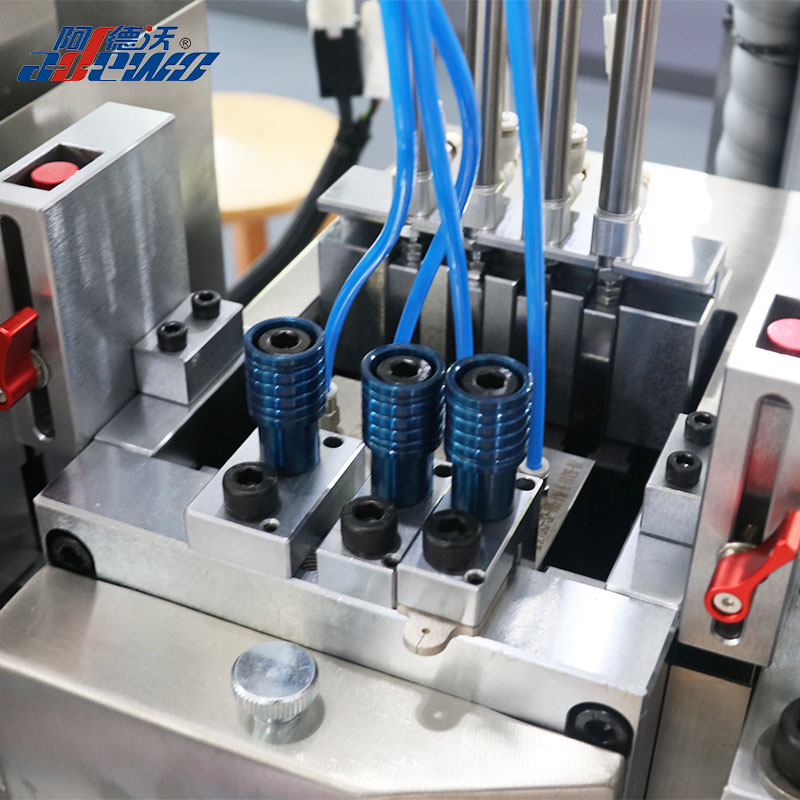

3.Separated punch tool – replace with one screw.Multi-functions for choice: Bridge , Lipping , Punch Cut , Perforation or Hole.

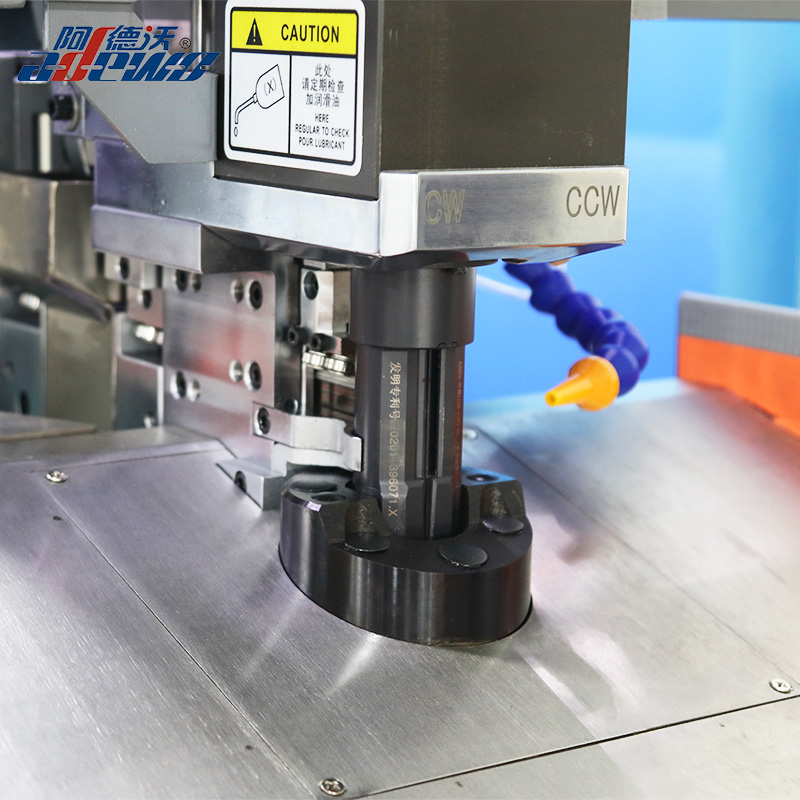

4.Bend & final cut – one tool (ADEWO Patent). Safe, efficient cutting method
Technical Parameters of Auto Steel Rule Bender for Carton and Color Box Making：
|
Supported Rule Thickness |
0.45, 0.53, 0.71, 1.05mm |
|
Supported Rule Height |
8-32mm |
|
Front Min. Bending Size |
1.5mm |
|
Back Min. Bending Size |
1.5mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
0.2mm |
|
Basic Functions |
Broaching,Nicking,Bending, Bridge, Lipping, Mold Cut(Punch Cut), Flat Cut |
|
Optional Functions |
Perforation/Hole |
|
Broaching |
Single set Broaching/Double set Broaching can be selected |
|
Supported File Formats |
DXF, DWG |
|
Air Supply |
0.4-0.8Mpa |
|
Power Supply |
AC220V, 13.6A, 50-60Hz |
|
Total Power |
3KW |
|
Overall Dimension |
2600*750*1600mm(LxWxH) |
|
Machine Weight |
480KG |
|
HS CODE |
8462230000 |
FAQ:
1.Which cutting die making is this model suitable for?
This model supports rule with thicknesses from 0.45mm to 1.05mm and heights from 8mm to 32mm.

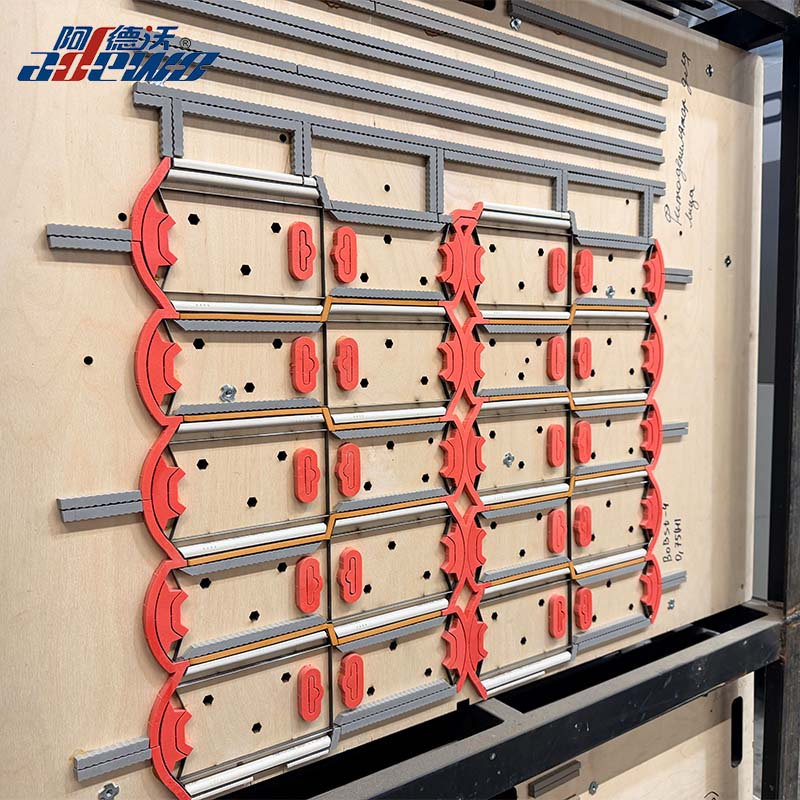

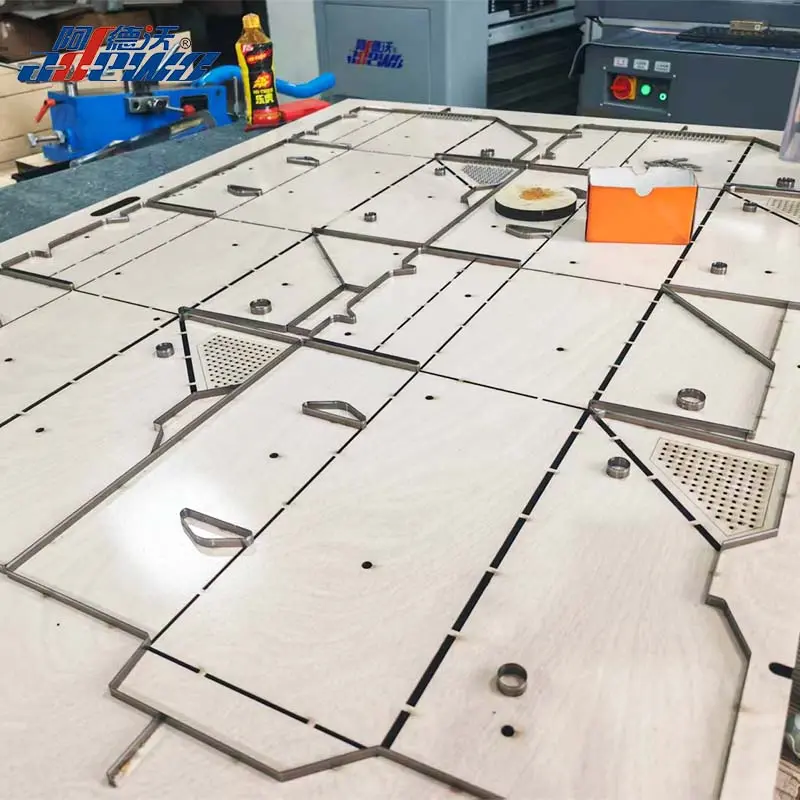

It is capable of producing the majority of flat dies — from standard paper boxes and carton packaging to high-cut pharmaceutical carton dies.
It is also compatible with label dies, puzzle dies, blister packaging dies, electronic board dies, and more.
If you're looking for a fully-featured Auto Bending Machine to expand your current die-making production, this is the ideal model for you!
2.What is Mold Cut? (Punch Cut)
3.Does the machine come with software? What languages are supported?
Yes. All bending machines include a computer with ADEWO software.
Languages: Chinese, English, Spanish, Japanese, Korean, Portuguese, and more.
4. What are the installation requirements?
Electricity and an air compressor.
5. Can I install it myself?
Yes. ADEWO provides installation videos, manuals, and online guidance.
6.How long does it take to change the bending tool?
About 1 minute
