Steel Rule Auto Bender Machine with Nicking

The Latest Model (ABM-832B2)Steel Rule Auto Bender Machine with Nicking included functions:Bending,Bridge,Nicking,Lipping and Cutting,Perforation and Hole optional. Supported steel rule thickness 0.71,1.05mm(2pt&3pt),height 8-32mm. China Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.

Model:ABM-832B2

Send Inquiry    PDF DownLoad

Product Description

(ABM-832B2)Steel Rule Auto Bender Machine with Nicking

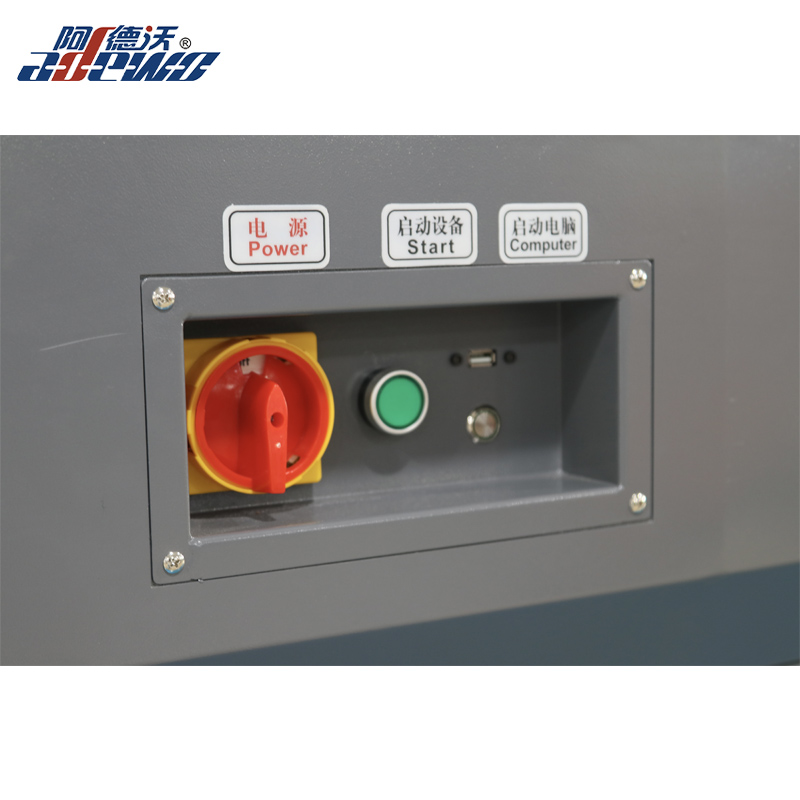

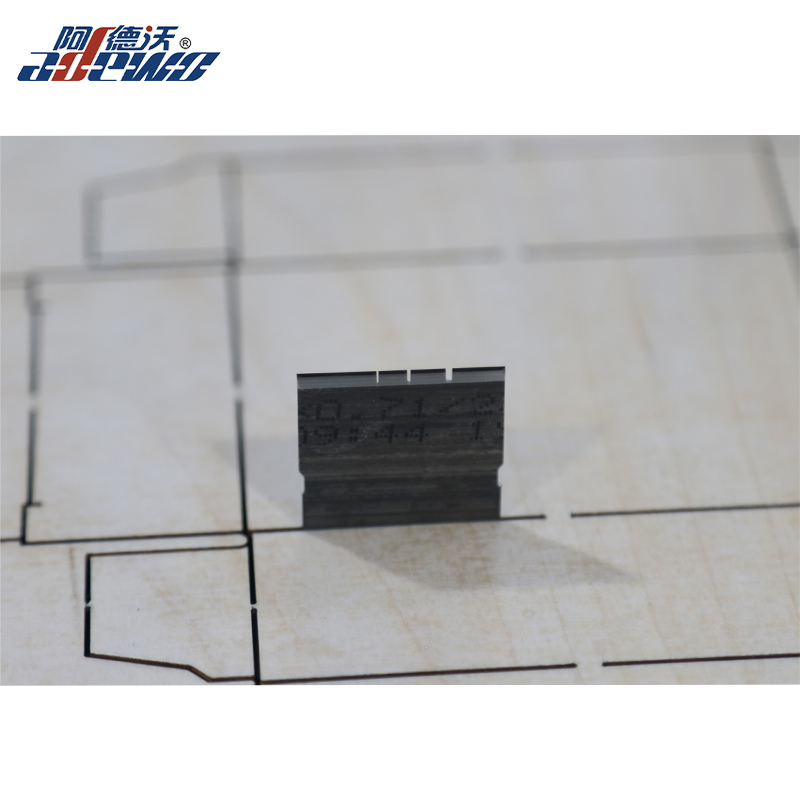

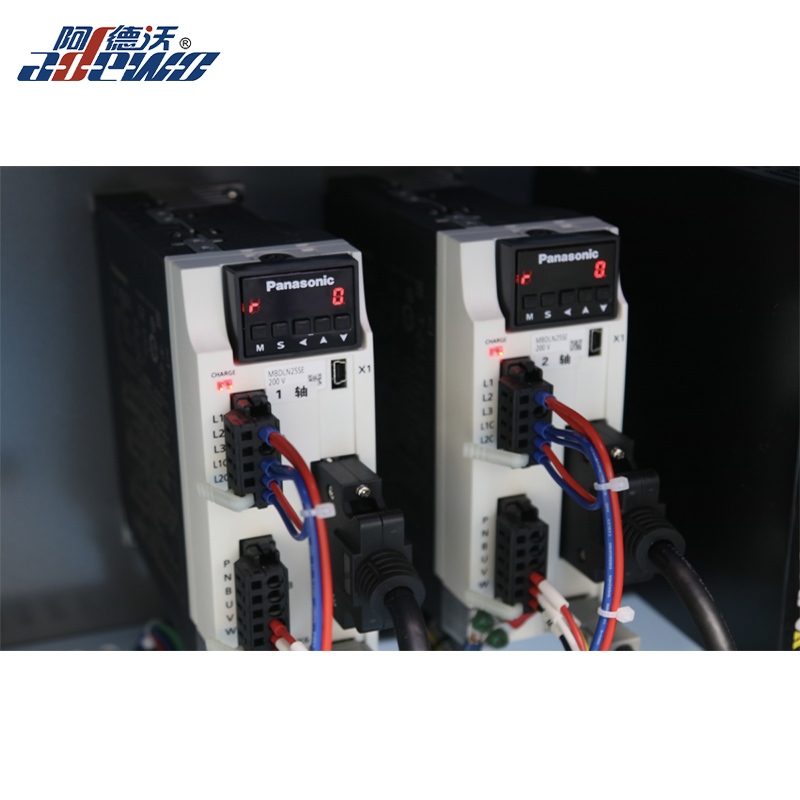

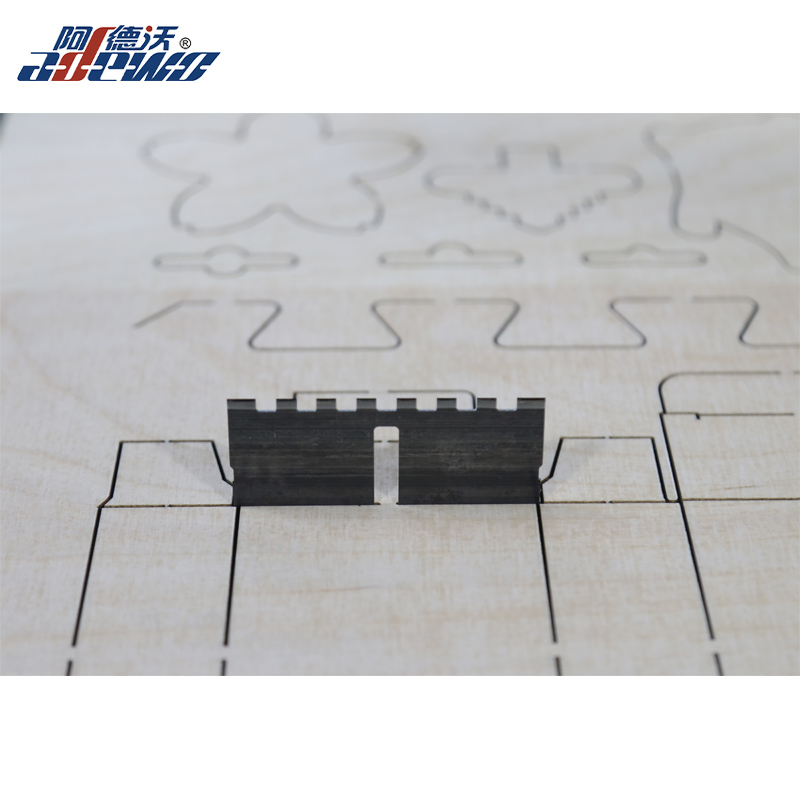

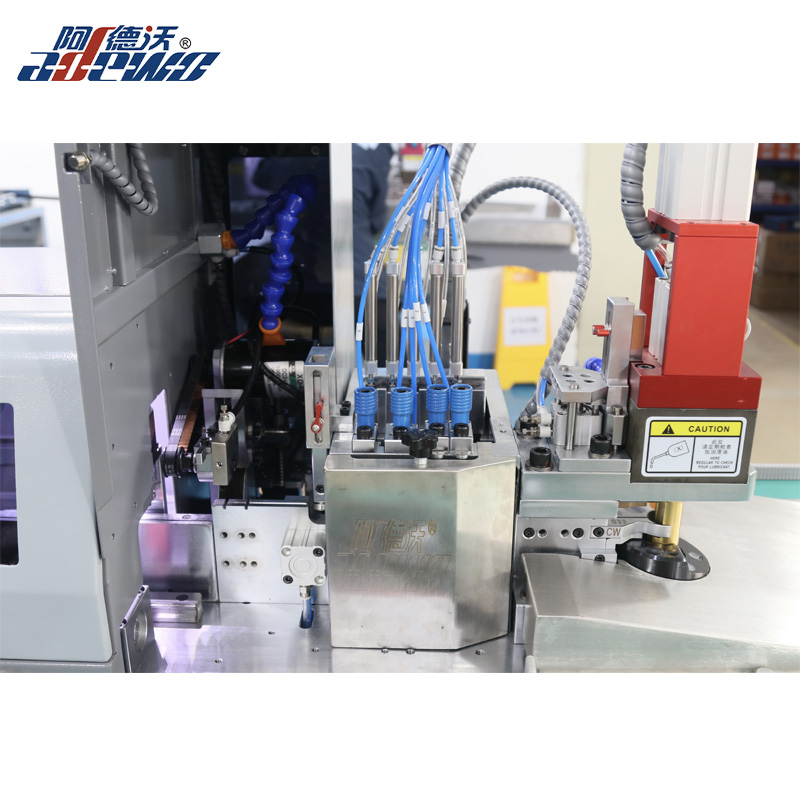

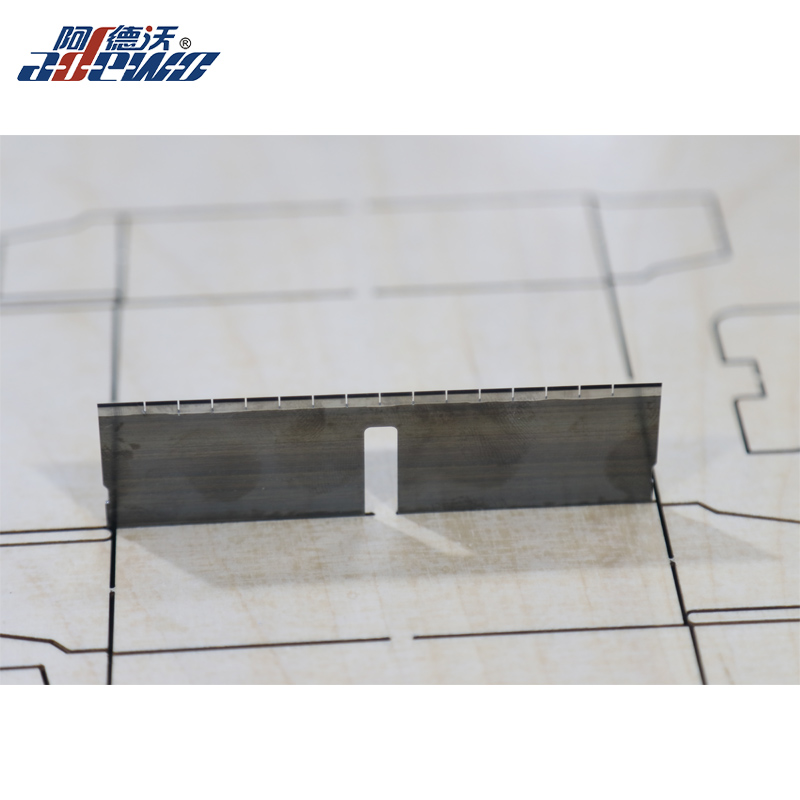

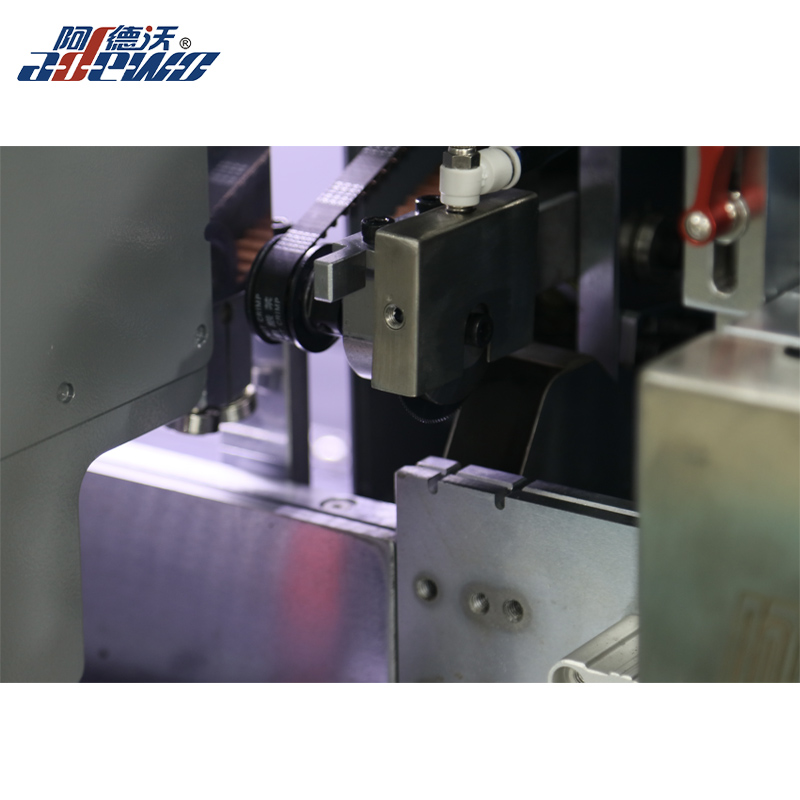

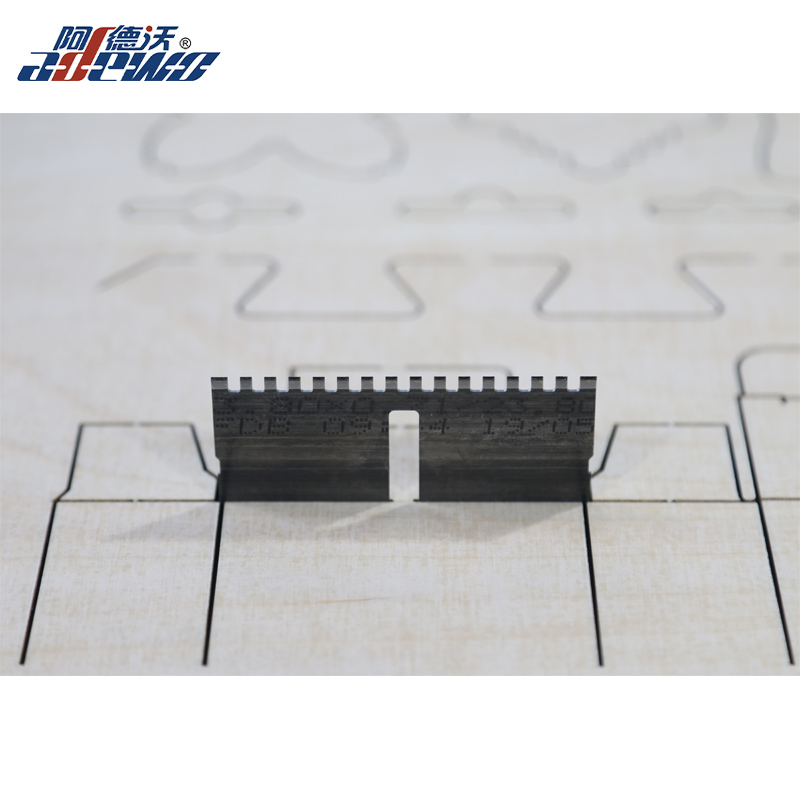

Picture of (ABM-832B2)Steel Rule Auto Bender Machine with Nicking for reference:


Product Features:

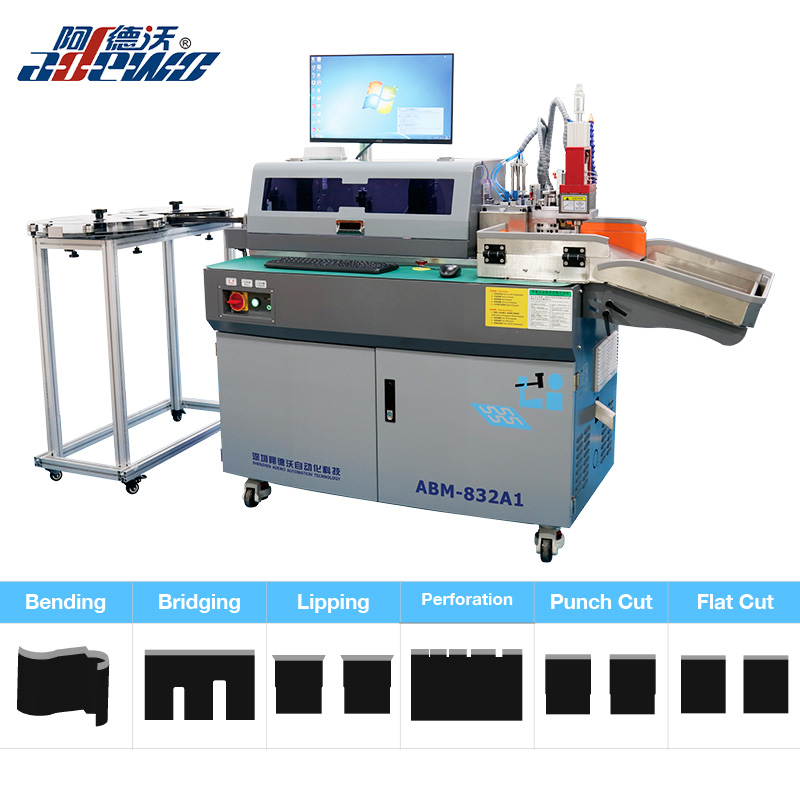

1.Multi-Functions:All functions in one machine. (ABM-832B2)Steel Rule Auto Bender Machine with Bending,Bridge,Nicking,Perforation,Lipping and Cutting.

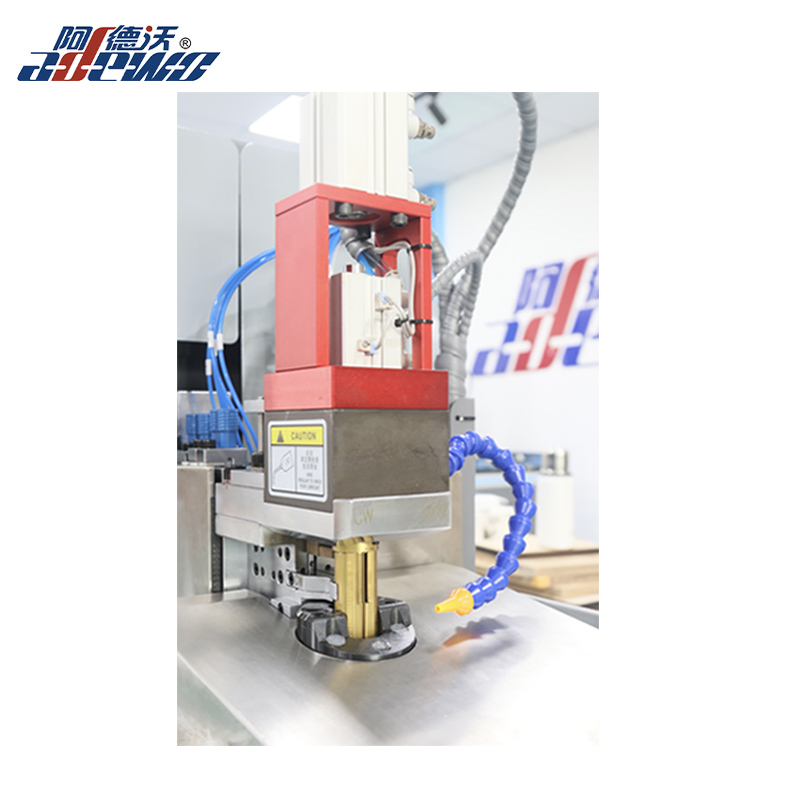

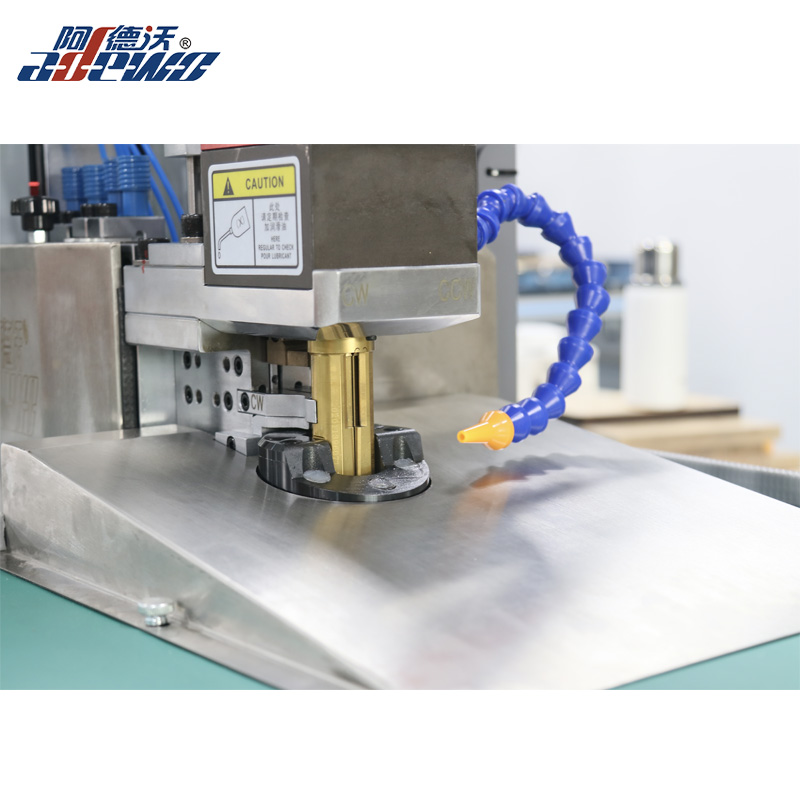

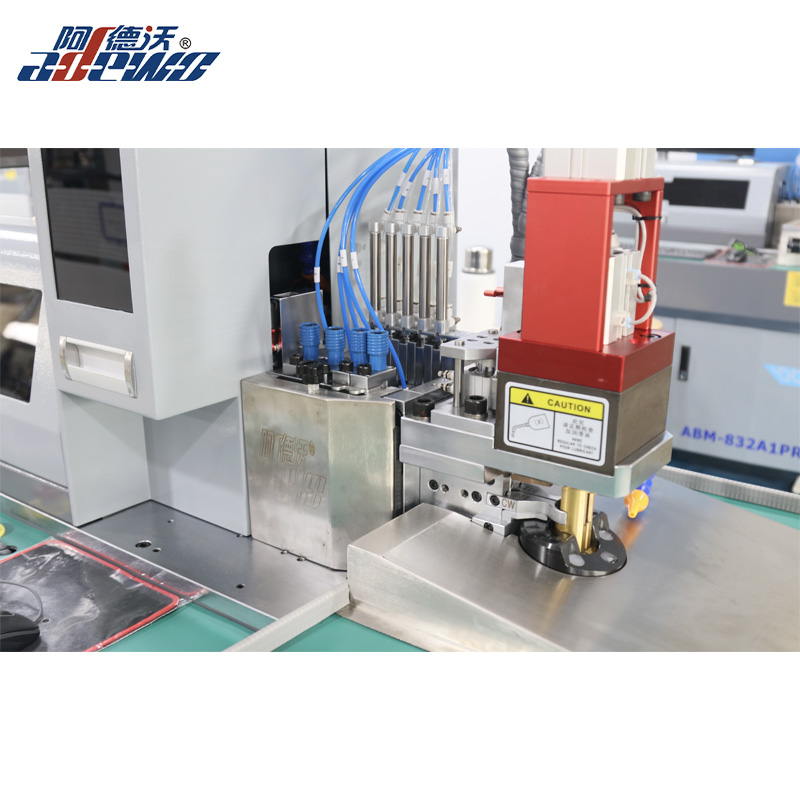

2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.

3.Punching Tools are separately which more convenient of replacement and save cost.

4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.

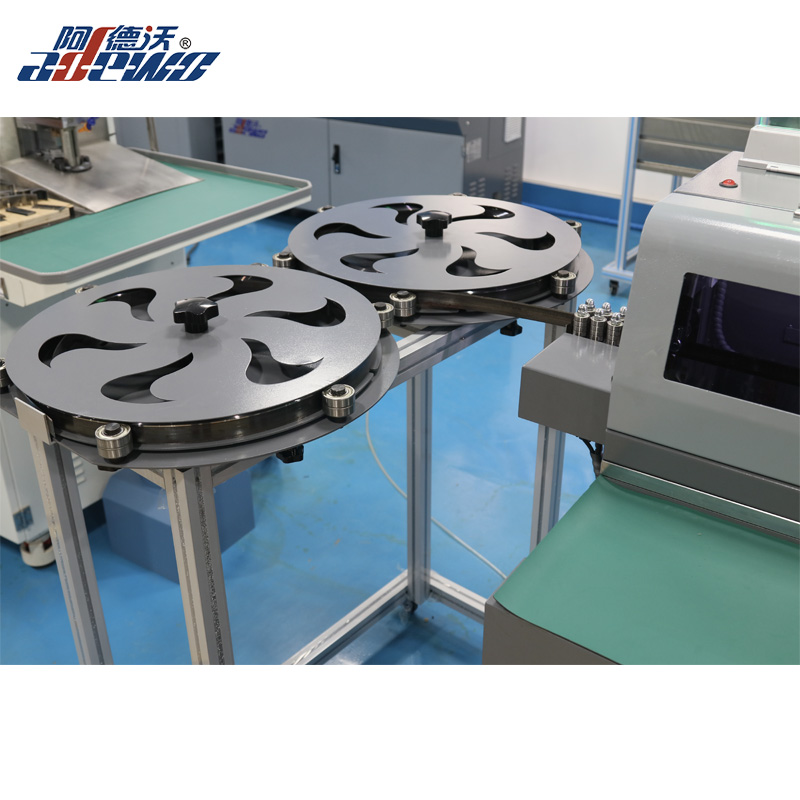

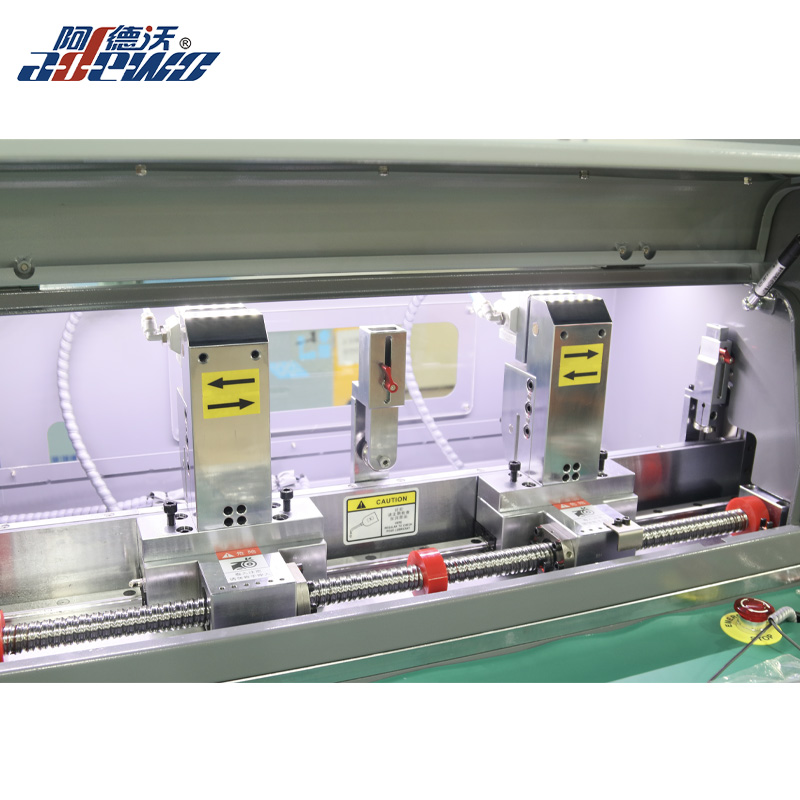

5.Feeding System: (ABM-A832A)Steel Rule Auto Bender Machine with double feeding clips which improves feeding speed and more stable.

6.Software System:The Latest Steel Rule Auto Bender Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.


Technical Parameters of The Latest Steel Rule Auto Bender Machine

Supported rule thickness(mm)

0.71mm&1.05mm (2pt&3pt)

Supported rule height(mm)

23.80-32mm

Bridge height

18mm&15mm adjustable

Bridge width

Over 5mm any sizes available.

(Can be customized)

Front Min. bending size

1.5MM

Back Min. cutting size

1.5MM

Feeding precision

±0.03mm

Bending flatness

±0.2mm

Basic Functions

Bending,Bridge,Nicking,Lipping,Cutting

Optional Functions

Perforation/Hole

Optimal pattern format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

Single Phase AC220V,13.6A,50-60Hz

Machine total power

3KW

Weight

578KGS

Overall dimension

2650x800x1600mm(LxWxH)

H.S. Code

8462230000


FAQ:

1.What’t difference between 832A2&832B2&832C2?

Different in functions, other features same.



2.What’s price term?

(1)FOB Shenzhen China
(2)CIF
(3)DDU

3. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

4.What about lead time?
7-10 working days.

5.How about installation and training of The Latest Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.


We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com


6.Any spare tools are included of The Latest Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
