How to Make Label Cutting Dies? A Guide to Label Die Making

Label cutting dies are widely used in the production of self-adhesive labels, stickers, packaging labels and other converted products.

As label designs become more customized and production requirements become more demanding, accurate and efficient die making has become increasingly important.

What Is a Label Cutting Die?

A label cutting die is a tool used to cut labels or stickers into specific shapes and sizes. Depending on the application, label dies can be produced in different shapes and configurations to meet the requirements of various label products.

For many label applications, steel rule dies are used because they can provide accurate cutting and can be customized for different shapes.


How to Make Label Cutting Dies?

Making a label cutting die involves several key steps, from preparing the design to assembling the steel rules onto the plywood die board.

1. Prepare the Die Drawing

Start with the label die drawing. The CAD file provides the required cutting shape, dimensions and steel rule layout.

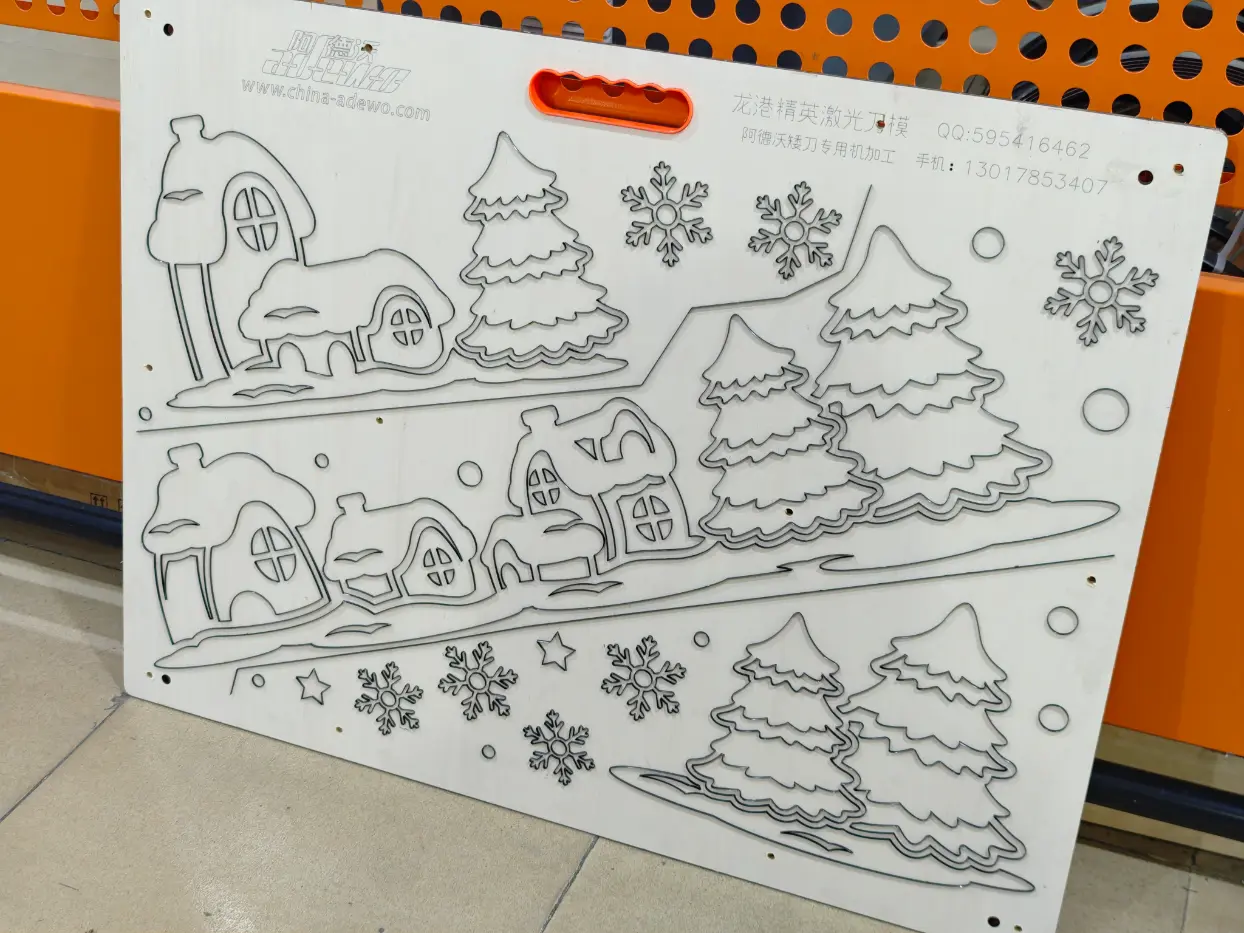

2. Laser Cut the Plywood

Die BoardUse a die-making laser cutting machine to cut the plywood according to the die drawing.

The laser cutter creates the slots for inserting the steel rules, ensuring accurate positioning during die assembly.

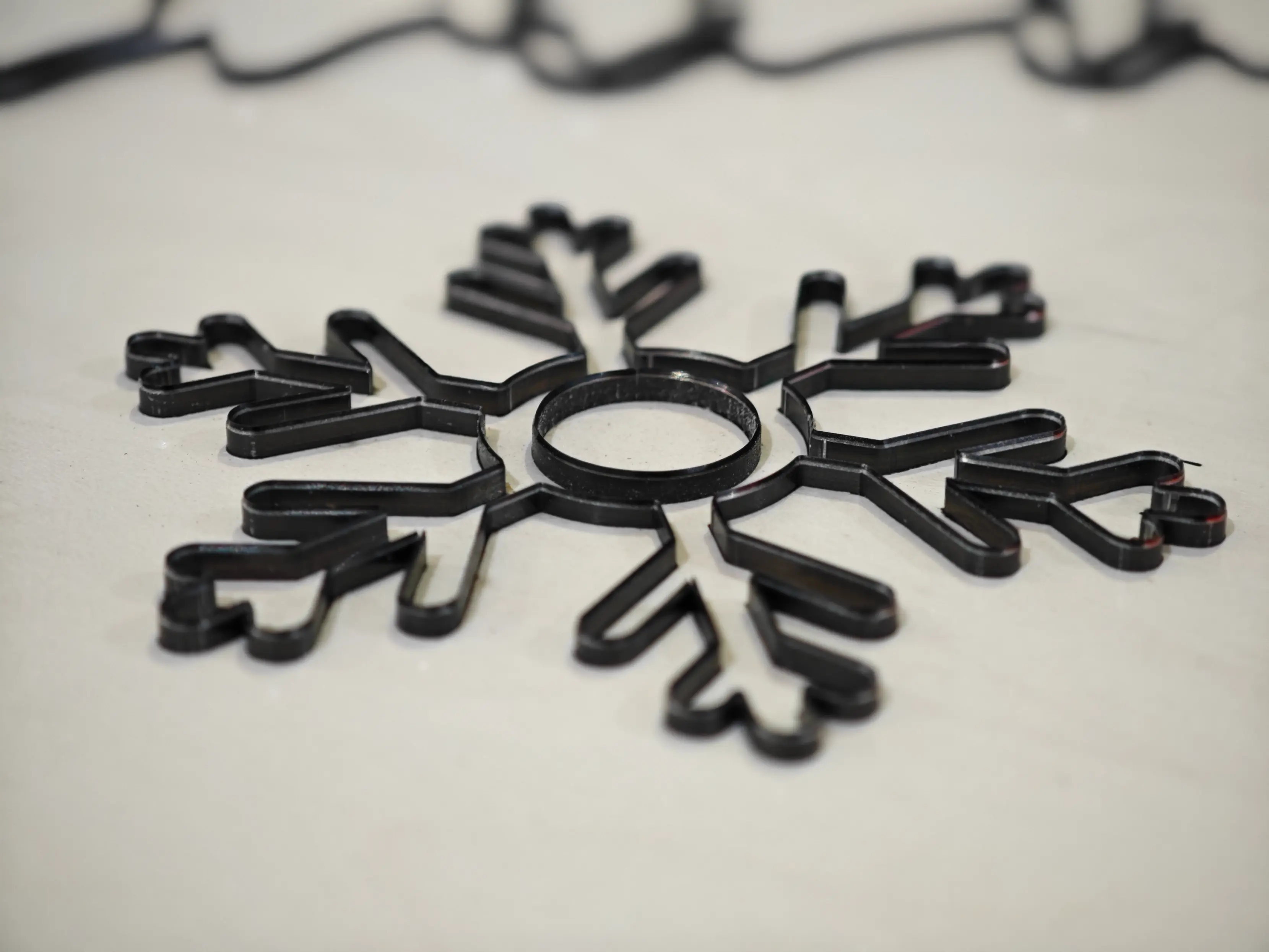

3. Bend the Steel Rules

Use an Automatic Rule Bending Machine to bend the steel rules according to the required shape.

The automatic bender can process the steel rules accurately based on the CAD drawing, helping improve efficiency and consistency.

4. Insert the Steel Rules into the Die Board

After the plywood and steel rules are prepared, insert the bent steel rules into the corresponding slots in the plywood die board.

Make sure the rules are correctly positioned and securely fitted.

5. Finished Label Cutting Die

After the steel rules and sponge are installed, the label cutting die is ready for use.

This basic workflow combines CAD design, laser cutting, automatic rule bending and die assembly to efficiently produce label cutting dies.



What Equipment and Materials Are Needed for Label Die Making?

For printing and packaging manufacturers, establishing an in-house label die making department can help improve production flexibility, shorten lead times and reduce reliance on external die suppliers.

But what equipment and materials are needed to get started?

For flat steel rule label cutting dies made from plywood die boards, a basic in-house production setup includes

  • Laser Cutting Machine
  • Automatic Steel Rule Bending Machine
  • Steel Rules
  • Plywood
  • Manual Tools
  • Marble Table


FAQ

1. Does the machine come with software? What languages are supported?

Yes. Auto Bender and Laser Cutting Machine include a computer with ADEWO software. Languages: Chinese, English, Spanish, Japanese, Korean, Portuguese, and more.


2. What are the installation requirements?

Electricity and an air compressor.


3. Can I install it myself?

Yes. ADEWO provides installation videos, manuals, and online guidance.


4. Can I request on-site installation and training?

Yes. ADEWO technicians offer on-site support and have die-making experience.


5. Is remote technical support available?

Yes. The ADEWO team provides remote support.


6. What file formats does the software support?

DXF, DWF, CF2.


7.Why Choose ADEWO for In-House Label Die Making?

ADEWO has an experienced technical team with extensive knowledge and practical experience in steel rule die making.

Over the years, ADEWO has helped many label printing companies establish their own in-house die making departments, providing suitable equipment, technical guidance and practical solutions based on their production needs.
