Processing steel rules by hand is slow, tedious, and prone to errors. Operators measure each piece manually, swap tools repeatedly, and often end up scrapping material due to inaccurate cuts. This costs time and money.
The ABM-XIE automates the entire job. Its software identifies rule lengths automatically, while servo-driven tools handle cutting, bridging, and perforation with consistent precision. Changeovers are quick, and the machine supports a wide range of rule sizes.
|
Rule thickness |
0.71 / 1.05 / 1.42 mm |
|
Rule height |
22 – 60 mm |
|
Tool systems |

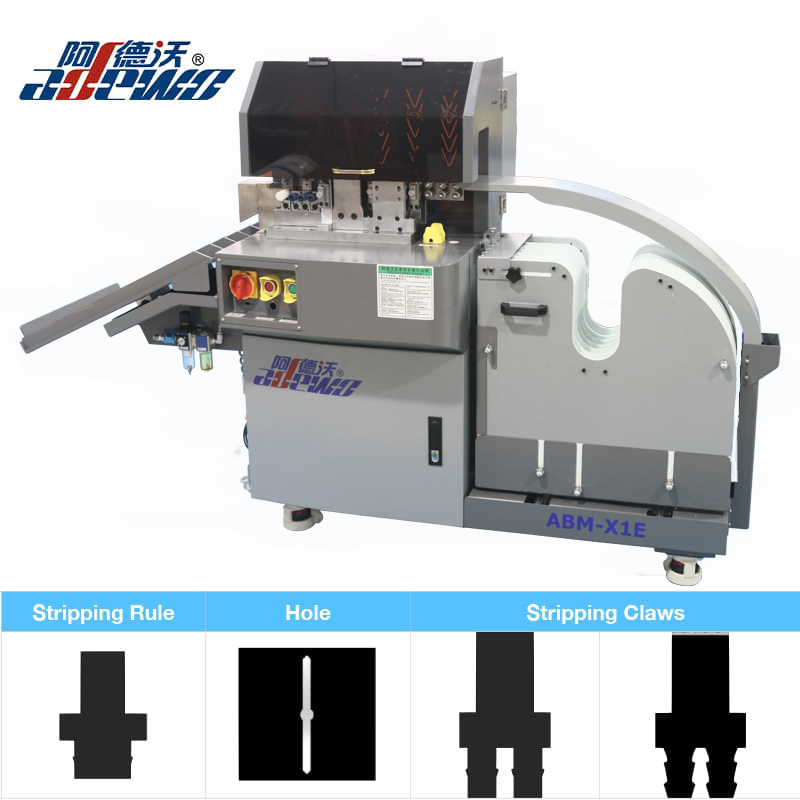

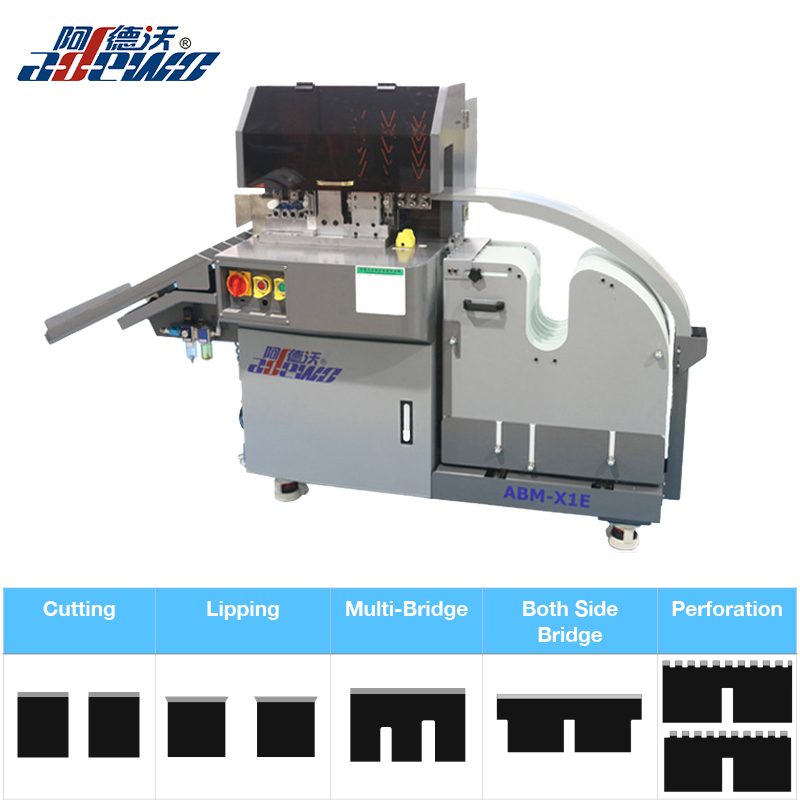

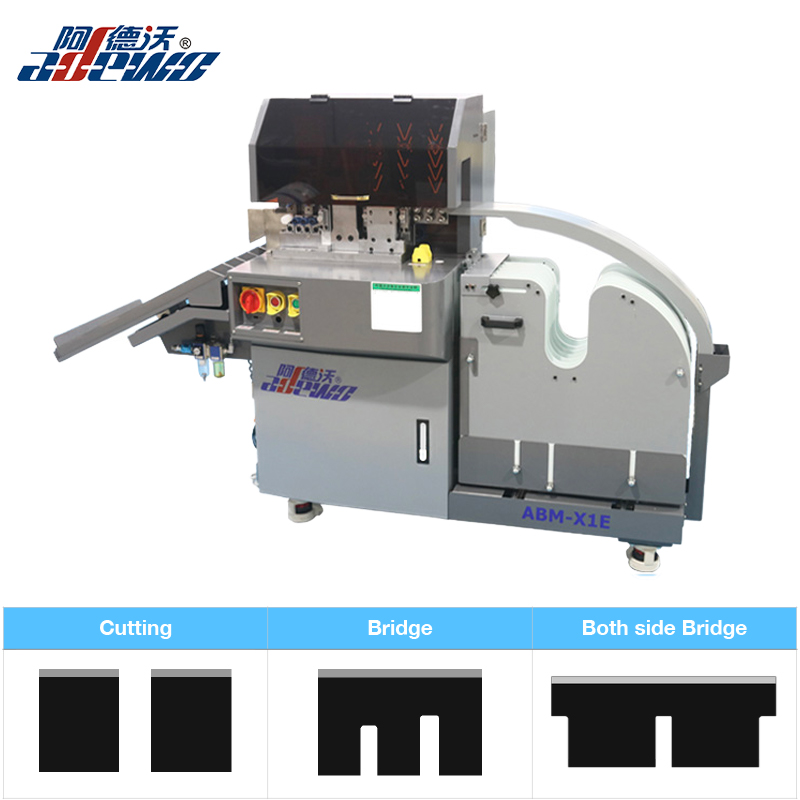

3‑tool: Bridging, Cutting, Lipping, Both‑Side Bridge 4‑tool: adds Perforation |
|
Optional Functions |
Cut Crease, Conner Cut, 4pt/8pt Creasing Rule, Stripping Rule |
Auto length sorting– software identifies rule lengths, no manual measuring.
Adjustable width– perforation and cut‑crease settings programmable via software.
Independent, quick‑change tool– each tool swaps in minutes, no special skills needed.
Multi‑rule cassette– holds up to 7 coils, speeds changeovers and improves safety.
Bilingual software– English/Chinese interface, stores job recipes and diagnostics.
Compact footprint– saves floor space, affordable for shops of all sizes.
The Challenge
Pharmaceutical and cosmetics packaging often involves multiple SKUs with varying dimensions, child‑resistant features, and tear‑strips within a single order. These high‑mix, short‑run jobs require frequent setup changes and precise rule lengths. Manual measurement and repeated tool swapping increase the risk of errors and material waste.
The ABM‑XIE Solution
Automated length sorting – software reads rule lengths directly from the CAD file, reducing manual measurement and setup time.
4‑tool perforation – delivers clean, consistent tear lines for blister packs or easy‑open flaps; the optional cut‑crease function helps prevent fibre‑burst on coated boards.
Quick cassette changeover – pre‑loaded coils allow seamless switching between rule thicknesses (e.g., 0.71 mm for thin cartons, 1.05 mm for sturdier sleeves).
The Challenge
Corrugated box manufacturers face demands for durable yet easy‑folding packaging. Thick, double‑wall or triple‑wall boards require taller creasing rules and deeper bridging to avoid cracking. Waste removal from slots and hand‑holes can also cause production interruptions.
The ABM‑XIE Solution
Tall rule support and both‑side bridging – accommodates rules up to 60 mm in height and produces symmetrical scores that distribute stress evenly, helping to reduce the risk of liner burst during folding.
Stripping rule option – removes waste matrix during rule processing, helping to minimise manual clearing of debris from cut‑outs.
Multi‑coil cassette – holds up to 7 coils of heavy rule (e.g., 1.42 mm thick), reducing direct handling of sharp materials and supporting safer, faster changeovers between box styles.
The Challenge
POP displays often feature complex, non‑rectangular designs with curved panels, interlocking tabs, and angled bases. These structures may require multiple rule functions—corner cuts, cut‑creases, and lipping—on the same set, traditionally necessitating several separate machines or manual handling steps.
The ABM‑XIE SolutionCorner cut integration – trims corners during rule processing, removing the need for a secondary notching operation and improving alignment with the display's design.Combined cut‑crease and lipping – independent tool heads allow both functions to be applied in one pass, supporting smooth, snag‑free assembly folds.Compact design for prototyping – small footprint and fast setup enable in‑house sample production, allowing design teams to iterate without relying on external toolmakers.
The Challenge
Label production demands high precision. Perforations for tear‑off sections must be accurately calibrated—too weak and the label tears prematurely; too strong and the user struggles to separate it. Folding labels (e.g., booklet labels) require fine crease lines that do not crack the ink or coating. Standard equipment often lacks the fine adjustment capability for these delicate tasks.
The ABM‑XIE Solution
Software‑adjustable perforation width – operators set the desired gap via software; the servo motor adjusts the cutting stroke accordingly to match substrate properties.
4pt/8pt creasing rule option – produces narrow, shallow creases that reduce stress on ink and coating, particularly beneficial for pressure‑sensitive labels with heavy coverage.
Stripping rule integration – configured to remove waste matrix automatically, reducing manual cleaning steps.
The ABM‑XIE automates rule processing, reducing setup time and material waste across a wide range of packaging applications—from folding cartons to labels. Its flexible tool configuration and smart software make it a practical choice for shops of any size.
If you are interested in learning more, we welcome you to request a demo or send us your job specifications for a tailored assessment. Our team is happy to help you evaluate how the ABM‑XIE fits your production needs.
