Product Description

(ABM-832A1)Auto Bender Machine for Die Cutting

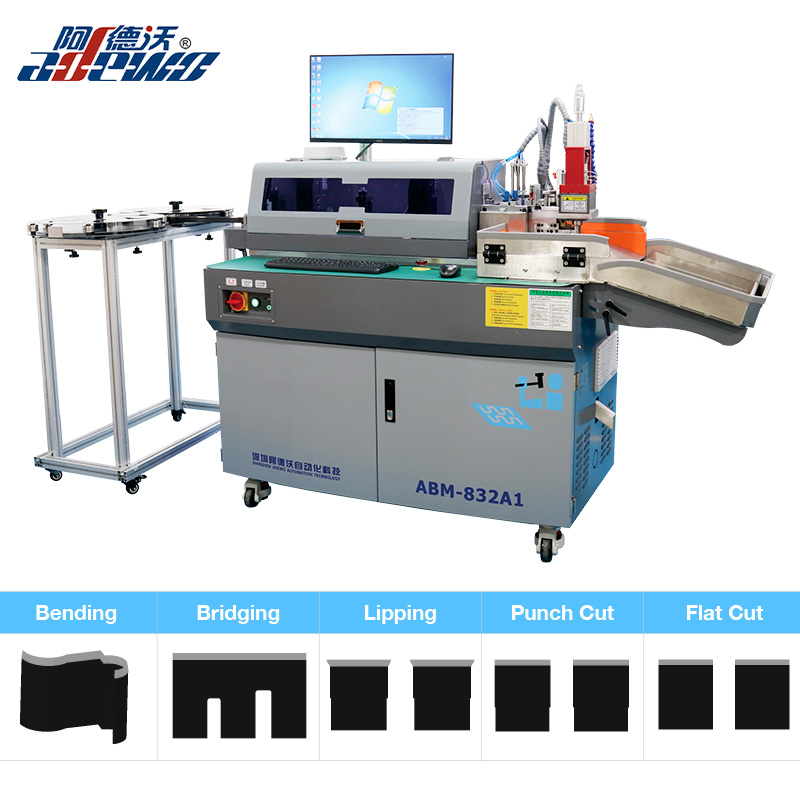

Picture of (ABM-832A1)Auto Bender Machine for Die Cutting with Perforation for reference:

Product Features:

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting

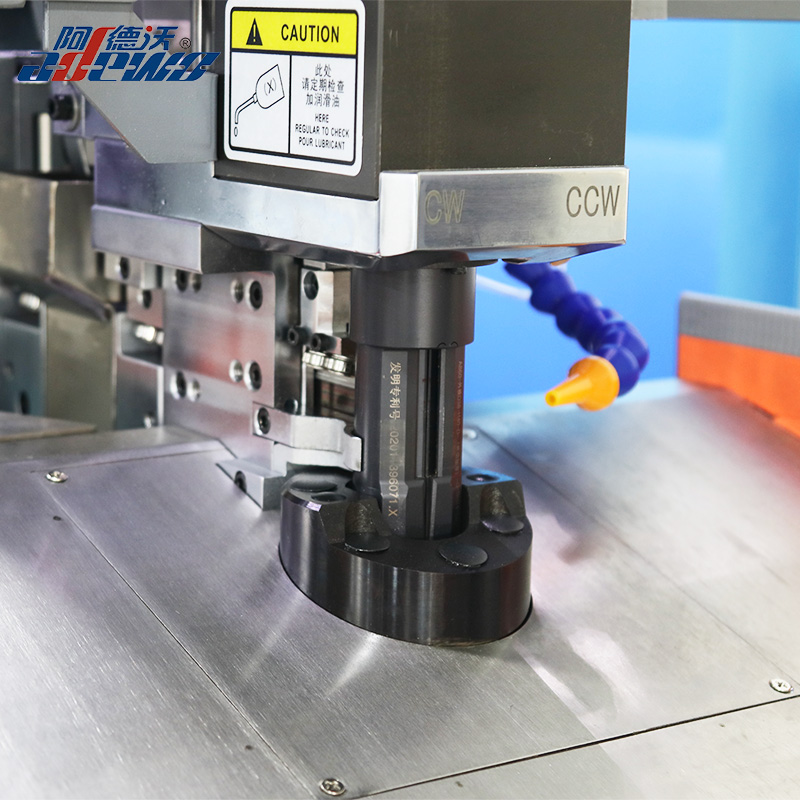

2.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation, independenttool, easy to replace.

3.Double clamps,screw guide feeding continuously, improves work efficiency.

4.Small footprint,save space,cost effective.

Technical Parameters of (ABM-832A1)Auto Bender Machine for Die Cutting

Supported rule thickness(mm)	0.45, 0.53, 0.71, 1.05mm
Supported rule height(mm)	8-32mm
Bridge height	18mm&15mm adjustable
Bridge width	Over 5mm any sizes available. (Can be customized)
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	0.2mm
Basic Functions	Bending,Bridge,Lipping,Cutting
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8MPa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	480KG
Overall dimension	2600x750x1600mm(LxWxH)
H.S. Code	8462230000

What Has Changed in Modern Automatic Rule Bending Machines?

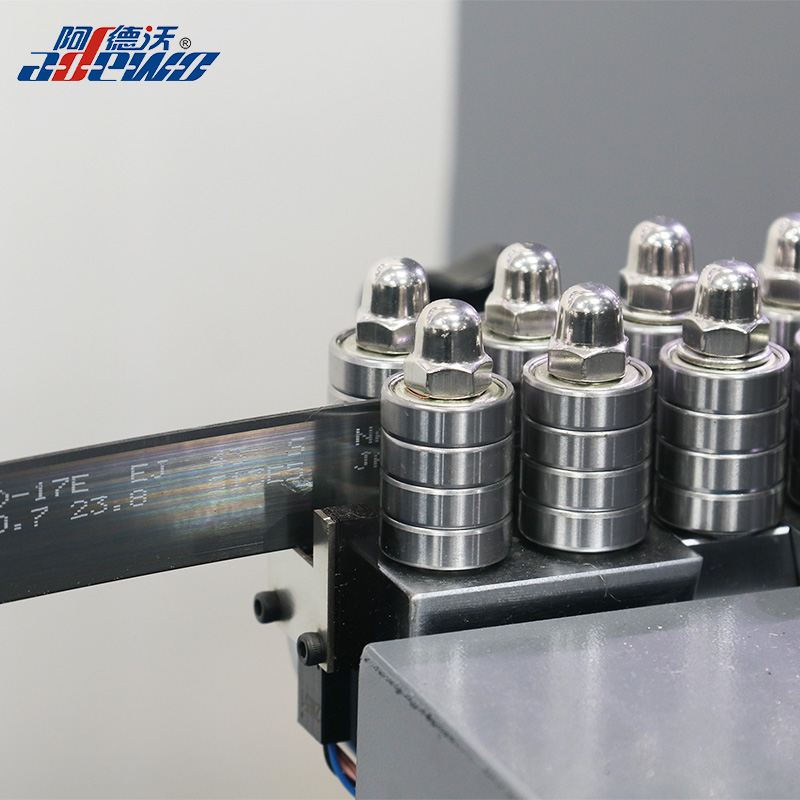

1. Feeding System Upgrade

From Single Clamp Feeding to Double Clamp Screw Feeding

Traditional Auto Bender:

Older machines commonly used a single clamp feeding system.

Limitations:

Lower feeding stability
Possible slipping during high-speed operation
Reduced accuracy for long steel rules

Modern Auto Bender:

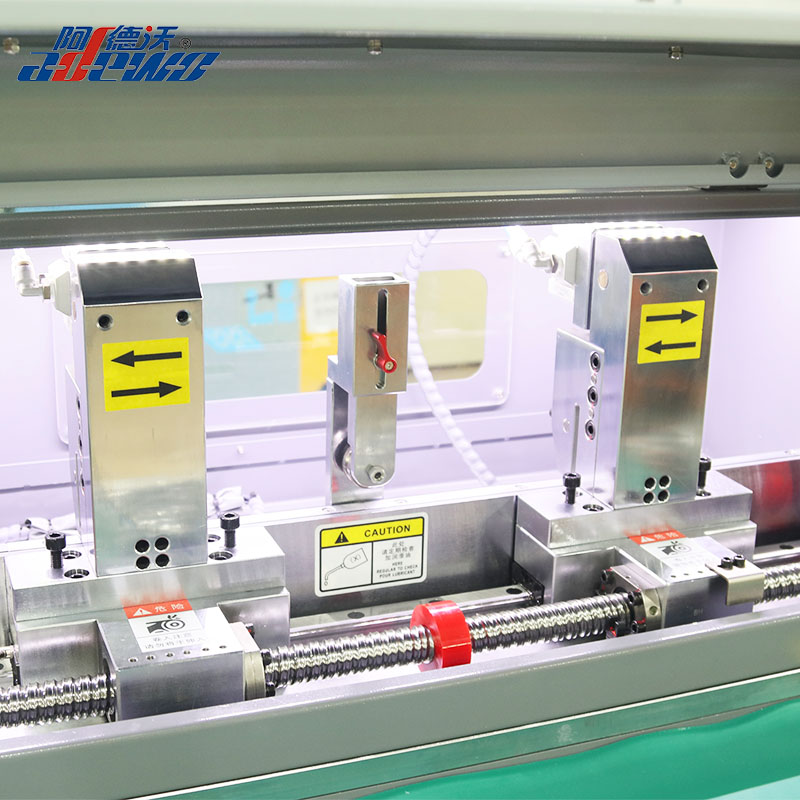

New-generation machines use a double clamp screw feeding system.

Advantages:

✔ Stronger grip on steel rules

✔ More stable feeding

✔ Higher bending accuracy

✔ Better repeatability

This improvement is especially important for continuous production and precision die manufacturing.

2. External Lipping Tool to Automatic Lipping Processing

Traditional Design:

Older machines required operators to install external Lipping tools manually.

Problems:

Manual adjustment required
Longer preparation time
Limited production flexibility

Modern Automatic Lipping System:

The new generation of automatic rule bending machines integrates automatic Lipping

Benefits:

✔ Faster setup

✔ More consistent processing

✔ Reduced operator dependence

✔ Improved production efficiency

3. Single Bridge Function to Multi-Function Processing System

Ten years ago, many automatic benders mainly focused on basic bending and simple bridge processing.

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time?
7-10 working days.

4.How about installation and training of (ABM-832A1)The Basic Model Auto Bender Machine？
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of The Basic Model Auto Bender Machine?
Yes,the new order machine with free spare tools.
