ABM-832B2 Die Boards Die Making Auto Bender Machine included functions：Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. China Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.
Shenzhen Adewo Automation Technology Co.,ltd. is a leading China Die Boards Die Making Auto Bender Machine manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Die Boards Die Making Auto Bender Machine have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Die Boards Die Making Auto Bender Machine services, you can consult us now, we will reply to you in time!

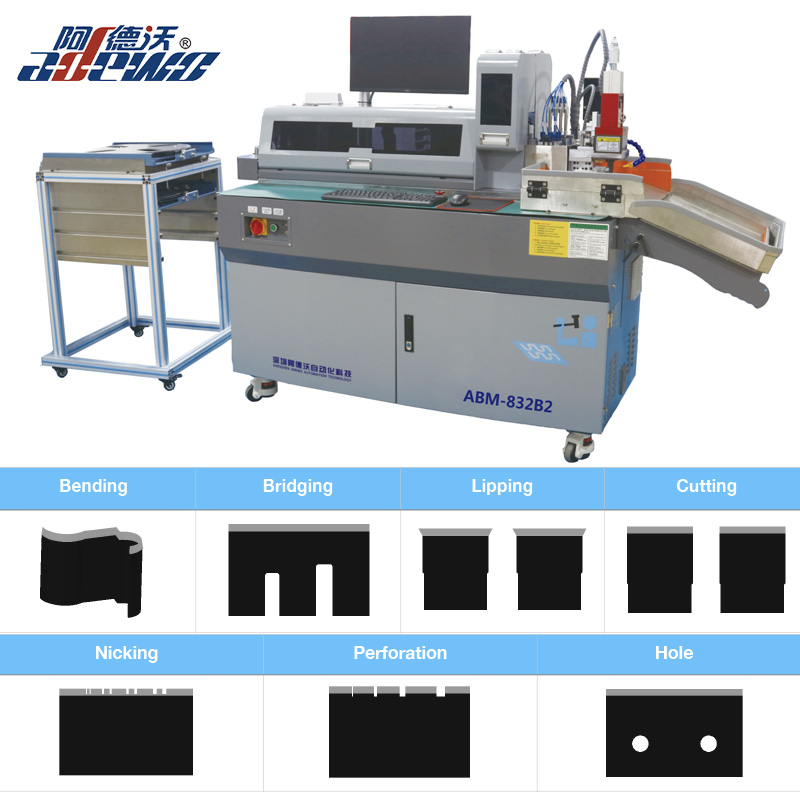

Picture of (ABM-832B2)Die Boards Die Making Auto Bender Machine for reference:

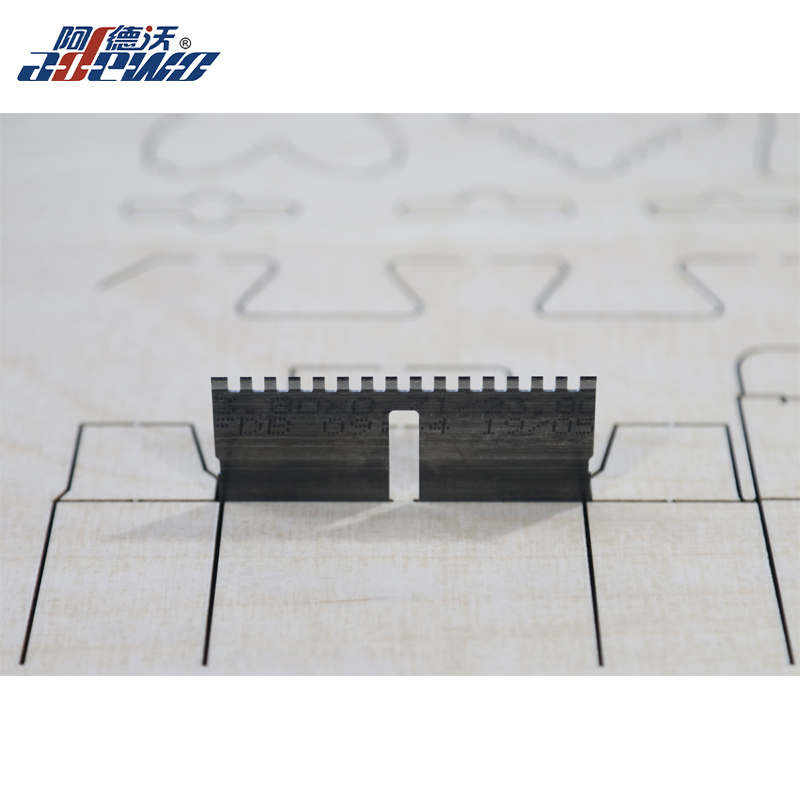

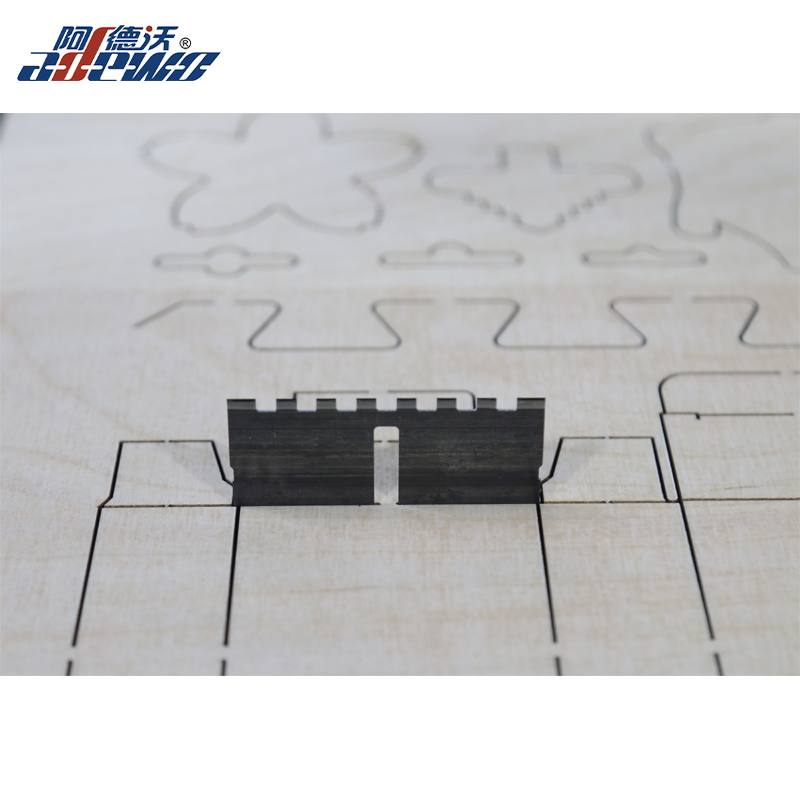

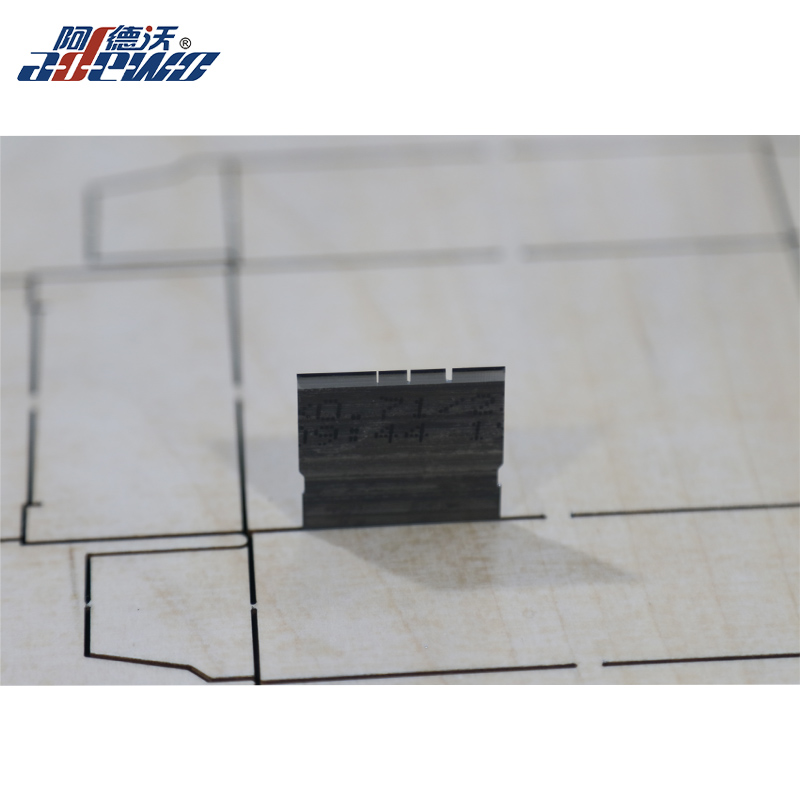

1.Multi-Functions：All functions in one machine.(ABM-832B2) Die Boards Die Making Auto Bender Machine with Bending,Bridge,Nicking,Perforation,Hole,Lipping and Cutting.

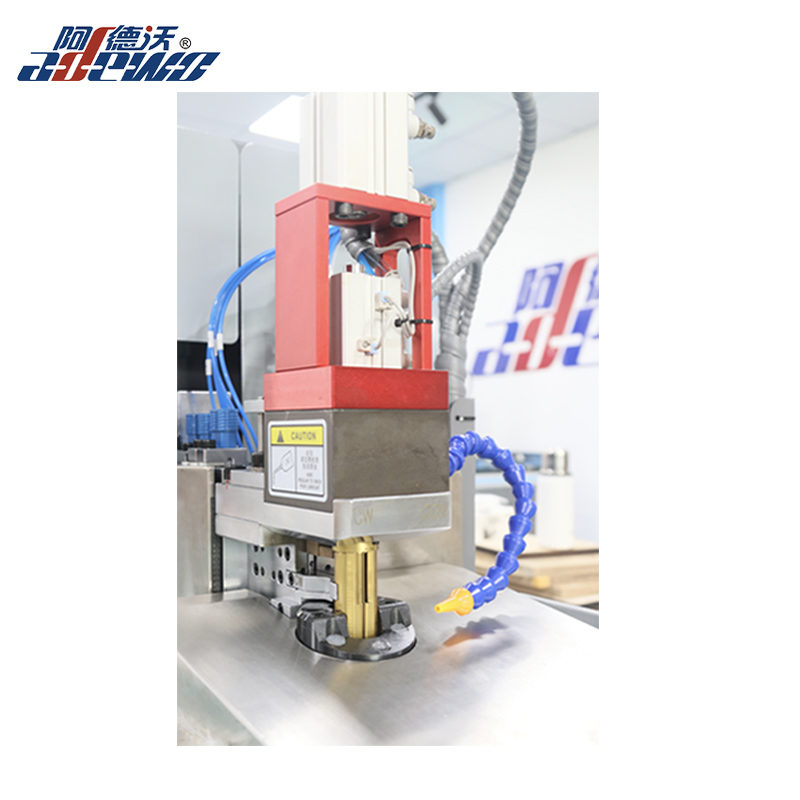

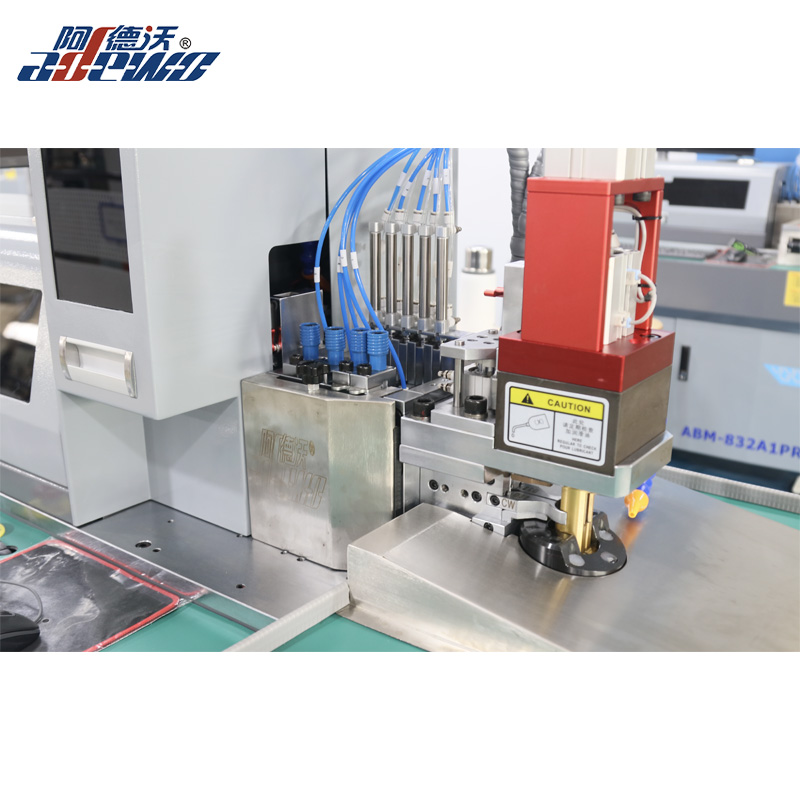

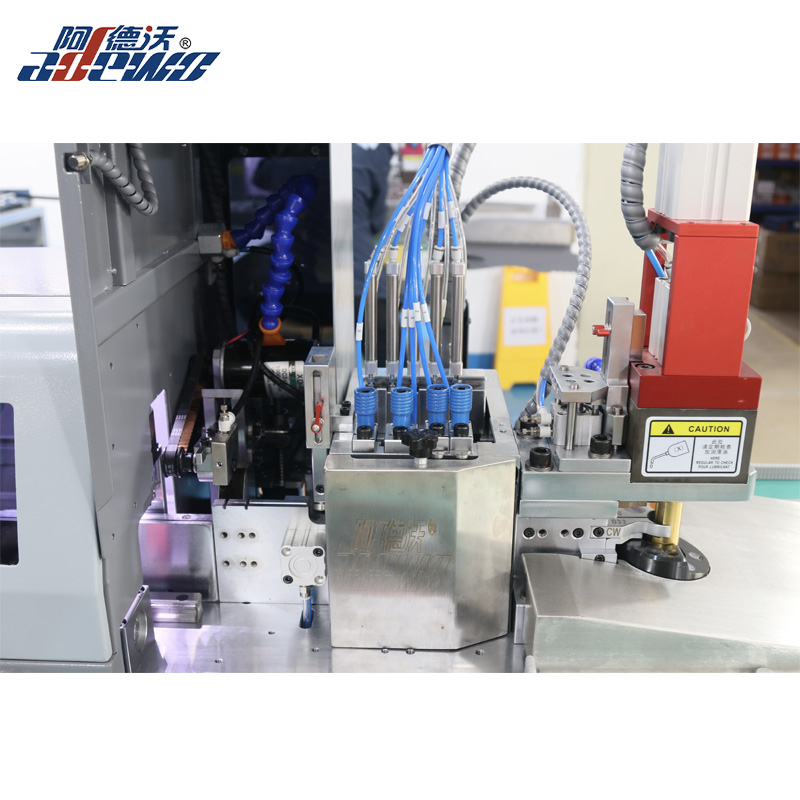

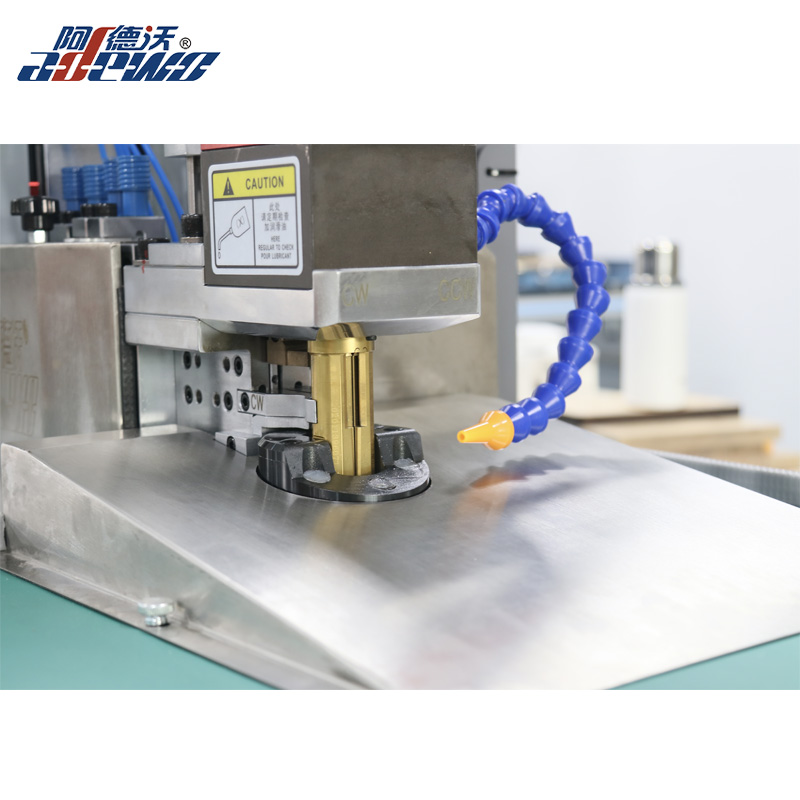

2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.
3.Punching Tools are separately which more convenient of replacement and save cost.

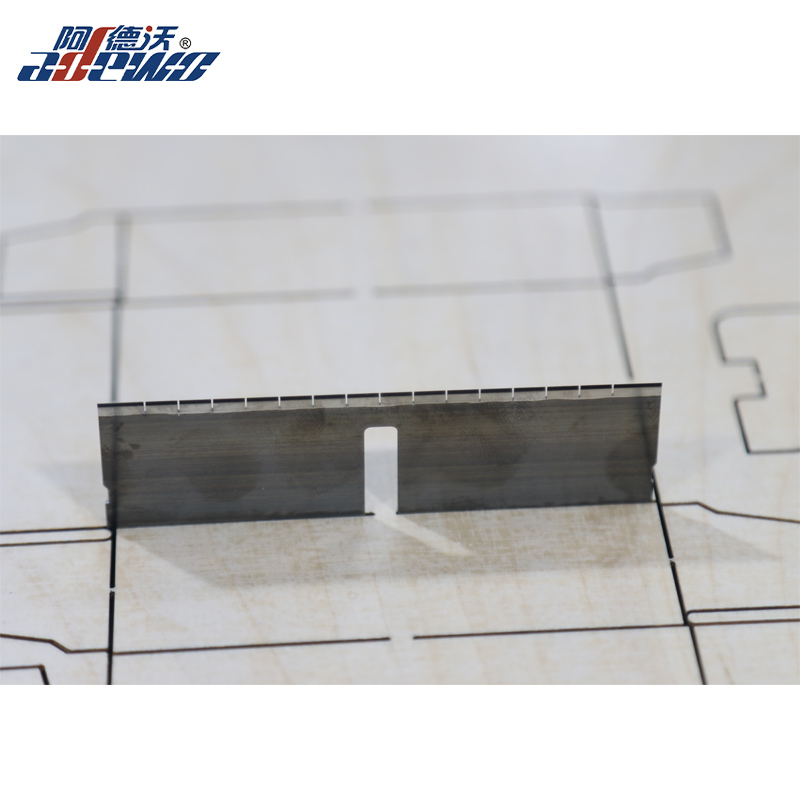

4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.

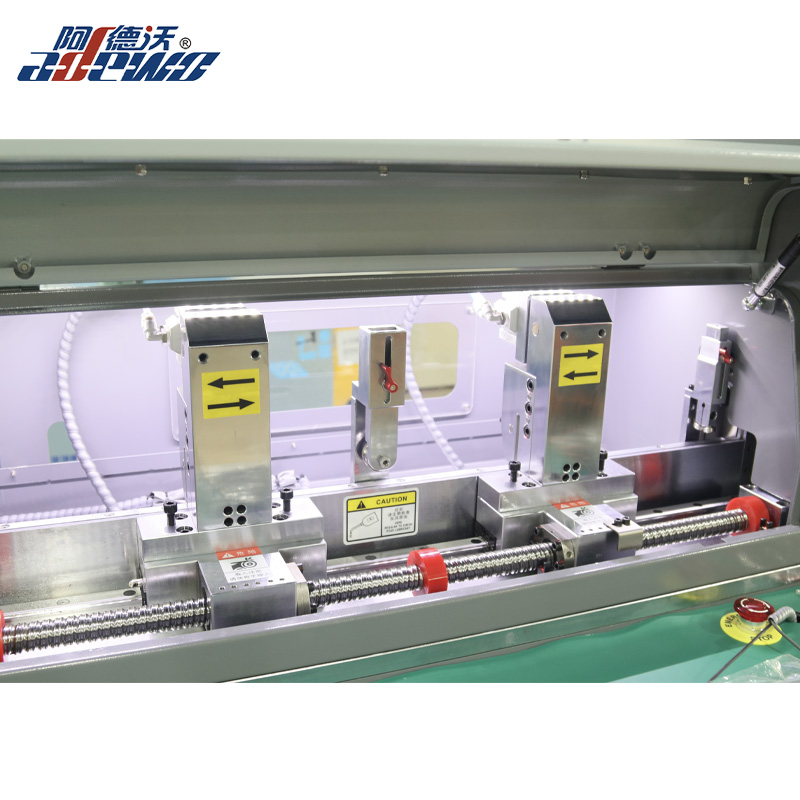

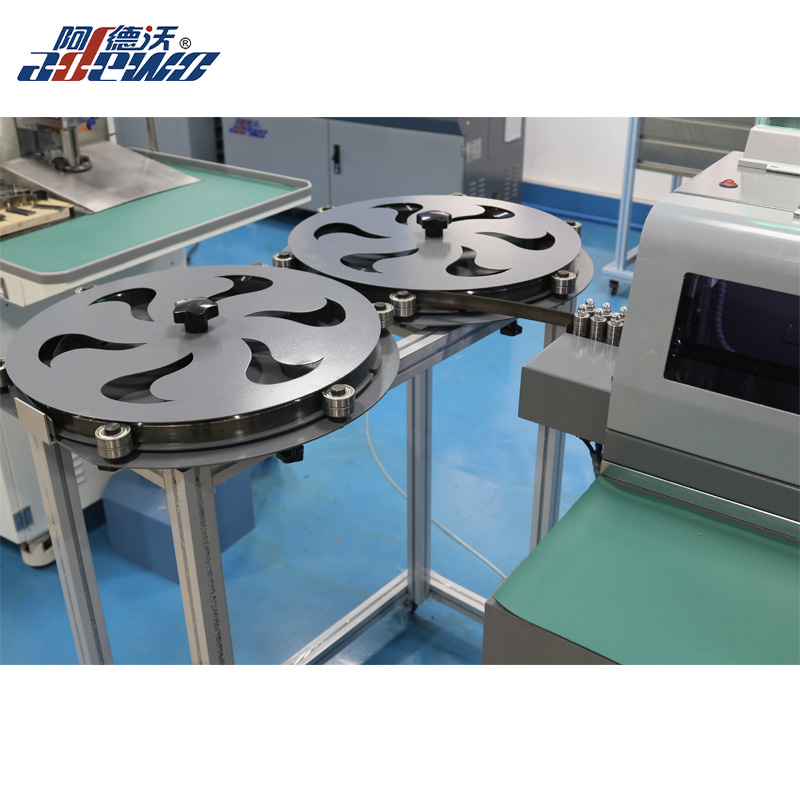

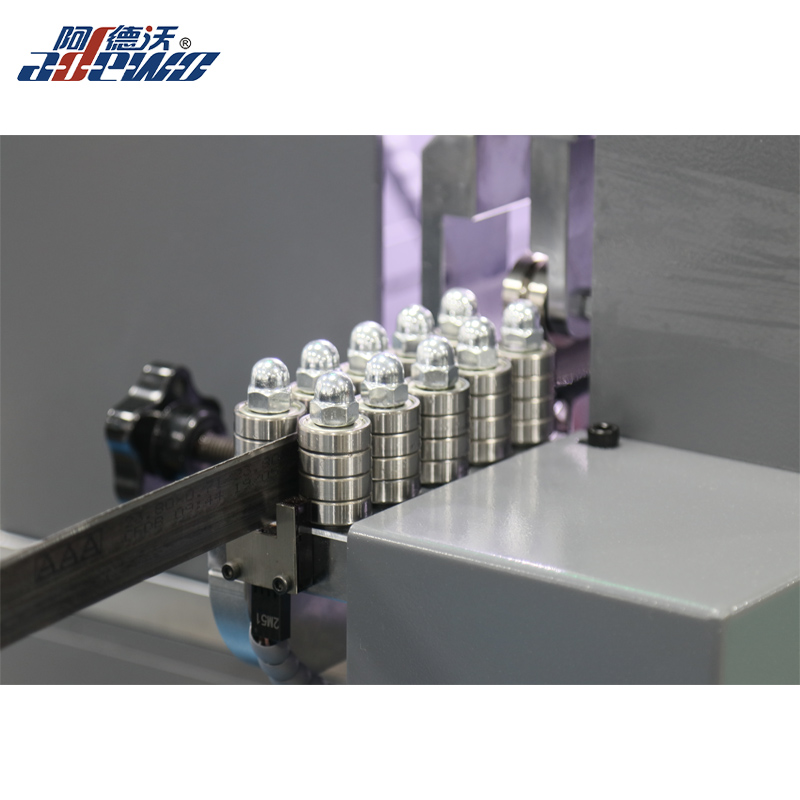

5.Feeding System:This Die Boards Die Making Auto Bender Machine with double feeding clips which improves feeding speed and more stable.
6.Software System:This Die Boards Die Making Auto Bender Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.
|
Supported rule thickness(mm) |
0.71mm&1.05mm(2pt&3pt) |
|
Supported rule height(mm) |
23.80-32mm |
|
Bridge height |
15mm&18mm adjustable |
|
Bridge width |
Over 5mm any sizes available. |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.5MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Nicking,Perforation,Hole |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
578KGS |
|
Overall dimension |
2800x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDU
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Die Boards Die Making Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of the Die Boards Die Making Auto Bender Machine?
Yes,the new order machine with free spare tools.
