High Accurate Steel Rule Auto Bender Machine
  • Air ProHigh Accurate Steel Rule Auto Bender Machine

High Accurate Steel Rule Auto Bender Machine

ABM-A832C High Accurate Steel Rule Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Bottom Notch,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.

Model:ABM-A832C

Send Inquiry

Product Description

High Accurate Steel Rule Auto Bender Machine

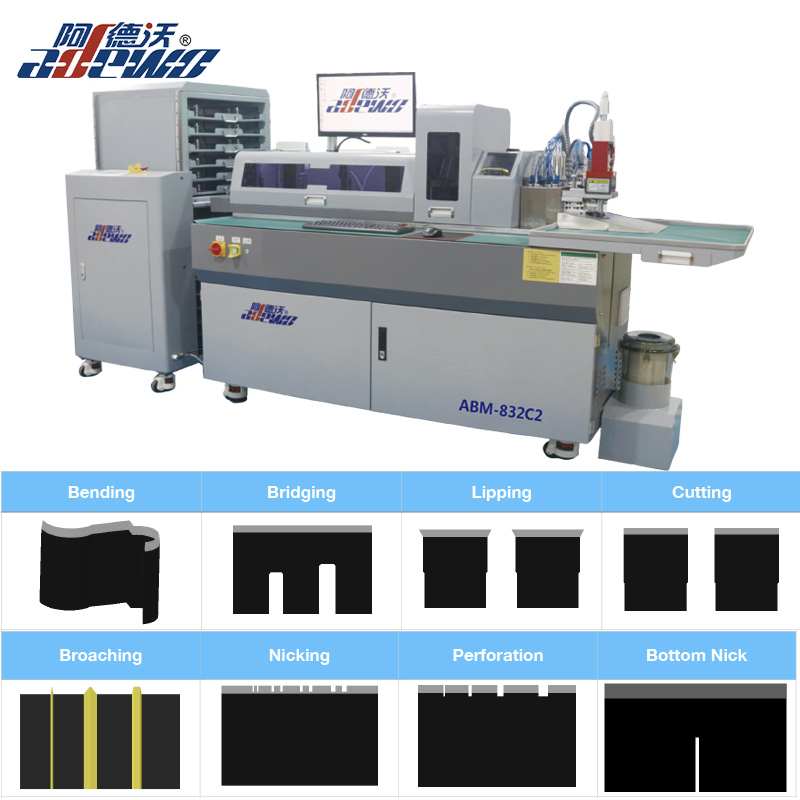

Picture of (ABM-A832C)High Accurate Steel Rule Auto Bender Machine for reference:


Product Features:

1.Multi-Functions:All functions in one machine.(ABM-A832C)SHigh Accurate Steel Rule Auto Bender Machine with Bending,Bridge,Broaching,Nicking,Perforation,Hole,Bottom Notch,Lipping and Cutting.

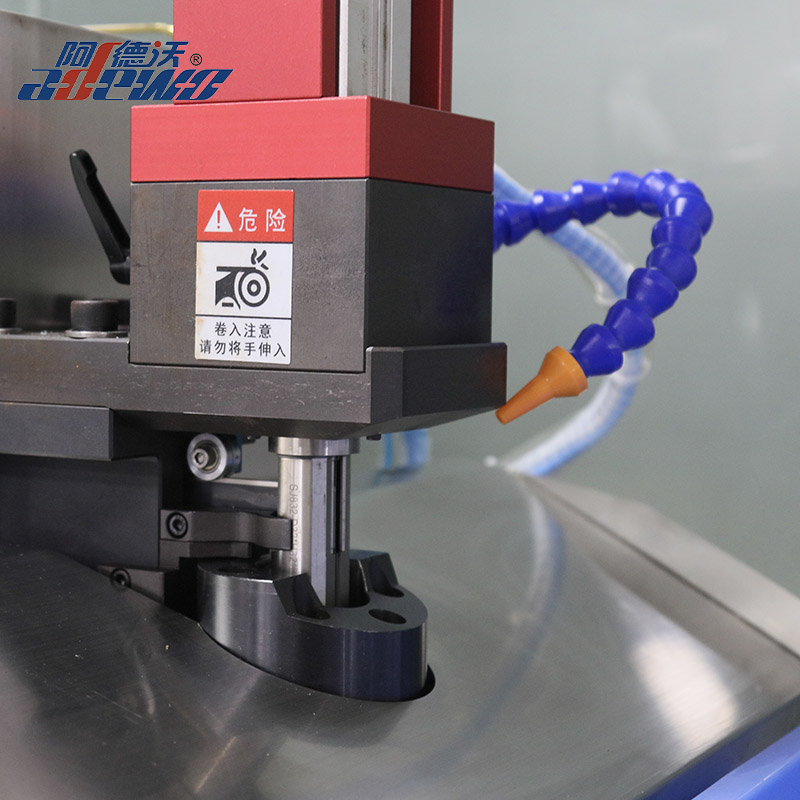

2.Bending System:The Bending&Cutting in one tool that increase cutting speed, no need to hold the short dies by hand when cutting.Smart safety protection can effectively avoid the accident.



3.Punching Tools are separately which more convenient of replacement and save cost.



4.Lipping Tool, Cutting Tool and Perforation Tool are customization according to the edge of the steel rule which you use, to get high precision lipping size, cutting and perforation.

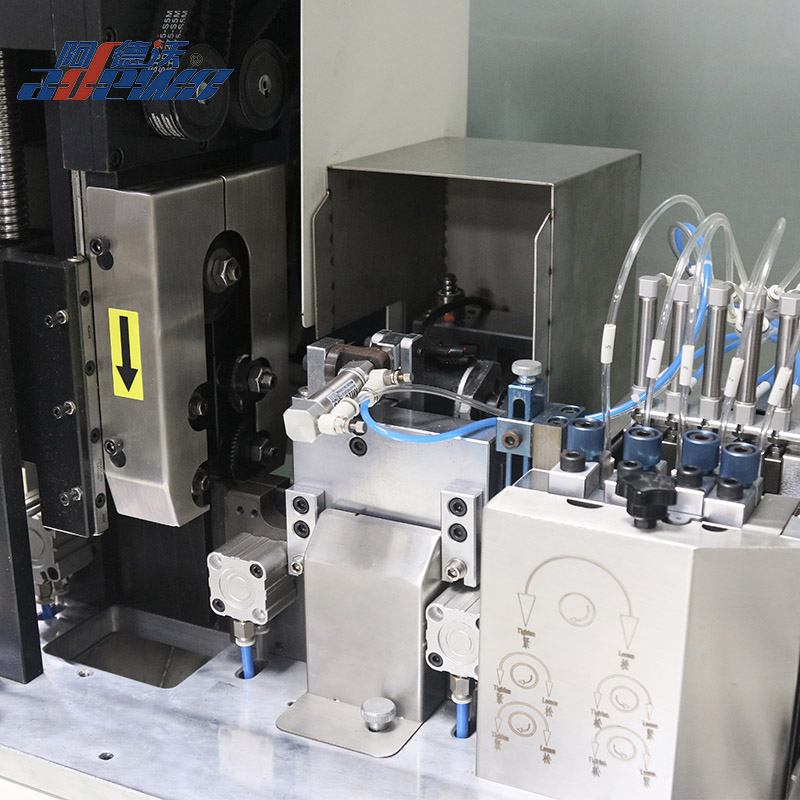

5.Feeding System:This High Accurate Steel Rule Auto Bender Machine with double feeding clips which improves feeding speed and more stable.



6.Software System:This High Accurate Steel Rule Auto Bender Machine with newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.



7.Automatic Rule Cassette with display:Independent 6 floors rule cassette that the height can be adjusted by display. Smart safety protection can effectively avoid the accident.



Technical Parameters of High Accurate Steel Rule Auto Bender Machine

Supported rule thickness(mm)

0.71mm&1.05mm(2pt&3pt)

Supported rule height(mm)

23.80-32mm

Bridge height

15mm&18mm adjustable

Bridge width

Over 5mm any sizes available.
(Can be customized)

Front Min. bending size

1.5MM

Back Min. cutting size

1.5MM

Feeding precision

±0.03mm

Bending flatness

±0.2mm

Functions

Broaching,Bending,Bridge,Perforation,Nicking,
Bottom Nick,Lipping Cutting

Cutting methods

Bend Cut

Optimal pattern format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

Single Phase AC220V,13.6A,50-60Hz

Machine total power

3KW

Weight

548KGS

Overall dimension

2950x800x1600mm(LxWxH)

H.S. Code

8462230000



FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time?

7-10 working days.



4.How about installation and training of High Accurate Steel Rule Auto Bender Machine

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at [email protected]



5.Any spare tools are included of the High Accurate Steel Rule Auto Bender Machine?

Yes,the new order machine with free spare tools.
