600 Watts Flatbed Die-Cutting Die Making Laser Cutting Machine

(ADW-LC600)600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine with fast cutting speed, around 40–45 meters/hour 18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise. China Adewo has been successful for many domestic and foreign enterprises to provide advanced Laser Cutting machine,Auto Bender Machine,Creasing Cutting Machine, technical support and excellent after sales service.

Model:ADW-LC600

Send Inquiry

Rating: 5.0

(Rating Count: 1)

Product Description

600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine

You can rest assured to buy customized 600 Watts Flatbed Die-Cutting Die Making Laser Cutting Machine from us. We look forward to cooperating with you, if you want to know more, We will always adhere to the principle of "quality first, client first," and we cordially invite customers to visit us for consultation.

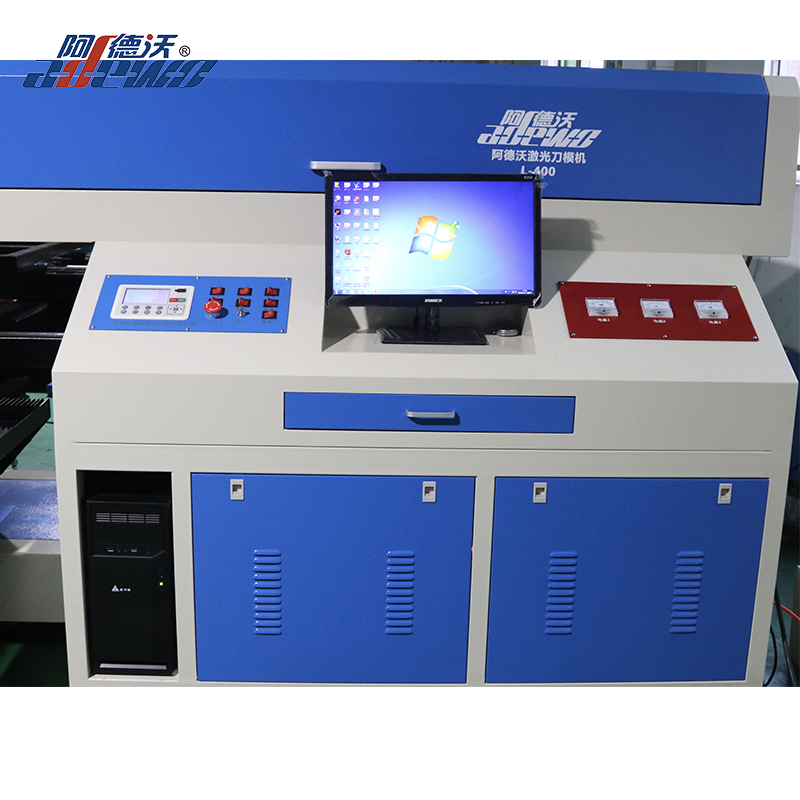

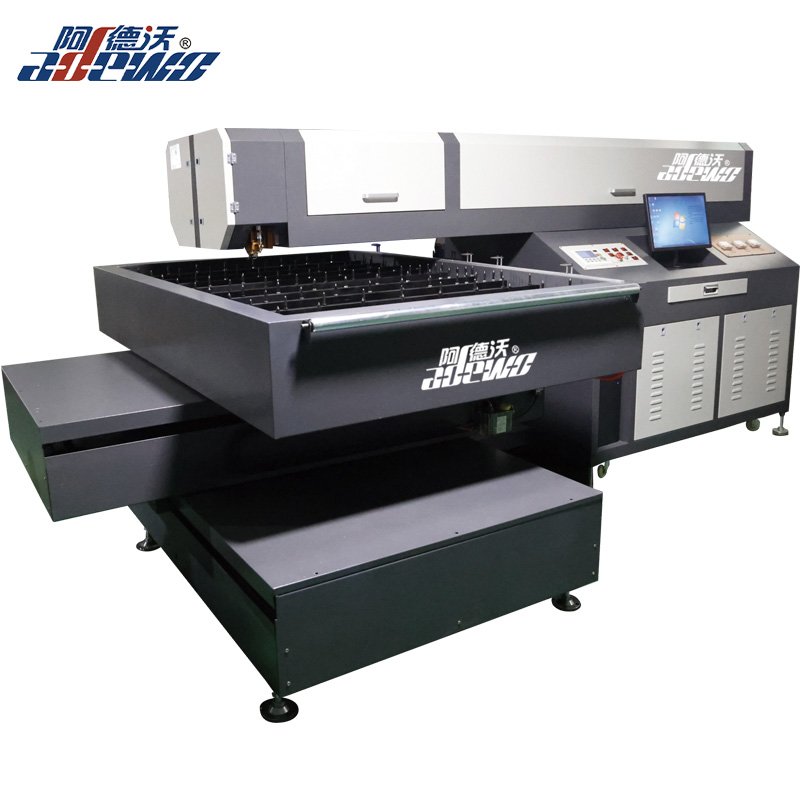

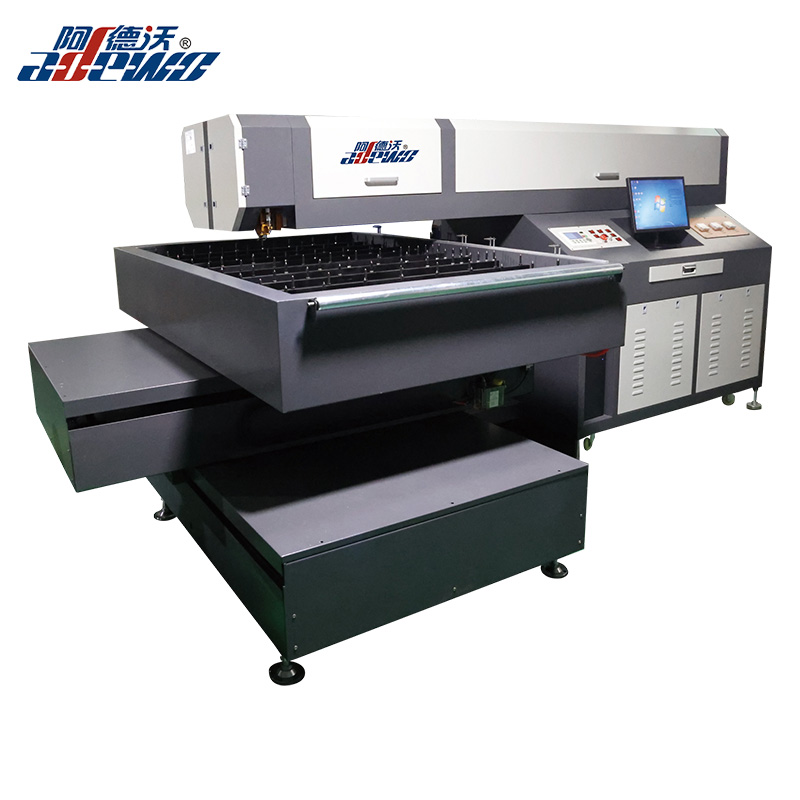

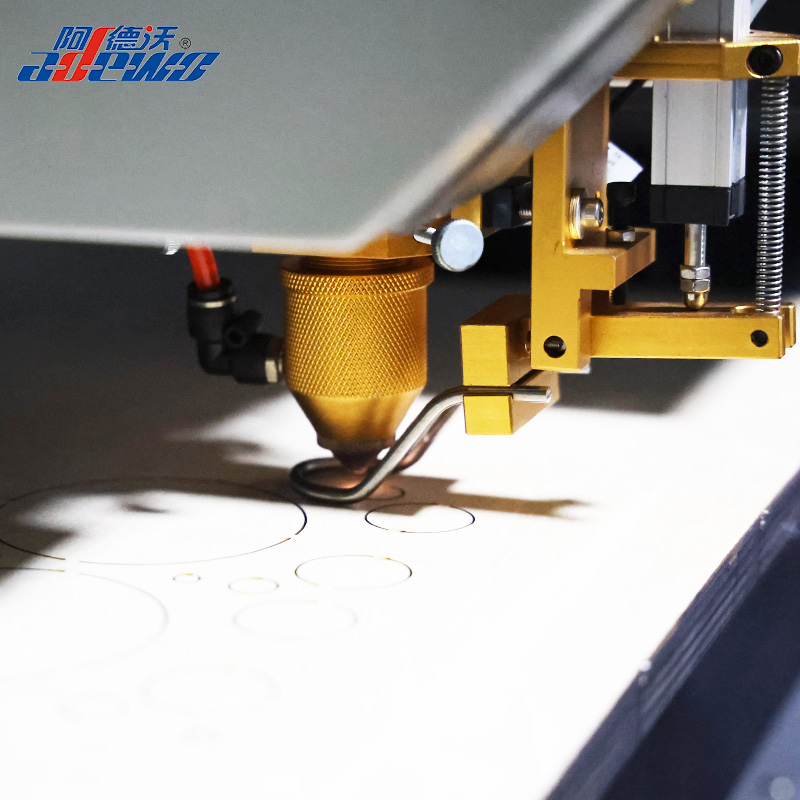

Picture of (ADW-LC600) 600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine for reference:

1.Product Features:

1.Laser head fixed, table moves, stable of cutting.

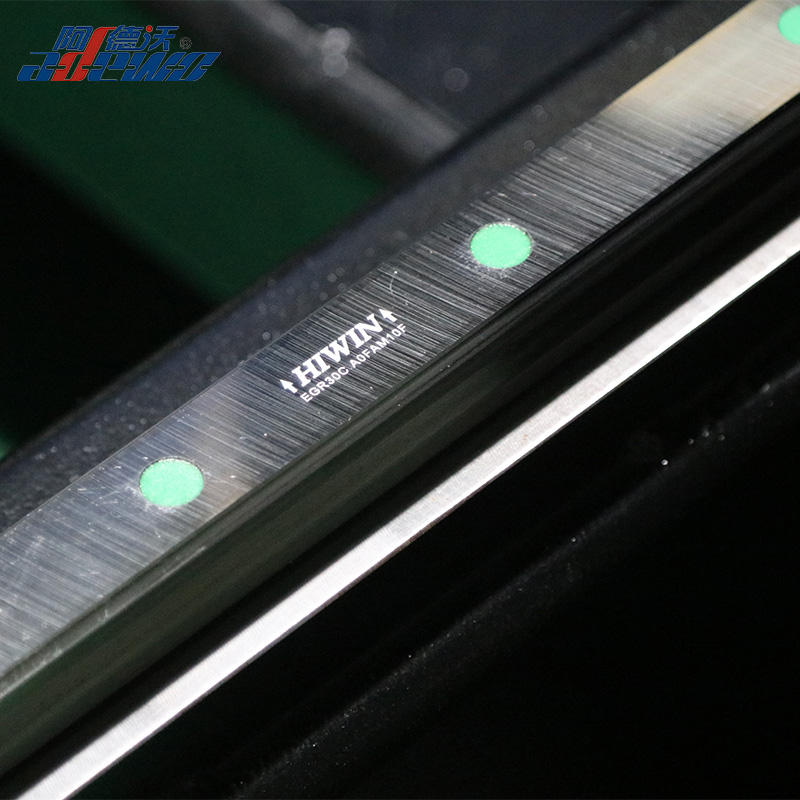

2.lmported screw drive, more durable and high accuracy.

3.Cross structure, stable of working for long term.

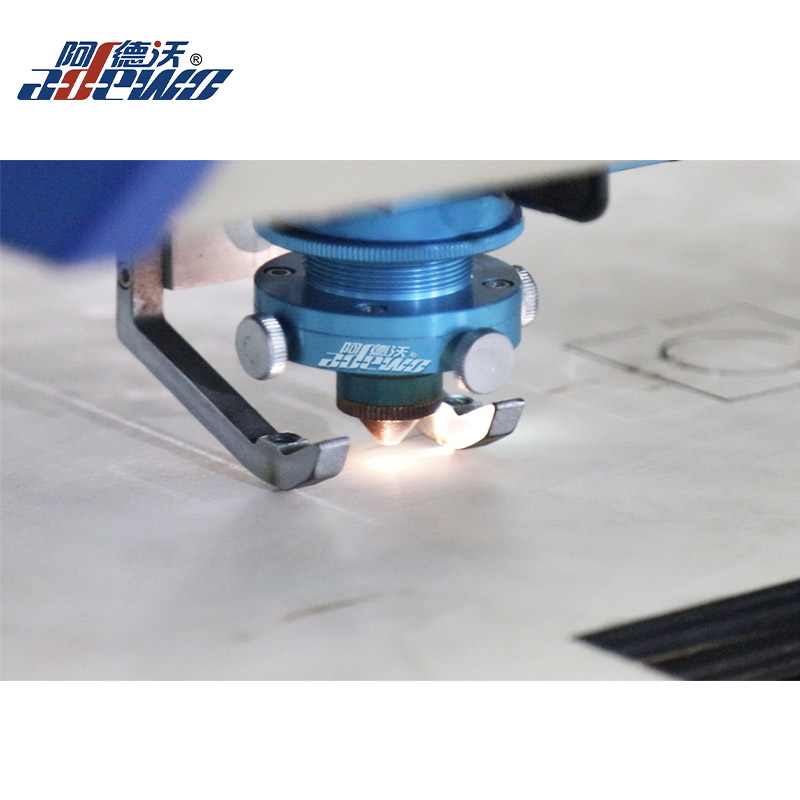

4.Auto follow cutting system, cutting once time for different thickness.

5.Easy to replace and clean of mirror and lens.

2.Technical Parameters of 600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine

Model No.	ADW-LC600
Laser power	600W Single head
Working area	Width1200mm x Length1800mm
Driving style	Fixed laser line path(the laser head fixed, the material body moved)
Cutting speed	600watts:40-45 meters/hour,18mm plywood

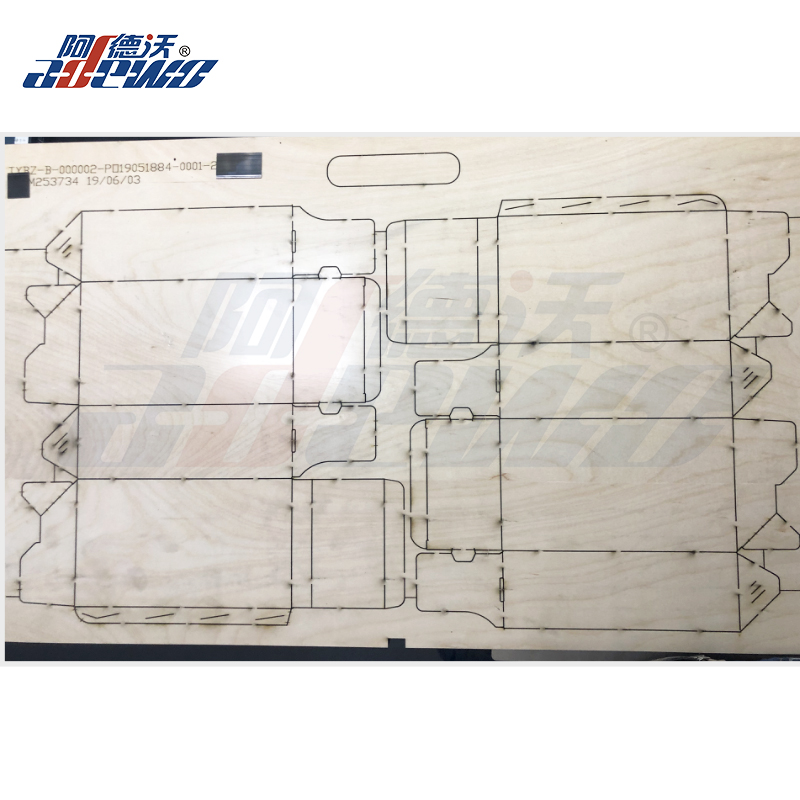

Cutting materials and thickness	6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule.
Cooling water temperature	5℃-30℃

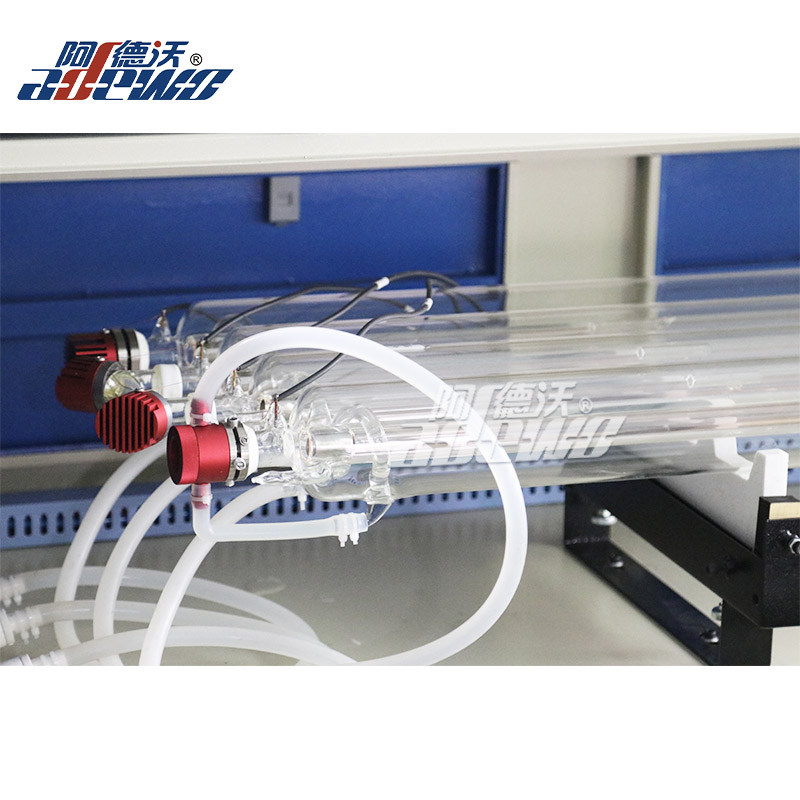

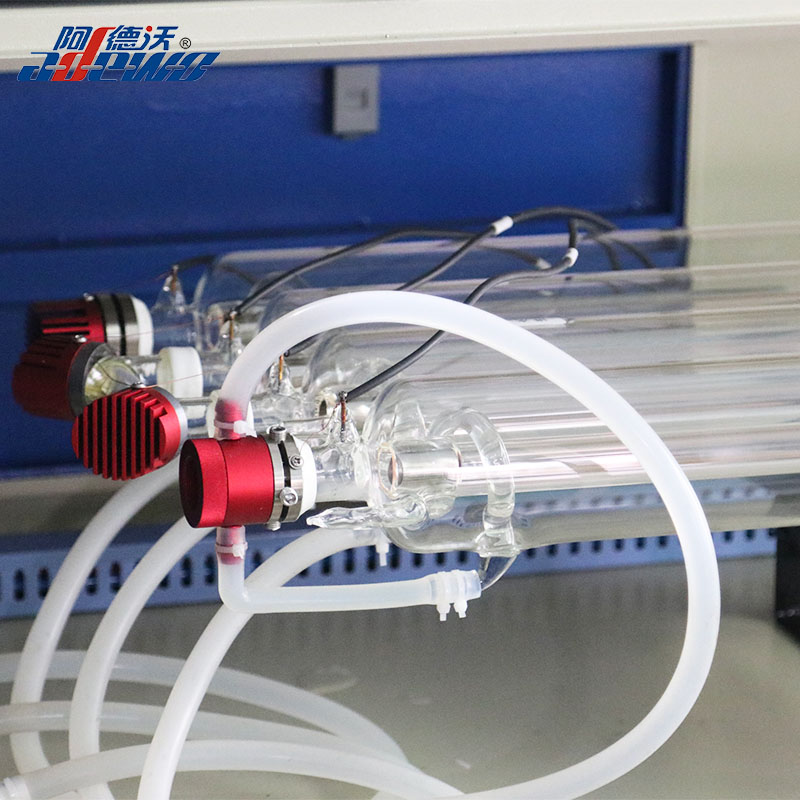

Laser type	CO2 sealed of glass laser

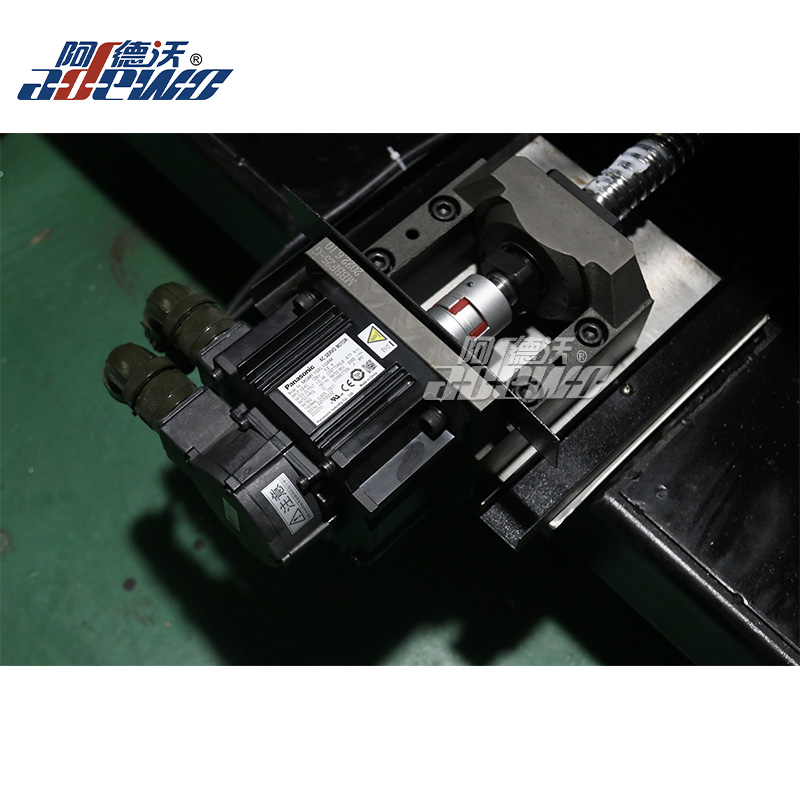

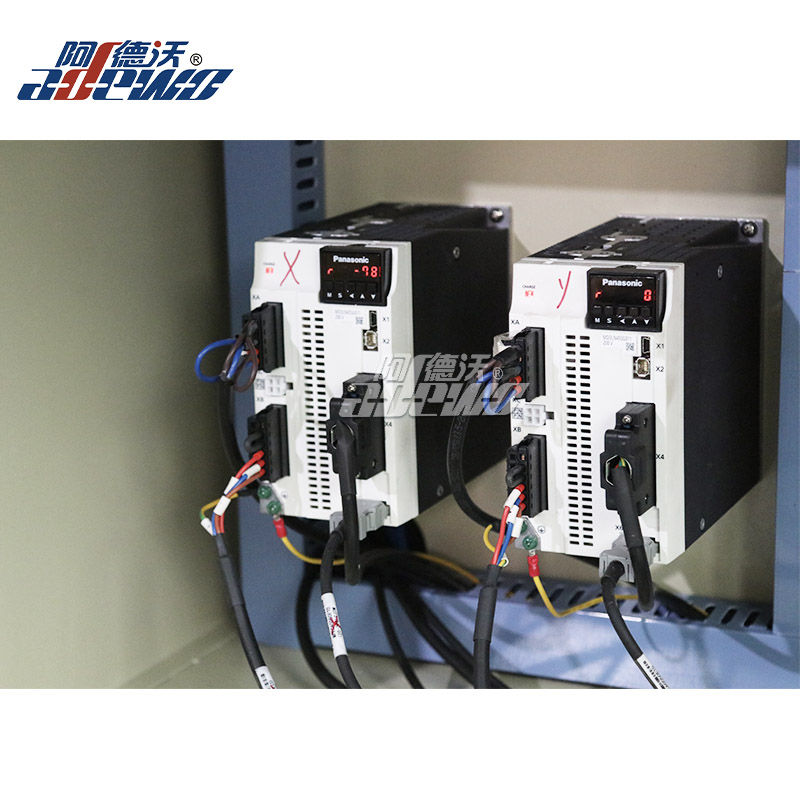

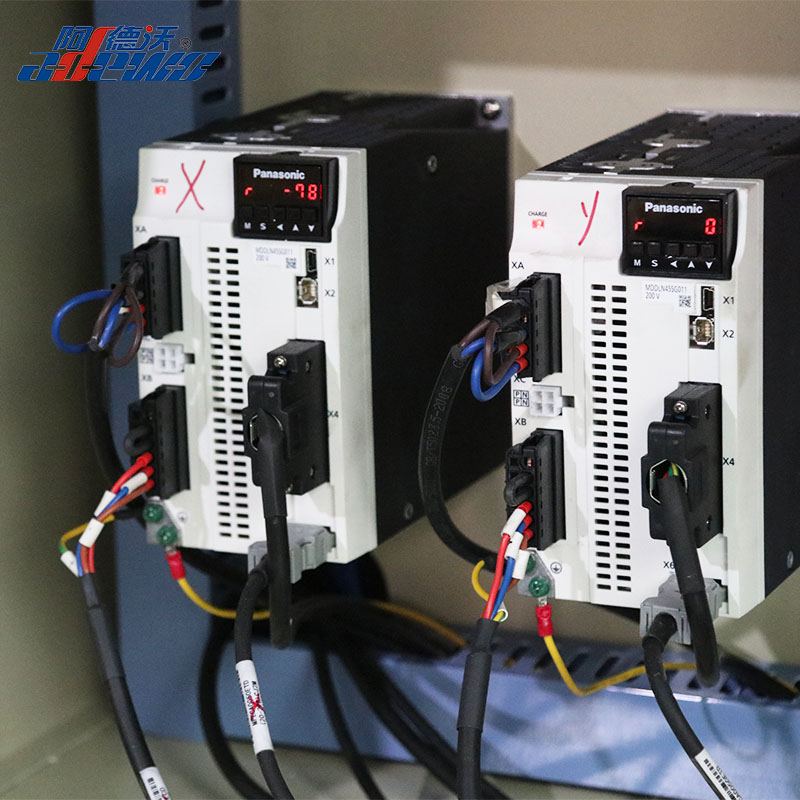

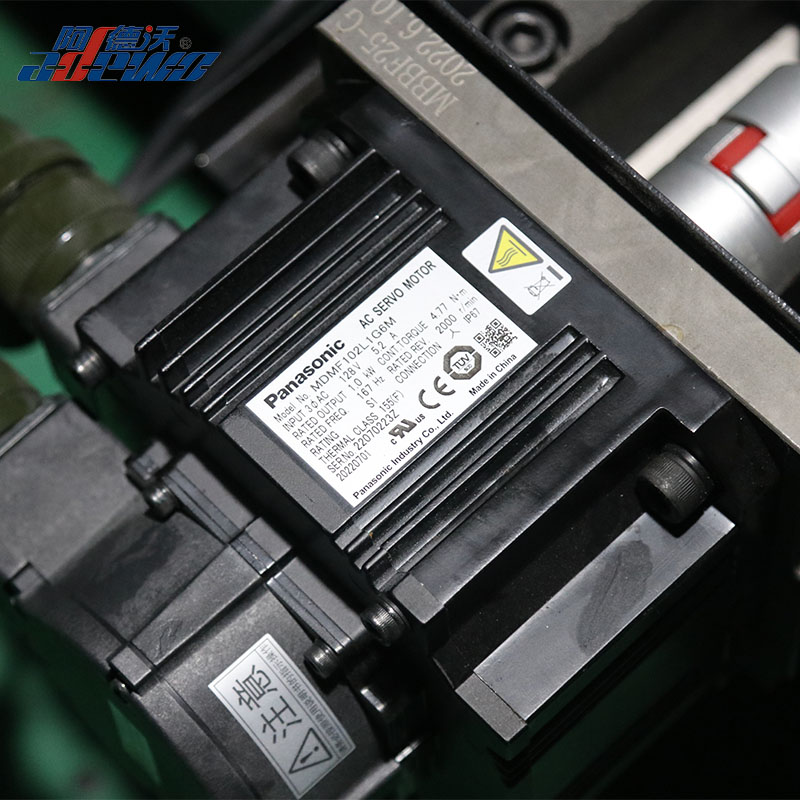

Driving system	Servo motor system
Blade thickness	0.45mm,0.71mm,1.05mm,1.07mm…ect
Cutting precision	±0.05mm
Figure format	AL, DST, PLT, BMP, DXF
Supporting software	CorelDraw,AutoCAD,photoshop
Cooling system	Water cooling
Operating temperature	1℃~40℃

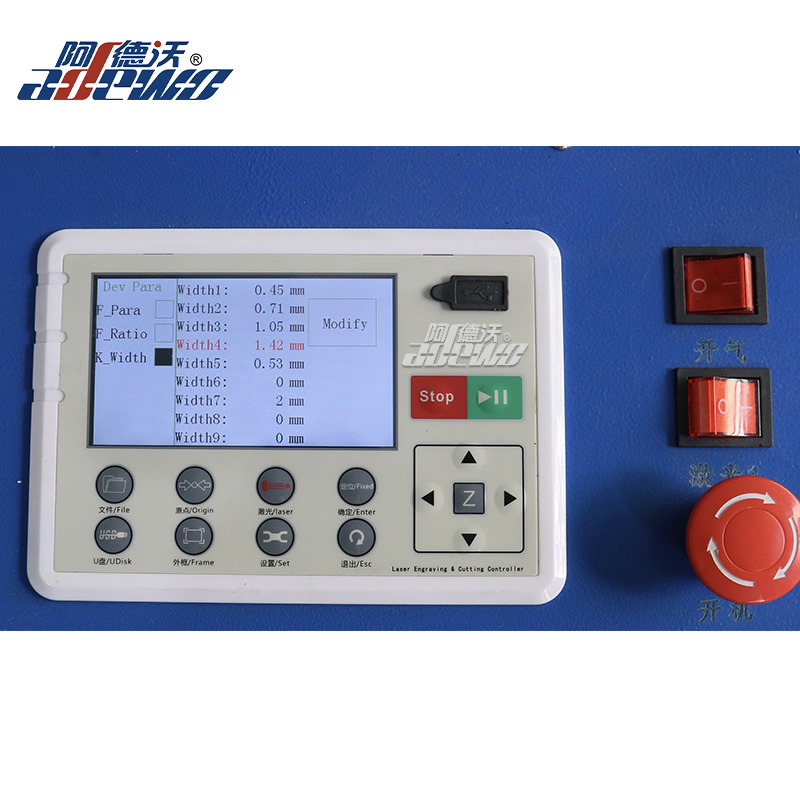

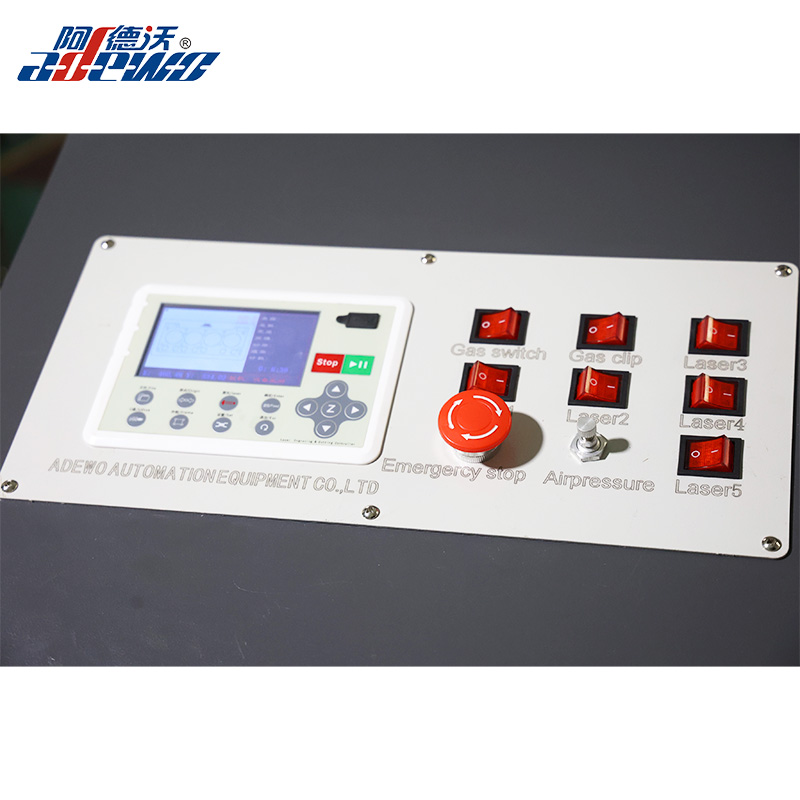

Numerical control panel	LCD screen,Light-touched key-press off-line condition
EMS memory	Attached 32MB memory, can work under off-line condition
Assistant equipments(Free)	Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter
Power supply	Single Phase220V,50Hz/60Hz 10A
Total power	5KW
Machine size（stand still）	L4120xW2800xH1530mm
Machine size（working）	L4320xW3880xH1530mm
Machine weight	1800kg
H.S. Code	8456110090

3.FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP

2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of 600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine?

10-15 working days.

4.How about installation and training of 600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.What’s the cutting speed of this 600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine?

40–45 meters/hour 18mm plywood by 600 watts Flatbed Die-Cutting Die Making Laser Cutting Machine, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
