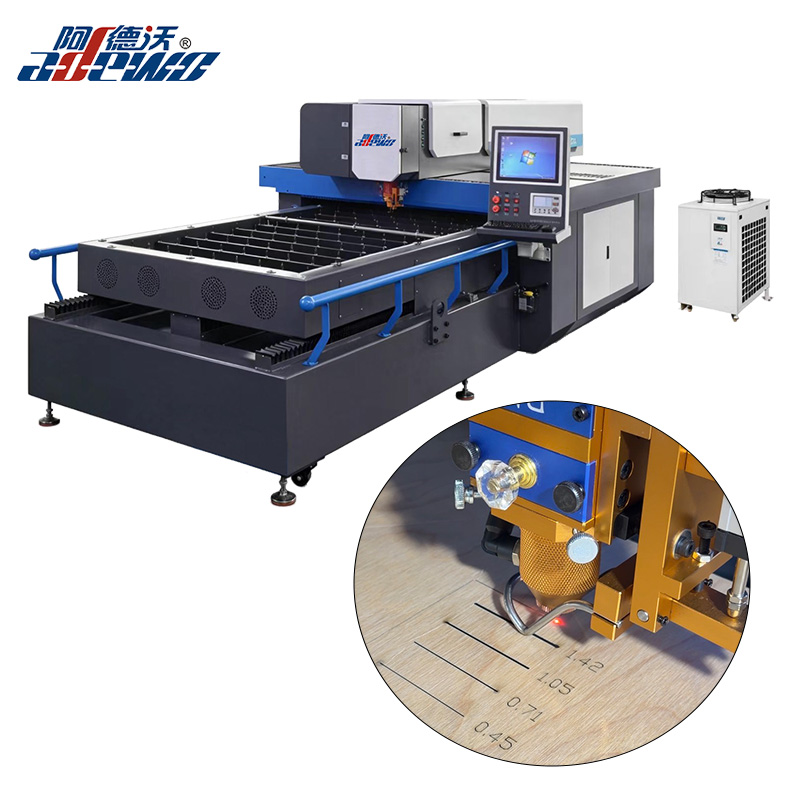

Auto Following Laser Cutting Machine for Die Making Shops and Plywood Die Boards

1.What Is an Auto Following System Laser Cutting Machine?

An Auto Following System Laser Cutting Machine is a specialized die making laser cutting machine designed for plywood die boards, packaging dies, corrugated box dies, and folding carton dies.

Unlike traditional laser cutting machines that may require multiple cutting passes for wider slots, the latest auto-following system can automatically adjust cutting width and laser head height, allowing 1pt, 2pt, 3pt, and 4pt rule slots to be cut in a single pass.

Benefits include:

• Faster die board production
• Higher cutting accuracy
• Automatic focus adjustment
• Reduced labor requirements
• Lower maintenance costs
• Ideal for die making shops and in-house die making

2.Traditional Laser Cutting Machine vs Auto Following System

3.Technical Parameter of Auto Following System Laser Cutting Machine for Plywood Die Boards and Packaging Dies

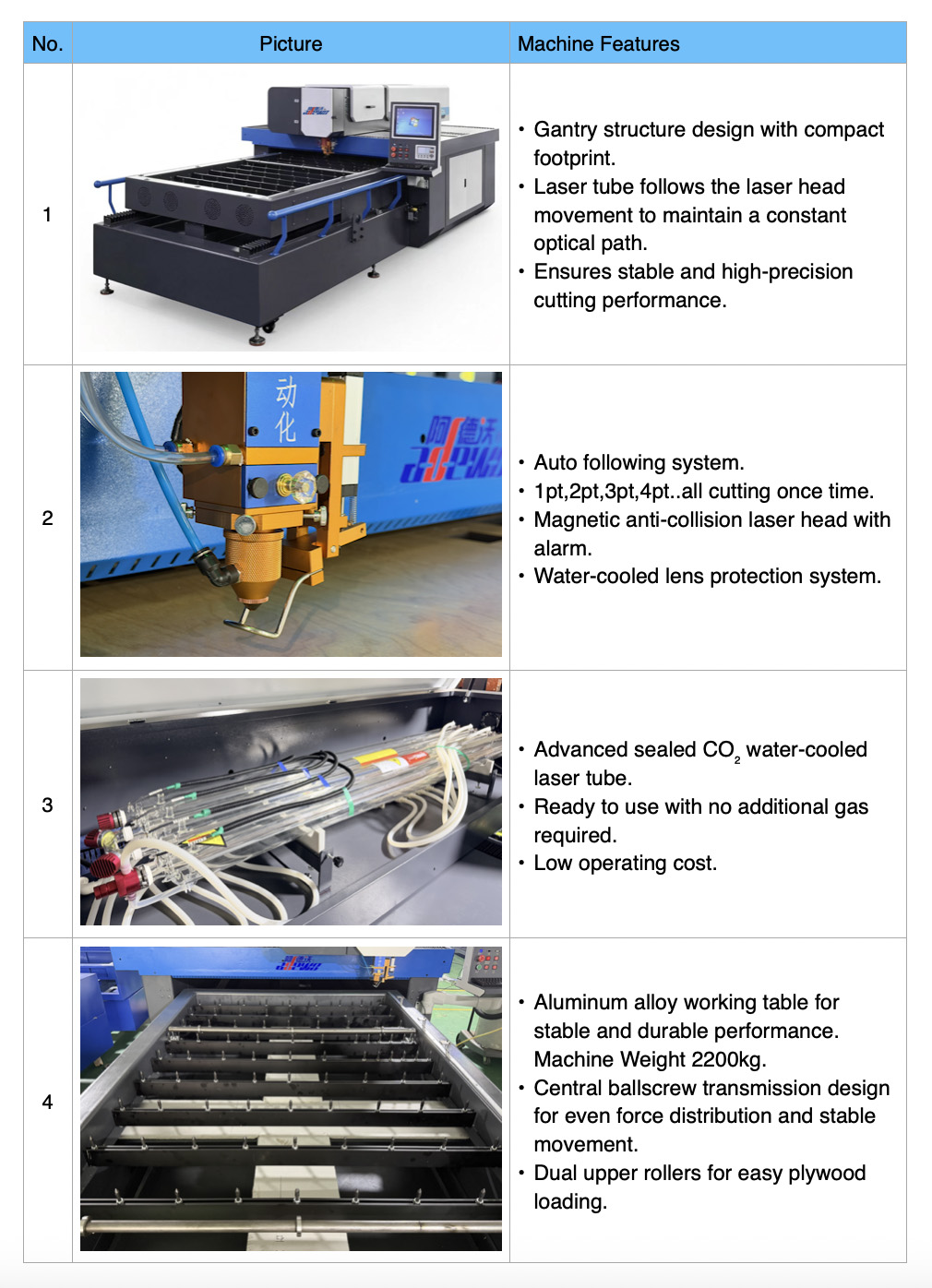

4.New Features of Auto Following System Laser Cutting Machine for Plywood Die Boards and Packaging Dies

• Automatic laser head following system, capable of cutting up to 9 different slot widths in one pass cutting, with automatic adjustment.
• Equipped with infrared edge tracing, auto focus, and magnetic collision protection.
• Compact gantry structure with a small footprint.
• The laser tube moves synchronously with the laser head, ensuring a consistent optical path for stable cutting accuracy.

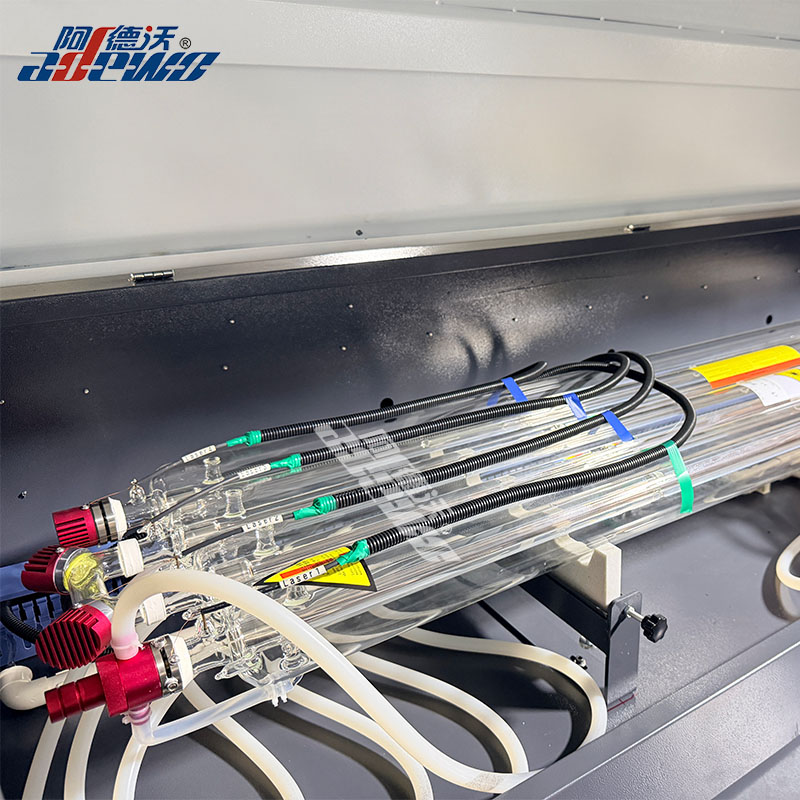

• Equipped with an advanced CO₂ water-cooled laser tube, ready to use without preheating.
• No gas required for die board plywood cutting, reducing operating costs.Suitable for cutting 6–25 mm plywood, PVC sheets, MDF, and other non-metal materials.
• With oxygen, it can also cut thin carbon steel, stainless steel, and titanium alloy sheets.

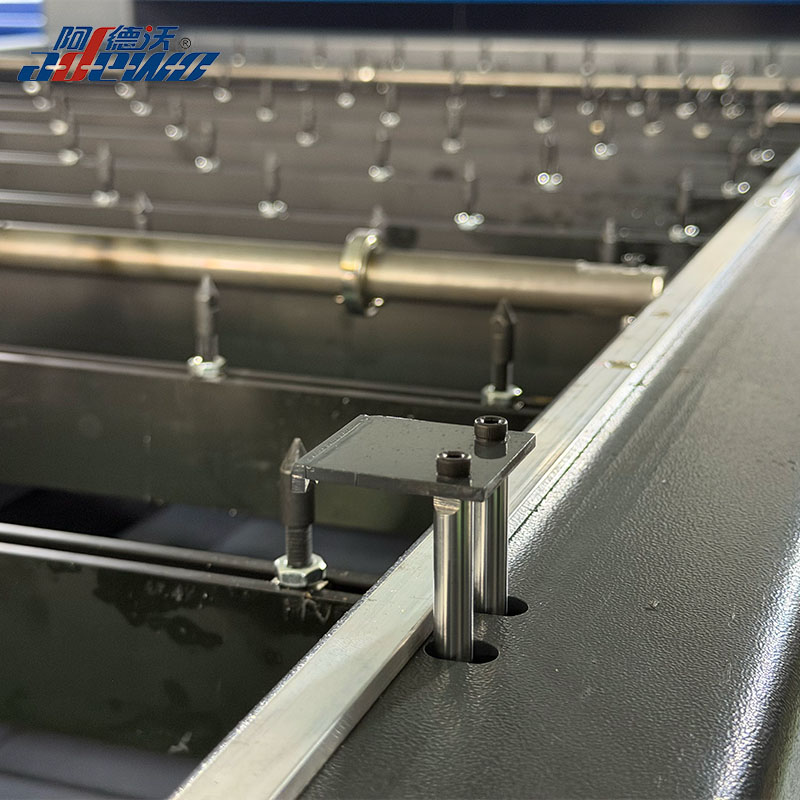

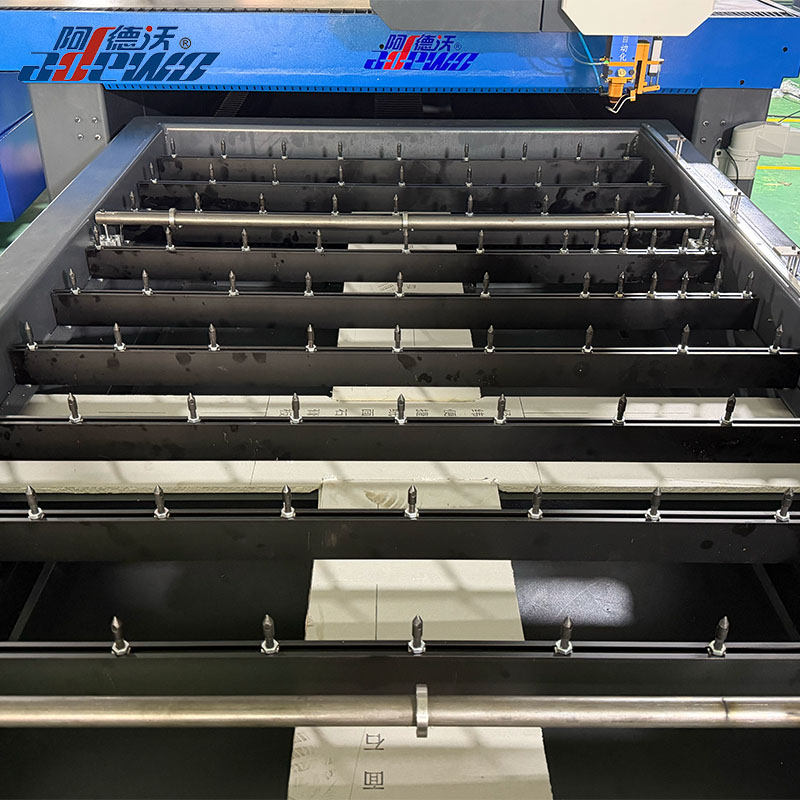

• Heavy-duty machine body (2.2 tons) with an aluminum working table and roller support for easier loading.
• Central screw drive system ensures stable operation.
• Easy operation, compatible with AutoCAD, CorelDraw, and other file formats, with an independent control panel.
• Optional automatic marking system, improving engraving speed by 95% for higher efficiency.

5.Applications

The Auto Following System Laser Cutting Machine is widely used for:

• Folding Carton Die Making
• Corrugated Box Die Manufacturing
• Packaging Die Production
• Label Die Making
• Gasket Die Manufacturing
• In-House Die Making Departments
• Commercial Die Making Shops

6.FAQ

What is the best laser cutting machine for die making shops?

For most die making shops, a 400W or 600W Auto Following System Laser Cutting Machine provides the best balance between cutting speed, precision, maintenance cost, and investment.

Can 3pt and 4pt slots be cut in one pass?

Yes. The latest auto-following laser head automatically adjusts the cutting width, allowing 3pt and 4pt slots to be completed in a single pass.

Why do die makers choose 400W and 600W laser cutting machines?

Because they offer lower operating costs, simpler maintenance, and sufficient cutting performance for most plywood die board applications.

Is an Auto Following Laser Cutting Machine suitable for in-house die making?

Yes. Many packaging companies choose 400W and 600W laser machines when building an in-house die making department due to their low investment and easy operation.
