Tsukatani Steel Cutting Rule Auto Bending Machine

ABM—832C1 Tsukatani Steel Cutting Rule Auto Bending Machine included functions:Bending,Bridge,Broaching,Nicking,Perforation,Hole,Bottom Notch,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71mm,height 8-32mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting MachineAutomatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM—832C1

Send Inquiry

Product Description

Tsukatani Steel Cutting Rule Auto Bending Machine

The following is the introduction of high quality Tsukatani Steel Cutting Rule Auto Bending Machine, hoping to help you better understand Tsukatani Steel Cutting Rule Auto Bending Machine. Welcome new and old customers to continue to cooperate with us to create a better future!Due to our focused approach, timely delivery and ethical business policy, we have been able to gain tremendous success in this domain.

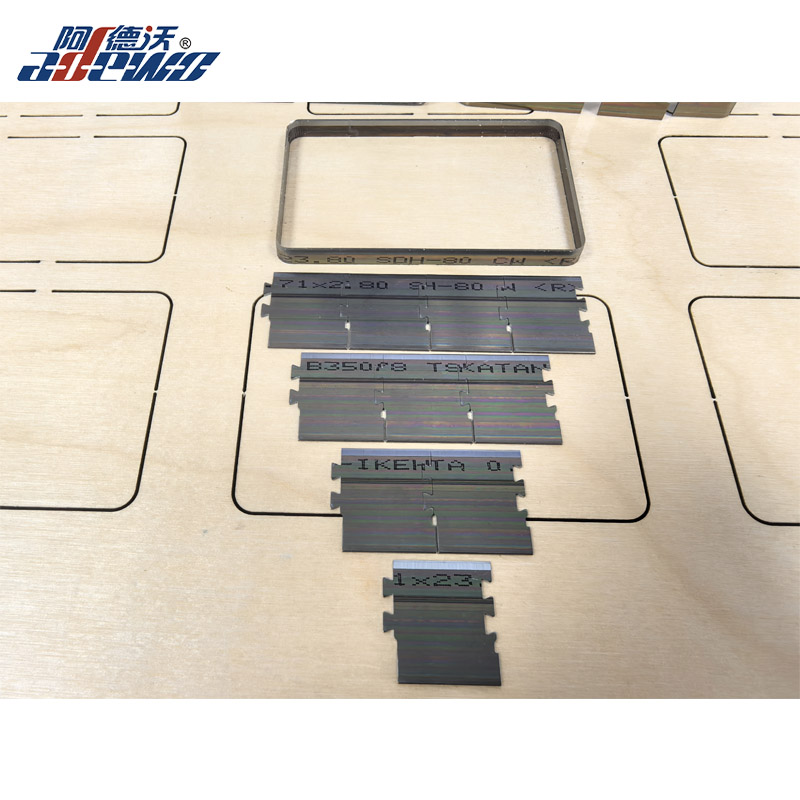

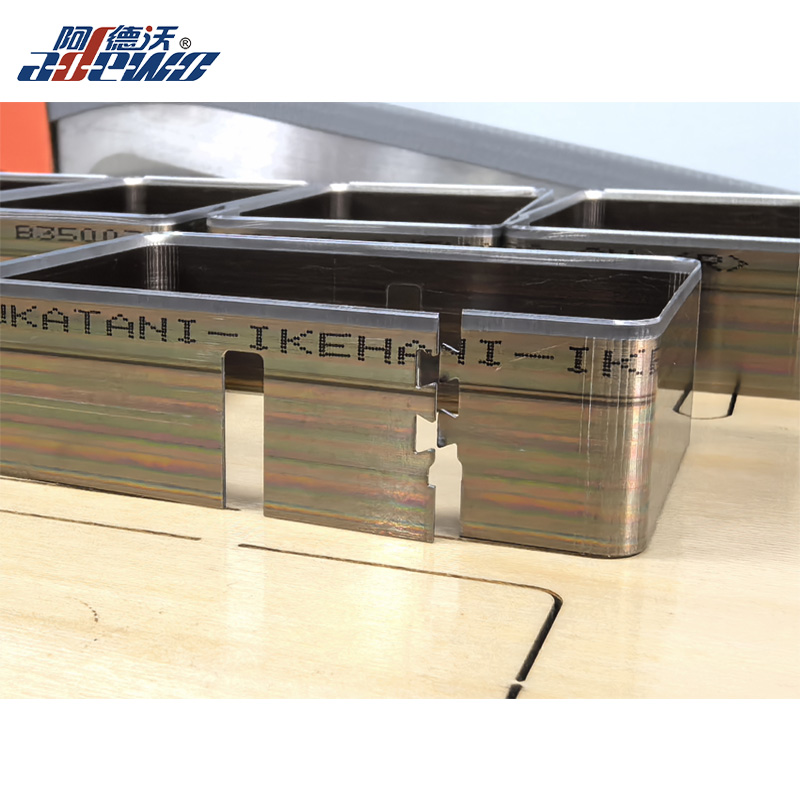

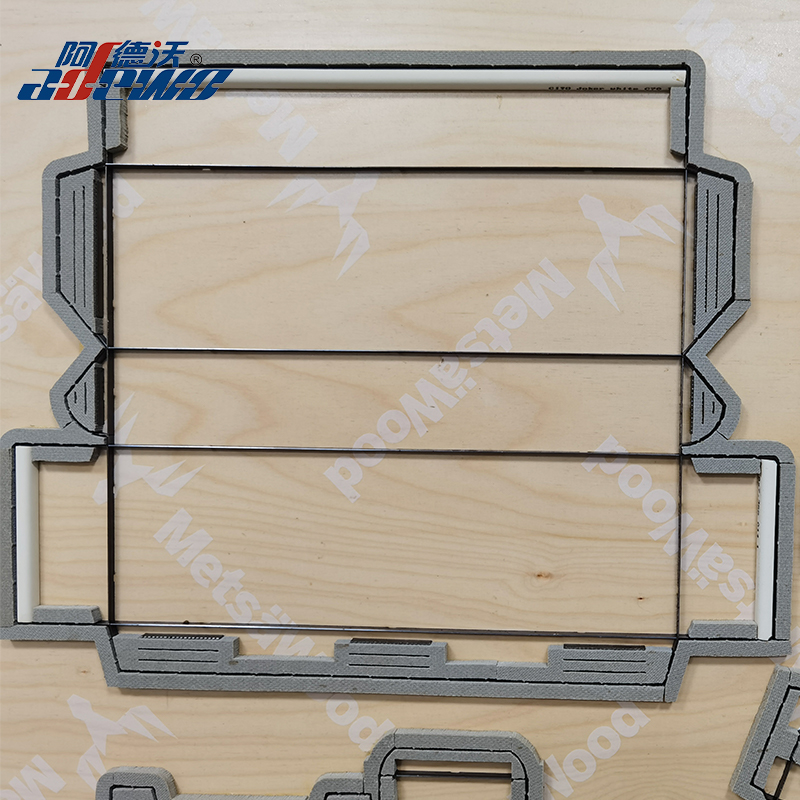

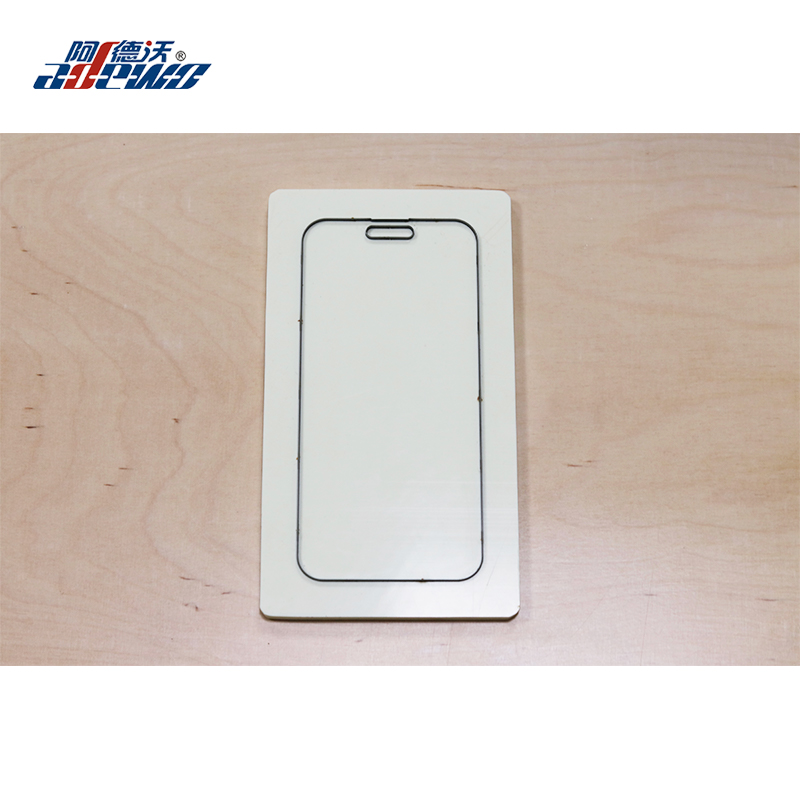

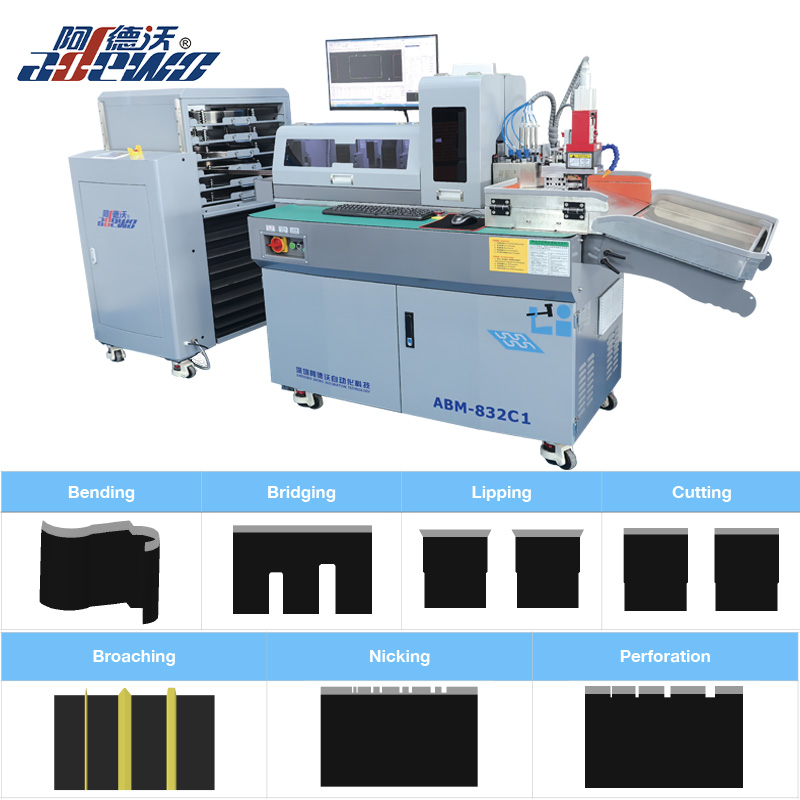

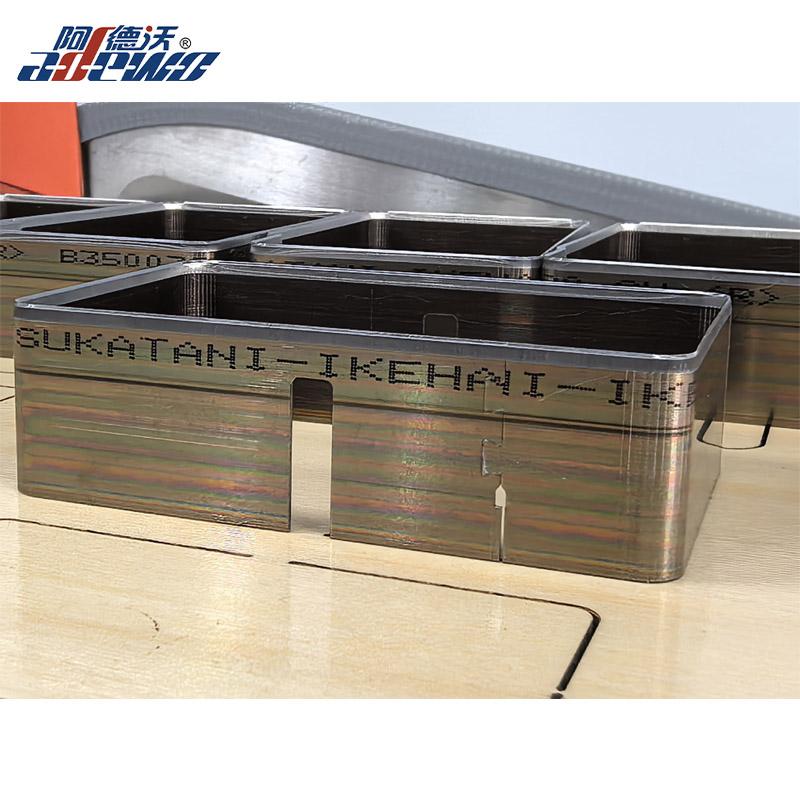

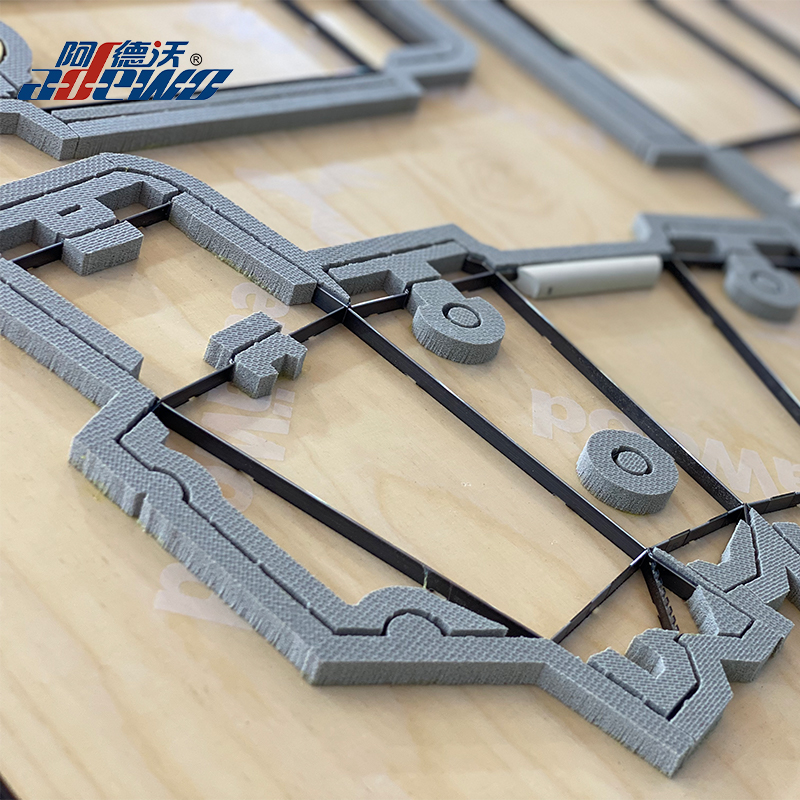

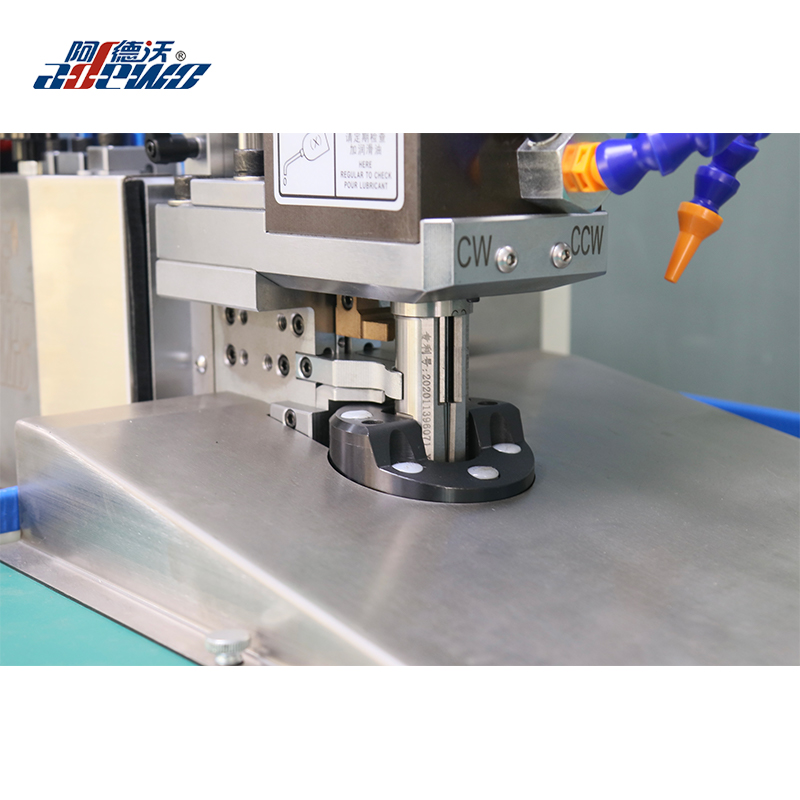

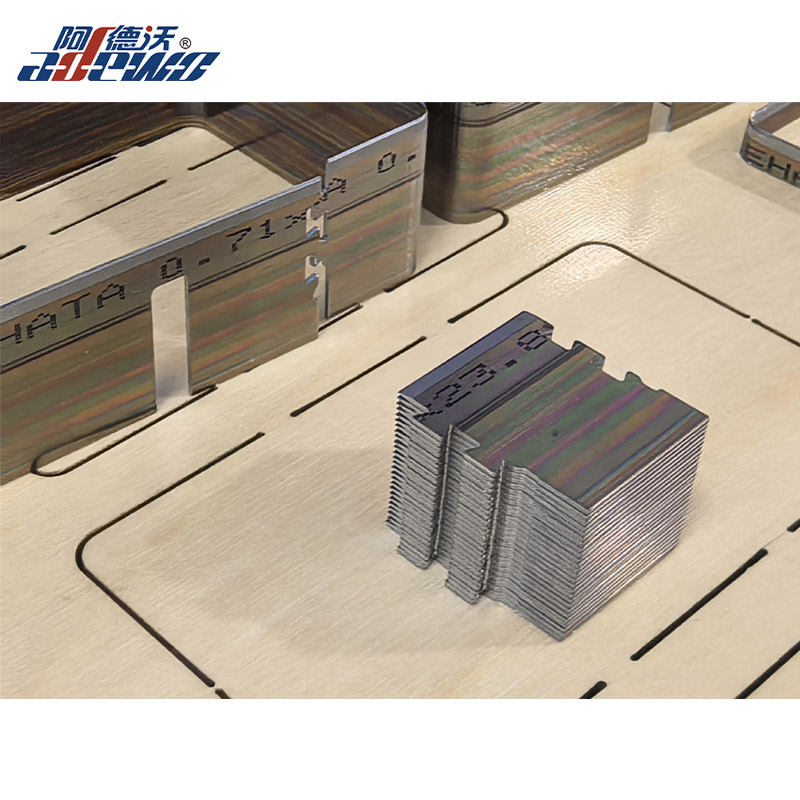

Picture of (ABM—832C1)Tsukatani Steel Cutting Rule Auto Bending Machine for reference:

Product Features:


1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.

2.Multi-Nicking size for choice,minimum 0.2mm, the width and depth can be setting through software

3.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation, independent tool, easy toreplace.

4.Single Double Broaching for choice,wide and narrow broaching, suitable for high end die making

5.Double clamps,screw guide feeding continuously,improves work efficiency.

6.Pro Model - 2pt&3pt in one, no need to replace bending tool for different thickness; flatness adjustable of different hardness cutting rule.

7.Small footprint,save space,cost effective.





Technical Parameters of Tsukatani Steel Cutting Rule Auto Bending Machine

Supported Rule Thickness

0.45, 0.53, 0.71, 1.05mm

Supported Rule Height

8-32mm

Front Min. Bending Size

1.5mm

Back Min. Bending Size

1.0mm

Feeding Precision

±0.03mm

Bending Flatness

0.2mm

Basic Functions

Bending, Mold Cut, Lipping, Bridging,Hole,Plane Cut

Optional Functions

Broaching,Nicking,Perforation

Broaching

Single set Broaching/Double set Broaching can be selected

Supported File Formats

DXF, DWG

Air Supply

0.4-0.8Mpa

Power Supply

AC220V, 13.6A, 50-60Hz

Total Power

3KW

Overall Dimension

2600*800*1600mm(LxWxH)

Machine Weight

528KG

HS CODE

8462223000


FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time?

7-10 working days.



4.How about installation and training of Tsukatani Steel Cutting Rule Auto Bending Machine

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com



5.Any spare tools are included of Tsukatani Steel Cutting Rule Auto Bending Machine?

Yes,the new order machine with free spare tools.
