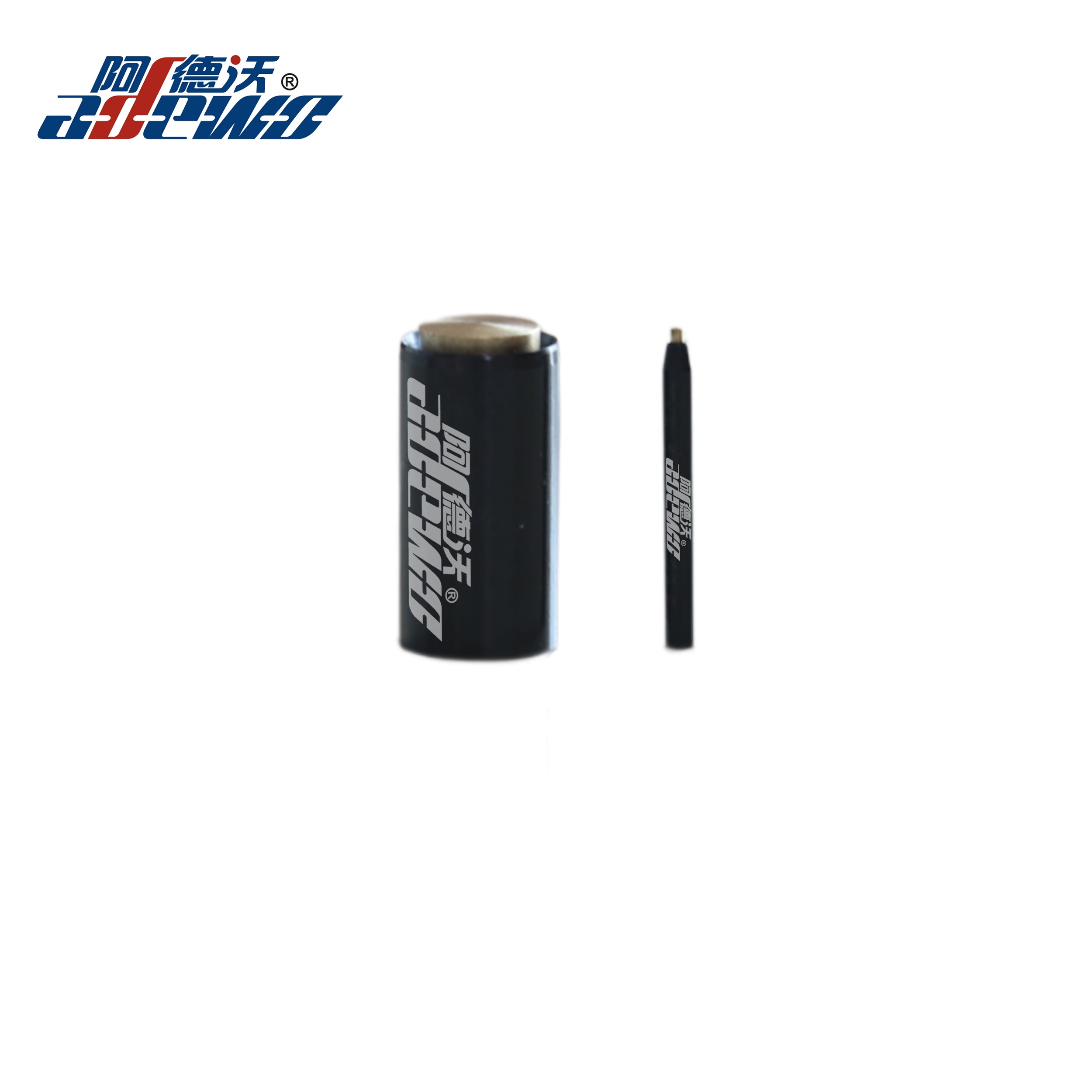

Punches are precision manufactured and precision ground for the tightest height tolerances and best cutting on-press. Picture of (ADW030) Threaded Spring Punch for reference:
No.
Diameter (mm)
Height (mm)
1
Φ1mm-Φ2.5mm
23.60mm-23.80mm
2
Φ3mm-Φ4.5mm
23.60mm-23.80mm
3
Φ5mm-Φ6mm
23.60mm-23.80mm
4
Φ6.5mm-Φ8.5mm
23.60mm-23.80mm
5
Φ9mm-Φ10mm
23.60mm-23.80mm
6
Φ11mm-Φ12mm
23.60mm-23.80mm
7
Φ13-mm-Φ14mm
23.60mm-23.80mm
