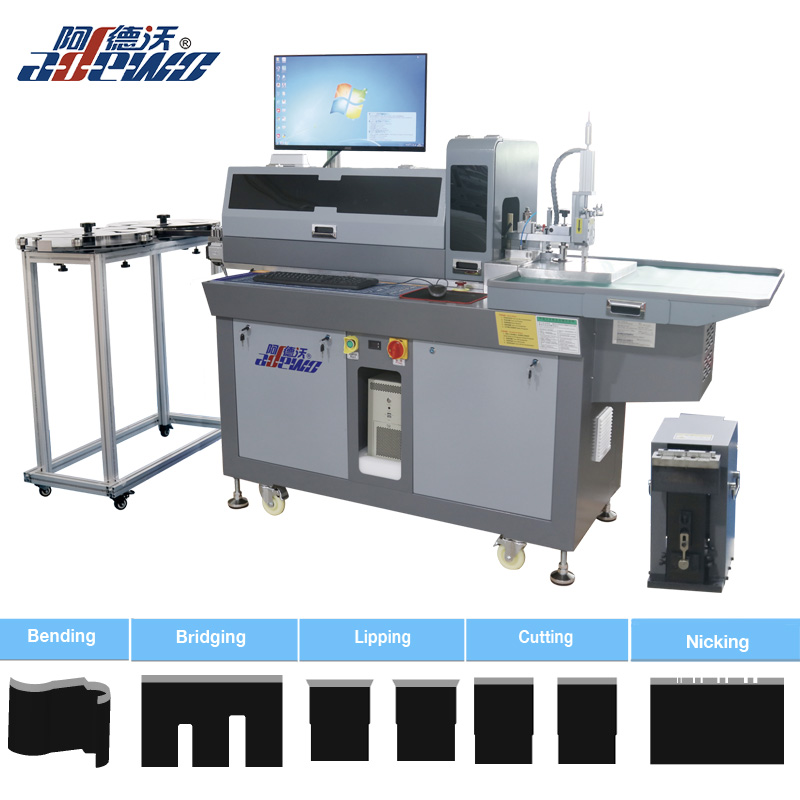

Picture of (ABM-8142B) Stripping Dies Auto Bending Machine for reference:
1.Multi-Functions:(ABM-8142B) Stripping Dies Auto Bending Machine
Bending,Bridge,Nicking,Pneumatic Lipping and Cutting.
2.This Stripping Dies Auto Bending Machine with Nicking,Nicking size 0.2mm-1mm.
3.Stable servo control feeding system, fast and accurate bending, powerful bridging, precise cutting and nicking.
4.Smart software and easy to operate, multi language operations;
5.ThisStripping Dies Auto Bending Machine available for the max 60mm height,1.42mm(4pt) thickness steel rule.
|
Supported rule thickness(mm) |
0.71/1.05/1.42mm(2pt,3pt,4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Bridge height |
13-18mm |
|
Bridge width |
Over 5.5mm any sizes available. |
|
Max. bending angle |
95° |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. bending size |
2.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Nicking,Pneumatic Lipping,Cutting |
|
Cutting methods |
Twist off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KGS |
|
Overall dimension |
3×0.80×1.52m(L×W×H) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time ofStripping Dies Auto Bending Machine?
7-10 working days.
4.How about installation and training of Stripping Dies Auto Bending Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Stripping Dies Auto Bending Machine ?
Yes,the new order machine with free spare tools.
