Stripping Dies Auto Bender Machine

(ABM-860A2) Stripping Dies Auto Bender Machine included functions:Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-860A2

Send Inquiry

Product Description

(ABM-860A2) Stripping Dies Auto Bender Machine

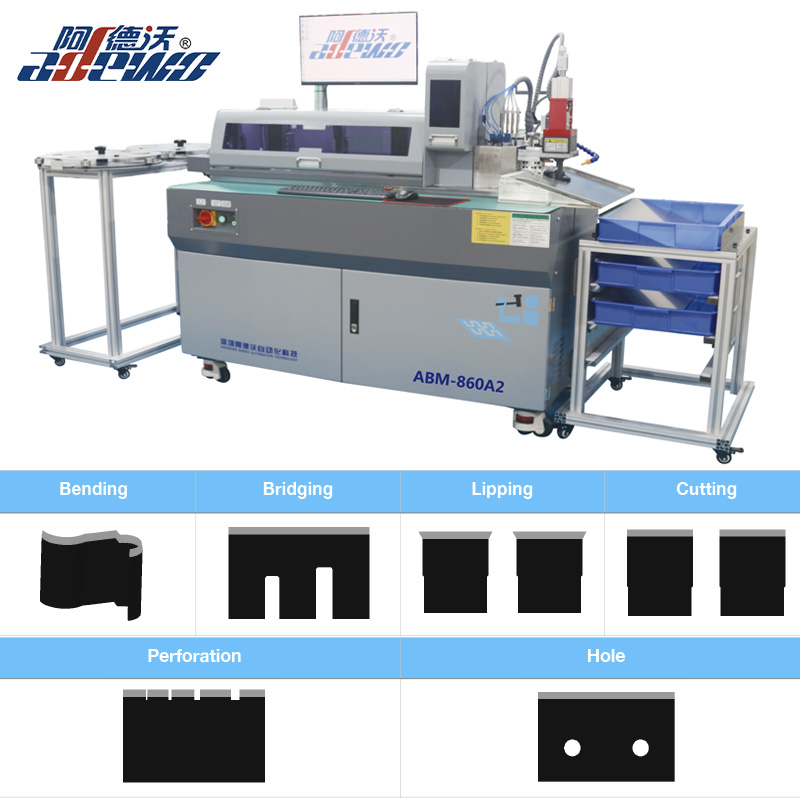

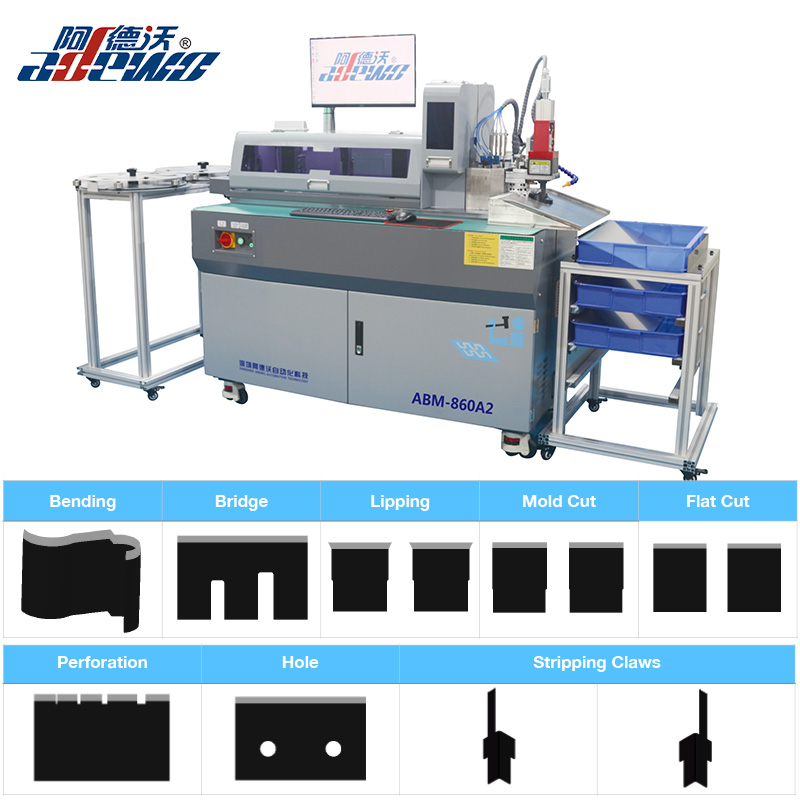

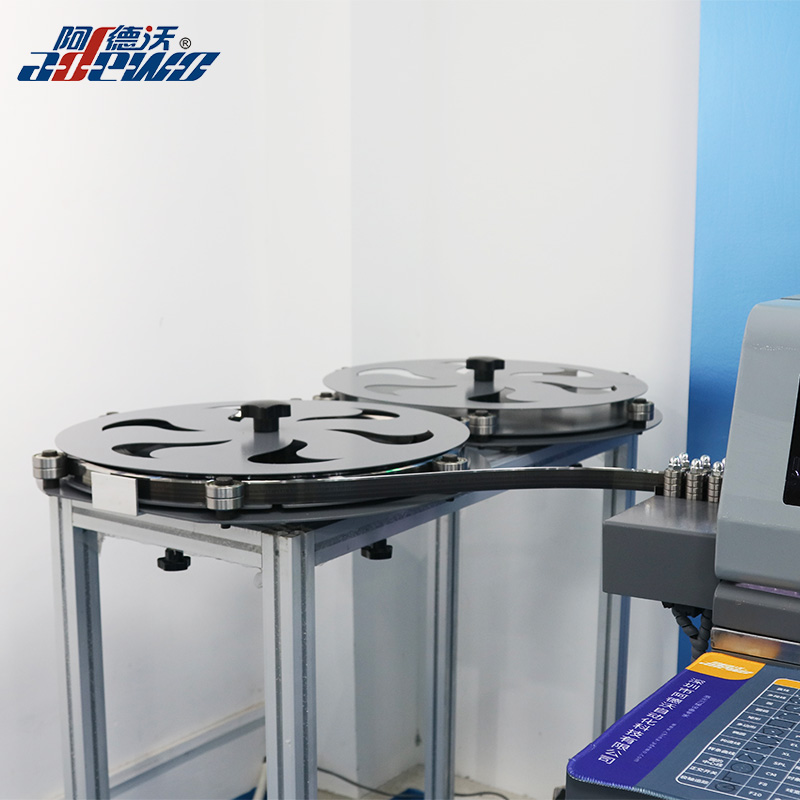

Picture of (ABM-860A2) Stripping Dies Auto Bender Machine for reference:

Product Features:

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.

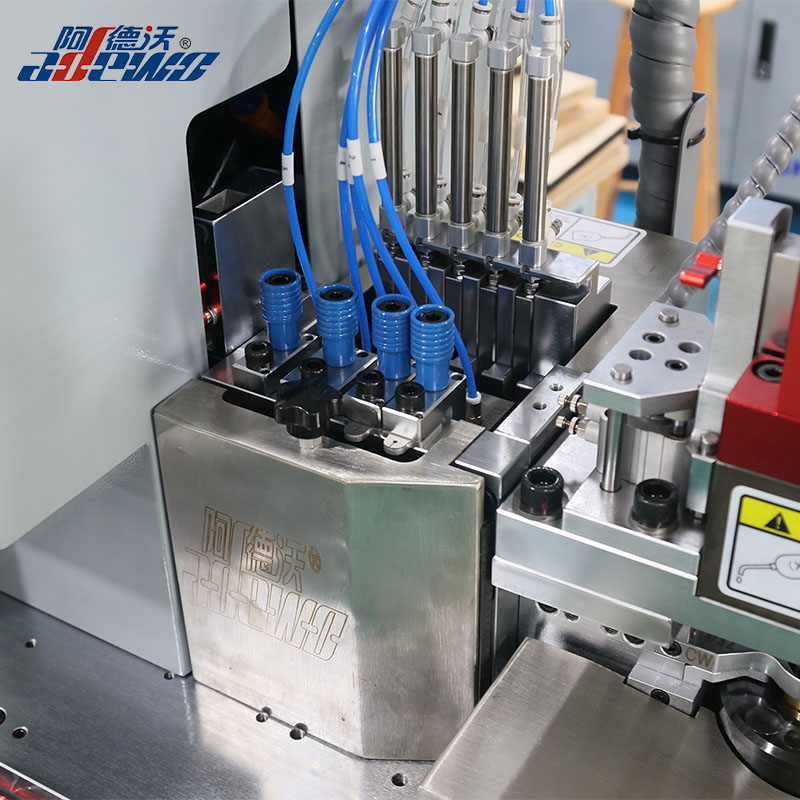

2.Multi-Punch tool for choice:Lipping,Mold Cut, Bridge,Hole or Perforation, independent tool, easy toreplace.

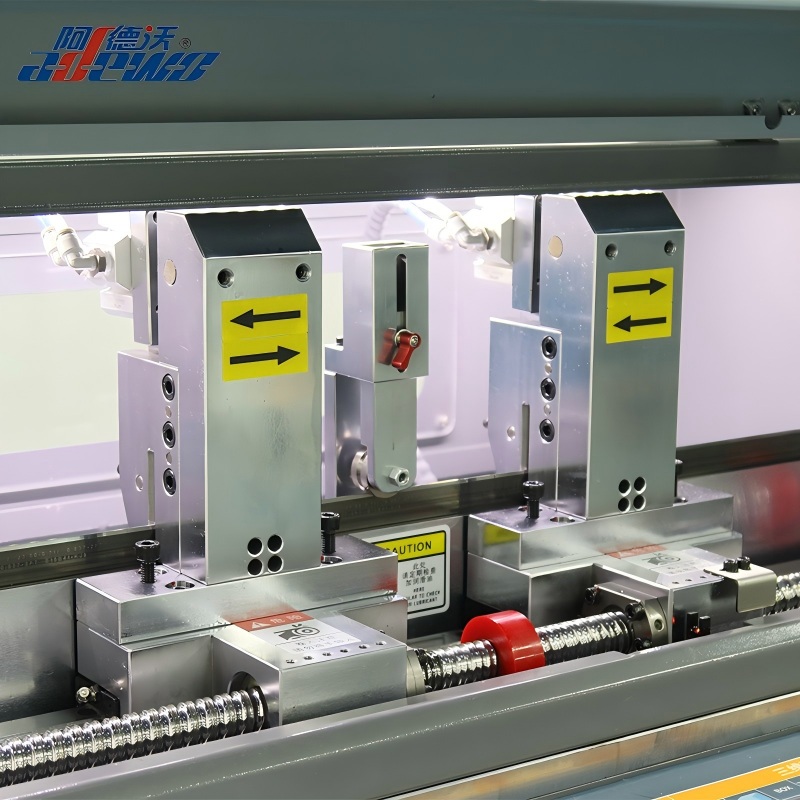

3.Double clamps,screw guide feeding continuously, improves work efficiency.

4.Smart software,easy to operate, multi language available.

Technical Parameters of (ABM-860A2) Stripping Dies Auto Bender Machine：

Supported rule thickness(mm)	0.71,1.05,1.42mm (2pt&3pt&4pt)
Supported rule height(mm)	23.80-60mm
Bridge height	18mm&15mm adjustable
Bridge width	Over 5mm any sizes available. (Can be customized)
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	0.2mm
Basic Functions	Bending,Bridge,Nicking,Lipping,Mold Cut, Flat Cut
Optional Functions	Perforation/Hole
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8MPa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	528KG
Overall dimension	2850x800x1600mm(LxWxH)
H.S. Code	8462230000

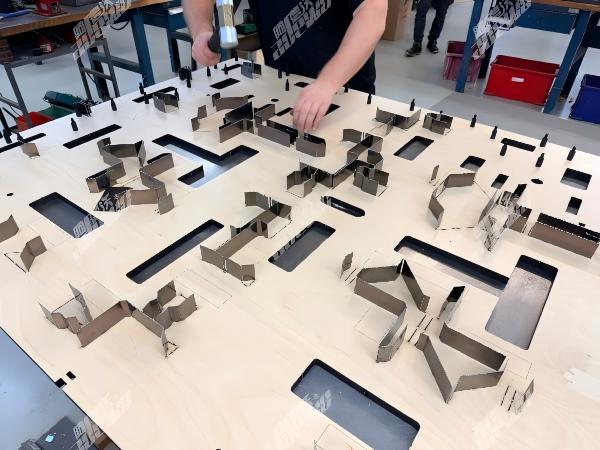

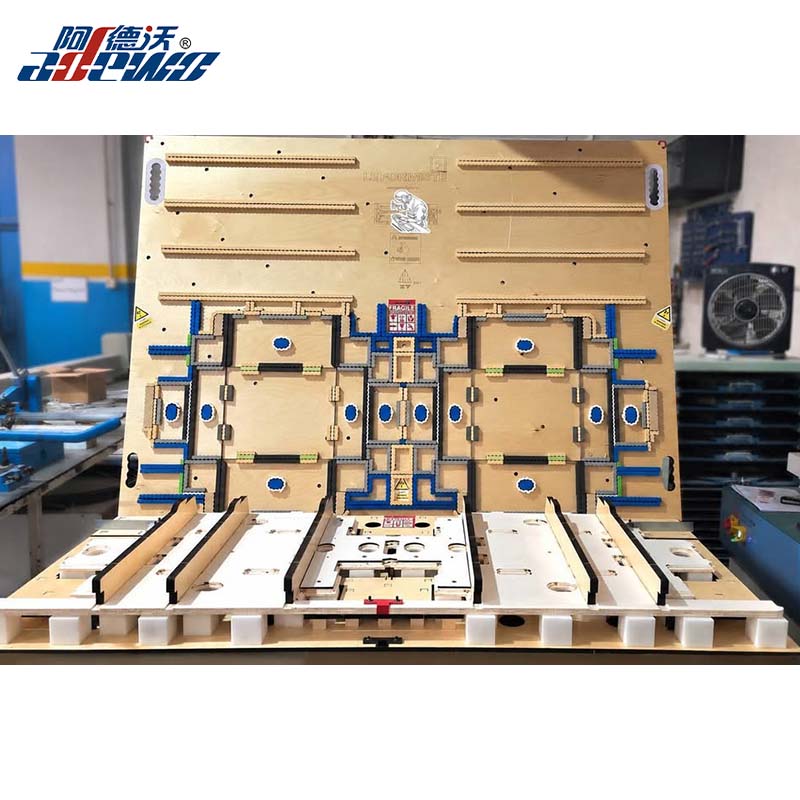

Video of On-Site Customer’s Company:

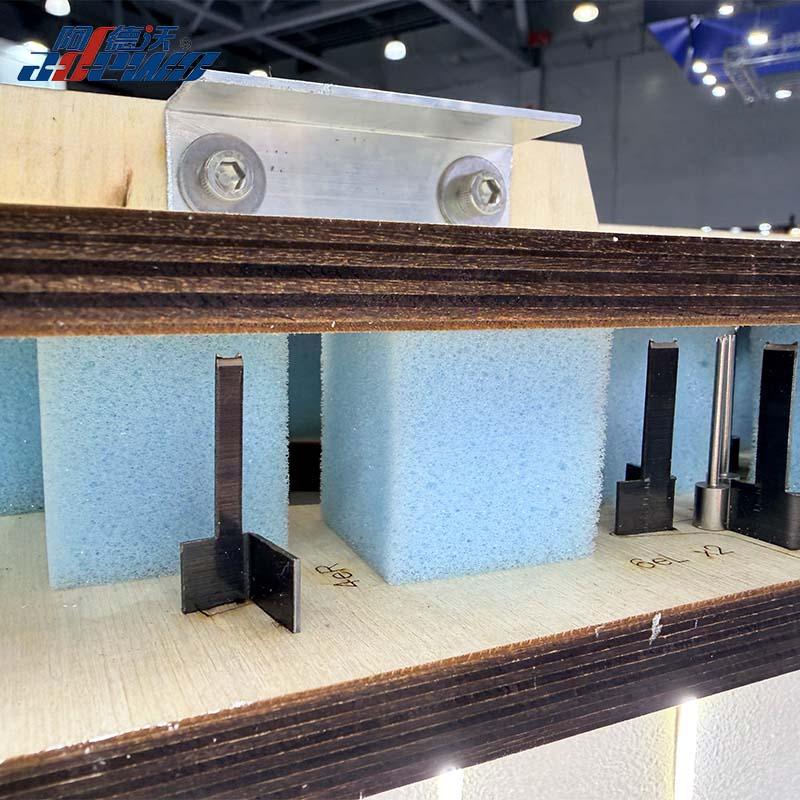

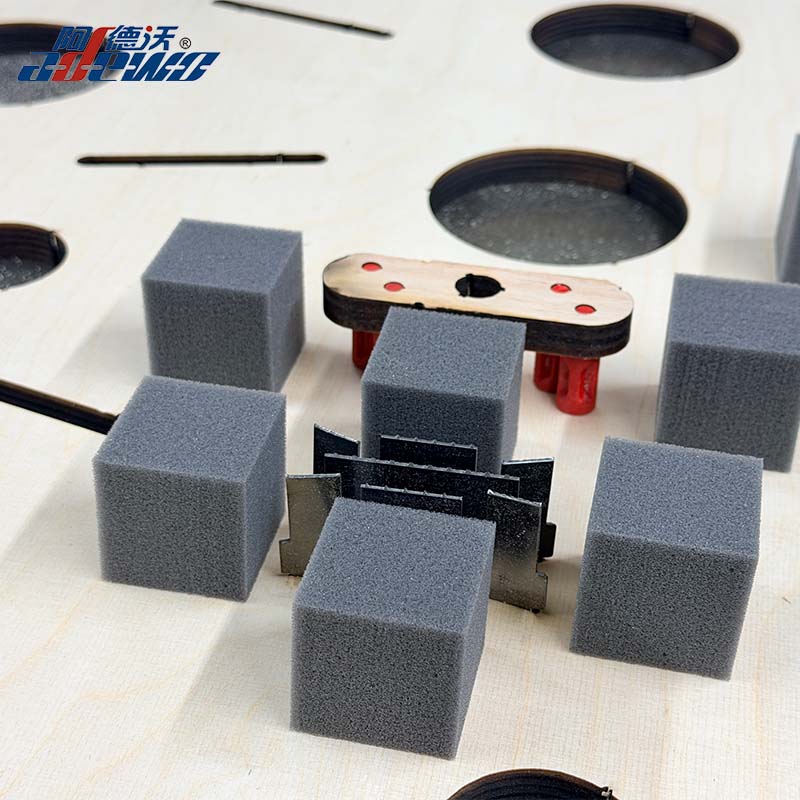

We can also oﬀer Stripping Rule：

Specification

Type	Thickness(mm)	Height(mm)	Length(m)
Stripping Rule	1.0	50/55/60/65	52
Stripping Rule with Point	1.0	50/55	55

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time?
7-10 working days.

4.How about installation and training of Bohler Steel Rule Die Making Automatic Bending Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of the Bohler Steel Rule Die Making Automatic Bending Machine ?
Yes,the new order machine with free spare tools.
