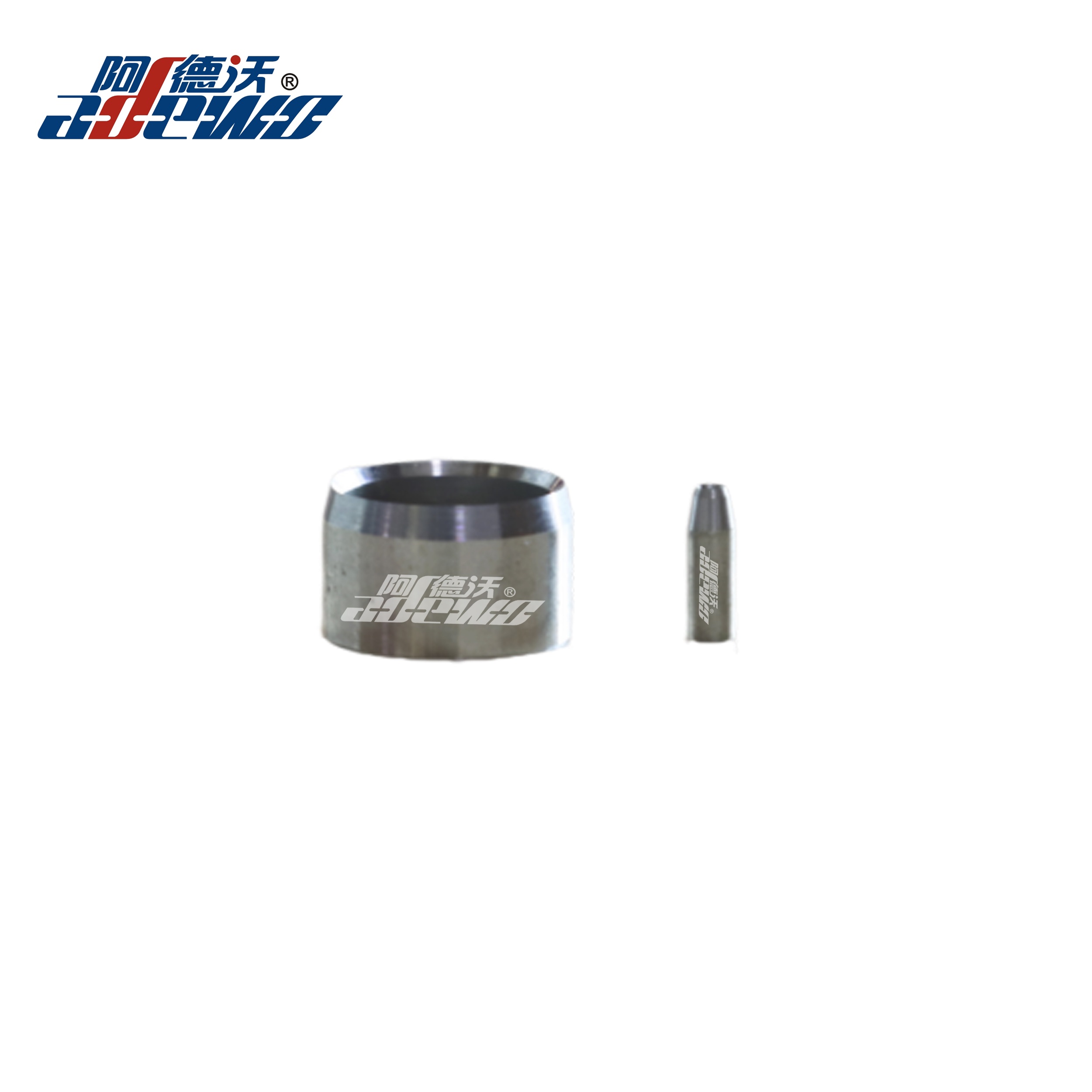

Punches are precision manufactured and precision ground for the tightest height tolerances and best cutting on-press. Picture of (ADW039) Screw Spring Punch for reference:
Diameter
Height
No.
1
Φ1mm-Φ2.5mm
7mm-8mm
2
Φ3mm-Φ5mm
7mm-8mm
3
Φ5.5mm-Φ8mm
7mm-8mm
4
Φ8.5mm-Φ9.5mm
7mm-8mm
5
Φ10.5mm-Φ11mm
7mm-8mm
6
Φ11.5mm-Φ12mm
7mm-8mm
7
Φ12.5-mm-Φ14mm
7mm-8mm
8
Φ14.5mm-Φ16mm
7mm-8mm
9
Φ16.5mm-Φ18mm
7mm-8mm
10
Φ18.5mm-Φ20mm
7mm-8mm
11
Φ20.5mm-Φ22mm
7mm-8mm
12
Φ22.5mm-Φ24mm
7mm-8mm
13
Φ24.5mm-Φ26mm
7mm-8mm
14
Φ1mm-Φ2.5mm
9.5mm-12mm
15
Φ3mm-Φ5mm
9.5mm-12mm
16
Φ5.5mm-Φ8mm
9.5mm-12mm
17
Φ8.5mm-Φ10mm
9.5mm-12mm
18
Φ10.5mm-Φ11mm
9.5mm-12mm
19
Φ11.5mm-Φ12mm
9.5mm-12mm
