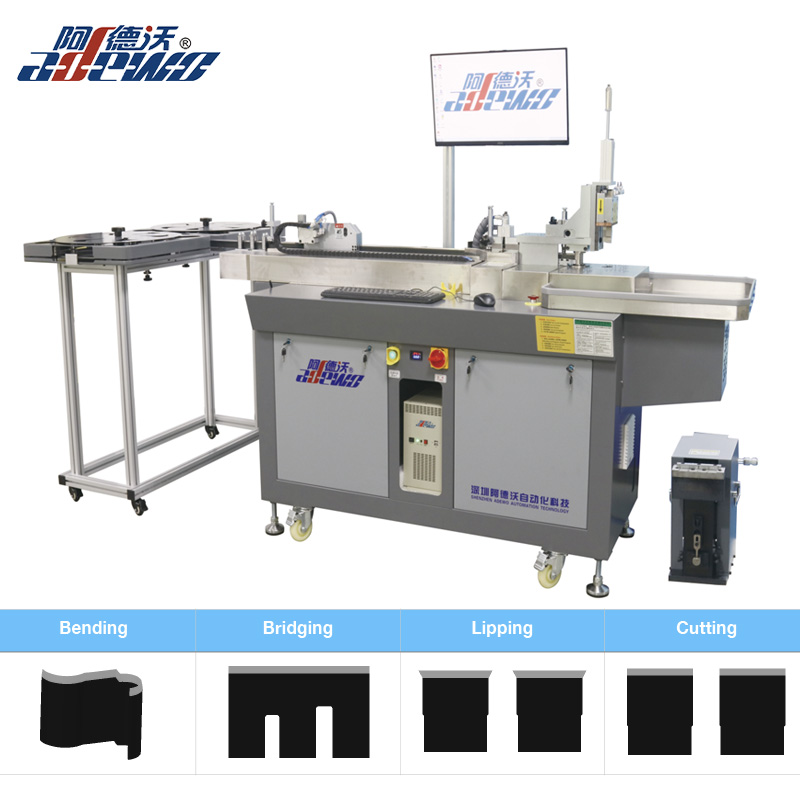

Picture of (ABM-8142A)Shoes Die Boards Automatic Bender Machine for reference:
1.Multi-Functions:(ABM-8142A) Shoes Die Boards Automatic Bender Machine with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.
2.This Shoes Die Boards Automatic Bender Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.
3.Smart software and easy to operate, multi language operations;
4. Save production time and easy for die making by Shoes Die Boards Automatic Bender Machine.
5.This Shoes Die Boards Automatic Bender Machine apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm(2pt,3pt,4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Bridge height |
13-19mm |
|
Bridge width |
Over 5.5mm any sizes available. |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. bending size |
2.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Cutting,Pneumatic Lipping |
|
Cutting methods |
Twist off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KGS |
|
Overall dimension |
2800x1050x1600(L×W×H) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Shoes Die Boards Automatic Bender Machine?
7-10 working days.
4.How about installation and training of Shoes Die Boards Automatic Bender Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
5.Any spare tools are included of Shoes Die Boards Automatic Bender Machine?
Yes,the new order machine with free spare tools.
