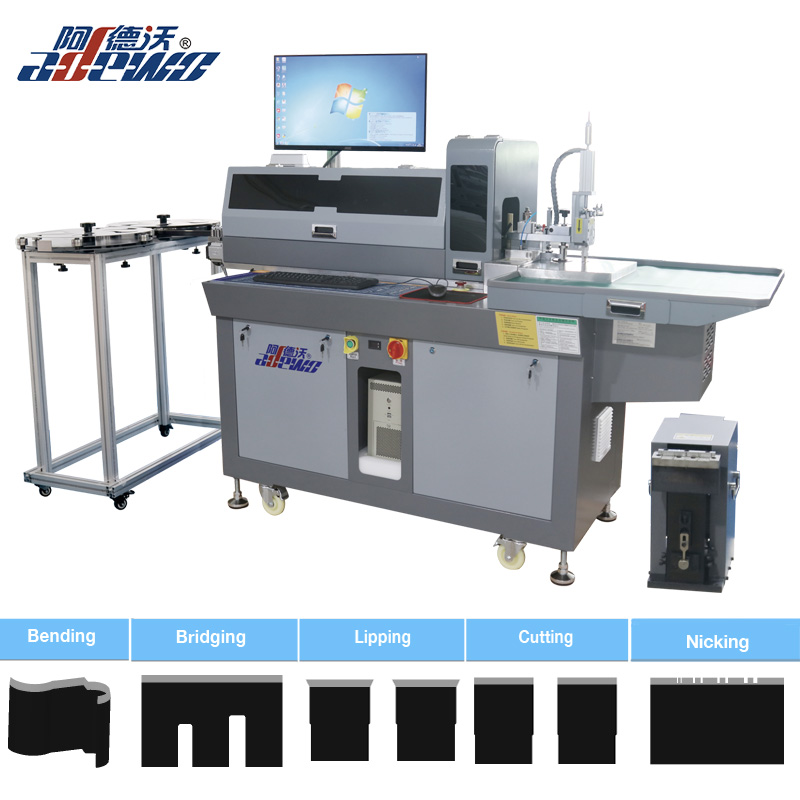

(ABM-8142B) Rotary Dies Steel Rule Auto Bender Machine included functions：Bending,Bridge,Nicking,Lipping and Cutting. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
2.This (ABM-8142B) Rotary Dies Steel Rule Auto Bender Machine with Nicking,Nicking size 0.2mm-1mm.
3.Stable servo control feeding system, fast and accurate bending, powerful bridging, precise cutting and nicking.
4.Smart software and easy to operate, multi language operations;
|
Supported rule thickness(mm) |
0.71/1.05/1.42mm(2pt,3pt,4pt) |
|
Supported rule height(mm) |
23.80-50mm |
|
Bridge height |
13-18mm |
|
Bridge width |
Over 5.5mm any sizes available. (customizable） |
|
Max. bending angle |
95° |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Nicking,Pneumatic Lipping,Cutting |
|
Cutting methods |
Twist off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
458KGS |
|
Overall dimension |
2.3×0.80×1.52m(L×W×H) |
|
H.S. Code |
8462219000 |
Our technical service is always available at services@china-adewo.com
