(ABM-A2580)Rotary Die Formes Auto Bender Machine supported Multi-Diameter 220-800mm Curved Rule and straight steel rule. China Adewo has been successful for many domestic and foreign enterprises to provide advanced Auto Bender Machines, technical support and excellent after sales service.
Shenzhen Adewo Automation: Leading Manufacturer of Rotary Die Formes Auto Bender Machines Pursuit of perfect quality；Extreme design & high performance Competitive pricing；Excellent after-sales serviceConsult us now for top-notch Rotary Dies Making Curved Rule Auto Bender Machine services! We'll reply promptly.

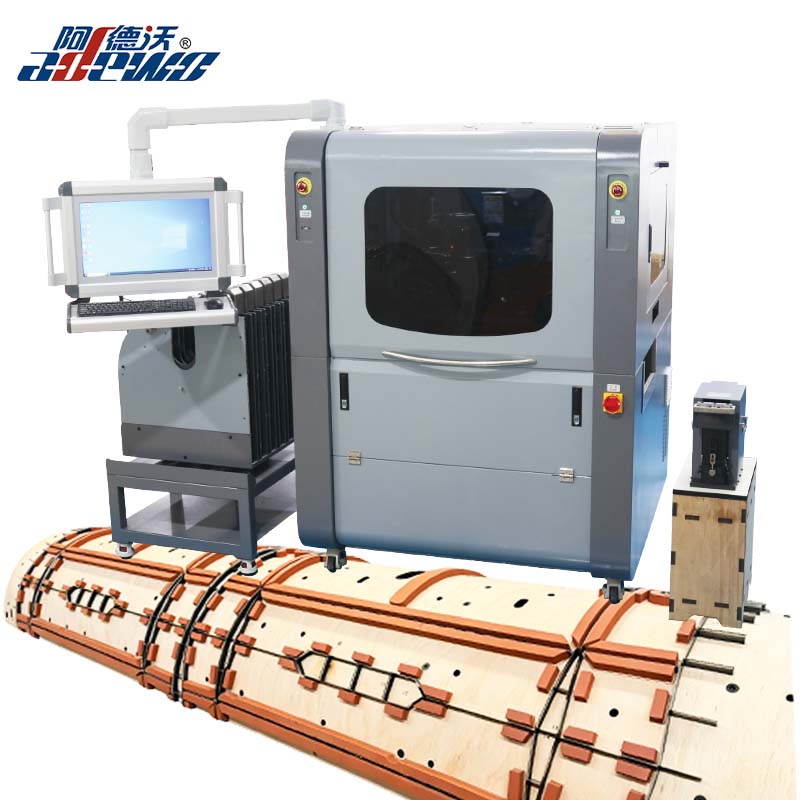

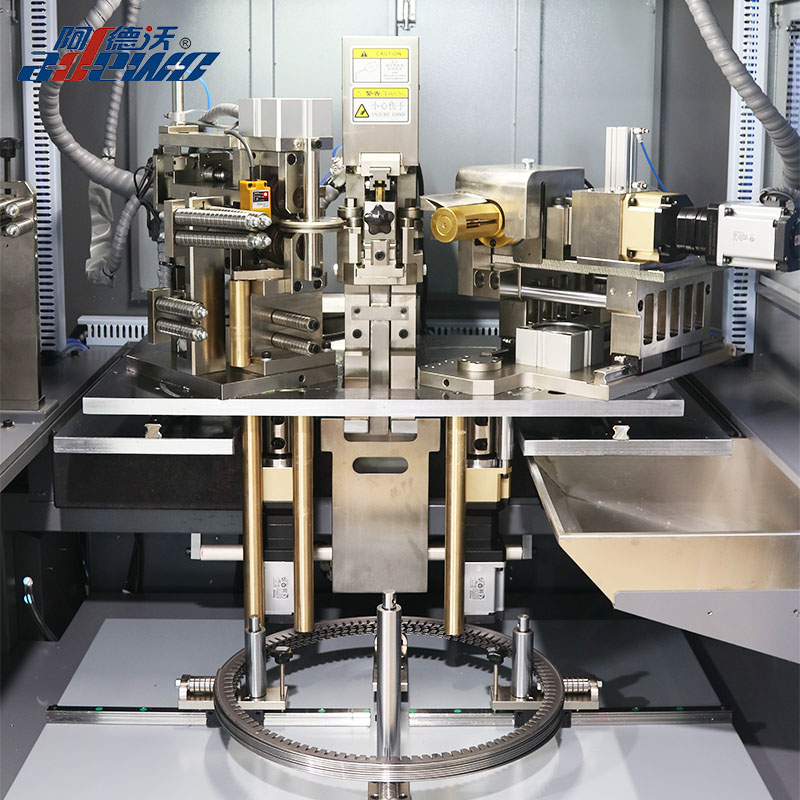

Picture of (ABM-A2580)Rotary Die Formes Auto Bender Machine

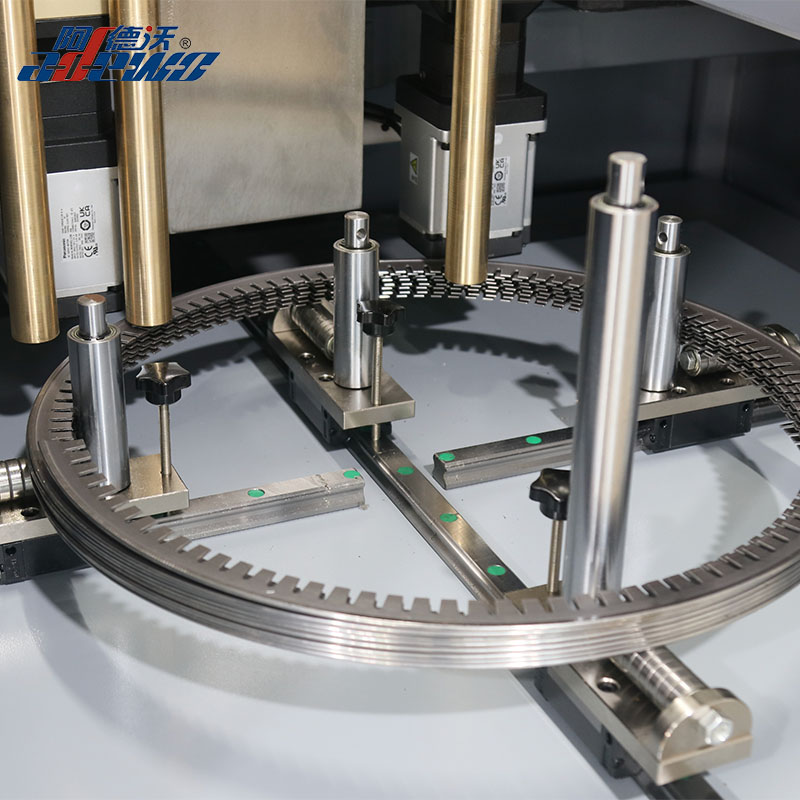

1.Supported curved rules from Ø220mm to Ø800mm.
2.Auto diameter switching via software – fast and precise.

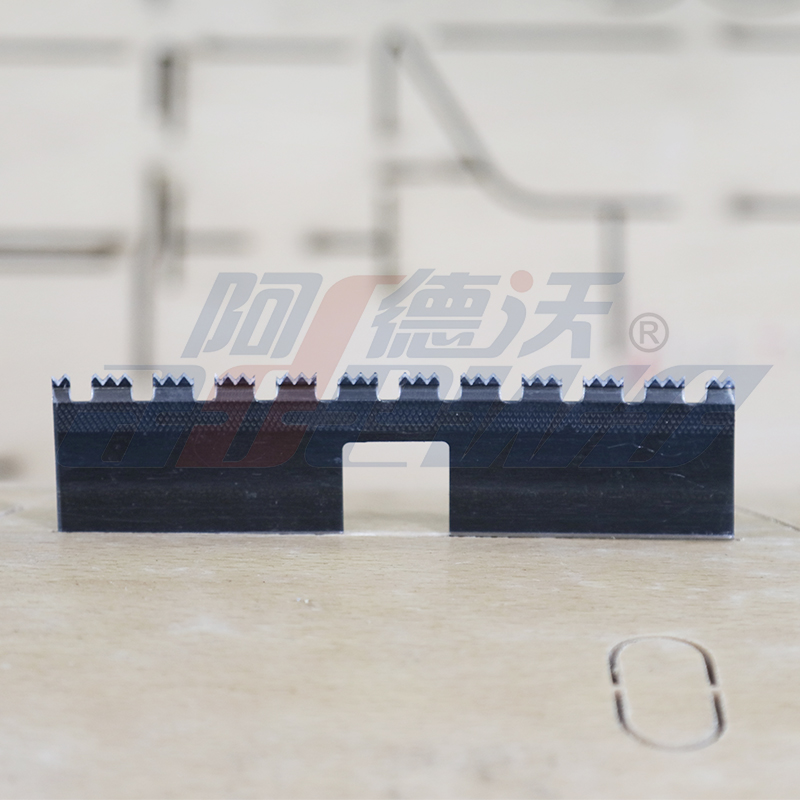

3.Works with curved, straight, cutting, creasing & laser crease rules.

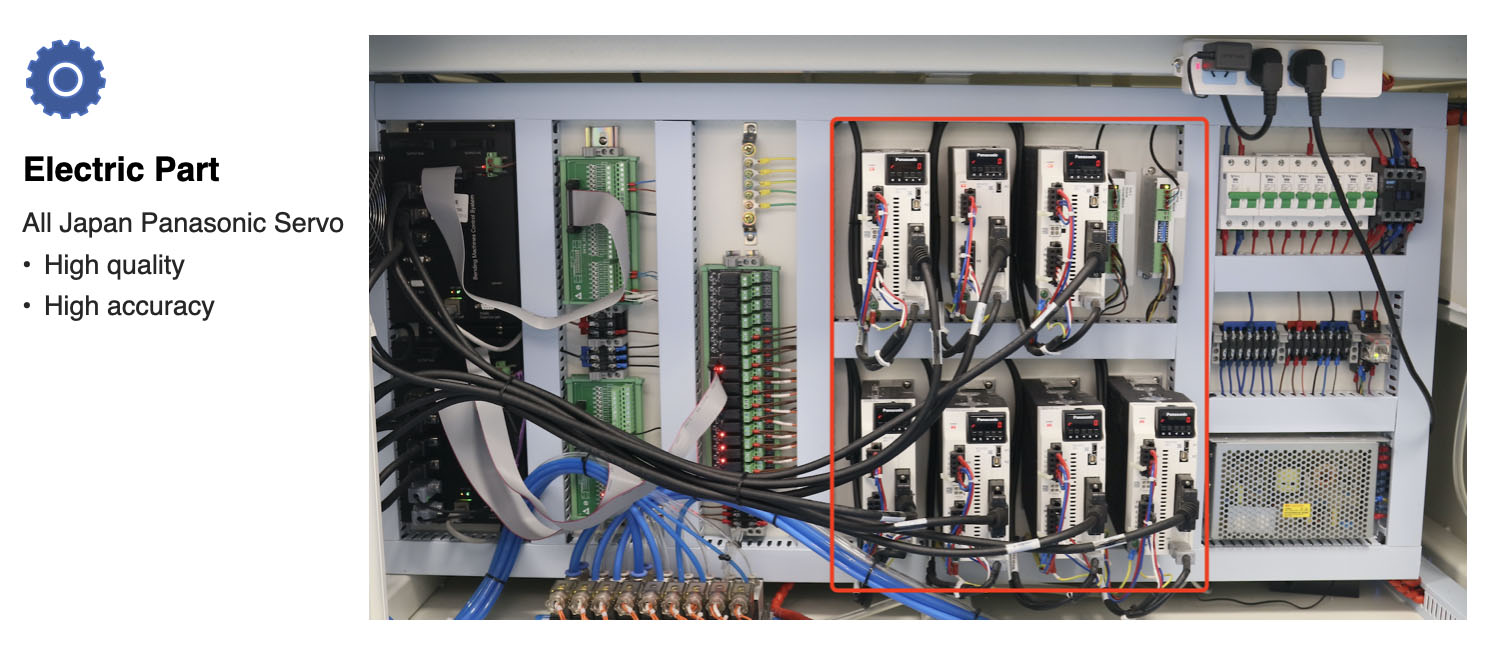

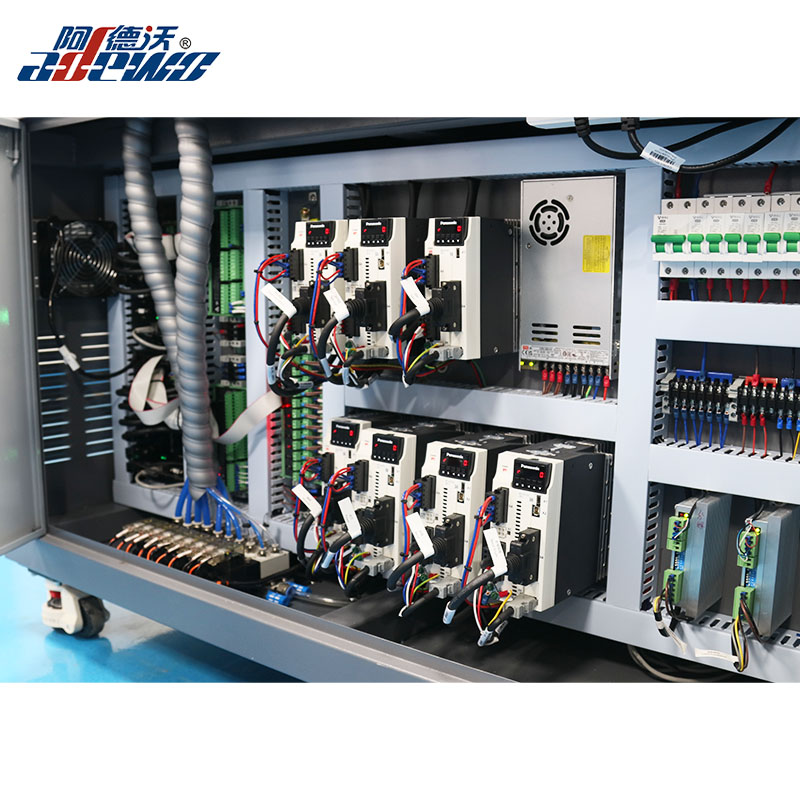

4.Full Panasonic servo motor control for accuracy and efficiency.

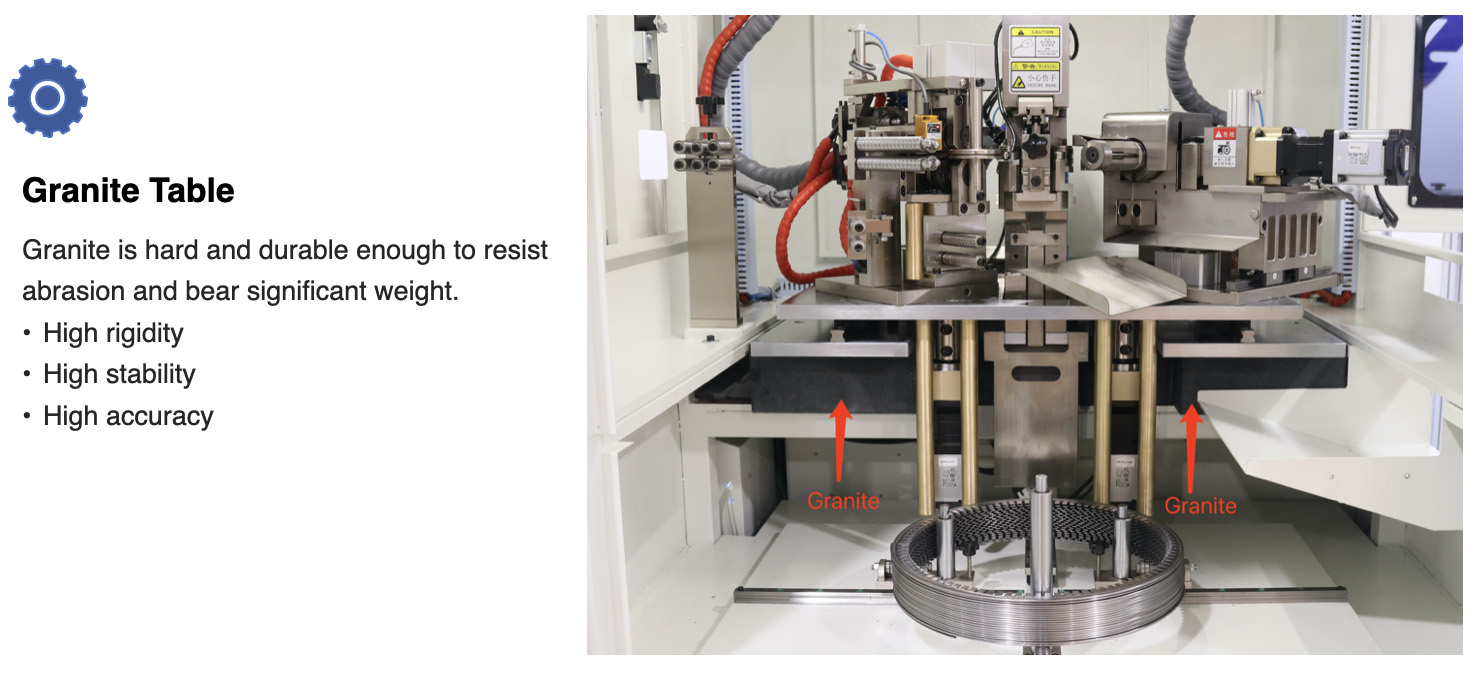

5.High-rigidity granite table for stable, reliable performance.
|
Supported Rule Diameter |
220-800mm |
|
Supported Rule Thickness |
1.42mm (4PT) |
|
Supported Rule Height |
22-30mm |
|
Multi-Functions |

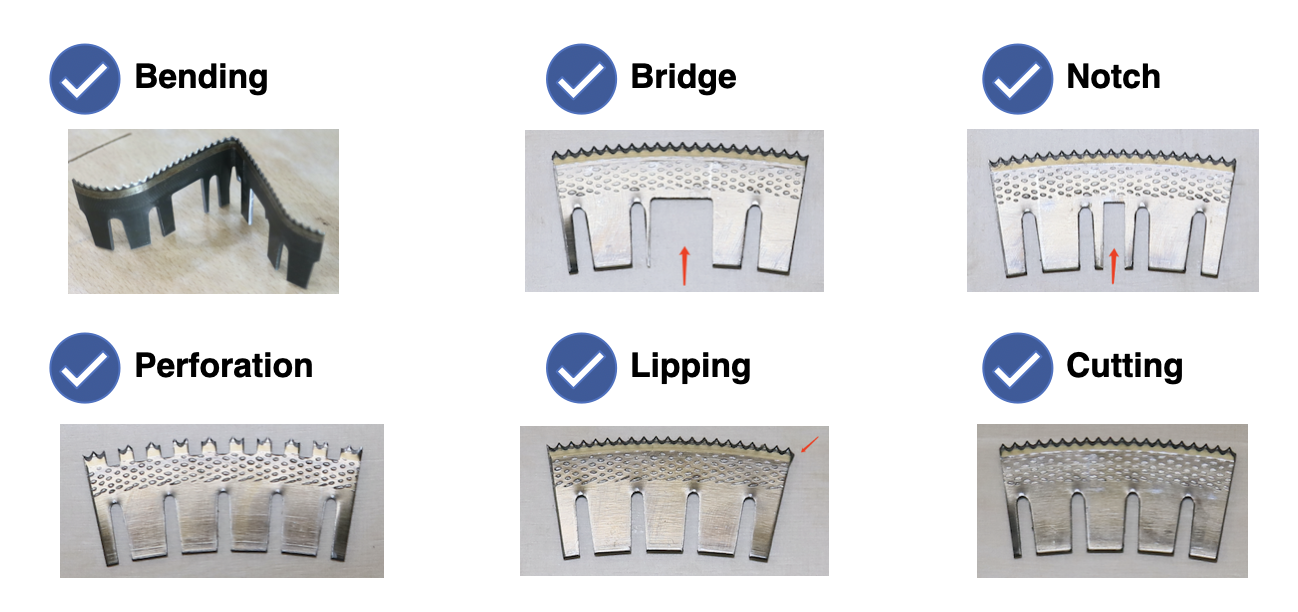

Bending, Bridge, Notch, Perforation,Cutting, Lipping, Side Bridge |
|
Optimal Graphic Format |
DXF, DWG, CF2 |
|
Air supply |
1CFM at 6 Bars |
|
Power Supply |
Single Phase,AC220V,20A,50-60Hz |
|
Machine Total Power |
3KW |
|
Machine Weight |
850KG |
|
Rule Cassette Weight |
226KG |
|
Machine size |
1350×1310×1750mm(L×W×H) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CFR
(3)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Rotary Die Formes Auto Bender Machine?
10-15 working days.
4.Any spare tools are included of Rotary Die Formes Auto Bender Machine?
Yes, the new order machine with free spare tools.

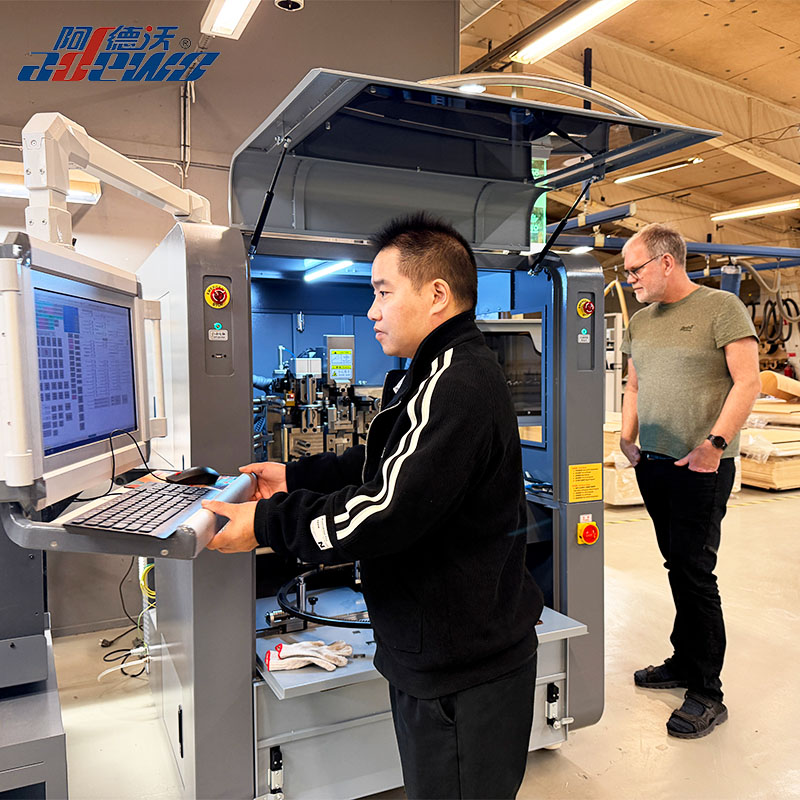

5.Installation & Training
English software, installation, related training, user manual, and videos are all available for end-users.
On-site installation and training can also be provided upon request.
6.Technical Support
We provide remote support to customers all over the world.
Our technical service team is always available at services@china-adewo.com.
Adewo technicians have extensive machine technology knowledge and die‑making experience.
