What Has Been Upgraded in ADEWO's Creasing Cutting Machine?
ADEWO's Creasing Cutting Machine has evolved significantly over the years.
ADEWO's founder also has a background in die making, and the Creasing Cutting Machine was one of the first machines developed by ADEWO.
From Pneumatic to Motor-Driven
The early ADEWO Creasing Cutting Machines used a pneumatic system.
With continuous development, ADEWO upgraded the machine to a motor-driven system, providing more precise and stable control during rule processing.
From 2pt Rules to Laser Crease Rule（4pt/8pt）
The processing capability has also expanded significantly.
The early machines were mainly designed to process 2pt steel rules.
Today, the X1E PRO can also process Laser Crease rules, including 4pt and 8pt rules, giving die makers more options for modern packaging applications.
This is particularly useful for packaging dies that require thicker creasing rules or special creasing structures.
From the early models with basic cutting and bridge functions to today's X1E PRO, the machine has been continuously improved based on real die-making experience and customer requirements.
1. More Functions
The early machines mainly focused on cutting and bridge making.
Today, the X1E PRO can be configured with different tooling for a wider range of applications, including:
The tooling can be selected according to the customer's production requirements.

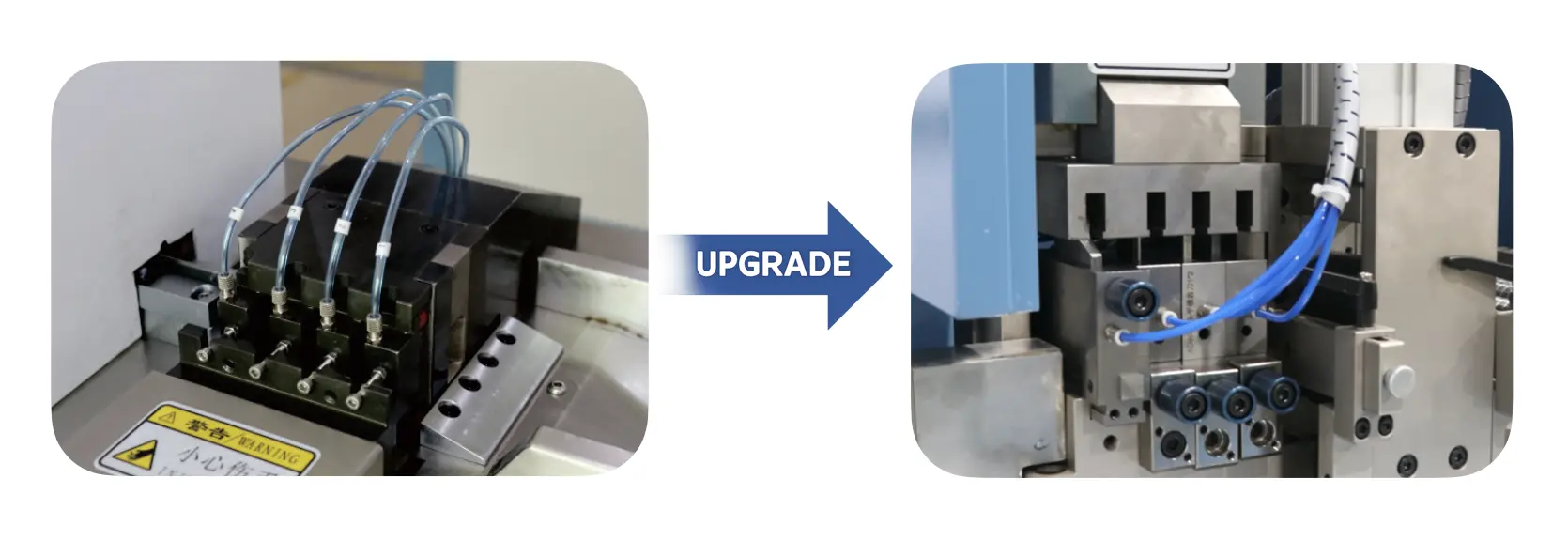

2.From Fixed Functions to Flexible Tooling
The machine structure and tooling system have been upgraded to provide greater flexibility and easier operation.
The ADEWO X1E PRO adopts an independent tooling system, with each processing function equipped with its own dedicated tool.
Operators can quickly replace individual tools without removing or dismantling the entire tooling set.
This modular design makes tool changes easier and allows different functions to be combined according to the specific requirements of each die.
ADEWO can also customize Bridge, Perforation, Cut Crease, and other tooling specifications according to different die-making requirements.
Key benefits:

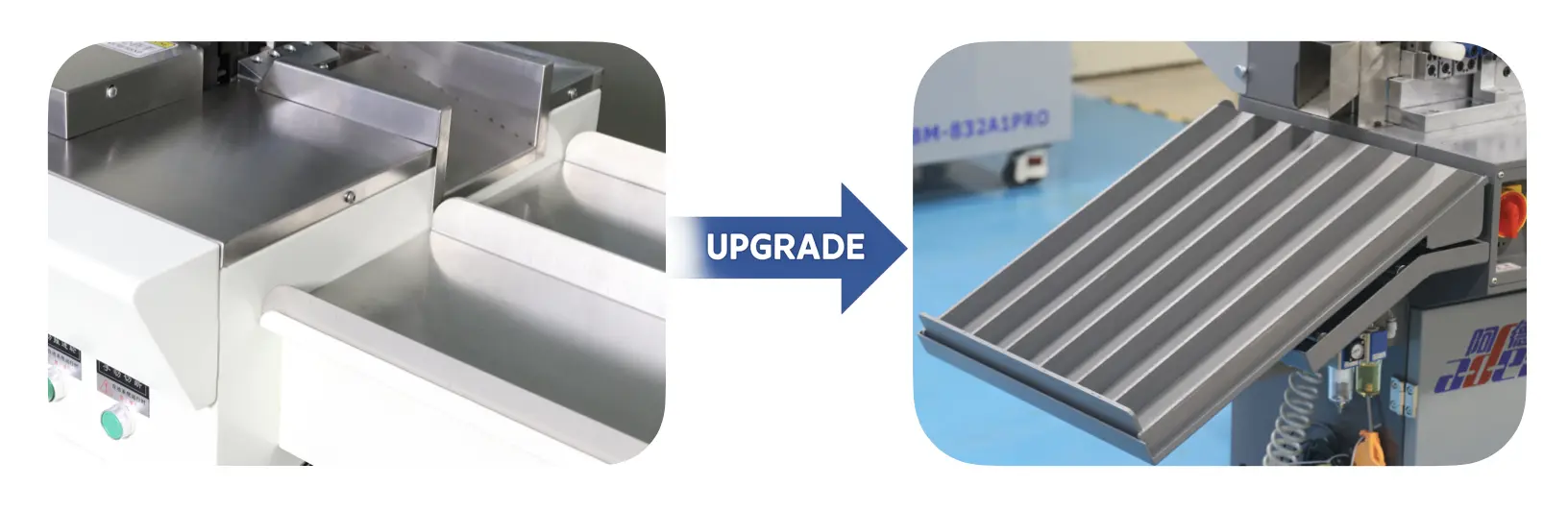

3. Automatic Length Separation
The X1E PRO software can automatically identify the required rule length and sort the finished rules into different boxes according to their length.
This makes it easier for operators to quickly distinguish and organize different rule sections, reducing manual sorting work and speeding up the overall die-making process.

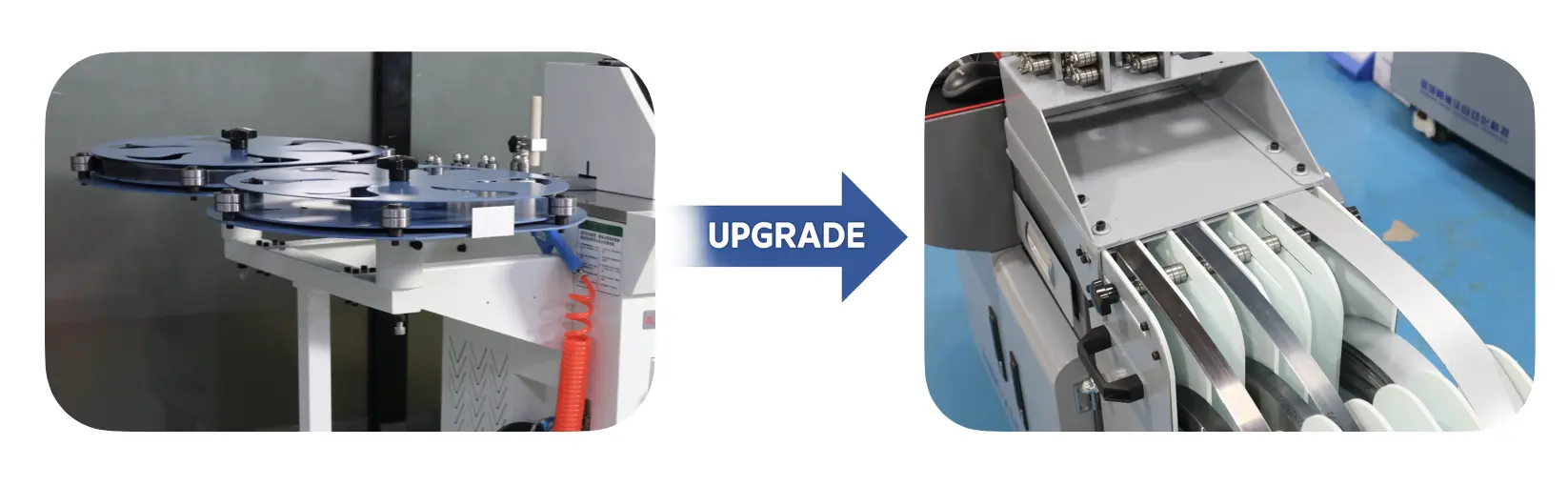

4.Multi-Rule Cassette
The X1E PRO can store up to 6-7 coils of steel rule material in its multi-rule cassette.
This makes it easier to switch between different rule materials and reduces the time spent changing and preparing materials.
It also helps make daily operation safer and more organized.
5.Wider Rule Height Range
The latest X1E PRO supports 22–60 mm rule heights and 2pt, 3pt and 4pt rules.
It can also be configured for stripping rules, making the machine suitable for a wider range of die-making applications.
From the First Generation to X1E PRO
The development of ADEWO's Creasing Cutting Machine is not simply an upgrade of one machine.
It is a continuous process of improving the machine structure, tooling system and software based on real die-making experience.
From basic Cutting + Bridge functions to today's automatic length identification, automatic separation, flexible tooling, Perforation, Cut Crease and Stripping Rule processing, the X1E PRO is designed to help die makers process more types of rules with less manual work.

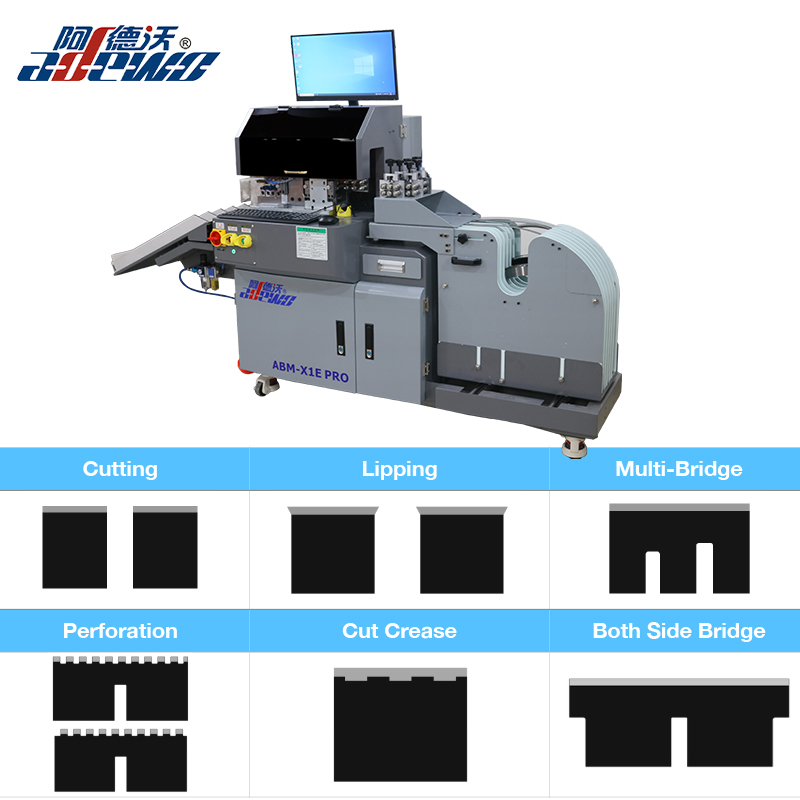

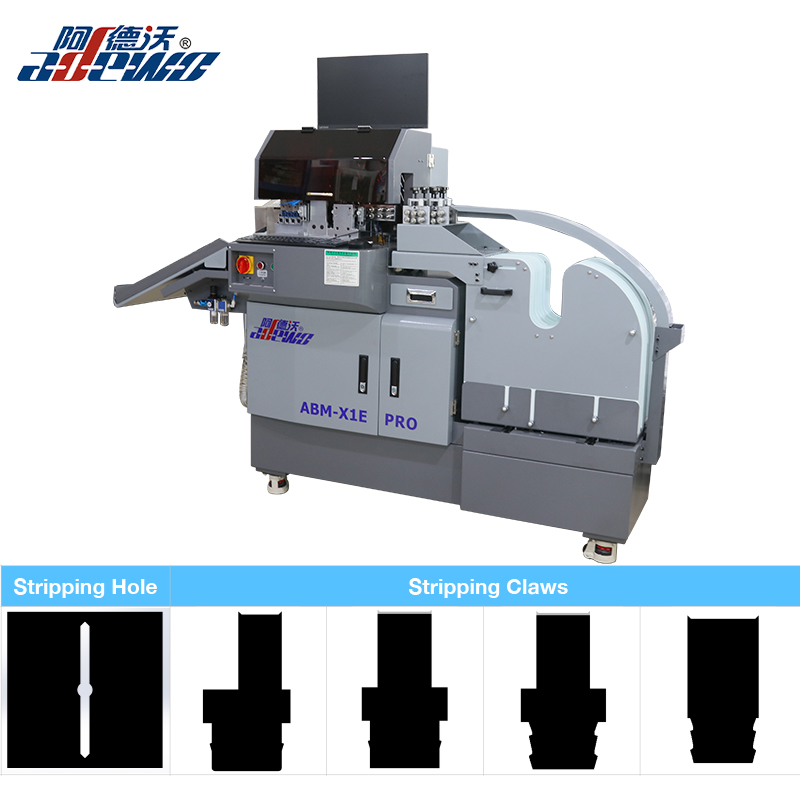

Machine Overview – X1E PRO Creasing Cutting Machine
