With the increasing demand for precision processing in fields such as packaging printing, pharmaceutical packaging, electronic products, and high-end gift boxes, die-cutting manufacturing is developing towards high precision, multiple processes, and automation. For sandwich dies, precision electronic dies, and high-end packaging dies, traditional manual bending and nicking methods have certain limitations in terms of processing efficiency, dimensional consistency, and adaptability to complex processes.
Addressing the demands of high-precision die-cutting machining, the ABM-832C2 Multi-functional Automatic Bending Machine integrates bending, nicking, lipping,mold cut, and bridge processes. Combined with multi-specification nicking, automatic rule changing, and a high-precision feeding system, it provides a more stable and efficient automated solution for complex die-cutting machining.

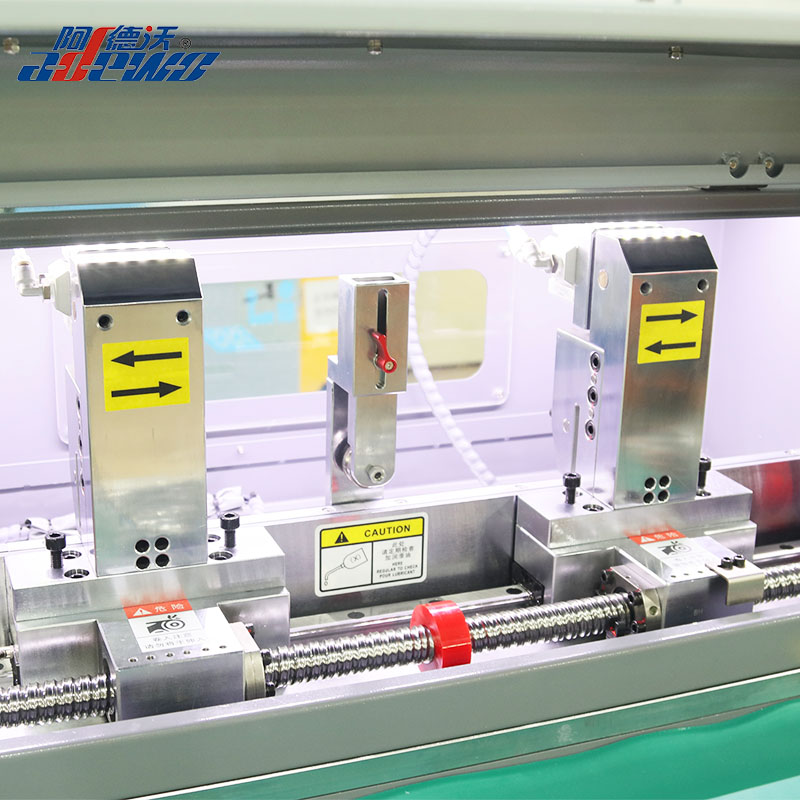

1. Multiple nicking specifications, suitable for precision die-cutting.
The ABM-832C2 supports 1 to 4 different nicking configurations, with a minimum dot size of 0.2mm. nick width and depth can be set via software. Nicking specifications can be flexibly selected for different die structures to meet the precision and consistency requirements of precision packaging and complex die structures.

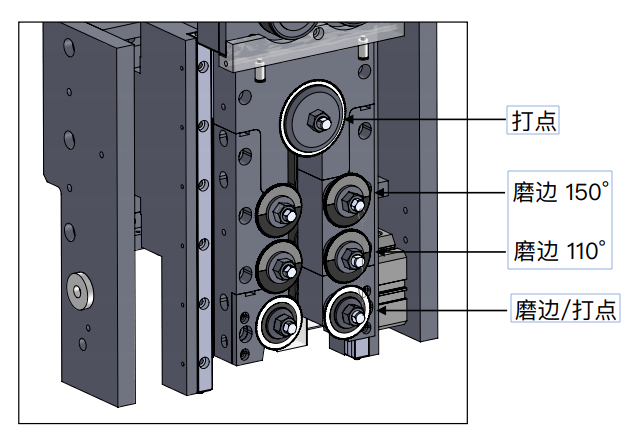

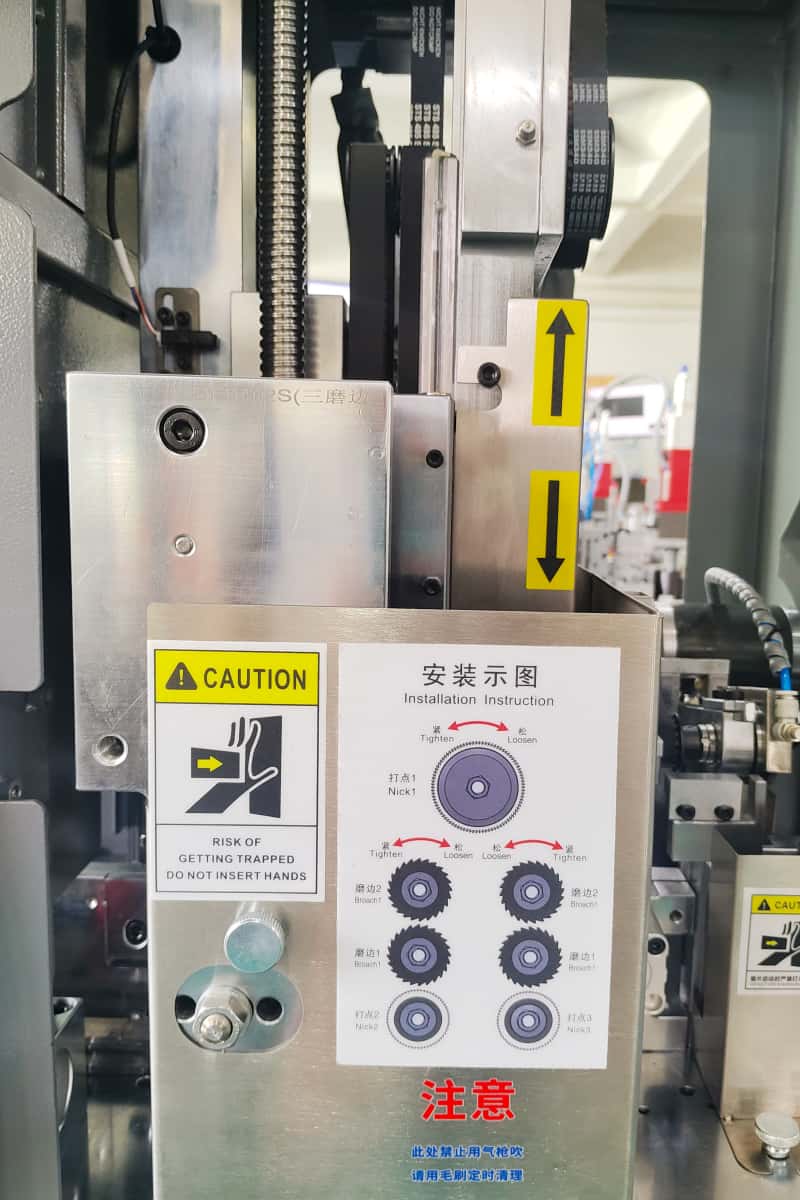

2. Grinding dual/three groups to improve processing adaptability
The equipment can be configured with 2 or 3 sets of broaching systems, combined with multi-functional punch tools, and can be configured for processing according to different cutting materials and die-cutting processes. Functions such as bending, nicking, broaching, mold cut, bridge, and flat cut are integrated, reducing process changes between multiple machines and improving overall processing efficiency.
3. Automatic rule cassette ( 6 coils )
The ABM-832C2 can be equipped with an automatic rule cassette, supporting the centralized configuration of various machining rules.
The machine automatically calls up the corresponding cutting rules according to the machining program, reducing manual rule changing operations. It is especially suitable for multi-process, continuous die production and can further improve the automation level of the equipment.

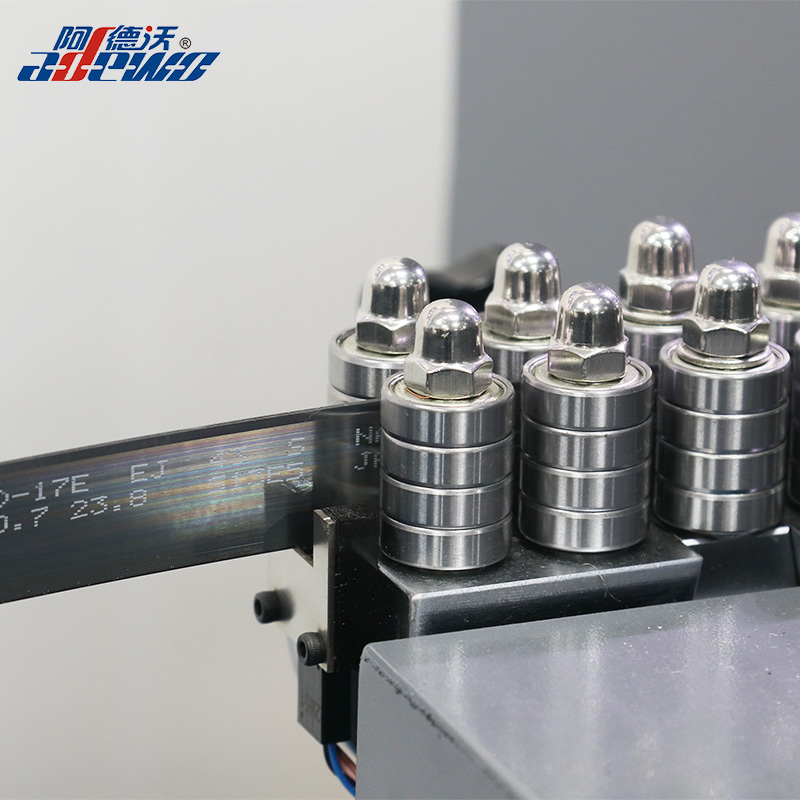

4. Feeding accuracy of ±0.03mm, meeting the requirements of high-precision machining.
The equipment adopts an automatic feeding structure with a feeding accuracy of ±0.03mm. The minimum bending dimension at the front is 1.5mm, and the minimum bending dimension at the rear is 1.0mm. It supports blade heights of 8–32mm and blade material thicknesses of 0.45, 0.53, 0.71, and 1.05mm, and is compatible with DXF and DWG file formats, allowing direct integration with digital die-cutting design and production processes. It is suitable for various high-end die-cutting applications.
5.Applications:
With its multi-specification marking, multi-group broaching, and automatic rule changing capabilities, the ABM-832C2 is primarily suitable for die-cutting applications requiring high precision and process control, including:

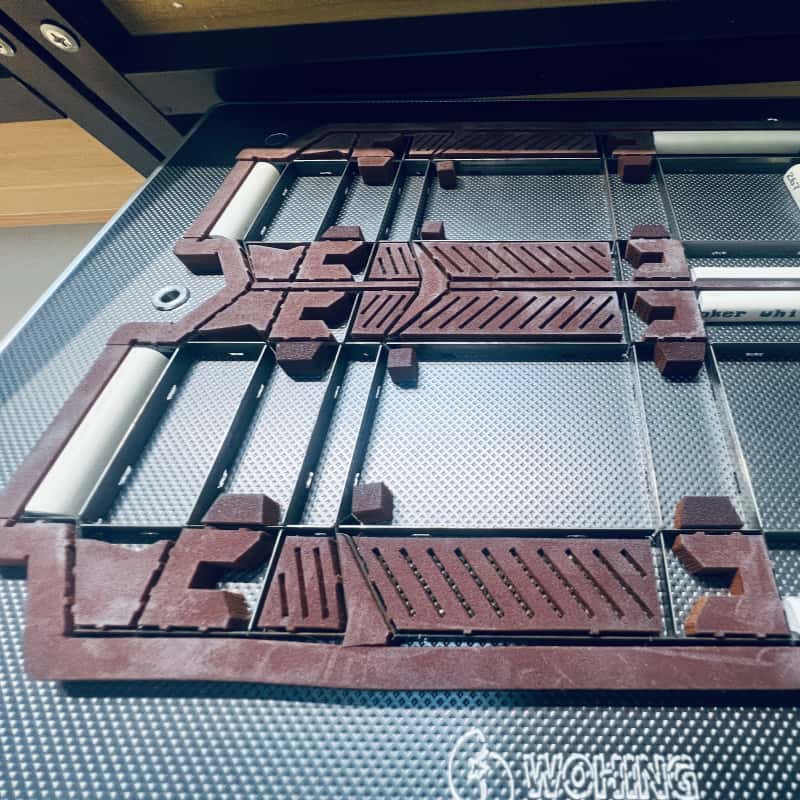

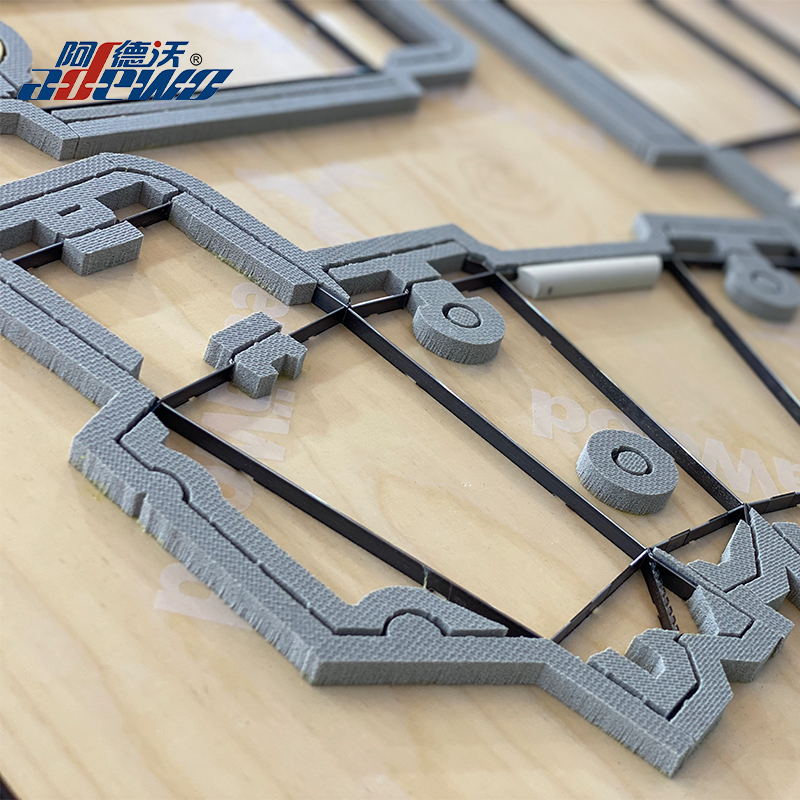

Sandwich Dies, Pharmacy Package High-end Luxury Paper Boxes Cutting Dies, High-precision Electronics Cutting Dies, Cigarette Packaging & Tobacco Papers Dies
plus all standard types:
Paper/Cardboard Cutting Dies, Gasket & Seal Dies, Thermoforming Dies, Folding Carton Dies, Label Dies, Corrugated Dies, Puzzle Dies
For different product structures, processing parameters can be adjusted through software to achieve more flexible die-cutting processing.
6. Core Technical Parameters
Project parameters
| Supported Rule Thickness | 1/1.5/2/3pt |
| Supported Rule Height | 8-32mm |
| Minimum Bend Size at the front | 1.5mm |
| Minimum Bend Size at the back | 1.0mm |
| Feeding Accuracy |
±0.03mm |
| Bending Flatness | 0.2mm |
| Nicking Size Options | single/dual/three/four |
| Minimum Nick Depth | 0.2mm |
| Broaching Configuration | Dual group/Three group |
| Broaching Angle | 110°/150° |
| Automatic Rule Cassette | Max 6 coils |
| Supported Fils Formats | DXF,DWG |
| Total Power | 3KW |
| Equipment Dimensions |
2850×800×1600mm |
| Equipment Weight | 540KG |
7.Promote the development of die-cutting processing towards high precision and automation.
For high-end packaging and precision die-cutting manufacturing, the equipment not only needs to have stable bending precision, but also needs to take into account multi-process integration, quick rule change and processing flexibility.
The ABM-832C2 integrates multiple die-cutting processes into one machine through multiple broaching, 1–4 specification nicking, 6-coils automatic rule cassette, and ±0.03mm high-precision feeding. It provides automated processing support for the production of precision die-cutting molds for sandwich die-cutting, pharmaceutical packaging, premium gift boxes, electronic and cigarette packaging.
Upgrading from a single bending die machine to a multi-process, high-precision automated machine, the ABM-832C2 further expands the application of automatic bending die equipment in the field of high-end die manufacturing.
