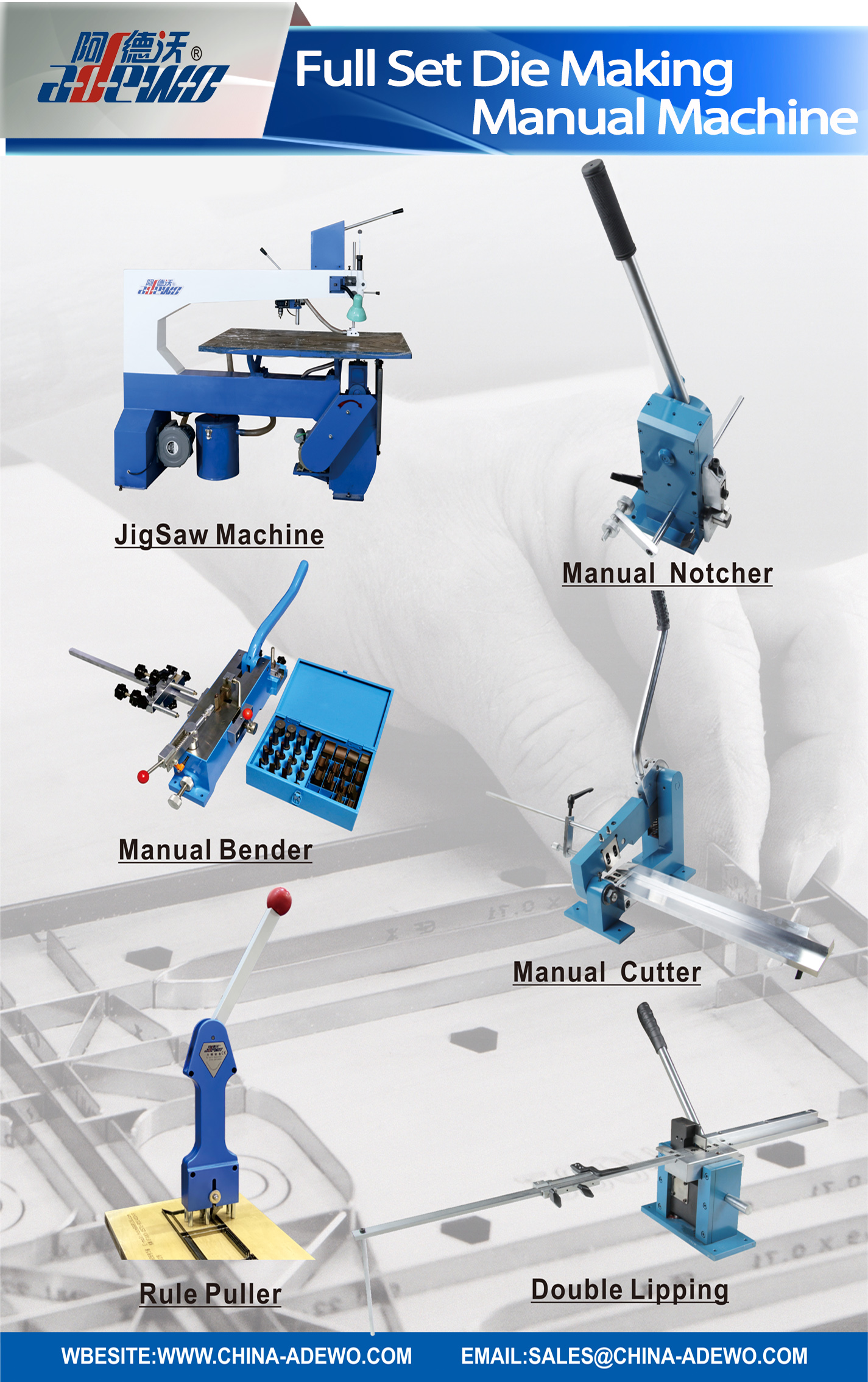

6 Must-have Die Making Manual Machine for a Die Making shop
1. Jig Saw Machinedesigned for the sole purpose of cutting of steel rules used for the die-cutting and creasing of paper, cardboard and corrugated board
Model No.
ADW-35
Wroking Table Size
800×1200mm / 1000×1300mm
Saw Blade Thickness
0.3-3mm
Supported Max Thickness of Plywood
30mm
Supported Cutting Material
Wood, Plastic, Plate
designed for the sole purpose of bending of steel rules used for the die-cutting and creasing of paper, cardboard and corrugated board
Model No.
ADW-24
Max. Thickness
1.42mm (4pt)
Max. Height
26mm or customized
Moulds Quantity
36pcs
Machine Size
920×660×230mm
Machine Net Weight
43KG
Machine Gross Weight
54KG
3. Manual Notcher
designed for the sole purpose of making bridge(notch) for steel rules used for the die-cutting and creasing of paper, cardboard and corrugated board
|
Model No. |
ADW-22 |
|
Supported Rule Max. Thickness |
0.71mm (2pt) |
|
Bridging Height |
5-20mm |
|
Bridging Width |
3-6mm |
|
Machine Size |
370×450×510mm |
|
Machine Net Weight |
12.6KG |
|
Machine Gross Weight |
16KG |
4. Manual Cutter
designed for the sole purpose of cutting of steel rules used for the die-cutting and creasing of paper, cardboard and corrugated board
Model No.
ADW-23
Supported Rule Max. Thickness
2mm
Supported Rule Max. Height
40mm or customized
Machine Size
730×960×530mm
Machine Net Weight
23KG
Machine Gross Weight
28KG
5. Double Lipping
designed for the purpose of lipping of steel rules used for the die-cutting and creasing of paper, cardboard and corrugated board
Model No.
ADW-20
Supported Rule Max. Thickness
0.71mm (2pt)
Supported Rule Max. Height
23.80mm
Miter Angle
52°/42°
Caliper
500mm
Machine Size
1070×550×350mm
Machine Net Weight
22.3KG
Machine Gross Weight
27KG
6. Rule Puller
suitable for pulling and adjusting the blade and creasing line during making die plates
Machine Size
100×25×500mm
Machine Net Weight
1.5KG
Machine Gross Weight
2.0KG
