Manual Steel Rule Punching Machine

Manual Steel Rule Punching Machine

The ADW-22 Manual Steel Rule Punching Machine creates clean, consistent bridge(notch) slots without electricity, delivering a highly economical and user‑friendly solution. Its robust build guarantees years of trouble‑free operation. Quick workpiece positioning and toolless bridge depth adjustment keep changeovers very quick — a true asset for every die shops.

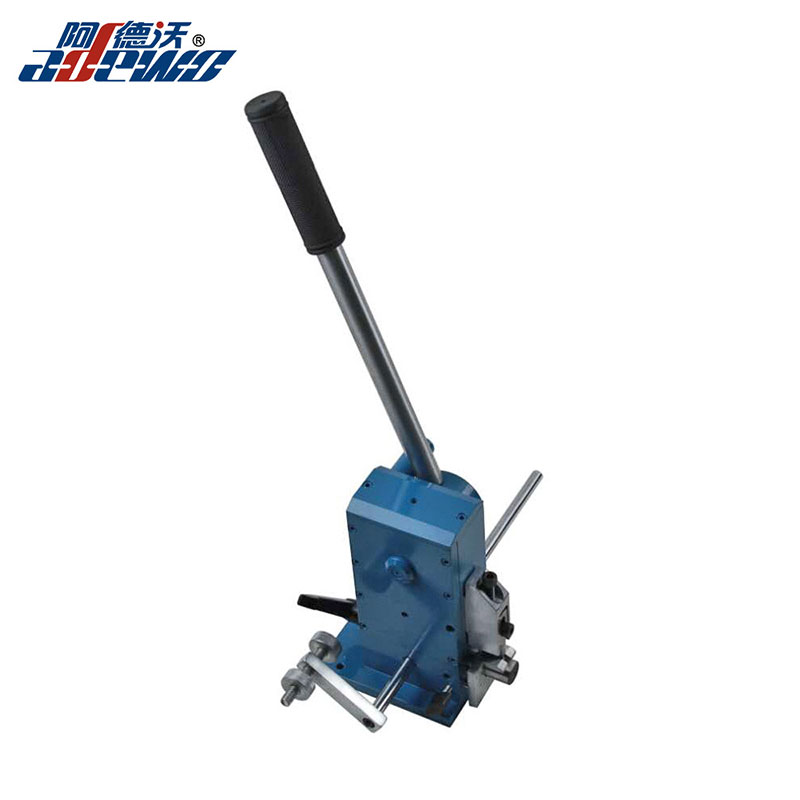

Picture of (ADW-22) Manual Steel Rule Punching Machine for reference:

1.Manual Steel Rule Punching Machine Technical Specifications

Model No.	ADW-22-2PT
Supported Rule Max. thickness	0.71mm（2pt）
Bridging height	5mm-20mm
Bridging width	3-6mm
Machine size	370x450x510mm
Net weight	12.6kg
Gross Weight	16kg

2.Manual Steel Rule Punching Machine Features

•Maximum rule thickness – 0.71 mm (2 pt), compatible with standard rules used in die making.

•Bridge height (depth) range – Adjustable from 5 mm to 20 mm, allowing you to match different rule heights and substrate clearances. The depth adjustment is tool‑free and can be set in seconds.

•Bridge width range – 3 mm to 6 mm (standard square notch). This covers the most common bridge sizes; other sizes (e.g., 6 mm, 8 mm) and round shapes are available on request.

3.Manual Steel Rule Punching Machine - Ideal For

- Manufacturers of die cutting

- Print and packaging plants

- Shops that assemble die boards

- Anyone needing an affordable, manual solution for Steel Rule Bridge

4.ADEWO – Full Die-Making Solutions

•Precision cutting – Die Board Laser Cutting Machine for accurate plywood die-board processing.

•Automated bending – Steel Rule Auto Bender Machine for consistent, high-speed rule bending.

•Creasing cutting machine – for professional creasing applications.

•Manual machines – Die Making Manual Machine for rule repair, notching, bridging, and small-batch bending.

5.FAQ:

1.What manual equipments are necessary for a newly opened die making shop?
•Manual Bender Machine
•Manual Cutting Machine
•Manual Bridge Machine

2. Shipping method and delivery time?
•By air, around 7-10days
•By sea, around 30days

3.Any model of Manual Bridge Machine suits for 4pt steel rule?
Yes, model ADW-22-4PT Manual Bridge Machine is suits for  4pt steel rule.
