As the professional manufacturer, we would like to provide you Laser Welder for Steel Rule Welding and Die Making. [ADW-WD PRO (FIXED)] Designed for cutting dies, this non-contact laser welder minimizes heat input and deformation for clean, reliable joints. Adjustable power suits various rule thicknesses and heights. Real-time monitoring is enabled by an 8x magnified LED display, while smart software offers easy bilingual programming. Wire and non-wire feed options provide flexible operation for different die boards.
Shenzhen Adewo Automation Technology Co.,ltd. is China manufacturer & supplier who mainly produces Die Making Machines, Laser Welding Machines with many years of experience. Hope to build business relationship with you.

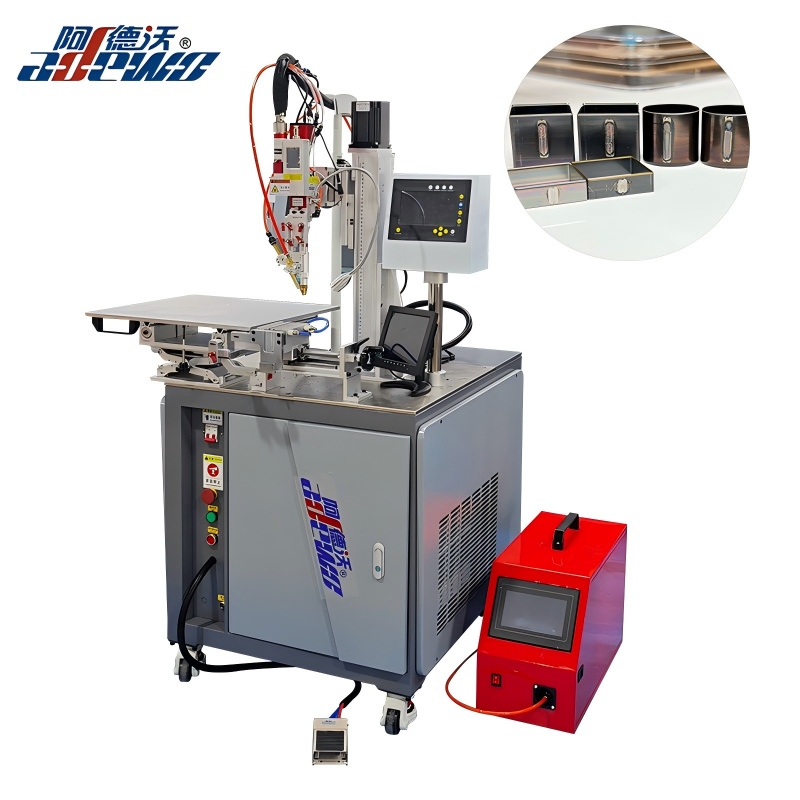

Picture of ADW-WD PRO (FIXED) Laser Welder for Steel Rule Welding and Die Making for reference:
(1). Designed for cutting dies
Non-contact laser welding minimizes heat input, reduces deformation, and ensures contamination-free, safe, and reliable joints.
(2). High-quality laser source – Raycus
Raycus is a leading Chinese fiber laser brand known for high stability, reliable performance, and competitive pricing.
(3). Adjustable laser power
Compatible with various rule thicknesses and heights for flexible processing.
(4). High stability & real-time observation
Stable machine performance with a built-in 8x magnified LED display for real-time process monitoring, ensuring high precision in automatic welding.
(5). Smart programming & easy operation
Simple software programming enables fast automatic welding, with bilingual interface support (Chinese/English).
(6). Wire / non-wire feed options
Freely selectable modes to meet the requirements of different die boards.
Advantages of Wire Feeding Laser Welding
Stronger Weld Joints - Additional welding wire helps create stronger connections between steel rule ends.
Better Gap Filling - Wire feeding effectively compensates for small gaps and improves welding consistency.
Improved Weld Appearance - The weld seam is cleaner and smoother, reducing finishing work.
Reduced Welding Defects - The additional filler material helps improve weld stability and reliability.
Ideal for Thermoforming Dies - Many thermoforming die manufacturers prefer wire feeding welding because it provides better joint quality and longer die life.
|
Air Supply |
0.7-1.2MPa |
|
Power Supply |
220V, 27.5A, 60Hz |
|
Total Power |
6KW |
| Total Laser Power | 1.5KW(Adjustable) |
|
Laser Brand |
Raycus （Top-tier laser brand） |
|
Assistant gas |
Argon |
|
Cooling system |
Water cooling (100% pure water) |
|
Weight |
220KG |
|
Dimension |
1050×1100×1700mm (L×W×H） |
|
H.S. code |
8515809010 |

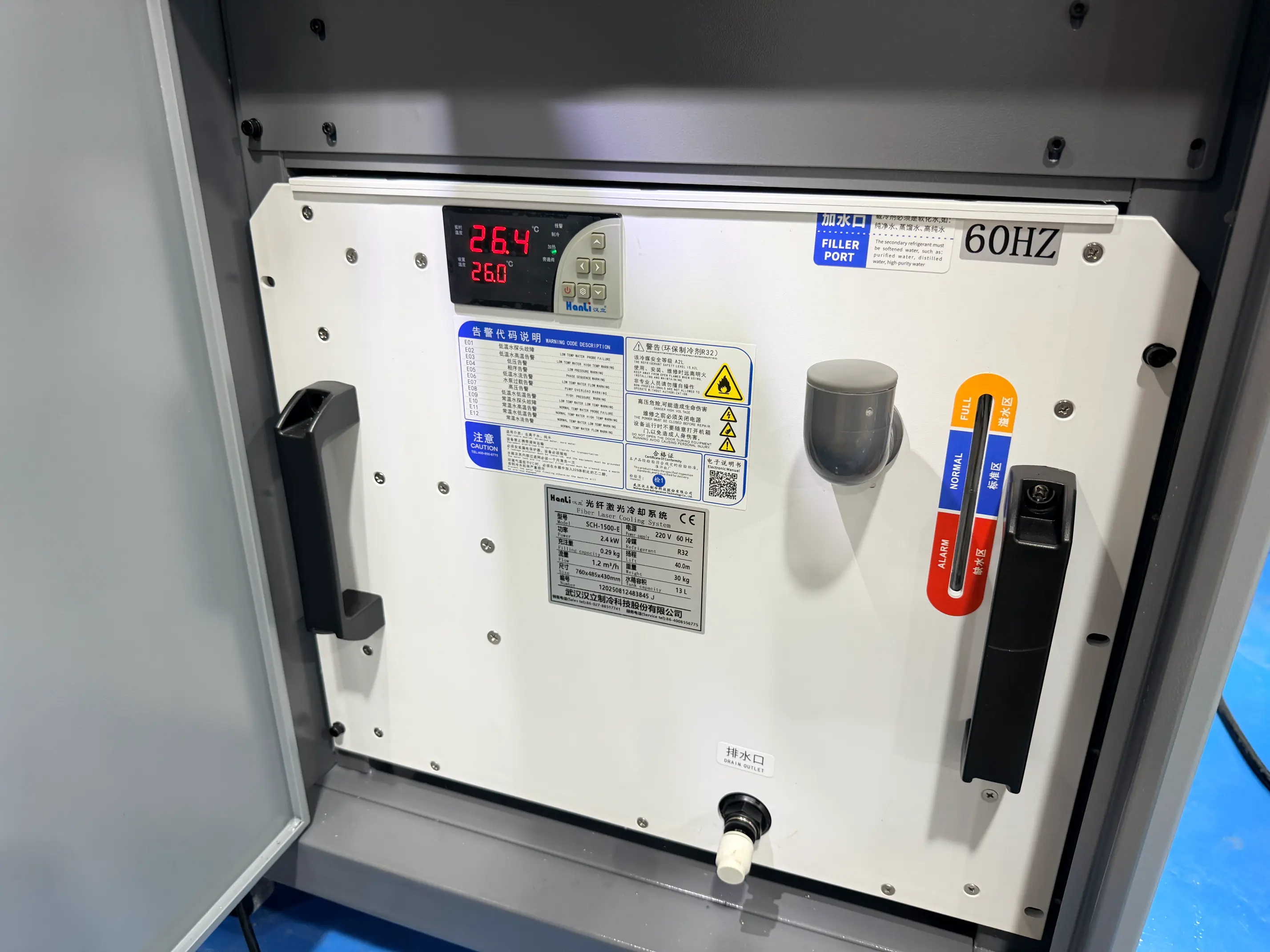

Unlike many entry-level laser welders that rely on air cooling, the ADEWO Laser Welder isequipped with an industrial water chiller (Water Cooling System)to ensure stable performance during continuous production.
Laser welding generates a significant amount of heat, especially during long operating hours. The industrial water chiller continuously maintains the laser source at an optimal operating temperature, providing stable laser output and consistent welding quality.

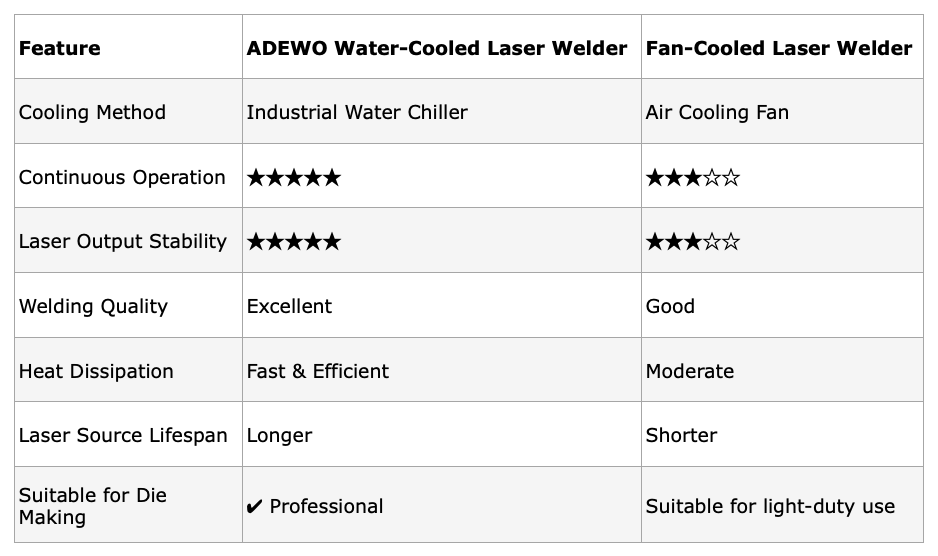

Advantages of the Industrial Water Chiller
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Auto Welding Machine?
10-15 working days.
4.How about installation and training of Upgraded Version Auto Welding Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com.
