Gaskets Die Boards Blade Auto Bender Machine

(ABM-A8105)Basic Model Die Boards Gaskets Die Boards Blade Auto Bender Machine included functions:Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm, height 8-30mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-A8105

Send Inquiry

Product Description

Gaskets Die Boards Blade Auto Bender Machine

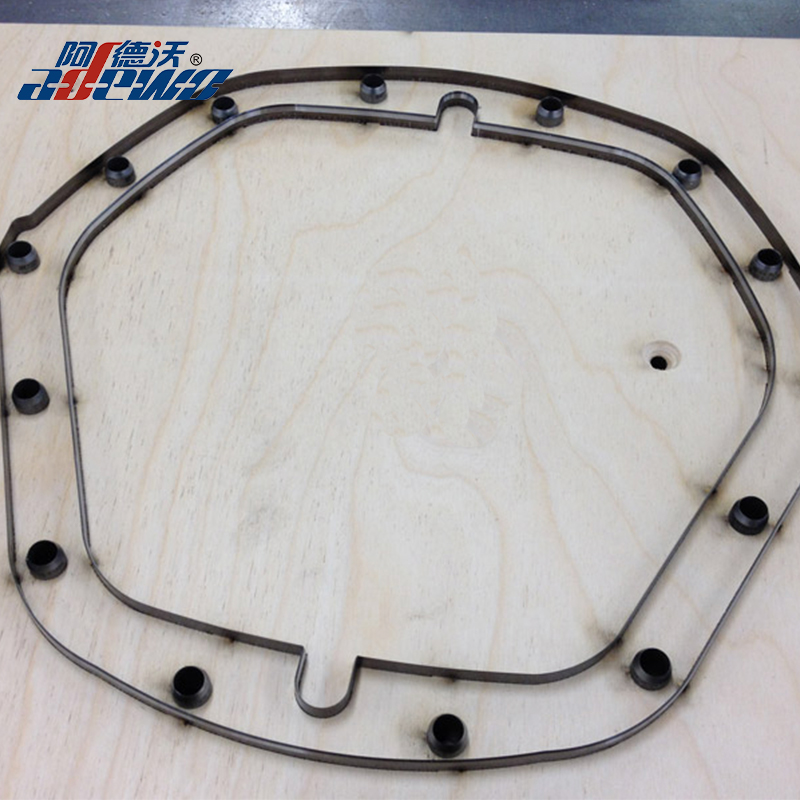

Picture of (ABM-A8105)Basic Model Die Boards Gaskets Die Boards Blade Auto Bender Machine for reference:


Product Features:

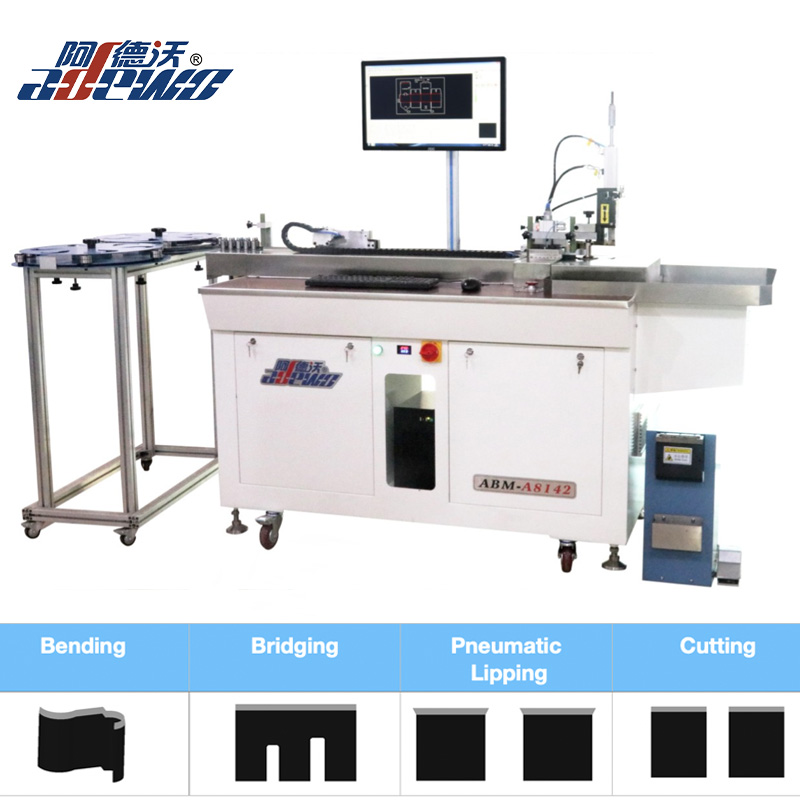

1.Multi-Functions:(ABM-A8105)Gaskets Die Boards Blade Auto Bender Machine with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.

2.This Gaskets Die Boards Blade Auto Bender Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.

2.This Gaskets Die Boards Blade Auto Bender Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.


3.Smart software and easy to operate, multi language operations;


4. Save production time and easy for die making by Gaskets Die Boards Blade Auto Bender Machine.


5.This Gaskets Die Boards Blade Auto Bender Machine apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.



Technical Parameters of Gaskets Die Boards Blade Auto Bender Machine

Supported rule thickness(mm)

0.45/0.71/1.05mm

Supported rule height(mm)

8-30mm

Bridge height

15-18mm

Bridge width

Over 5mm any sizes available.
(customizable)

Min. ARC radius of 90 degree

±0.3MM

Front Min. bending size

1.5MM

Back Min. cutting size

1.0MM

Feeding precision

±0.03mm

Bending flatness

±0.2mm

Functions

Bending, Bridging, Offline Pneumatic lipping, Cutting

Cutting methods

Twist off and Auto flat cutting

Optimal pattern format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

Single Phase AC220V,13.6A,50-60Hz

Machine total power

3KW

Weight

458KGS

Overall dimension

2.1×0.81×1.22m(L×W×H)

H.S. Code

8462219000



FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time of Gaskets Die Boards Blade Auto Bender Machine?

7-10 working days.



4.How about installation and training of Gaskets Die Boards Blade Auto Bender Machine?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at [email protected]



5.Any spare tools are included of Gaskets Die Boards Blade Auto Bender Machine?

Yes,the new order machine with free spare tools.
