ABM-A8105C32 Food Packaging Steel Rule Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. Adewo specializing in developing and manufacturing die cutting equipment including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
You can rest assured to buy customized Food Packaging Steel Rule Auto Bender Machine from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!After-sale services : after-sales team will deal with all complaint from customers such as packaging ,quality ,shipping ,etc. We will surely exchange goods or make up lost if finally verify mistakes caused by our side, a promise is a promise !

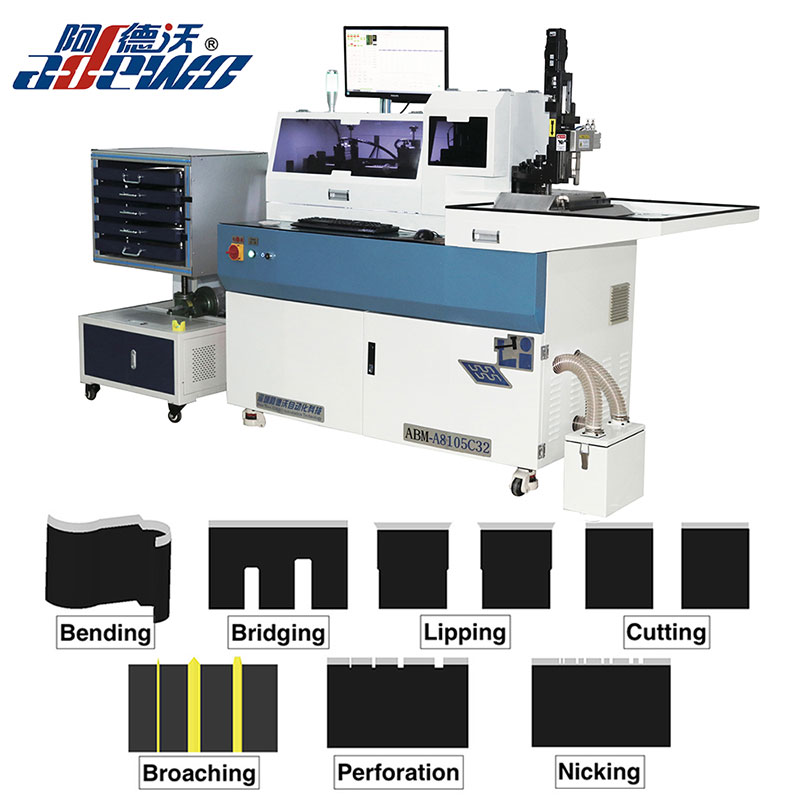

Picture of (ABM-A8105C32) Food Packaging Steel Rule Auto Bender Machine for reference:

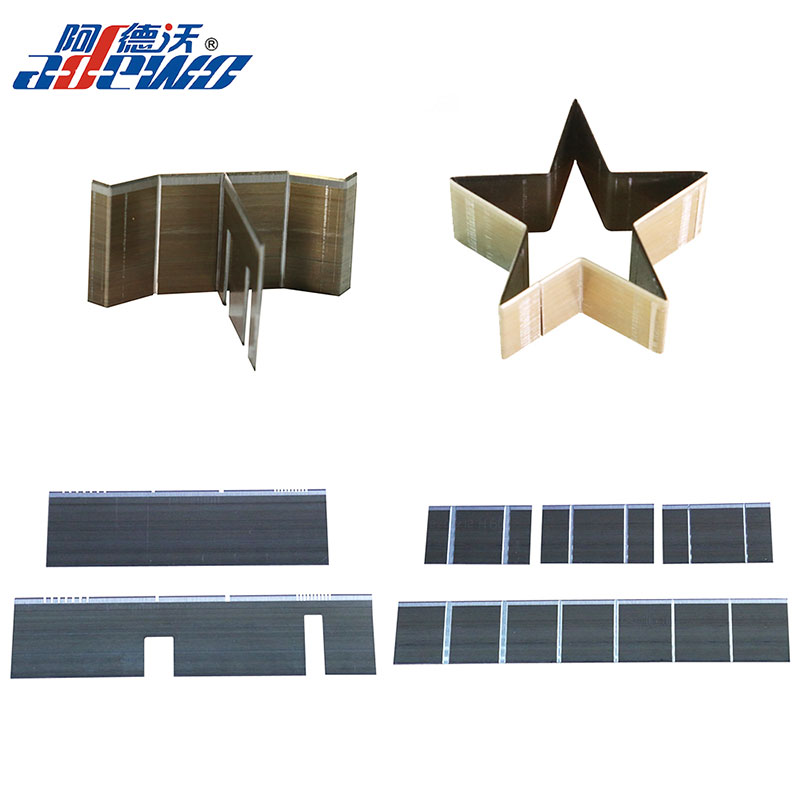

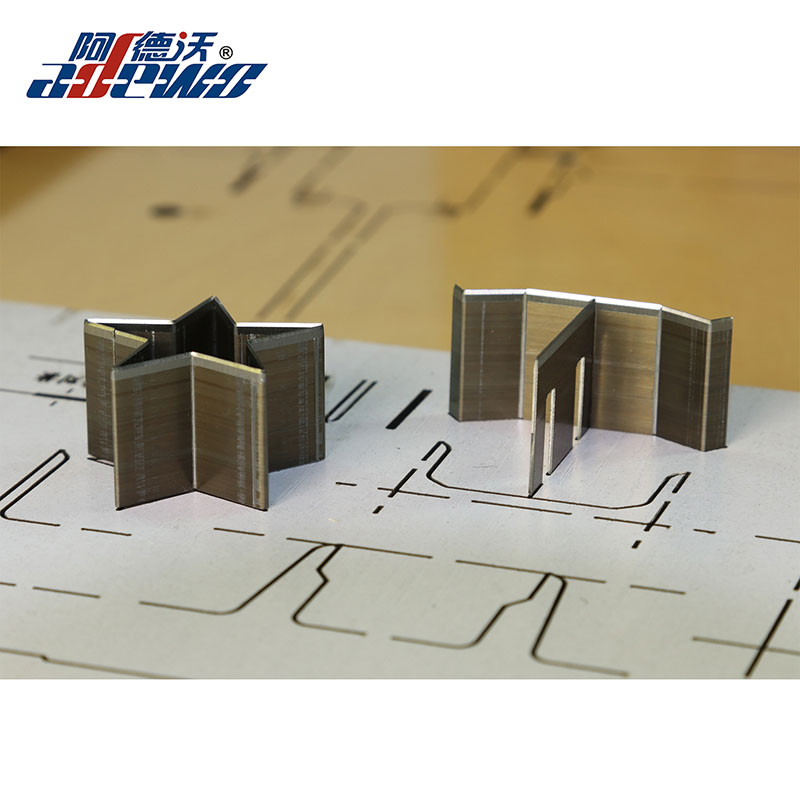

1.Multi-Functions：(ABM-A8105C32)Food Packaging Steel Rule Auto Bender Machine with Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting.
All functions in one machine.
|
Bending |
Bridge |
Lipping |
Seamless Cut |
|
|
|
|
|
|
Broaching |
Nicking |
Perforation |
Hole |
|
|
|
|
|

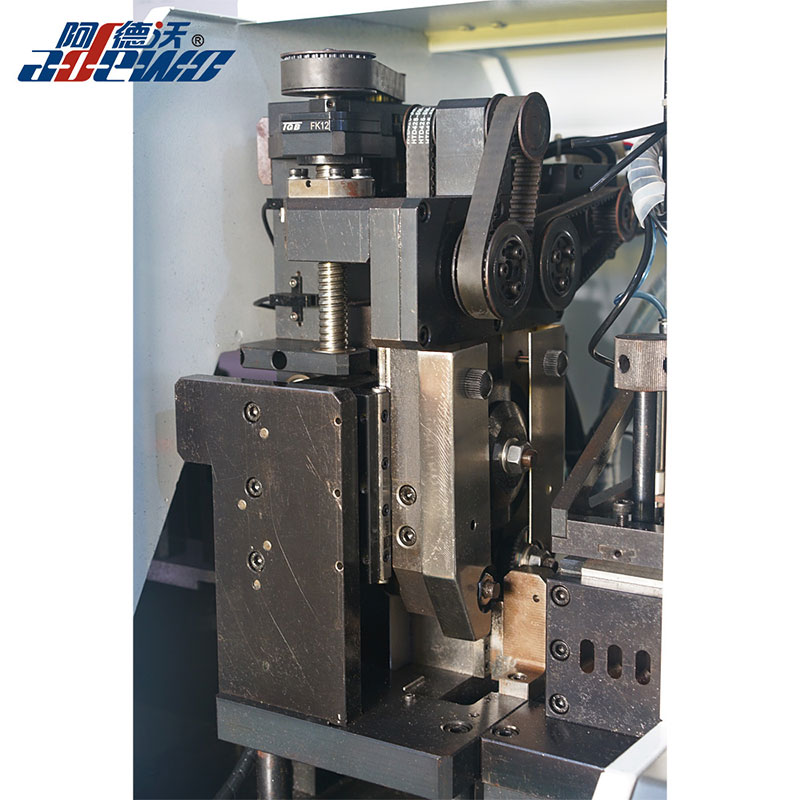

2.Broaching and Nicking System:This Food Packaging Steel Rule Auto Bender Machine using high hardness tungsten saw blades, the durability will be significantly improved.The depth of Broaching and Nicking can be altered automatically by the software to meet different requirements.

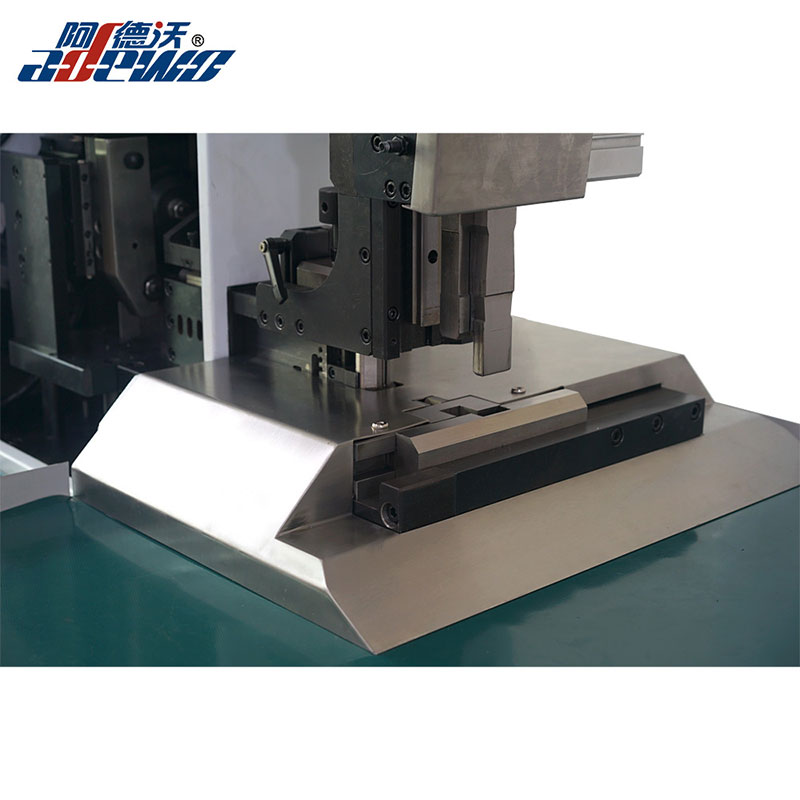

3.Bending System:Adopting sleeve bending system can produce different complicated angles quickly.Flatness can be adjusted quickly to be suitable to all kinds of rules.

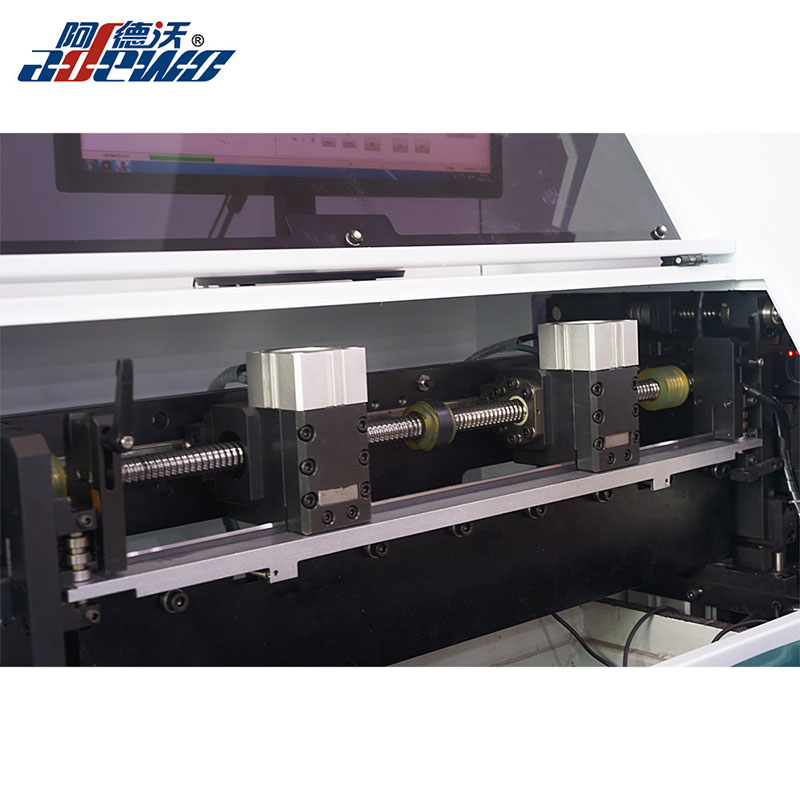

4.Feeding System:This Food Packaging Steel Rule Auto Bender Machine with Double clips feeding system, fast speed and more stable.
5.Software System:This Food Packaging Steel Rule Auto Bender Machine Newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.
6.Automatic Rule Cassette with display：Independent 6 floors rule cassette that the height can be adjusted by display. Smart safety protection can effectively avoid the accident.
|
Supported Rule Thickness(mm) |
0.45mm/0.53mm/0.71mm/1.05mm |
|
Supported Rule Height(mm) |
8-32mm |
|
Min.Arc Radius of 90 Degree |
0.4mm |
|
Front Min.Bending Size |
1.5mm |
|
Back Min. Cutting Size |
1.0mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
±0.2mm/100mm |
|
Bridge Width |
5mm(can be customized) |
|
Bridge Height |
12-20mm(Adjustable) |
|
Functions |
Bending, Cutting, Lipping, Bridging, Broaching, |
|
Cutting Methods |
Auto cut-off or Bend cut |
|
Broaching Methods |
Double broaching “V”shape, unique function: broaching at short distance；automatic control broaching depth, precision sharp corners; |
|
Optimal Graphic Format |
DXF,DWG |
|
Air supply |
0.4-0.8Mpa |
|
Power Supply |
Single Phase,AC220V,13.6A,50-60Hz |
|
Machine Total Power |
3KW |
|
Machine Weight |
480KGS |
|
Machine size |
3100×930×1800mm(L×W×H) |
|
H.S. Code |
8462219000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Food Packaging Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
