Die Making Blade Auto Bender Machine

ABM-A8105C32 Die Making Blade Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. Adewo specializing in developing and manufacturing die cutting equipment including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-A8105C32

Send Inquiry

Product Description

Die Making Blade Auto Bender Machine

Find a huge selection of Die Making Blade Auto Bender Machine, Tooth Blade Die Boards Auto Bender Machine, Gaskets Blade Auto Bender Machine from China at Shenzhen Adewo Automation Technology Co.,ltd.. Provide professional after-sales service and the right price, looking forward to cooperation."To achieve zero faults via continuous improvement, to satisfy our customers' needs and expectations, to make pledges we fully understand and think we can keep, and to keep all commitments to customers on schedule," is our guiding concept.

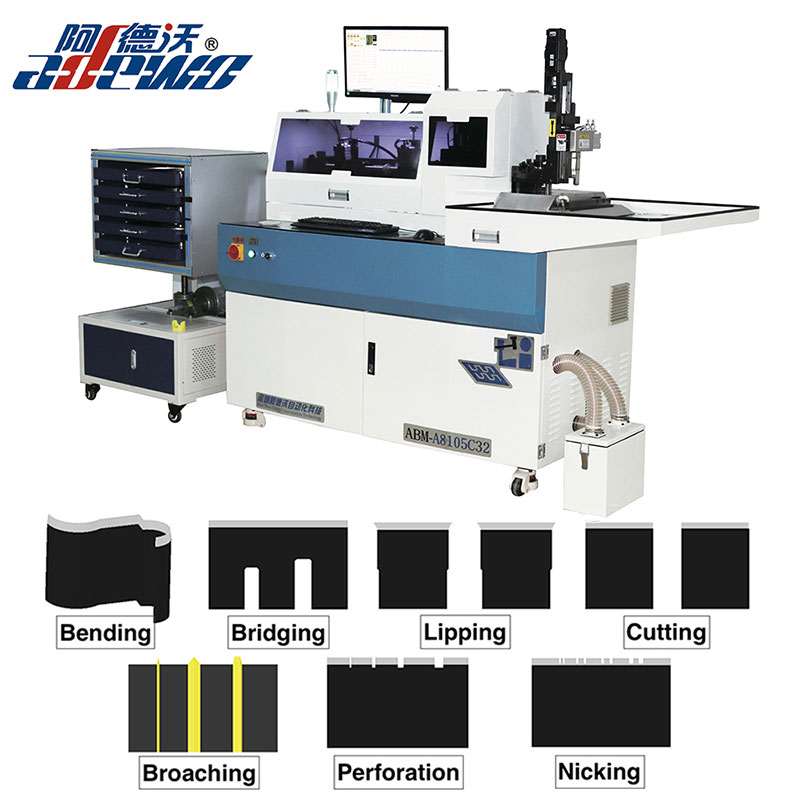

Picture of (ABM-A8105C32) Die Making Blade Auto Bender Machine for reference:


Product Features:

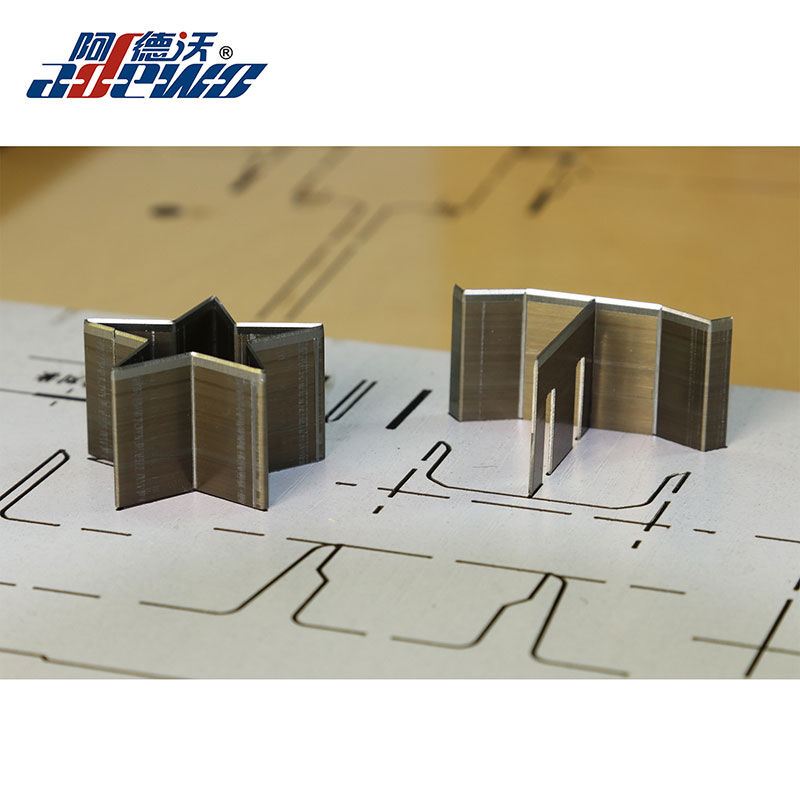

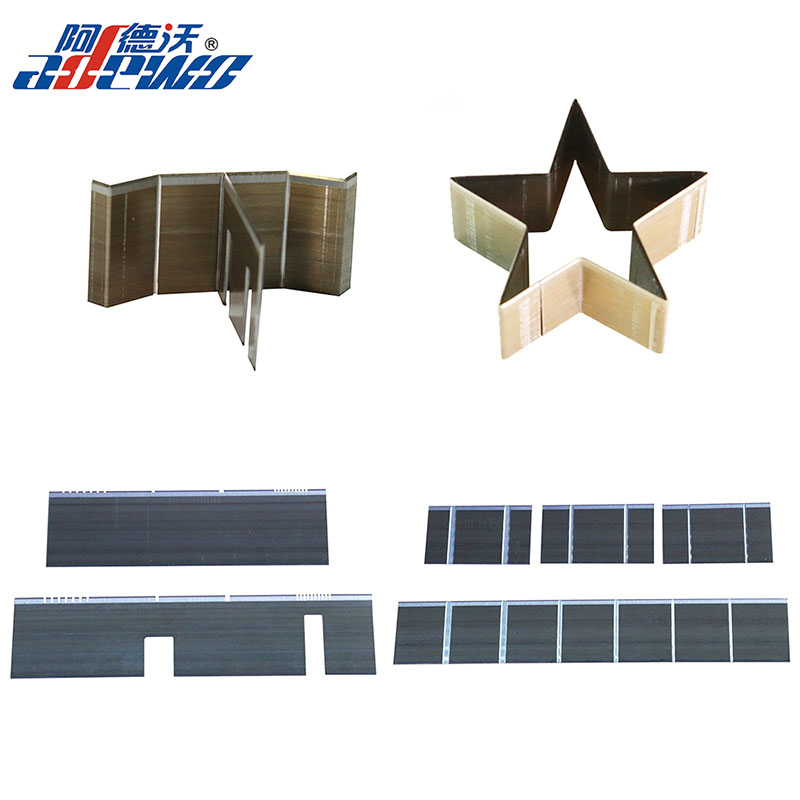

1.Multi-Functions:(ABM-A8105C32) Die Making Blade Auto Bender Machine with Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting.

All functions in one machine.

Bending

Bridge

Lipping

Seamless Cut

Broaching

Nicking

Perforation

Hole



2.Broaching and Nicking System:Using high hardness tungsten saw blades, the durability will be significantly improved.The depth of Broaching and Nicking can be altered automatically by the software to meet different requirements.

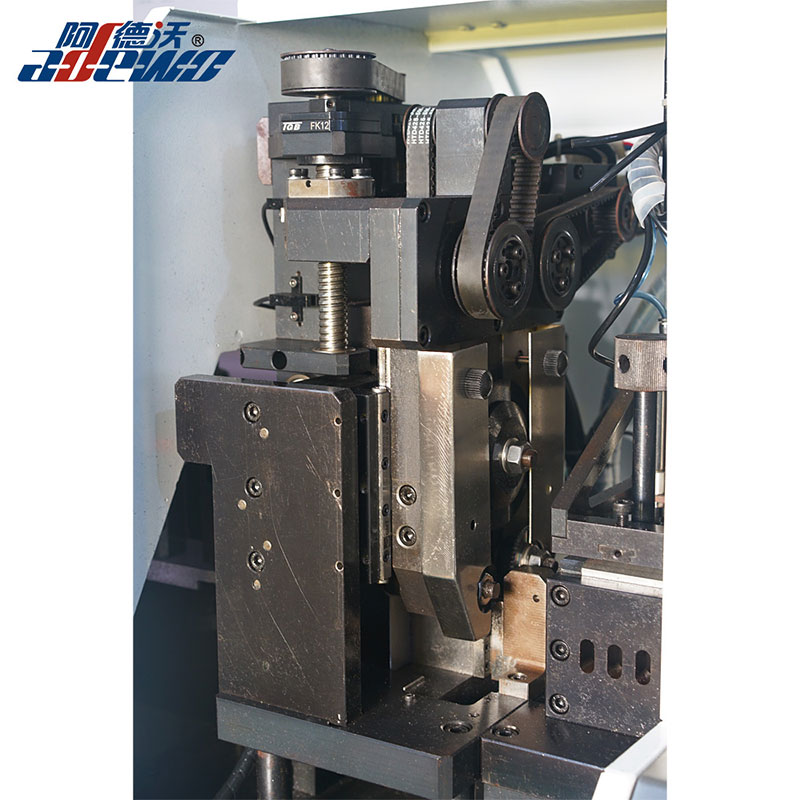

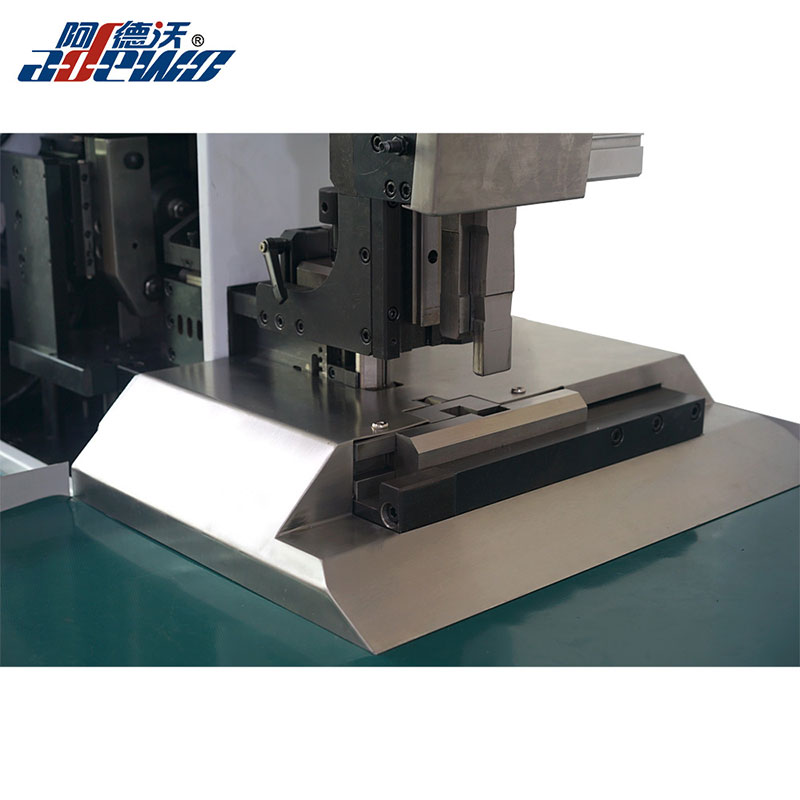

3.Bending System:Adopting sleeve bending system can produce different complicated angles quickly.Flatness can be adjusted quickly to be suitable to all kinds of rules.

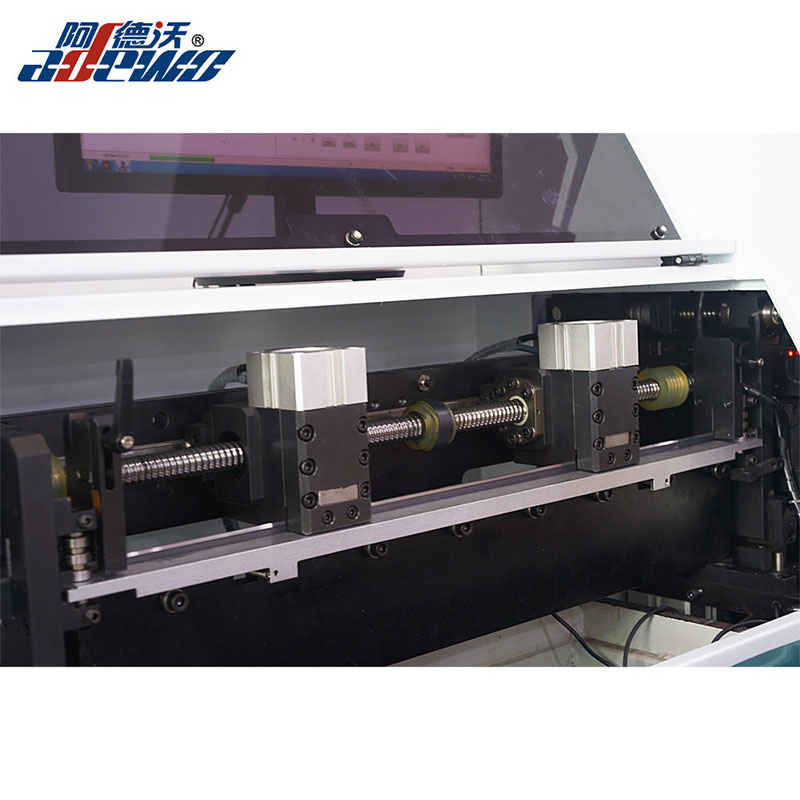

4.Feeding System:This Die Making Blade Auto Bender Machine with Double clips feeding system, fast speed and more stable.



5.Software System:Newly developed software,Chinese-English language can be selected optionally by users.Friendly software and easy to operate.


6.Automatic Rule Cassette with display:Independent 6 floors rule cassette that the height can be adjusted by display. Smart safety protection can effectively avoid the accident.



Technical Parameters of Die Making Blade Auto Bender Machine:

Supported Rule Thickness(mm)

0.45mm/0.53mm/0.71mm/1.05mm

Supported Rule Height(mm)

8-32mm

Min.Arc Radius of 90 Degree

0.4mm

Front Min.Bending Size

1.5mm

Back Min. Cutting Size

1.0mm

Feeding Precision

±0.03mm

Bending Flatness

±0.2mm/100mm

Bridge Width

5mm(can be customized)

Bridge Height

12-20mm(Adjustable)

Functions

Bending, Cutting, Lipping, Bridging, Broaching,
Nicking, Perforation

Cutting Methods

Auto cut-off or Bend cut

Broaching Methods

Double broaching “V”shape, unique function: broaching at short distance;automatic control broaching depth, precision sharp corners;

Optimal Graphic Format

DXF,DWG

Air supply

0.4-0.8Mpa

Power Supply

Single Phase,AC220V,13.6A,50-60Hz

Machine Total Power

3KW

Machine Weight

480KGS

Machine size

3100×930×1800mm(L×W×H)

H.S. Code

8462219000


FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time?

7-10 working days.



4.How about installation and training of Die Making Blade Auto Bender Machine?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com
