Cutting Die Creasing Auto Rule Cutting Machine

Cutting Die Creasing Auto Rule Cutting MachinePicture of (ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine for reference:1.Product Features:1.Multi-Functions:(ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine included Bridge,Perforation,Cut Crease,Lipping,Cutting,Both side Bridge.2.Th......

Model:ABM-A800B

Send Inquiry

Product Description

Cutting Die Creasing Auto Rule Cutting Machine

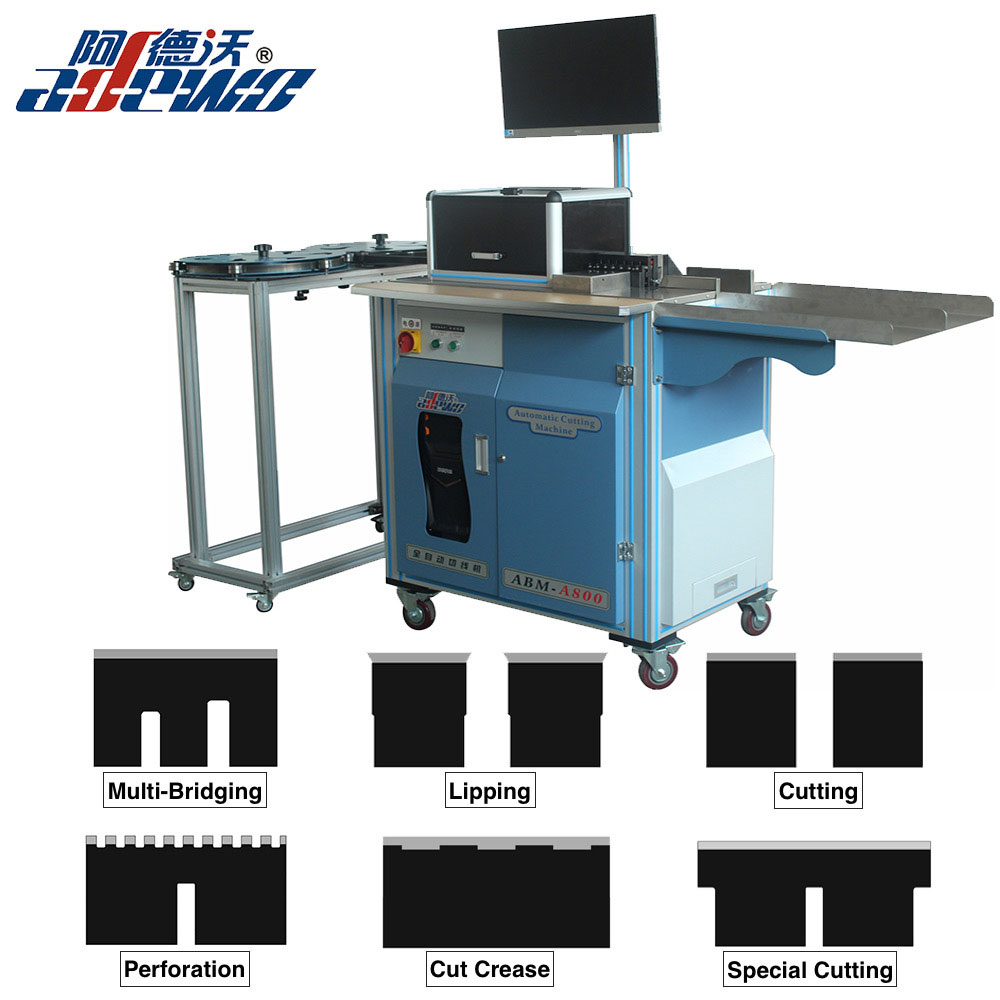

Picture of (ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine for reference:



1.Product Features:

1.Multi-Functions:(ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine included Bridge,Perforation,Cut Crease,Lipping,Cutting,Both side Bridge.


2.This Cutting Die Creasing Auto Rule Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.


3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.

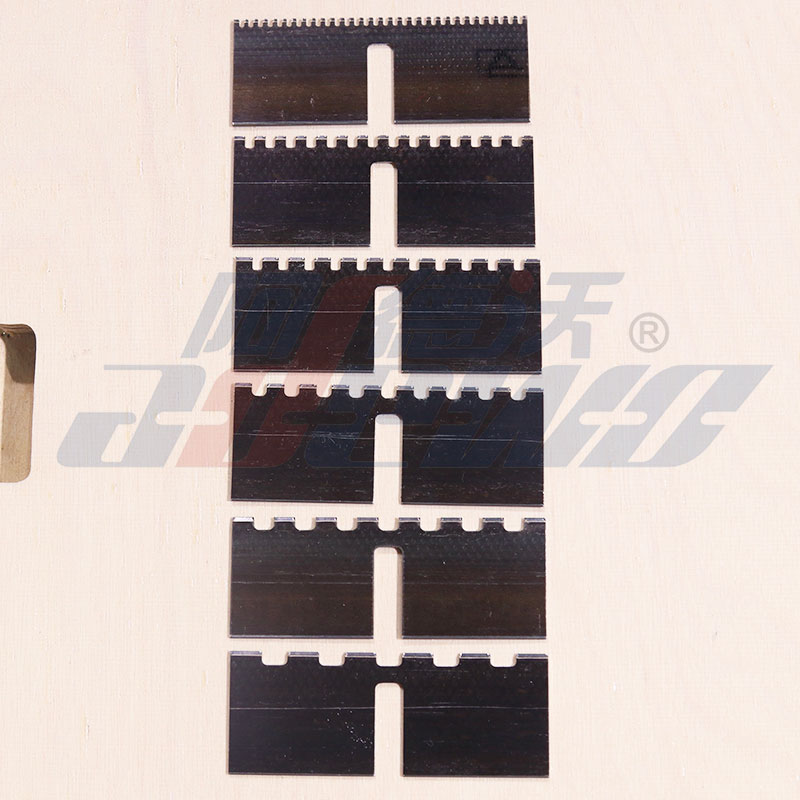

4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.

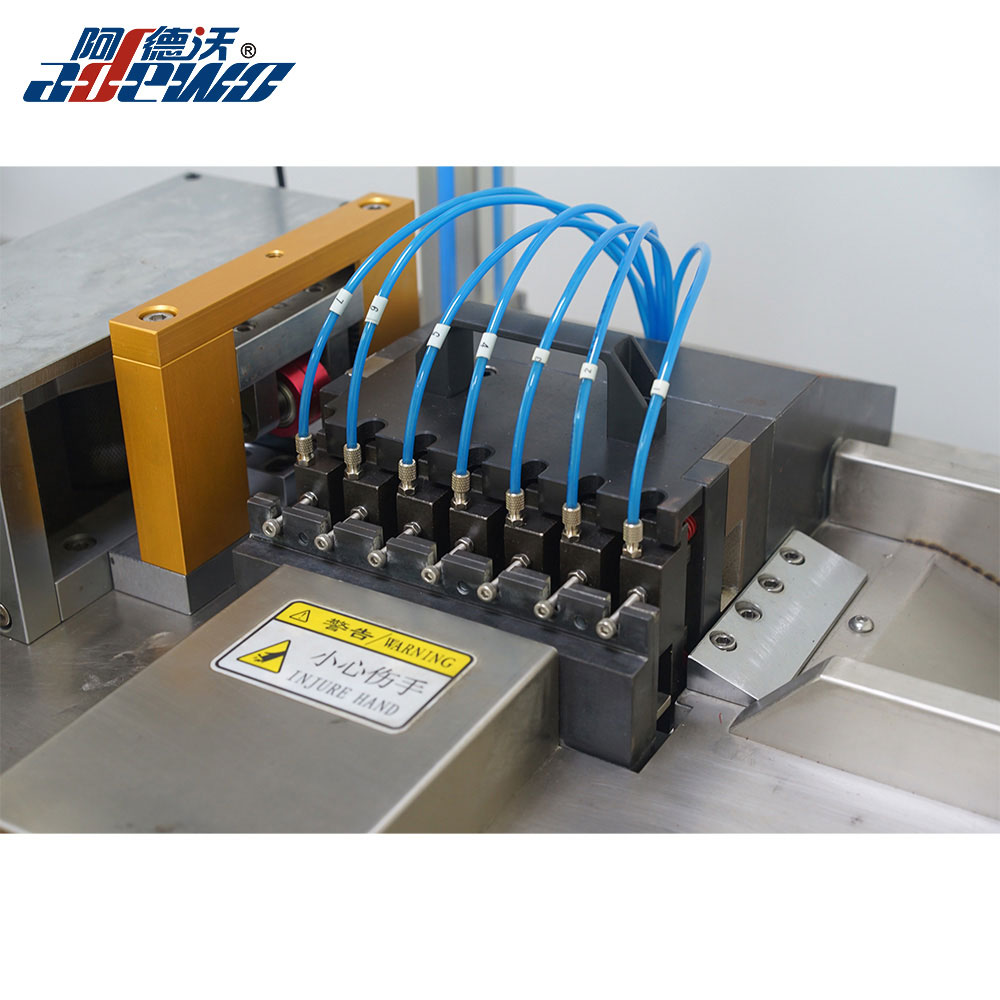

5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.

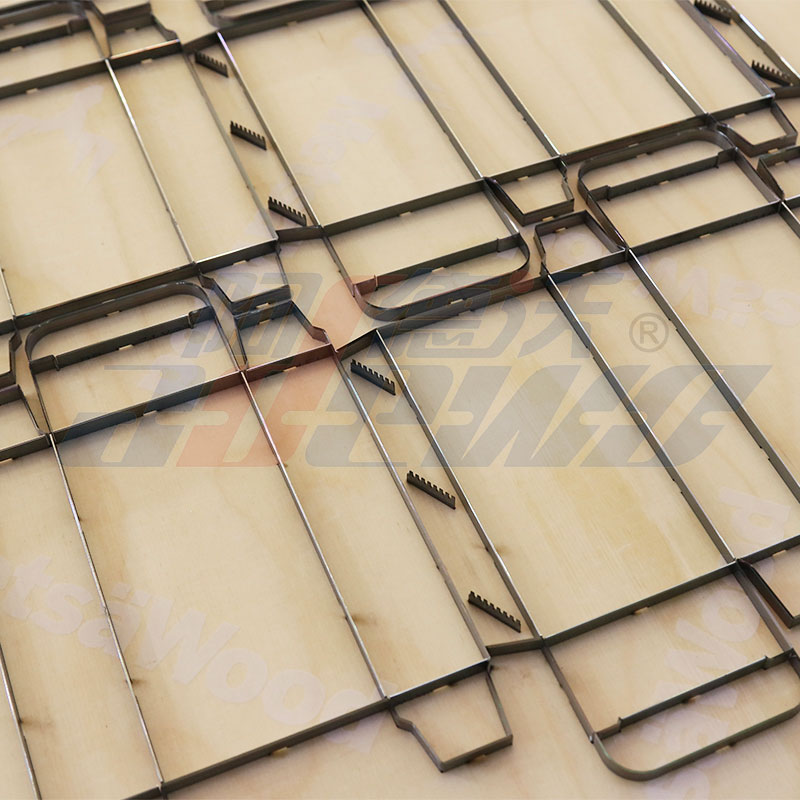

6.This Cutting Die Creasing Auto Rule Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.


2.Technical Parameters of Cutting Die Creasing Auto Rule Cutting Machine

Supported Rule thickness

0.71,1.05,1.42mm (2pt,3pt,4pt)

Supported Rule height(mm)

22-26mm

Basic Functions

Bridge,Perforation,Lipping,Cutting,Both side Bridge

Optional Functions

Cut Crease

Air supply

0.4-0.8mpa

Power supply

220V,2KW

Weight

270KGS

Overall dimension

2300x1050x1400(L×W×H)

H.S. Code

8461500090


3.FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of Cutting Die Creasing Auto Rule Cutting Machine?
7-10 working days.

4.How about installation and training of Cutting Die Creasing Auto Rule Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.


We provide remote support to customers all over the world.

Our technical service is always available at [email protected]


5.Any spare tools are included of Cutting Die Creasing Auto Rule Cutting Machine?
Yes,the new order machine with free spare tools.
