(ABM-860B6)Countersink Hole High Rule Auto Bender Machine with Inner Nick included functions：Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,1.05mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
(ABM-860B6)Countersunk Hole High Rule Auto Bender Machine

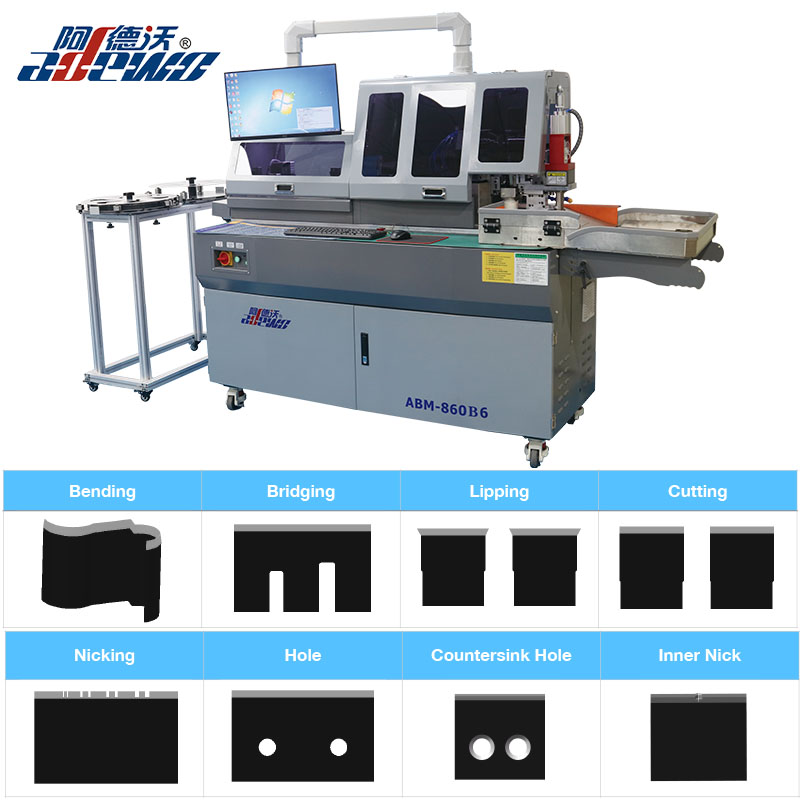

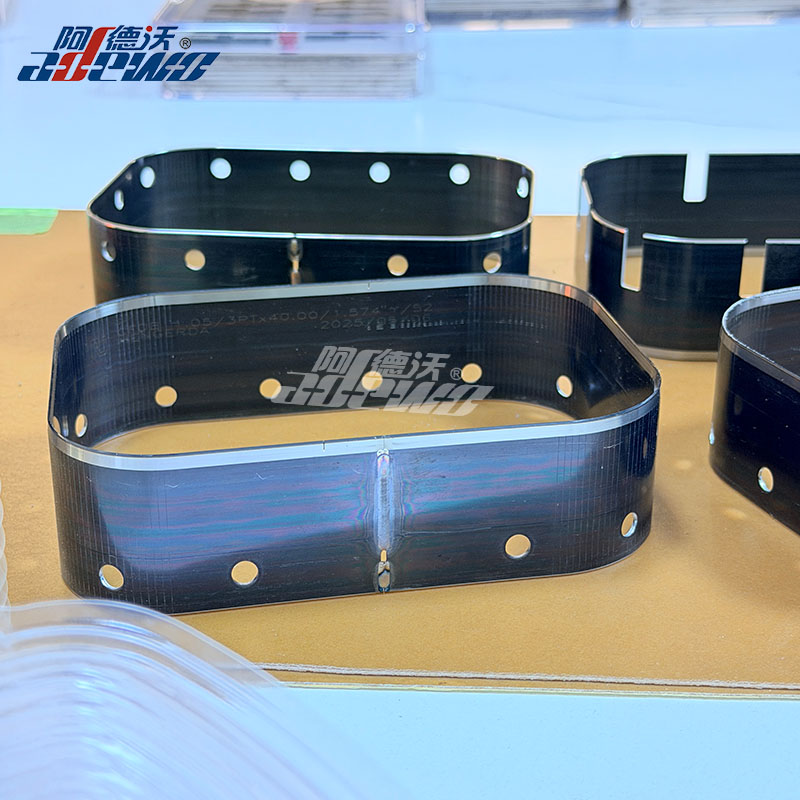

Picture of (ABM-860B6) Countersink Hole High Rule Auto Bender Machine for reference:

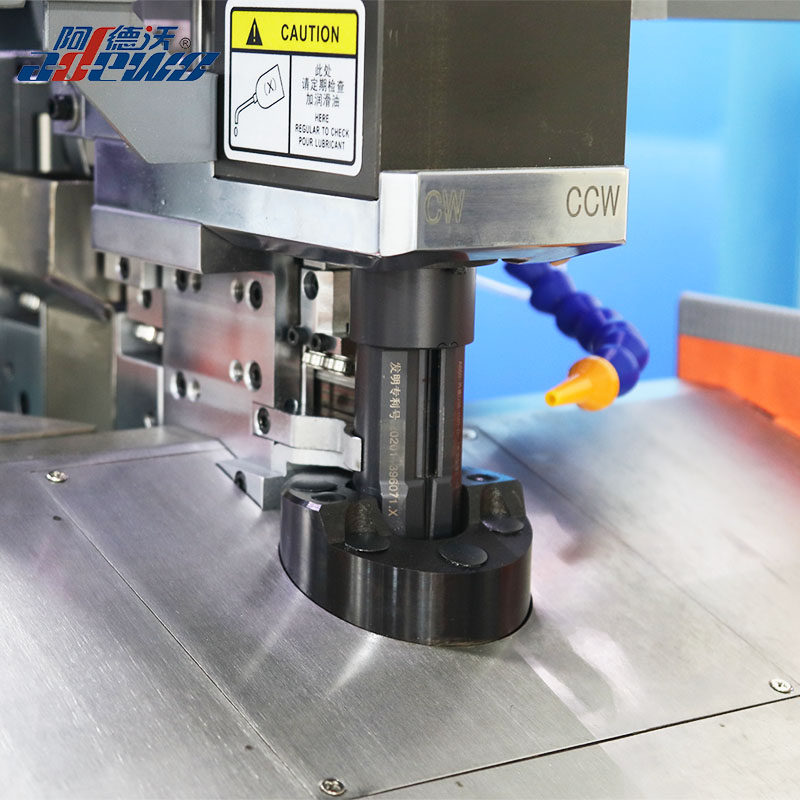

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.

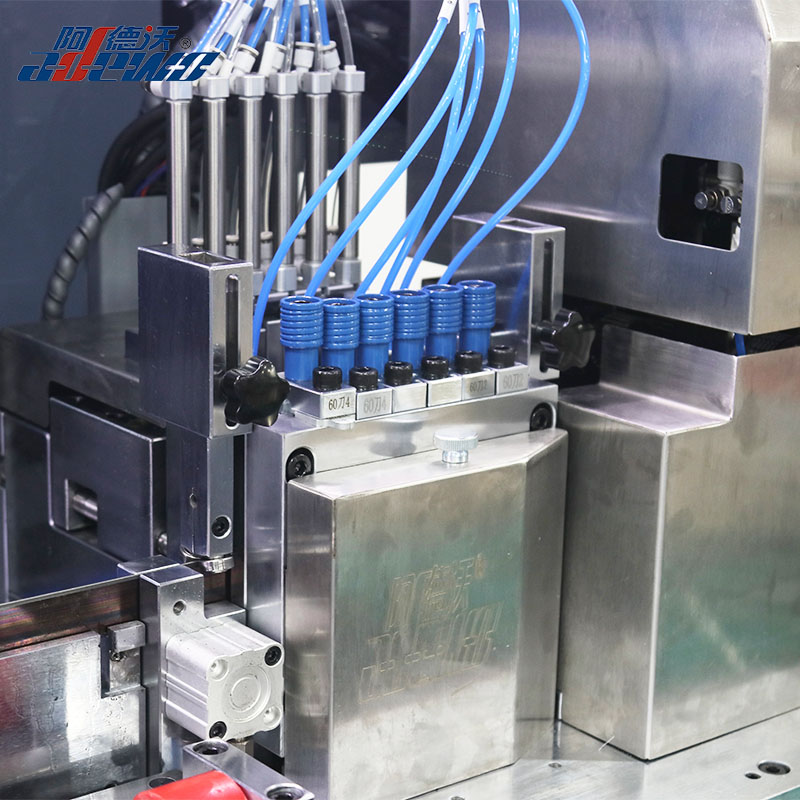

2.Multi-Punch tool for choice:Lipping,Mold Cut, Bridge,Hole or Perforation, independent tool, easy to replace.

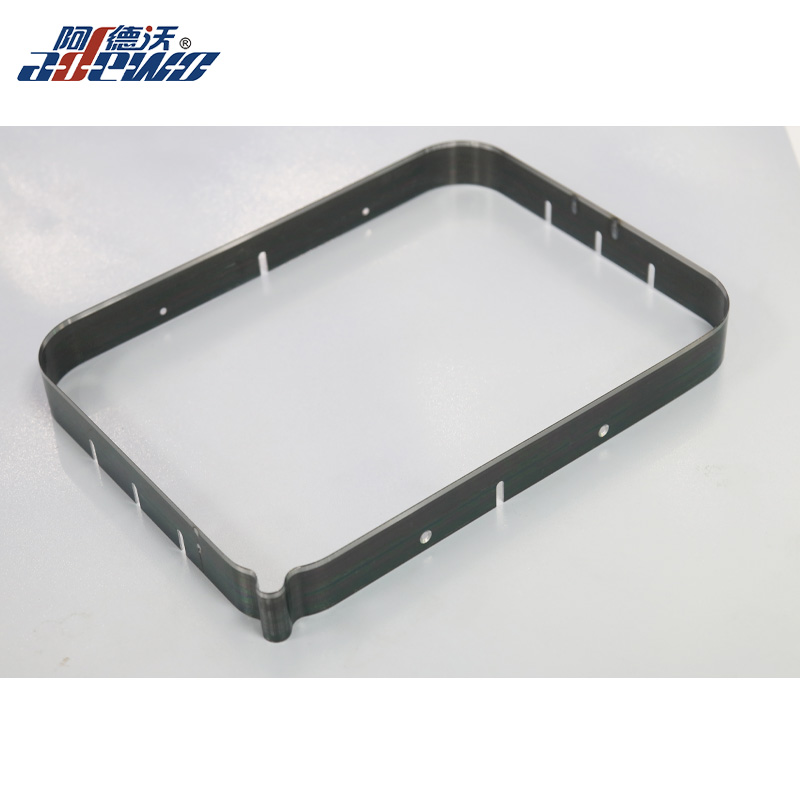

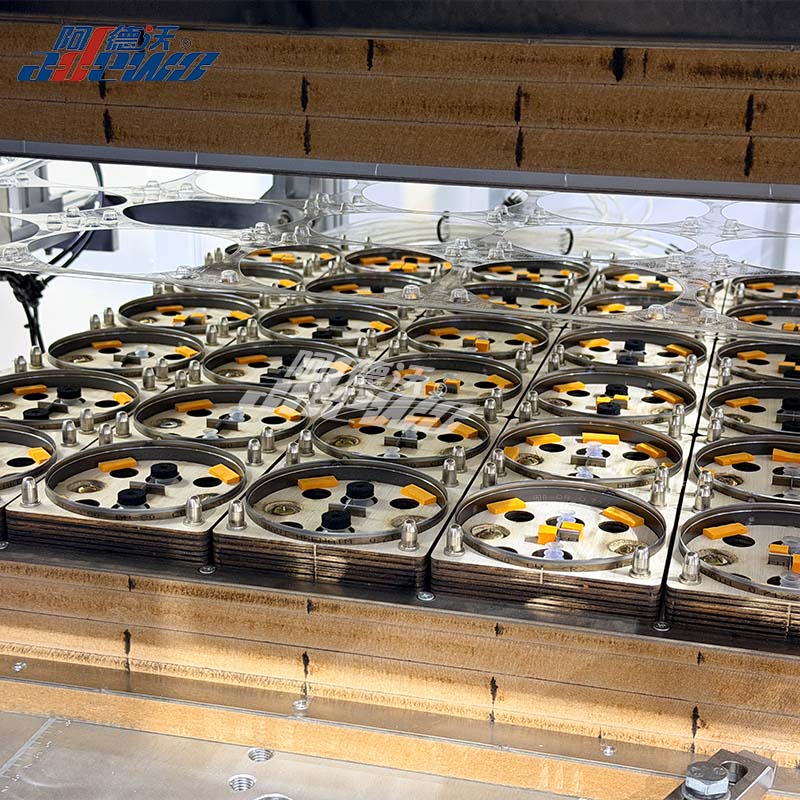

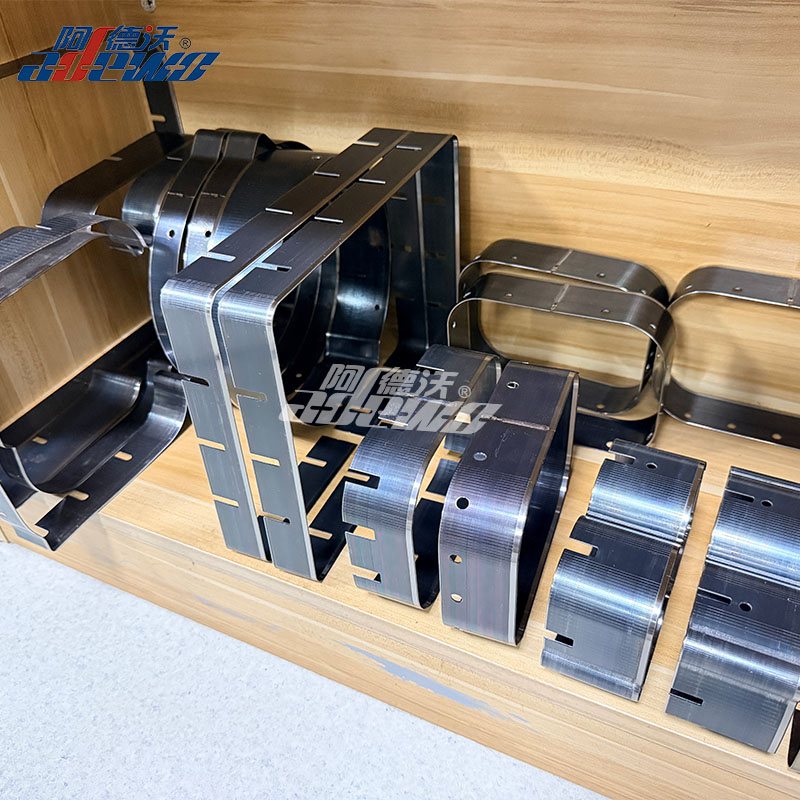

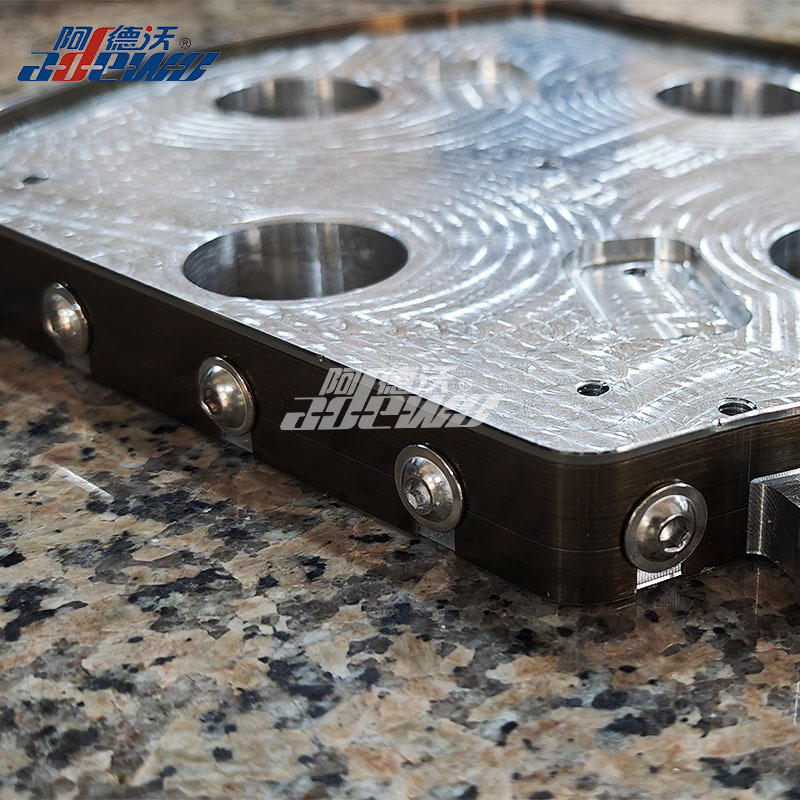

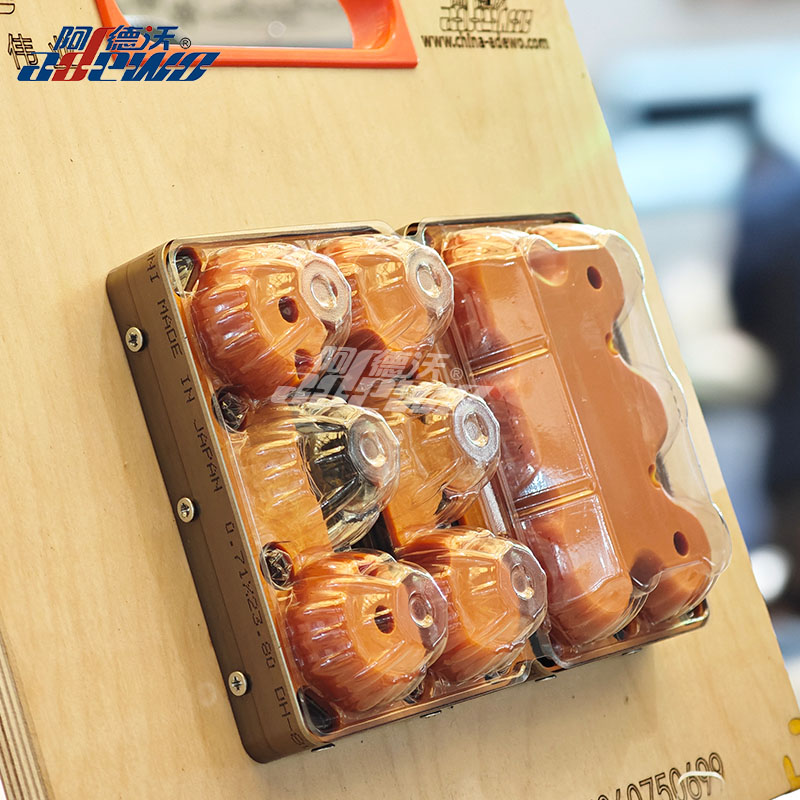

3.Specially developed for the blister dies, thermoforming dies, countersunk hole of both side. Minimum Nicking 0.2mm.
4.Double clamps,screw guide feeding continuously, improves work efficiency.
5.Smart software, easy to operate, multi language available.
|
Supported rule thickness(mm) |
0.71,1.05mm (2pt&3pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
| Max. bending angle | 100° |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Nicking,Lipping,Cutting,Perforation,Hole,Countersun Hole,Inner Nick |
|
Optional Functions |
Perforation, Hole |
|
Optimal pattern format |
DXF,DWG,CF2 |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
670KG |
|
Overall dimension |
3000x950x1680mm(LxWxH) |
|
H.S. Code |
8462230000 |
Our technical service is always available at services@china-adewo.com
