Corrugated Sheets Die Boards Auto Creasing Cutting Machine
  • Air ProCorrugated Sheets Die Boards Auto Creasing Cutting Machine
  • Air ProCorrugated Sheets Die Boards Auto Creasing Cutting Machine
  • Air ProCorrugated Sheets Die Boards Auto Creasing Cutting Machine
  • Air ProCorrugated Sheets Die Boards Auto Creasing Cutting Machine
  • Air ProCorrugated Sheets Die Boards Auto Creasing Cutting Machine

Corrugated Sheets Die Boards Auto Creasing Cutting Machine

Corrugated Sheets Die Boards Auto Creasing Cutting MachinePicture of (ABM-X1B)Corrugated Sheets Die Boards Auto Creasing Cutting Machine for reference:1.Product Features:1.(ABM-X1B)Corrugated Sheets Die Boards Auto Creasing Cutting Machine included functions:Bridge,Lipping,Cutting,Both side Bridge.2......

Model:ABM-X1B

Send Inquiry

Product Description

Corrugated Sheets Die Boards Auto Creasing Cutting Machine

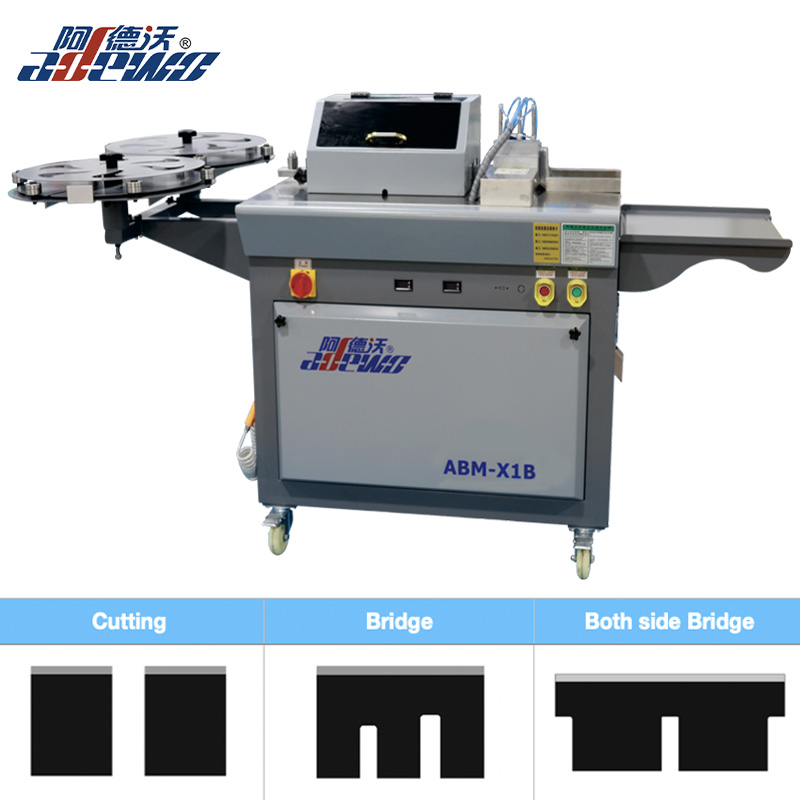

Picture of (ABM-X1B)Corrugated Sheets Die Boards Auto Creasing Cutting Machine for reference:


1.Product Features:

1.(ABM-X1B)Corrugated Sheets Die Boards Auto Creasing Cutting Machine included functions:Bridge,Lipping,Cutting,Both side Bridge.

2.This Corrugated Sheets Die Boards Auto Creasing Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.


3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.


4.This Corrugated Sheets Die Boards Auto Creasing Cutting Machine

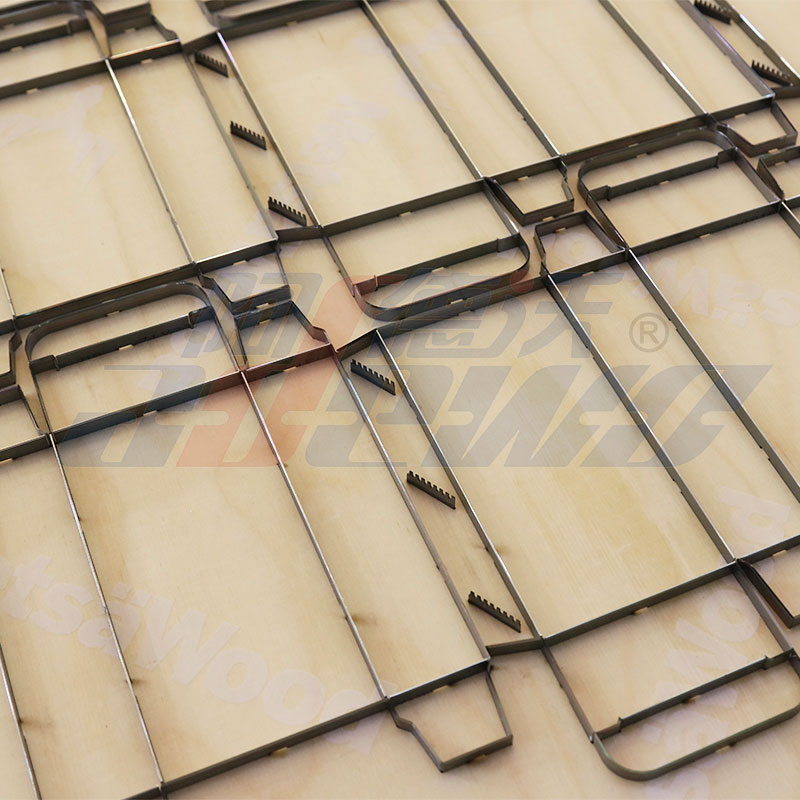

is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.



2.Technical Parameters of Corrugated Sheets Die Boards Auto Creasing Cutting Machine

Supported rule thickness(mm)

0.71,1.05,1.42mm(2pt,3pt,4pt)

Supported rule height(mm)

22-26mm

Basic Functions

Cutting,Bridge,Both side Bridge

Optional Functions

Lipping

Air Supply

0.4-0.8mpa

Power Supply

AC220V,50-60Hz

Total Power

2KW

Weight

260KGS

 Packing Size

2250x1050x1100mm(L×W×H)

H.S. Code

84615000.90



3.FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time of Corrugated Sheets Die Boards Auto Creasing Cutting Machine?

7-10 working days.



4.How about installation and training of Corrugated Sheets Die Boards Auto Creasing Cutting Machine?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at [email protected]



5.Any spare tools are included of Corrugated Sheets Die Boards Auto Creasing Cutting Machine?

Yes,the new order machine with free spare tools.
