ABM-A8105D32 Corrugated Board Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. Adewo has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, technical support and excellent after sales service.
Shenzhen Adewo Automation Technology Co.,ltd. is a professional leader China Corrugated Board Auto Bender Machine, Label Rule Die Boards Auto Bender Machine,Gaskets Blade Auto Bender Machine manufacturer with high quality and reasonable price. Welcome to contact us.Corrugated Board Auto Bender Machine products are preferred by customers in a number of industries for two reasons: they are designed and manufactured to high quality standards, and they are reasonably price.

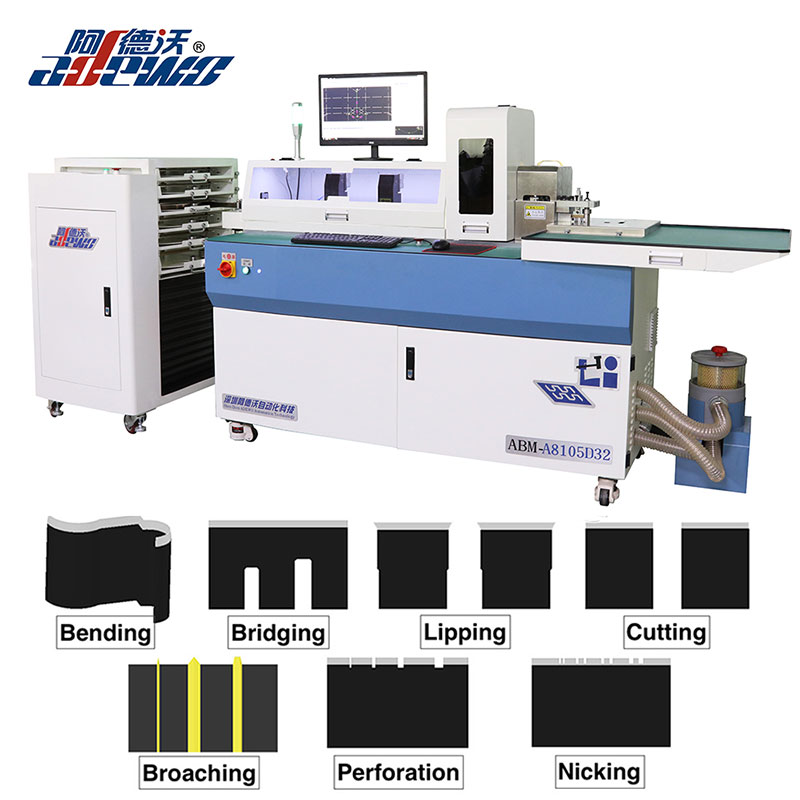

Picture of (ABM-A8105D32)Corrugated Board Auto Bender Machine:
1.Multi-Functions:(ABM-A8105D32)Corrugated Board Auto Bender Machine with Broaching,Bending,Bridge,Nicking,Perforation,Lipping and Cutting.
2.Punching Tools in this Corrugated Board Auto Bender Machine is specially designed for high-requirement die boards such as cigarette cases,pill boxes,electronic dies and etc.
Two sets Lipping&Cutting Tools customize based on the cutting rule bevel degree, to get high precision seamless cut and Lip cut.
3. Multiple sets Broaching&Nicking: This Corrugated Board Auto Bender Machine with 4PCS Broaching saw blades 4PCS.The width&depth of Broaching can be adjusted by the software. Different size Nicking done by 1PC Nicking Saw blade.
4. Double-clips Feeding:This Corrugated Board Auto Bender Machine with two feeding clips which for improves feeding speed and accuracy.
5. Smart Software: ThisCorrugated Board Auto Bender Machine with independently developed software supports the formats of CAD files.User-friendly software interface, easy to operate.
6. Auto Rule Cassette with display: 6 different types of steel rule can be installed, humanized design, convenient to change different rule. It is independent, can be placed and moved at will.
7.Samples done by (ABM-A8105D32)Corrugated Board Auto Bender Machine:
|
Supported Rule Thickness(mm) |
0.45,0.53,1.07,1.05mm(1pt,1.5pt,2pt,3pt) |
|
Supported Rule Height(mm) |
8-32mm |
|
Min.Arc Radius of 90 Degree |
0.4mm |
|
Front Min.Bending Size |
1.5mm |
|
Back Min. Cutting Size |
1.0mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
±0.2mm/100mm |
|
Bridge Width |
5mm(can be customized) |
|
Bridge Height |
12-20mm(Adjustable) |
|
Functions |
Bending, Bridge,Lipping,Cutting, Broaching, |
|
Cutting Methods |
Lipping Cut,Seamless Cut |
|
Optimal Graphic Format |
DXF,DWG |
|
Air supply |
0.4-0.8Mpa |
|
Power Supply |
Single Phase,AC220V,13.6A,50-60Hz |
|
Machine Total Power |
3KW |
|
Machine Weight |
480KGS |
|
Machine size |
2800x930x1600(L×W×H) |
|
H.S. Code |
8462230000 |
1.How long is the warranty of the Corrugated Board Auto Bender Machine?
One year guarantee for machine is promised.
Even after the warranty period, we still give long-term technical support and consultation
If any problems during the use of the machine, users can contact with Adewo after-sales technicians at any time.
2.How about installation and training of Corrugated Board Auto Bender Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at services@china-adewo.com
3.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
4. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
5.What’s about delivery time?
7-10 working days upon your 30% T/T advance payment.
