Copper Strip Steel Rule Auto Bender Machine

(ABM-8142A) Copper Strip Steel Rule Auto Bender Machine included functions:Bending,Bridge,Lipping and Cutting. Supported steel rule thickness 2pt ,3pt,4pt, height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-8142A

Send Inquiry

Product Description

(ABM-8142A) Copper Strip Steel Rule Auto Bender Machine

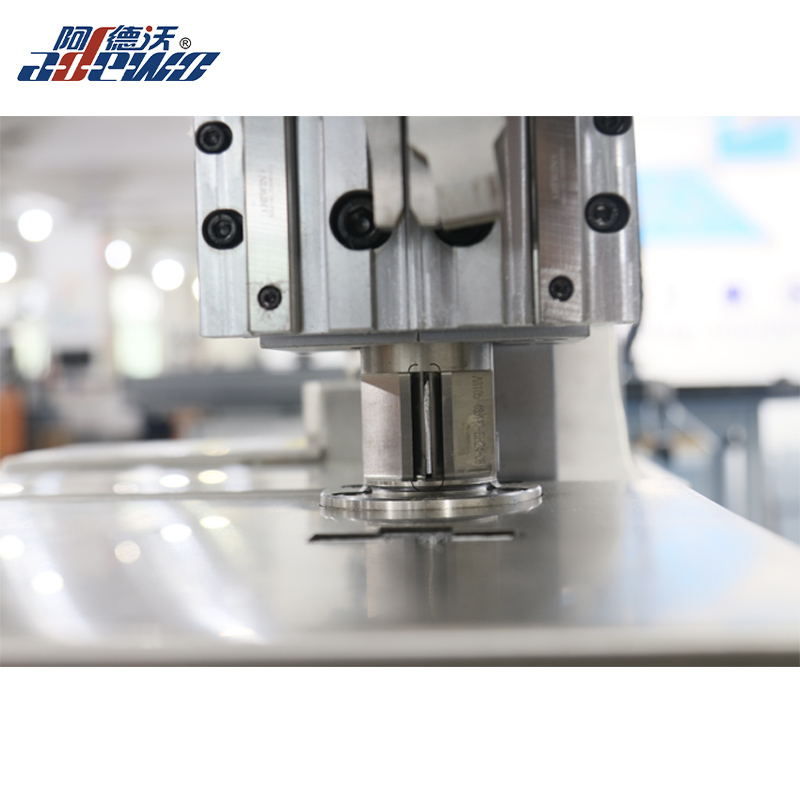

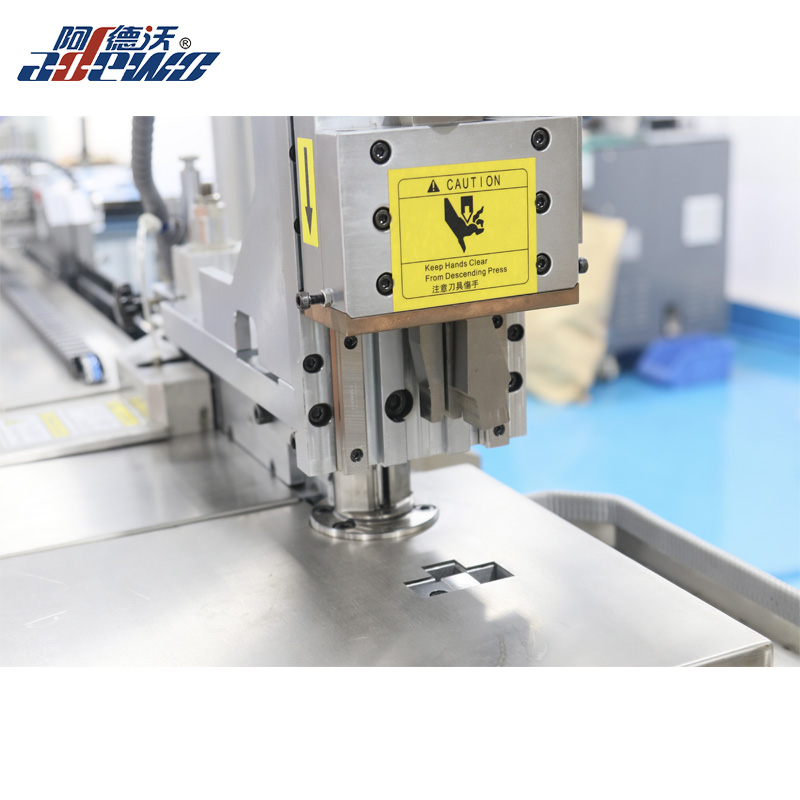

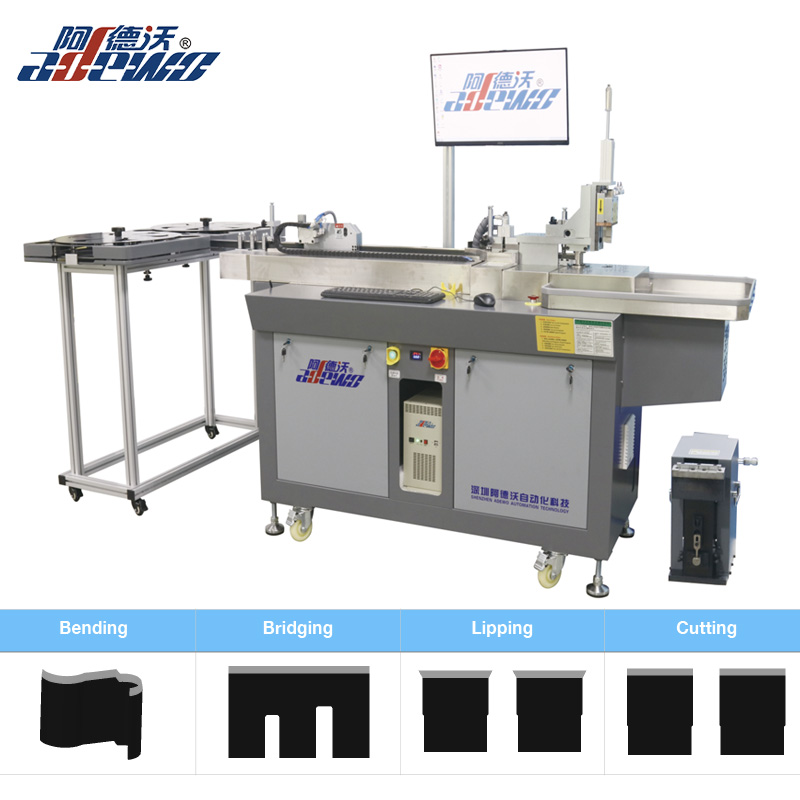

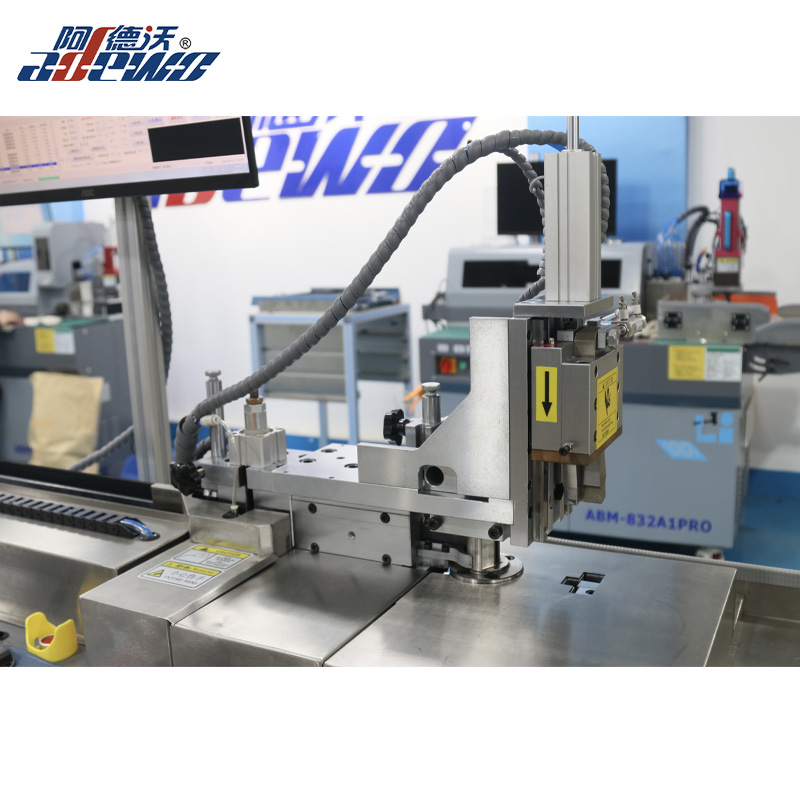

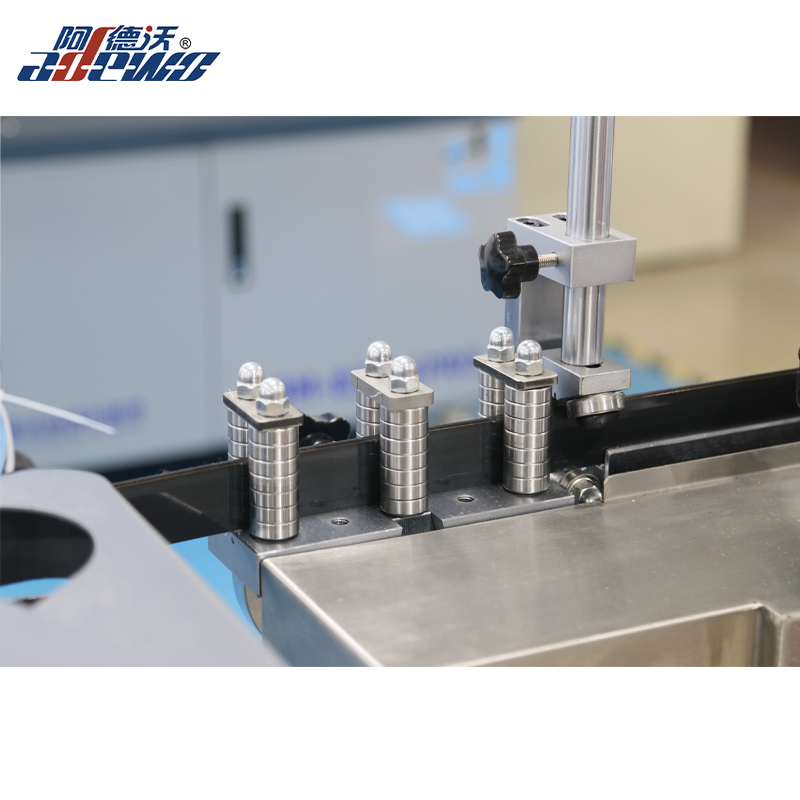

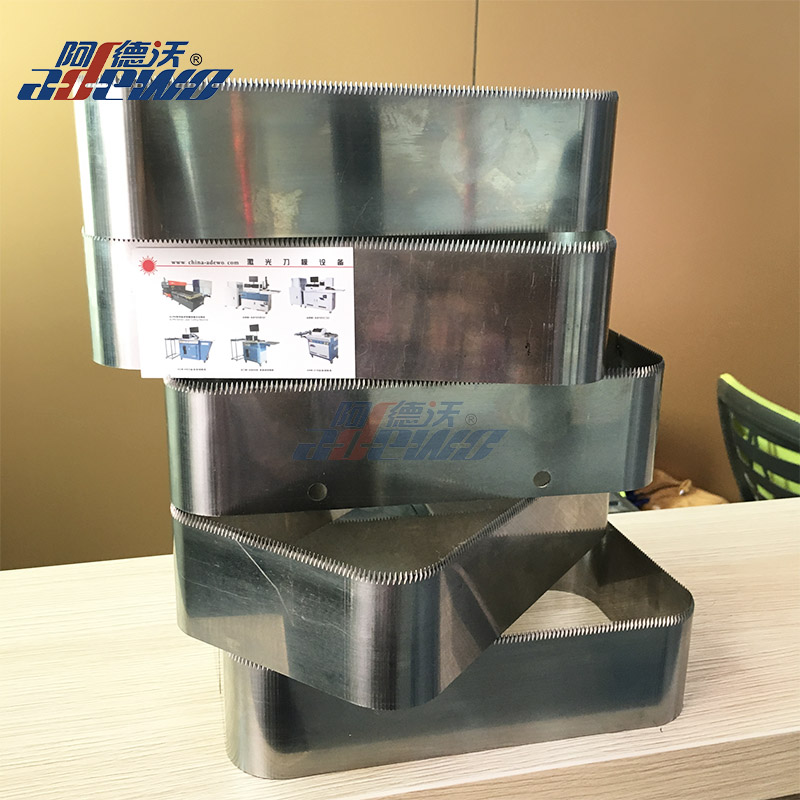

Picture of (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine for reference:



Product Features:

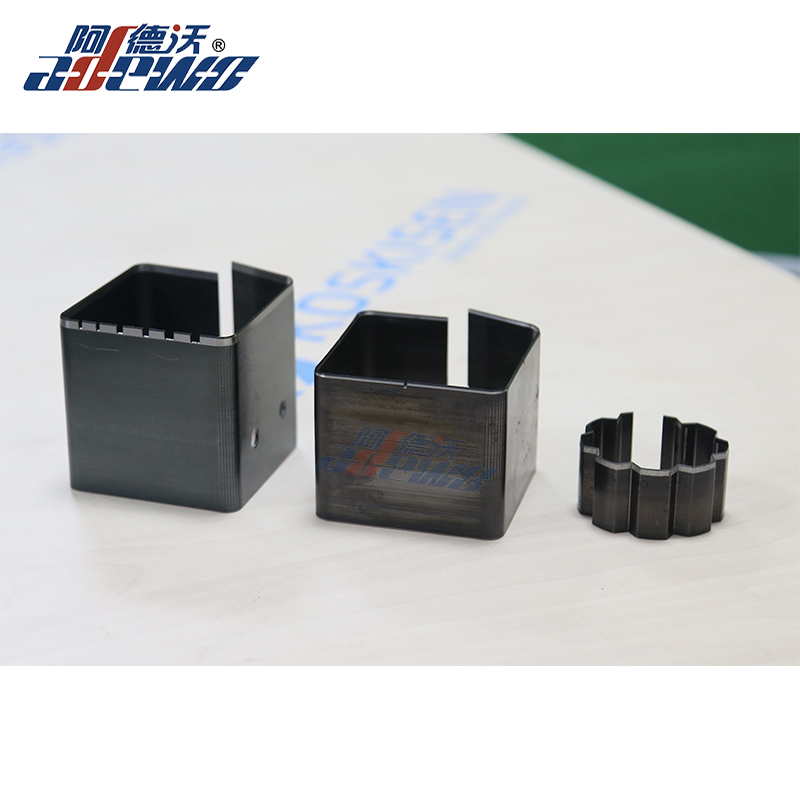

1.Multi-Functions:(ABM-8142A) Copper Strip Steel Rule Auto Bender Machine with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.

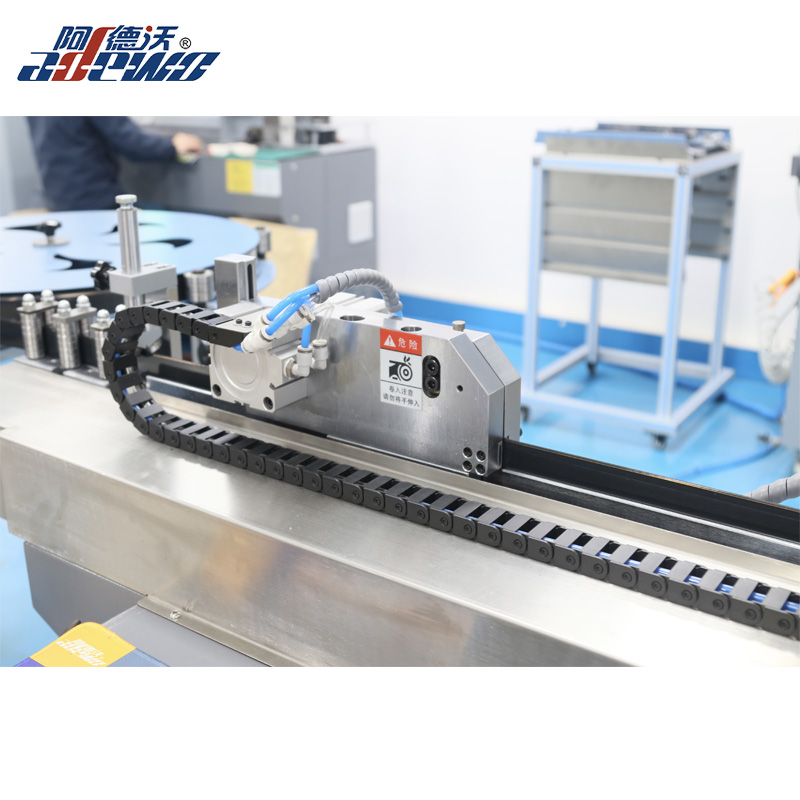

2.This (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.


3.Smart software and easy to operate, multi language operations;


4. Save production time and easy for die making by (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine .

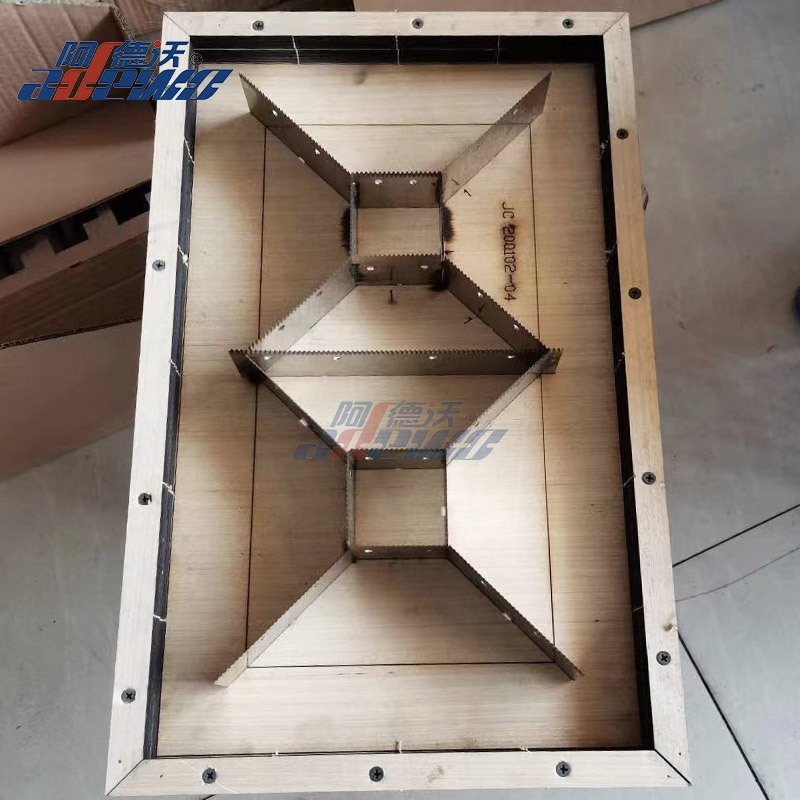

5.This (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine  apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.

Technical Parameters of (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine

Supported rule thickness(mm)

0.71,1.05,1.42mm(2pt,3pt,4pt)

Supported rule height(mm)

23.80-60mm

Bridge height

13-19mm

Bridge width

Over 5.5mm any sizes available.

(customizable)

Min. ARC radius of 90 degree

±0.3MM

Front Min. bending size

1.5MM

Back Min. cutting size

1.0MM

Feeding precision

±0.03mm

Bending flatness

±0.2mm

Functions

Bending,Bridging,Cutting,Pneumatic Lipping

Cutting methods

Twist off and Auto flat cutting

Optimal pattern format

DXF,DWG

Air supply

0.4-0.8mpa

Power supply

Single Phase AC220V,13.6A,50-60Hz

Machine total power

3KW

Weight

458KGS

Overall dimension

2700x1050x1600(L×W×H)

H.S. Code

8462230000


FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of (ABM-8142A Copper Strip Steel Rule Auto Bender Machine?
7-10 working days.

4.How about installation and training of (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com


5.Any spare tools are included of (ABM-8142A) Copper Strip Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.

6.Application
•Stripping Dies
•Rotary Dies
•Puzzles
•Gaskets
•Folding Cartons
•Corrugated Boxes
•Cardboard
•Etc…
