Blister Die Cutting Mould Auto Bender with Inner Nick

(ABM-860B6) Blister Die Cutting Mould Auto Bender with Inner Nick included functions：Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,1.05mm,height 23.80-60mm. China Adewo has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.

Model:ABM-860B6

Send Inquiry

Product Description

(ABM-860B6)Blister Die Cutting Mould Auto Bender with Inner Nick

Video of On-Site Customer’s Company

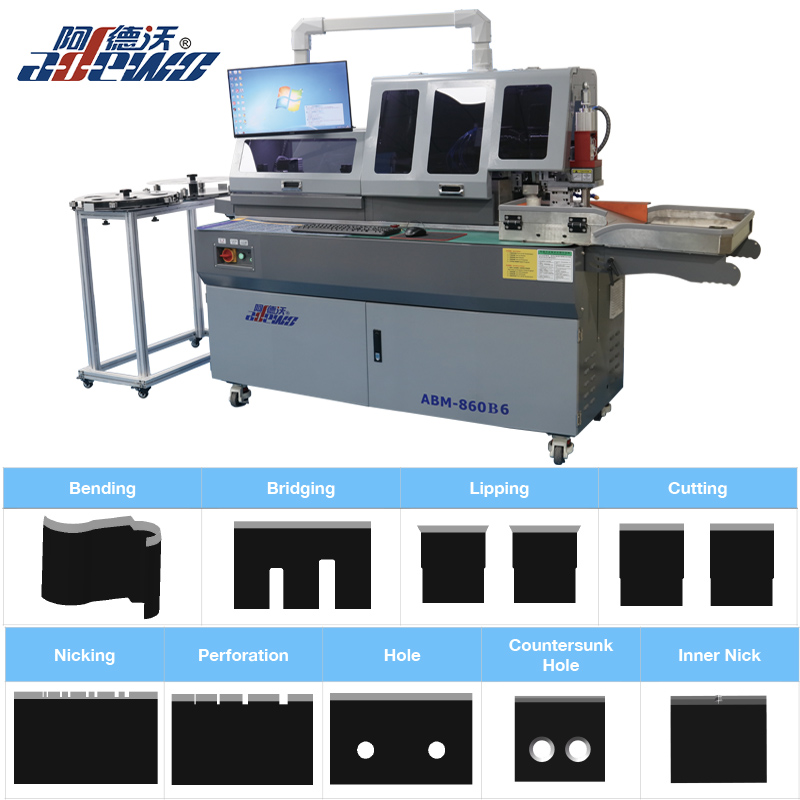

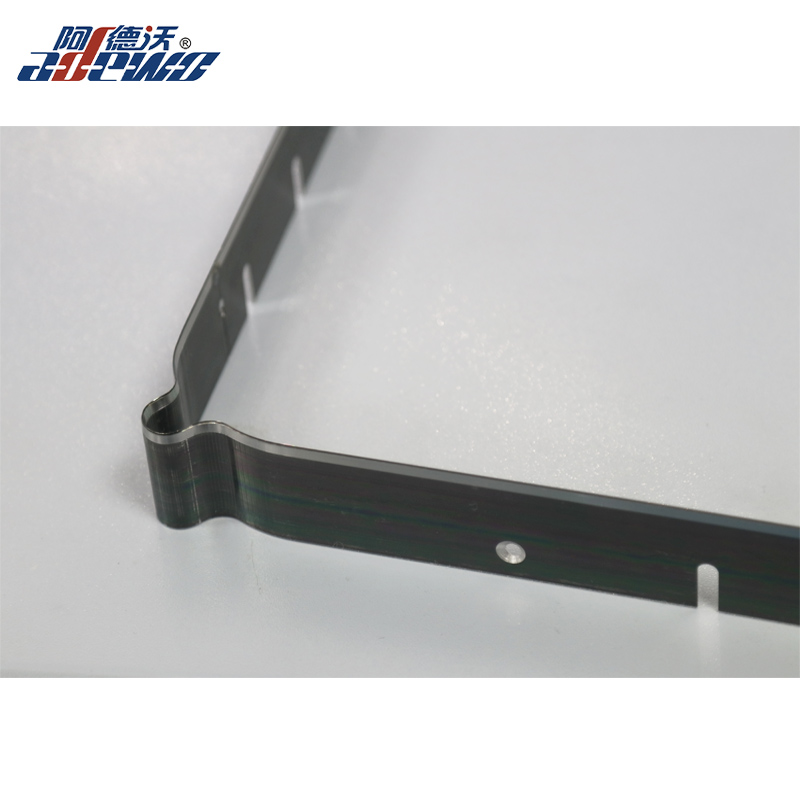

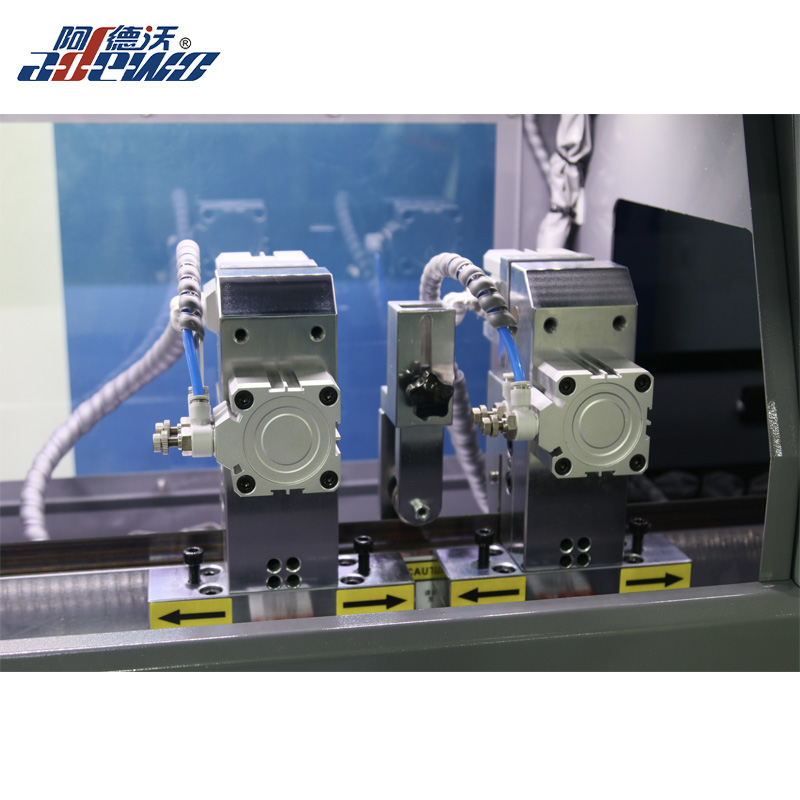

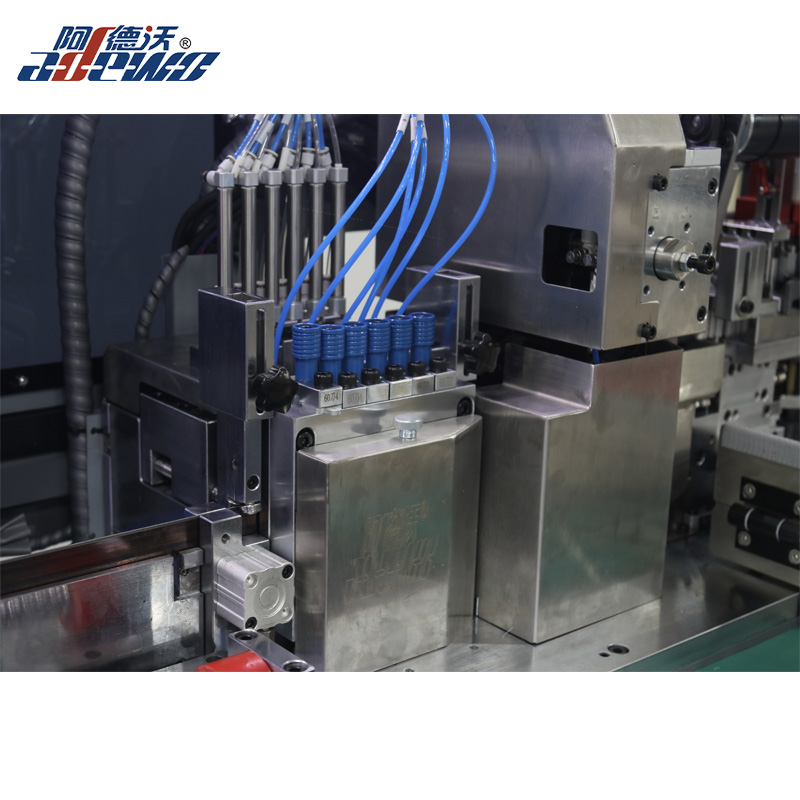

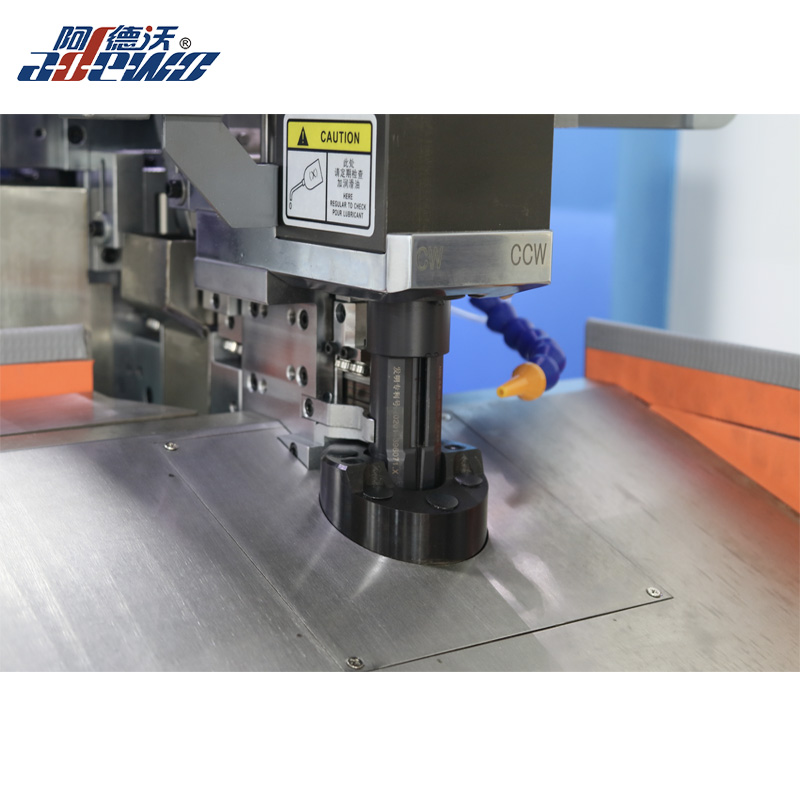

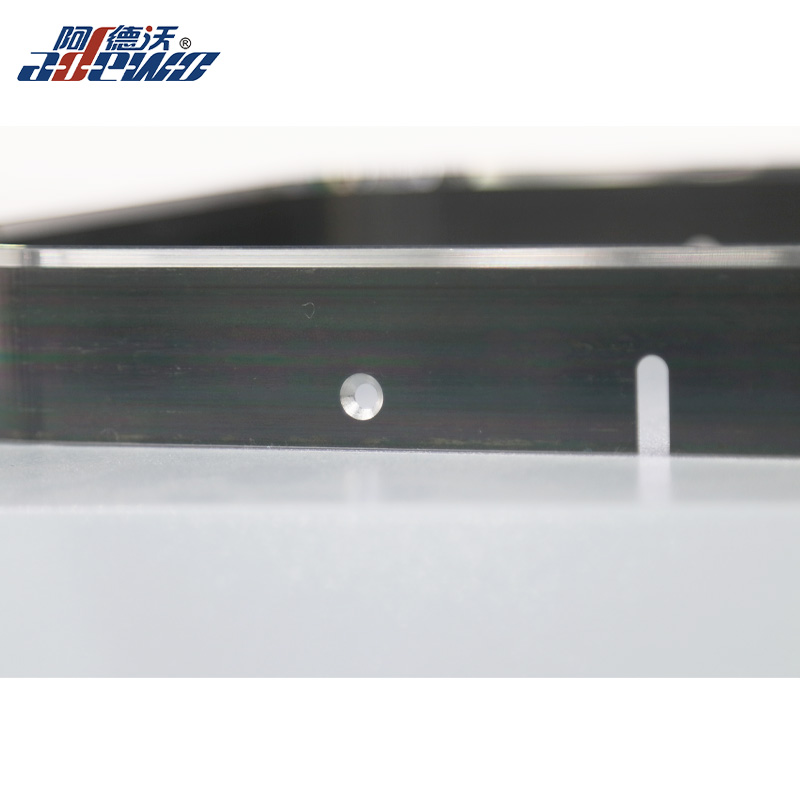

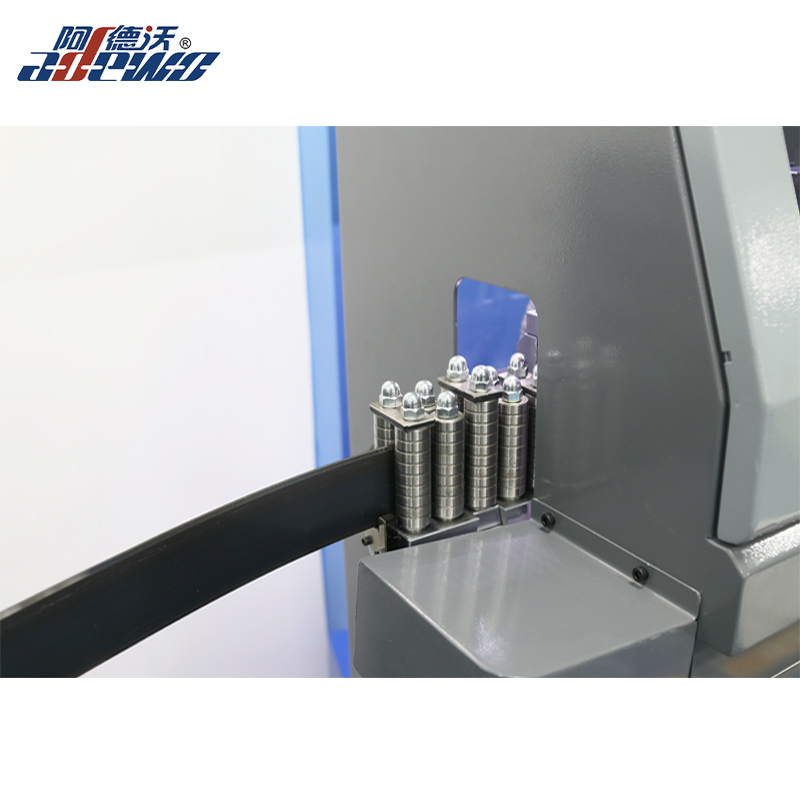

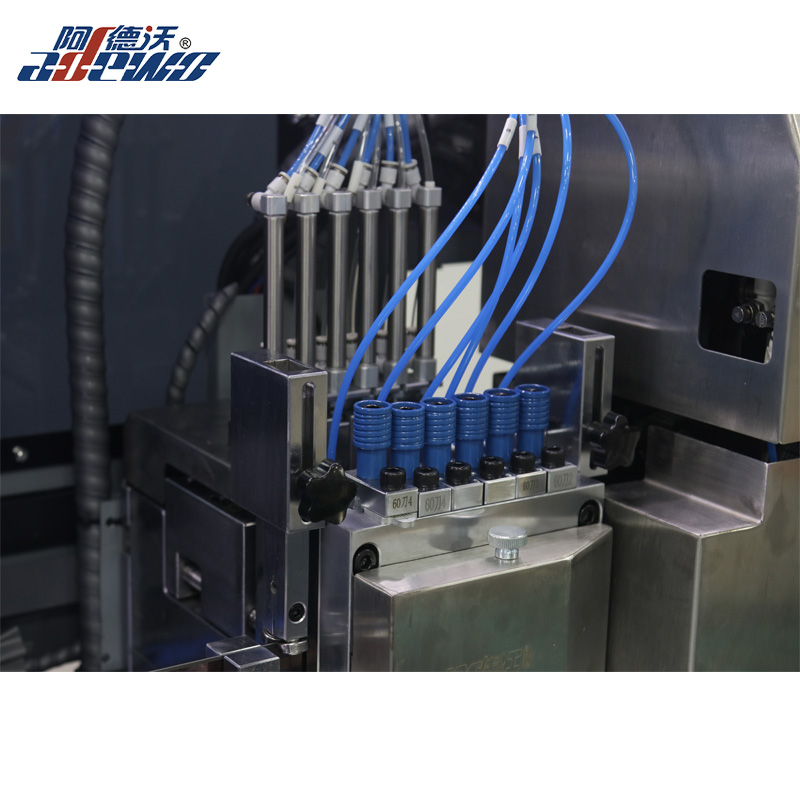

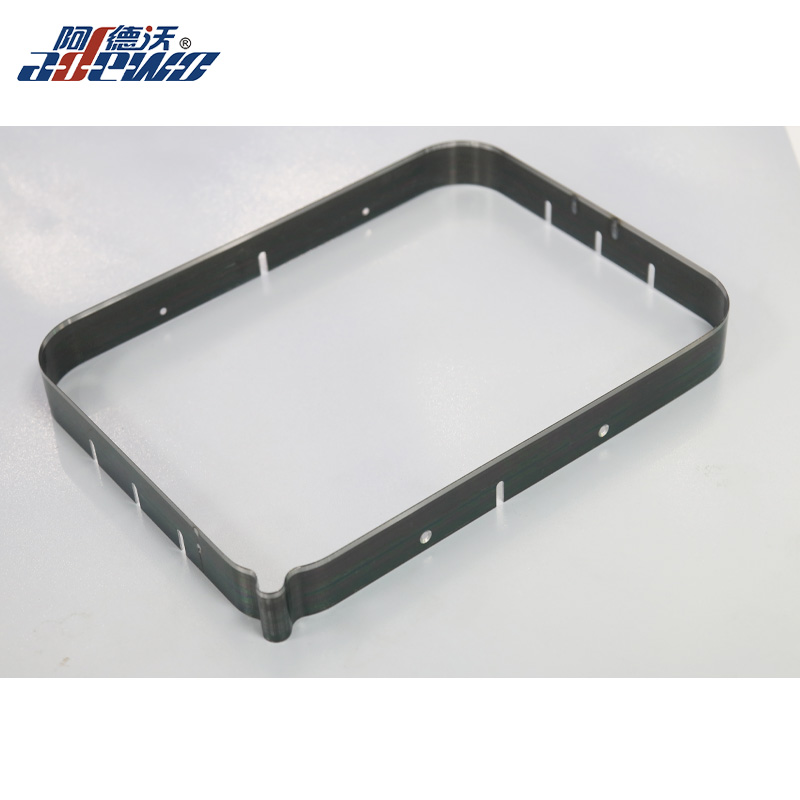

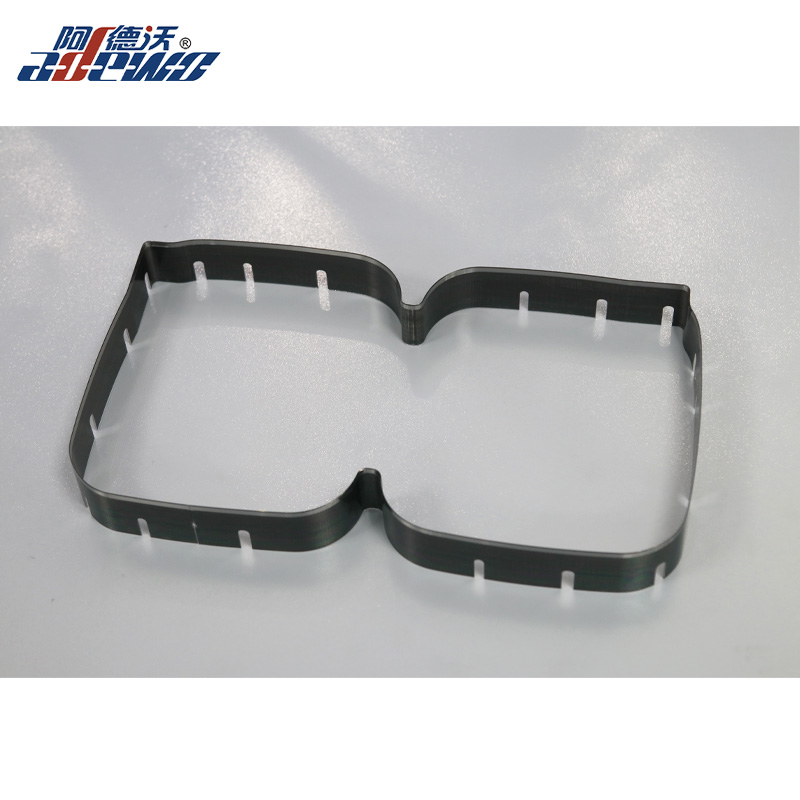

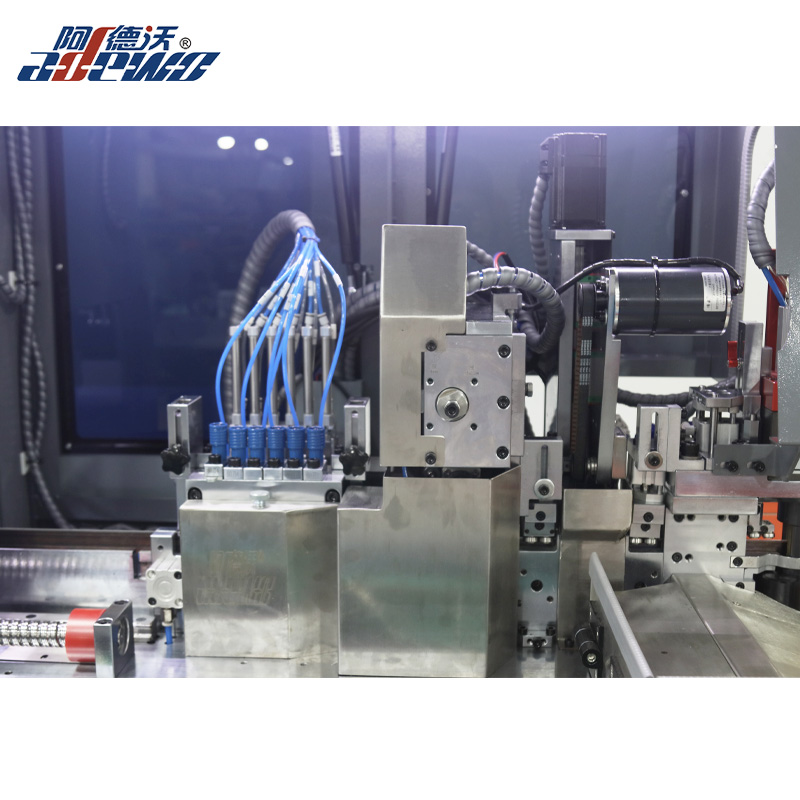

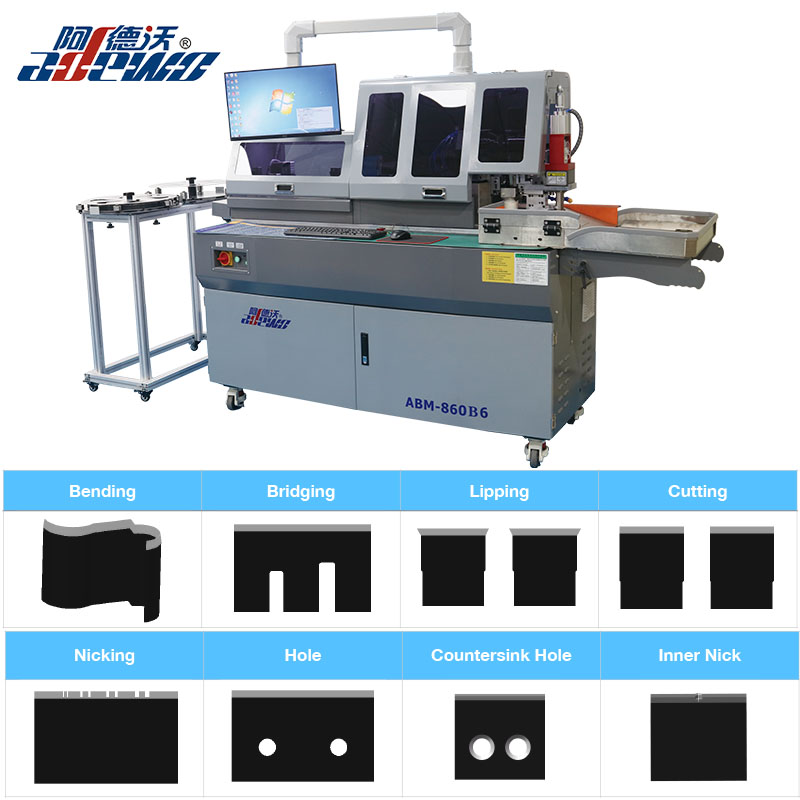

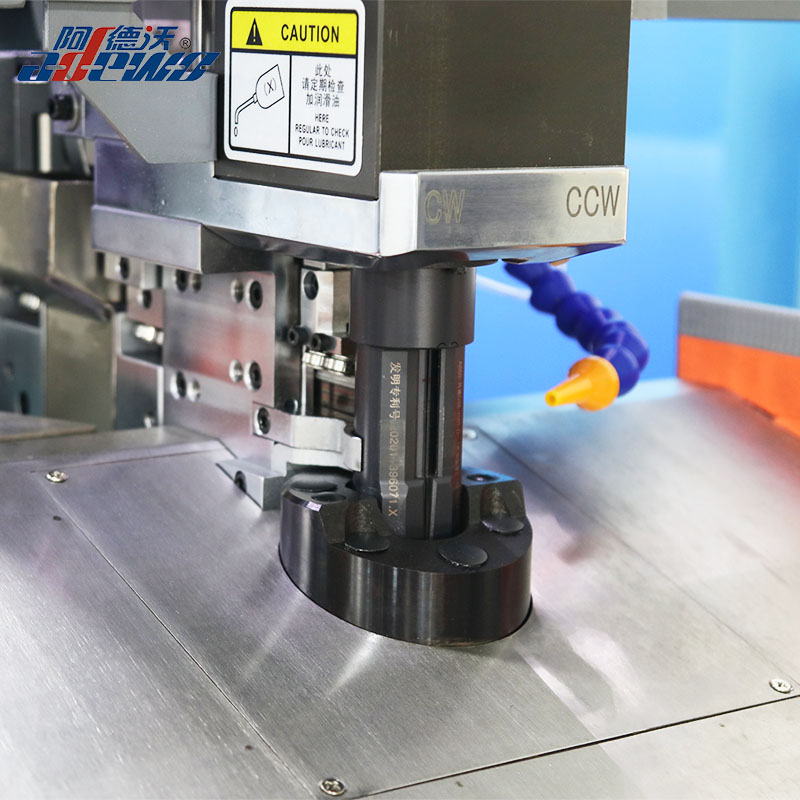

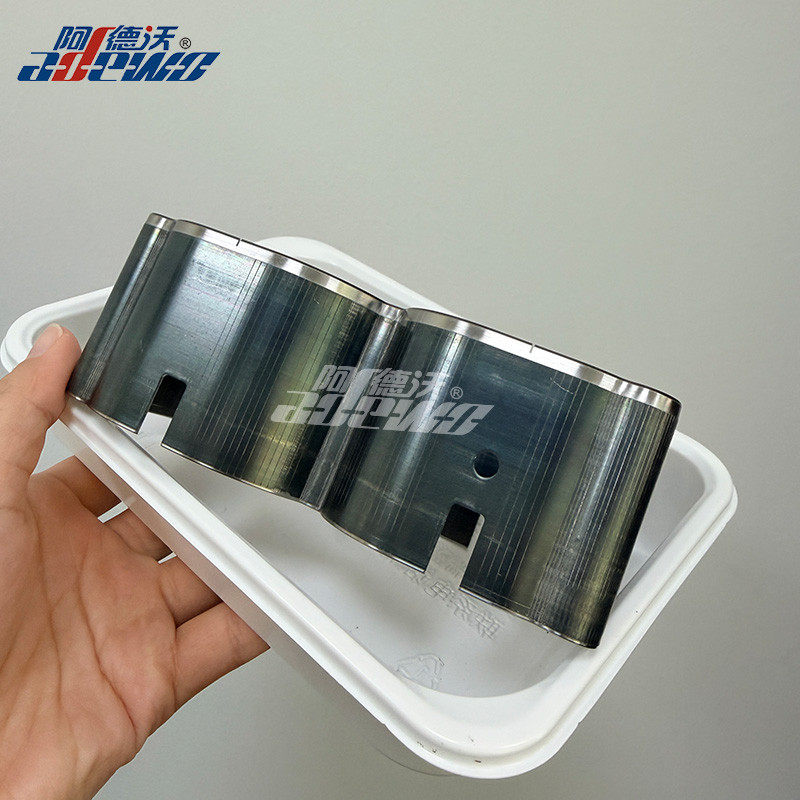

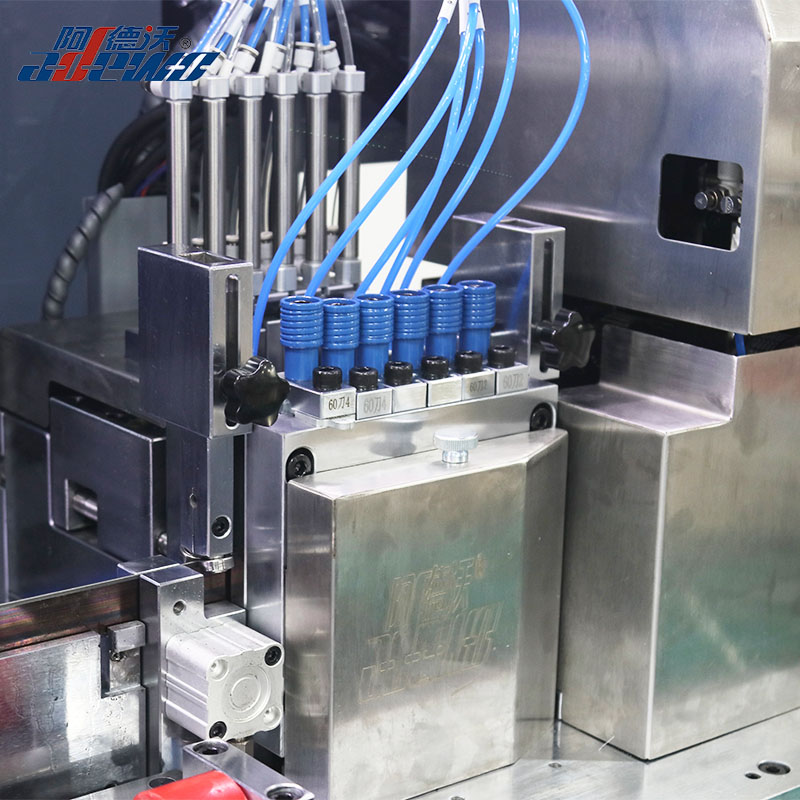

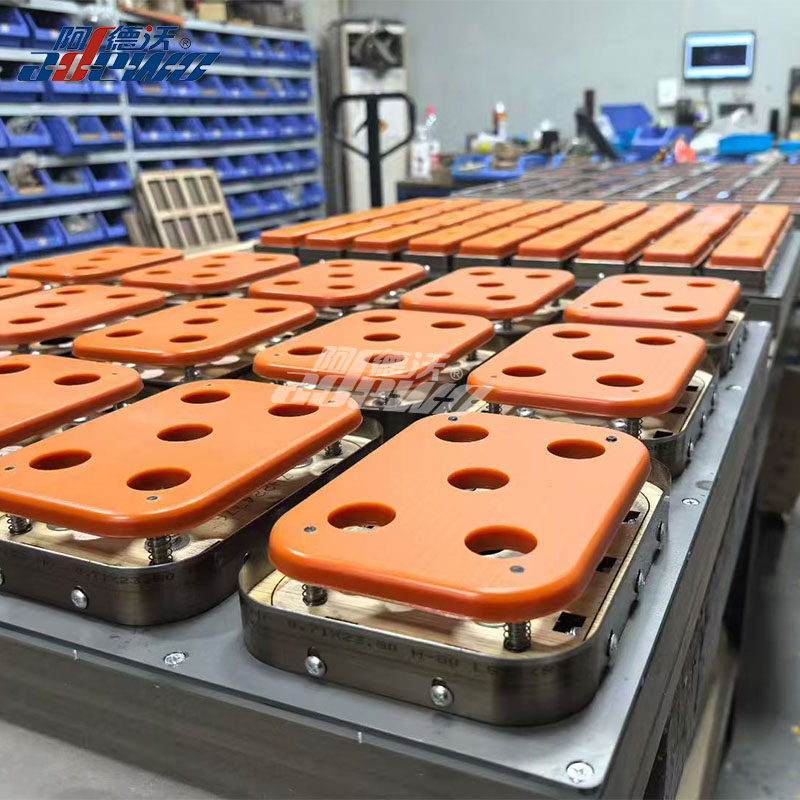

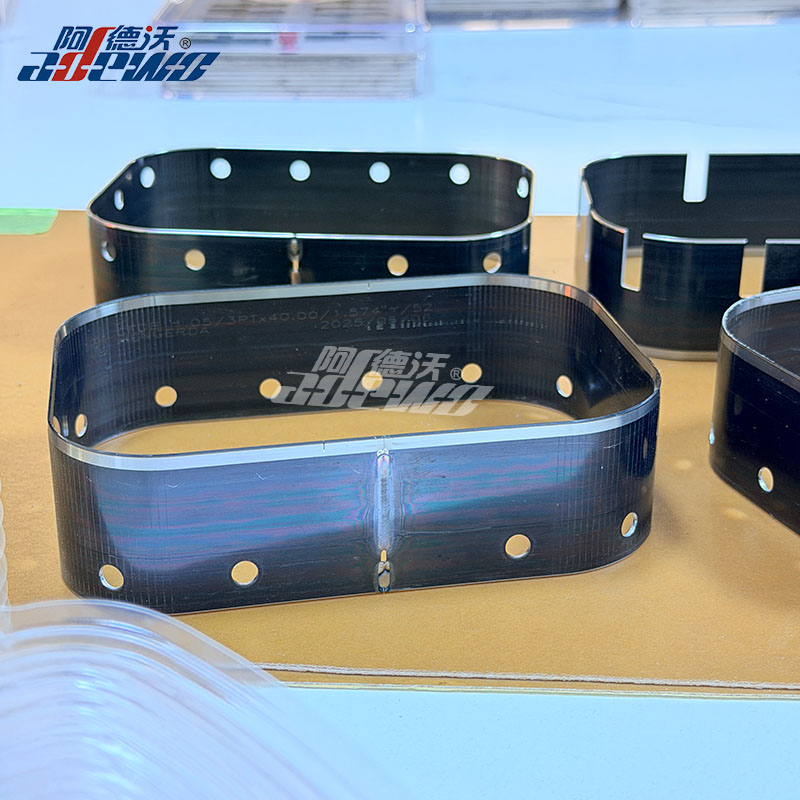

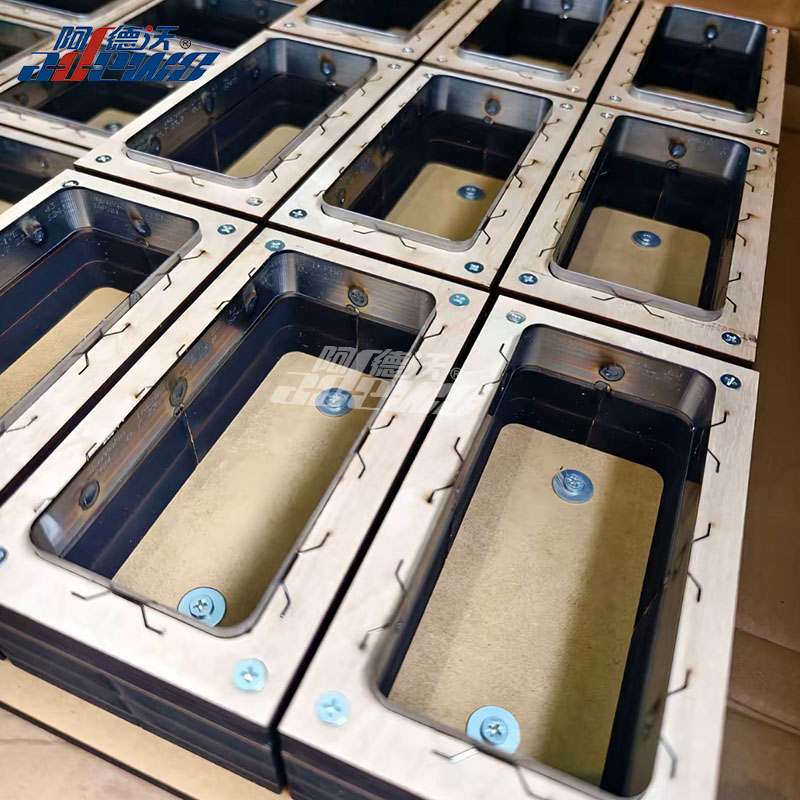

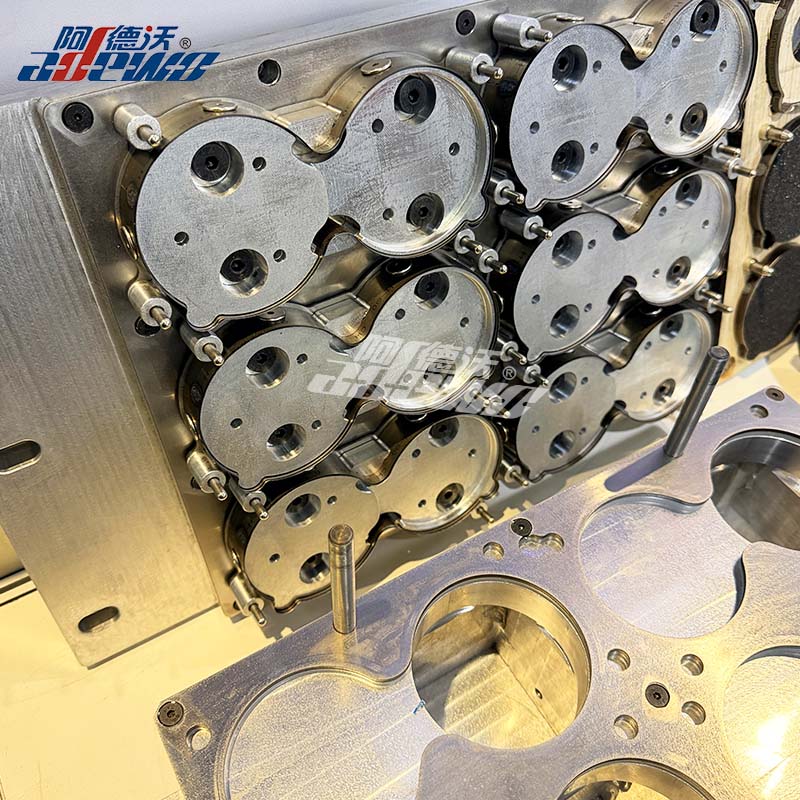

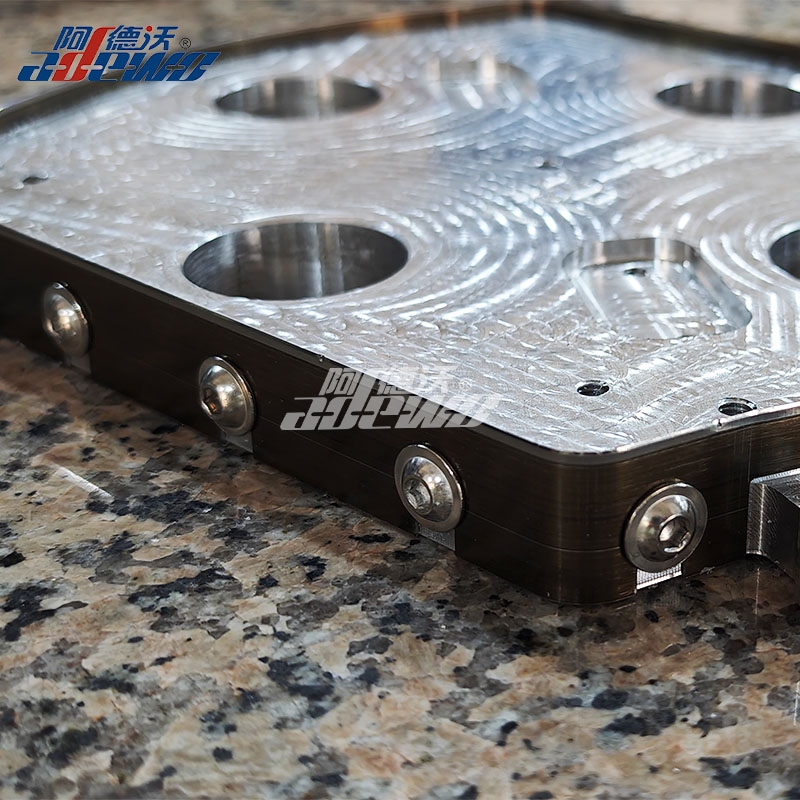

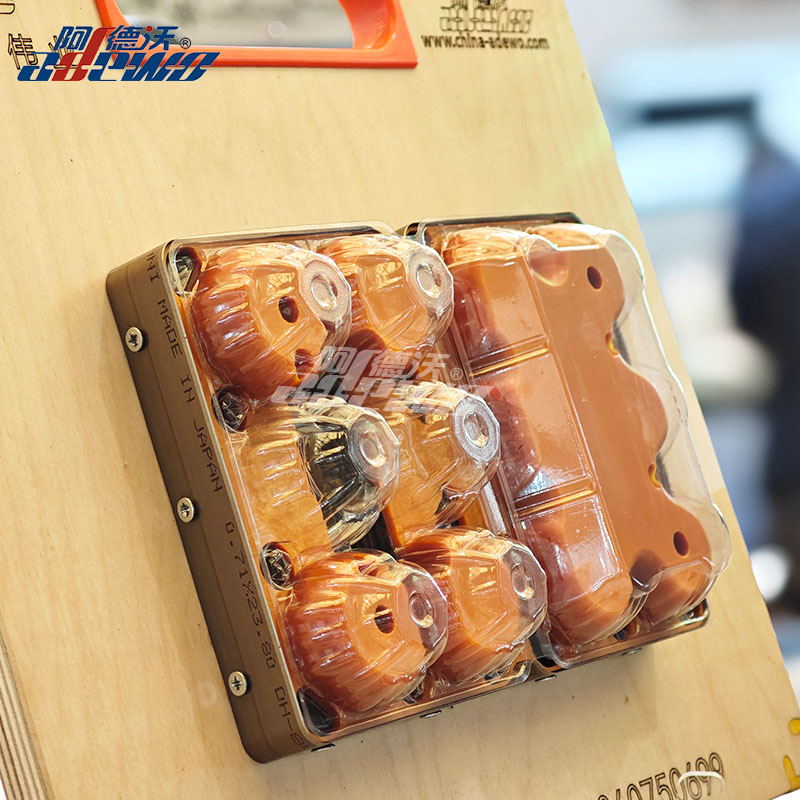

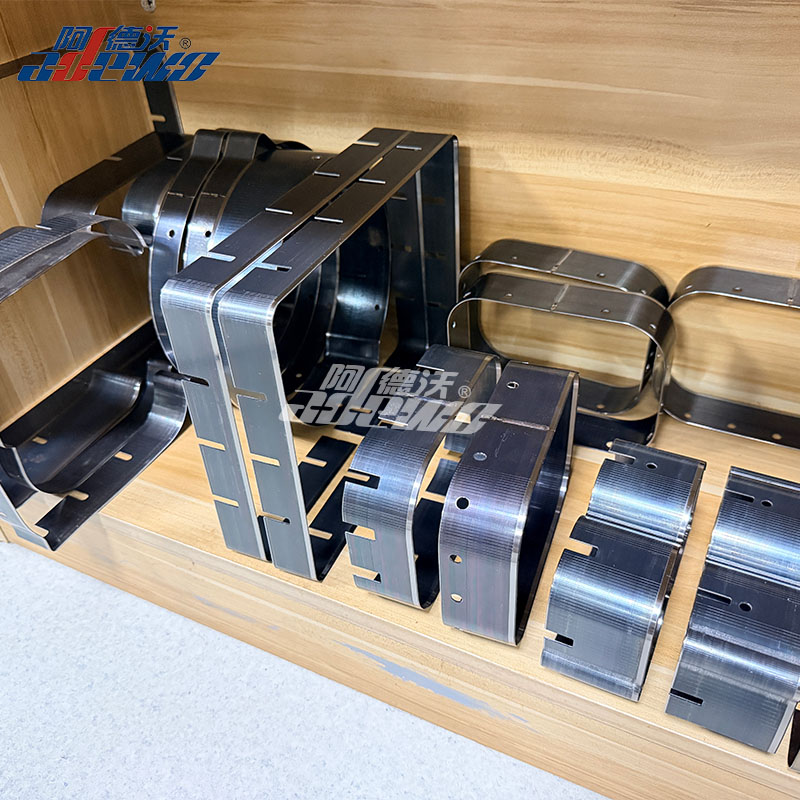

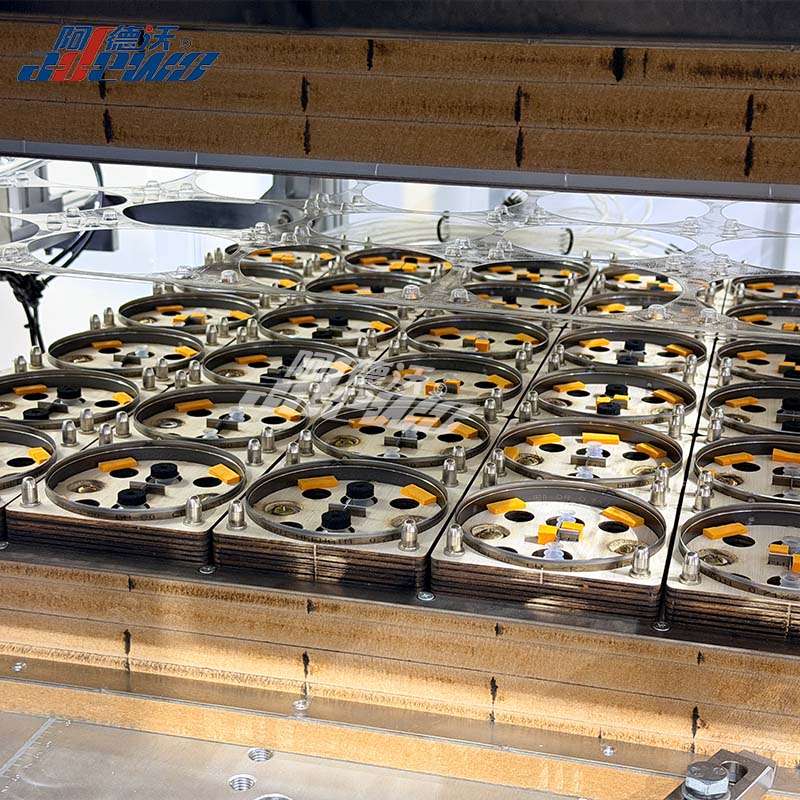

Picture of (ABM-860B6) Blister Die Cutting Mould Auto Bender with Inner Nick for reference:

Product Features:

1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.

2.Multi-Punch tool for choice:Lipping,Mold Cut, Bridge,Hole or Perforation, independent tool, easy to replace.

3.Specially developed for the blister dies, thermoforming dies, countersunk hole of both side. Minimum Nicking 0.2mm.

4.Double clamps,screw guide feeding continuously, improves work efficiency.

5.Smart software, easy to operate, multi language available.

Technical Parameters of (ABM-860B6) Blister Die Cutting Mould Auto Bender with Inner Nick

Supported rule thickness(mm)	0.71mm & 1.05mm (2pt & 3pt)
Supported rule height(mm)	23.80-60mm
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Max. bending angle	100°
Feeding precision	±0.03mm
Bending flatness	0.2mm
Basic Functions	Bending,Bridge,Nicking,Lipping,Cutting,Perforation,Hole,Countersun Hole,Inner Nick
Optional Functions	Perforation, Hole
Optimal pattern format	DXF,DWG,CF2
Air supply	0.4-0.8MPa
Power supply	AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	670KG
Overall dimension	2850x800x1600mm(LxWxH)
H.S. Code	8462230000

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time?
7-10 working days.

4.How about installation and training of (ABM-860B6) Auto Bender?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com

5.Any spare tools are included of the (ABM-860B6) Blister Die Cutting Mould Auto Bender with Inner Nick?
Yes,the new order machine with free spare tools.
