Basic Model Stripping Steel Rule Auto Bender

(ABM-8142A)Basic Model Stripping Steel Rule Auto Bender

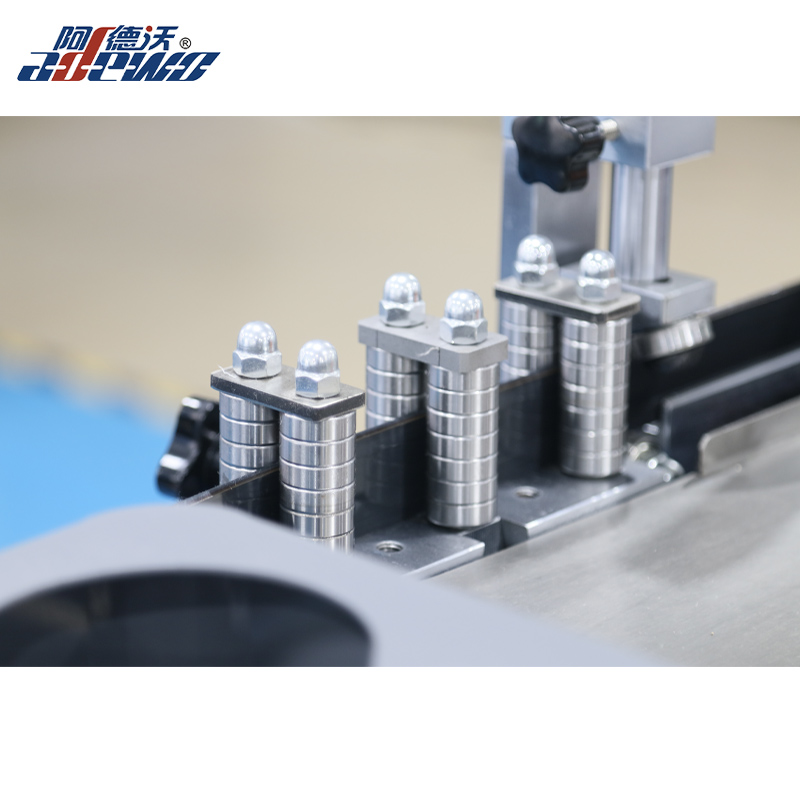

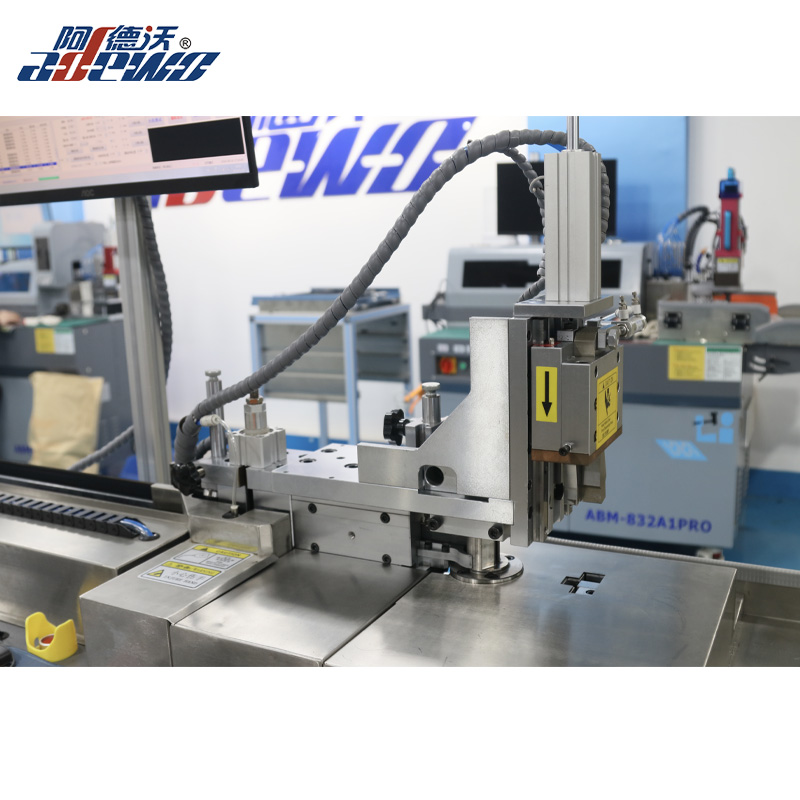

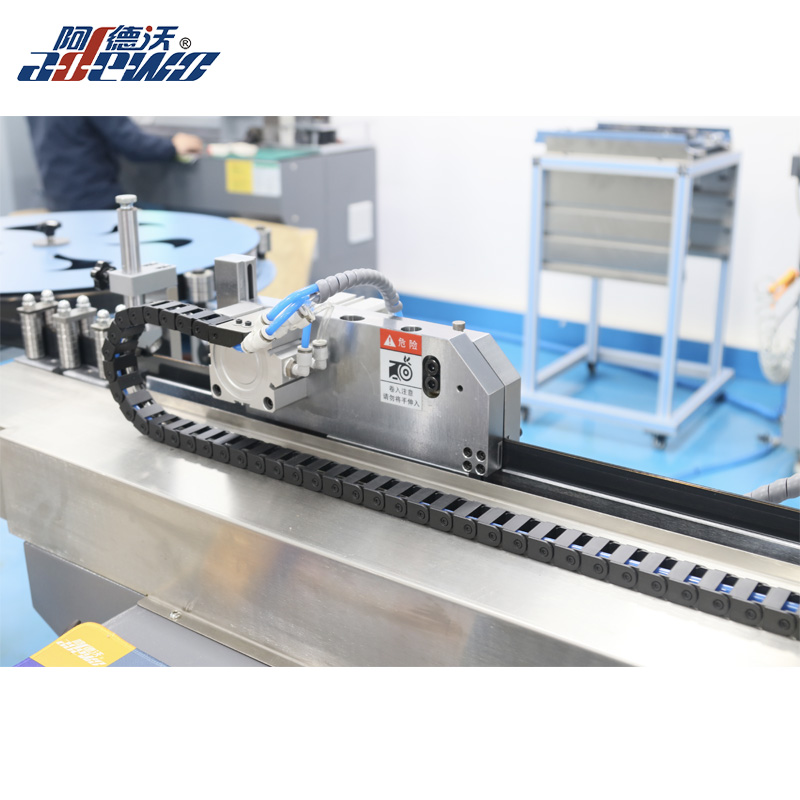

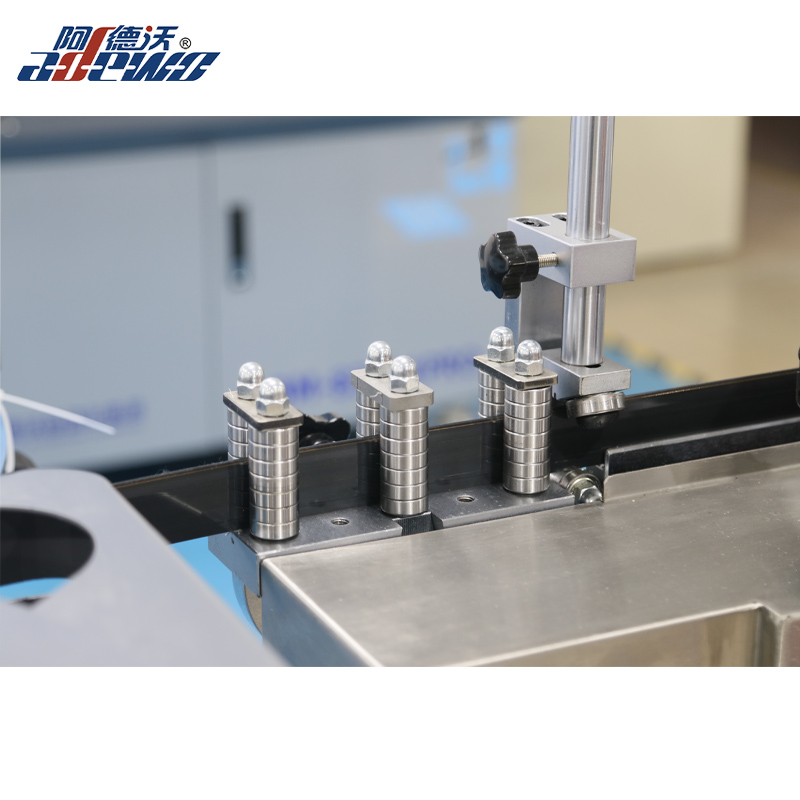

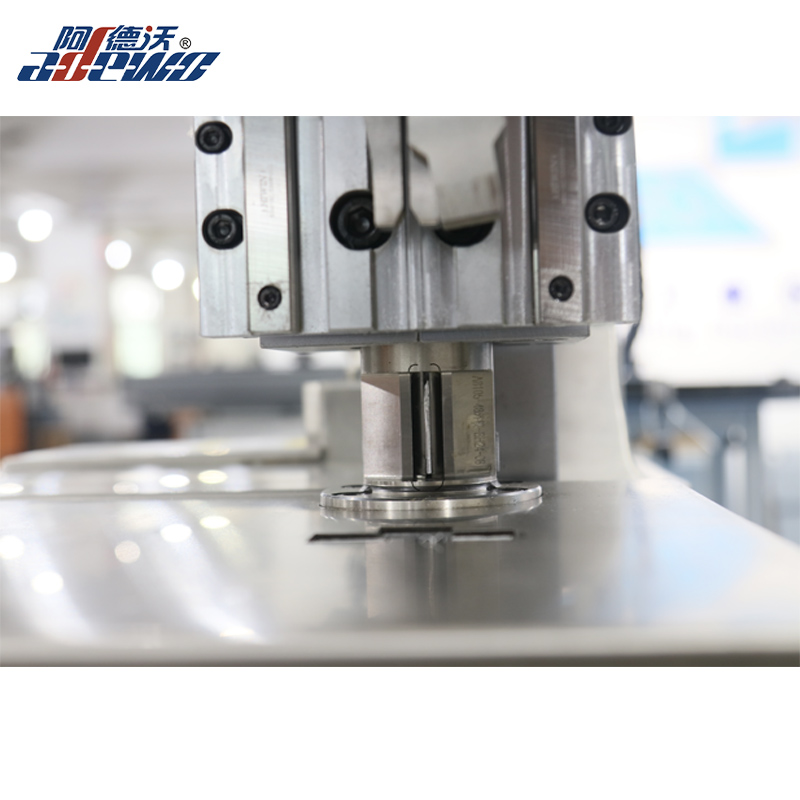

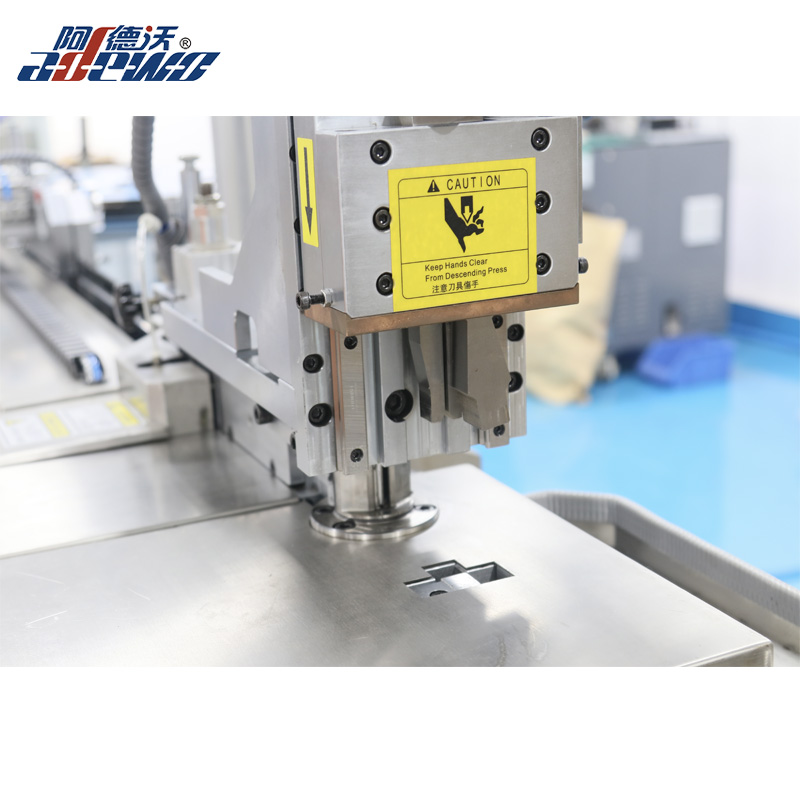

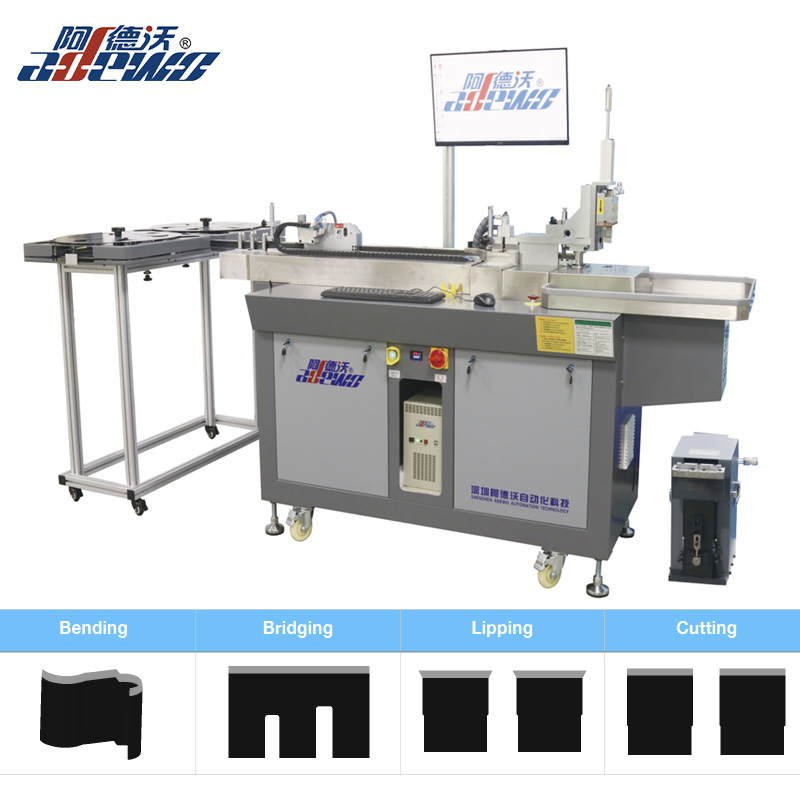

Picture of (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender for reference:

Product Features:

1.Multi-Functions：(ABM-8142A) Basic Model Stripping Steel Rule Auto Bender with Fast and Accurate Bending, Multi-Bridging,Pneumatic Lipping, Cutting.

2.This (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender uses Panasonic Servo motor system, high precise ball-screw guide feeding system.

3.Smart software and easy to operate, multi language operations;

4. Save production time and easy for die making by (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender.

5.(ABM-8142A) Basic Model Stripping Steel Rule Auto Bender apply to various kinds of mold processing, such as corrugated dies,stripping dies,rotary dies etc.

Technical Parameters of (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender：

Supported rule thickness(mm)	0.71,1.05,1.42mm(2pt,3pt,4pt)
Supported rule height(mm)	23.80-60mm
Bridge height	13-19mm
Bridge width	Over 5.5mm any sizes available. (customizable）
Min. ARC radius of 90 degree	±0.3MM
Front Min. bending size	2.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	Bending,Bridging,Cutting,Pneumatic Lipping
Cutting methods	Twist off and Auto flat cutting
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8mpa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	450KGS
Overall dimension	2800x1050x1600(L×W×H)
H.S. Code	8462230000

FAQ:

1.What’s price term?

(1)FOB Shenzhen China

(2)CIF

(3)DDP



2. What’s payment term?

30% T/T as down payment, 70% T/T before delivery.



3.What about lead time of (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender?

7-10 working days.a



4.How about installation and training of (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender?

English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com



5.Any spare tools are included of (ABM-8142A) Basic Model Stripping Steel Rule Auto Bender?

Yes,the new order machine with free spare tools.



6.Application

• Stripping Dies

• Rotary Dies

• Puzzles

• Gaskets

• Folding Cartons

• Corrugated Boxes

• Cardboard

• Etc…
