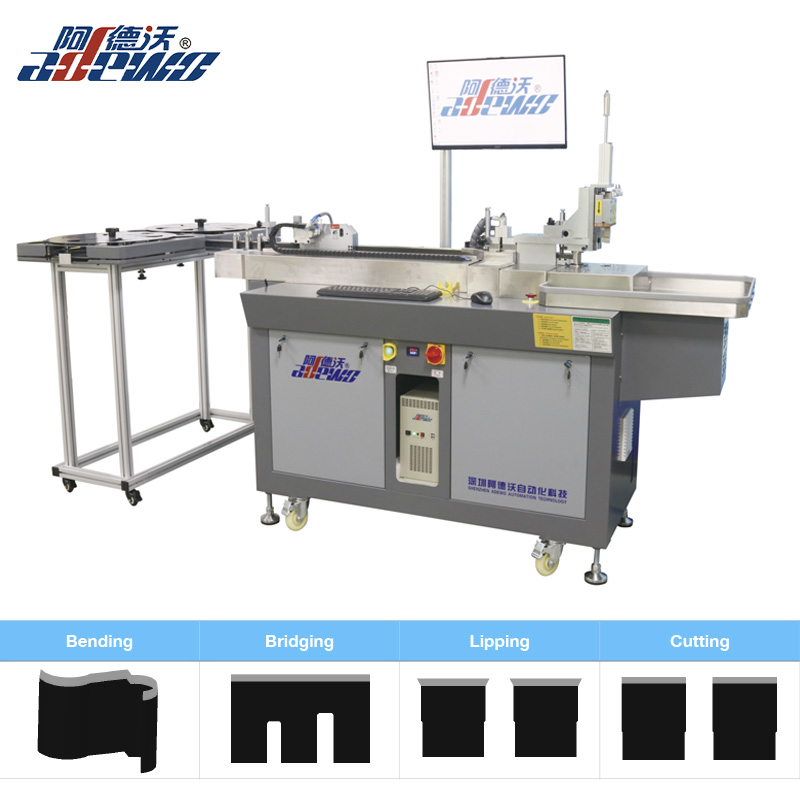

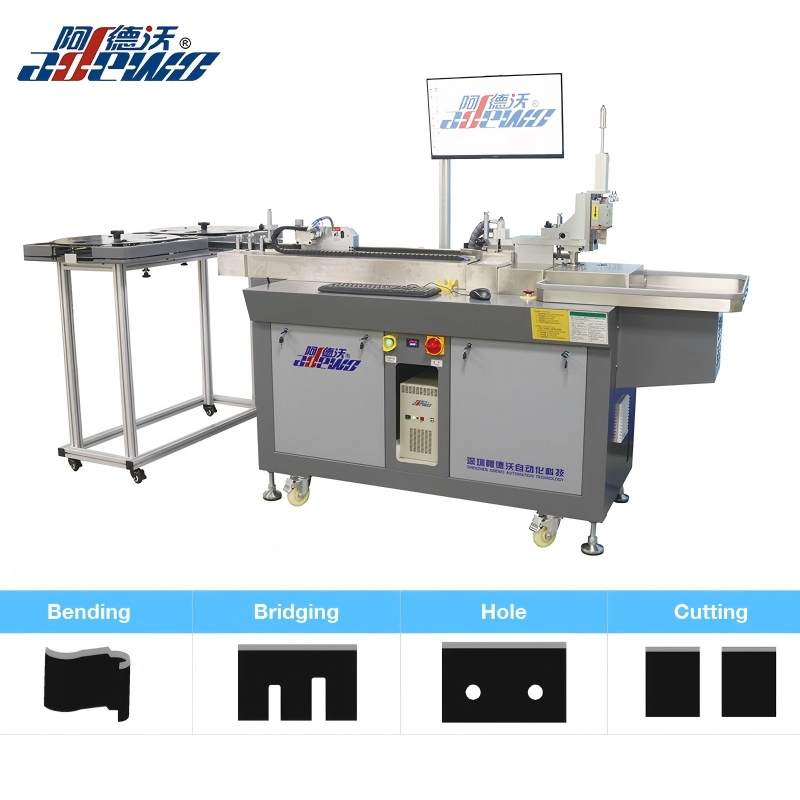

Picture of (ABM-8165A) Acrylic Cutting Auto Bender Machine for reference:

2.This (ABM-8165A) Acrylic Cutting Auto Bender Machine uses Panasonic Servo motor system, high precise ball-screw guide feeding system.
3.Smart software and easy to operate, multi language operations;
4. Save production time and easy for die making by (ABM-8165A) Acrylic Cutting Auto Bender Machine.
|
Supported rule thickness(mm) |
0.71,1.05,1.42,1.65mm(2pt,3pt,4pt,5pt) |
|
Supported rule height(mm) |
23.80-32mm |
|
Max Bending Angle |
95° |
|
Min. ARC radius of 90 degree |
±0.3MM |
|
Front Min. cutting size |
2.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
±0.2mm |
|
Functions |
Bending,Bridging,Cutting,Pneumatic Lipping |
|
Cutting methods |
Break off and Auto flat cutting |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8mpa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KGS |
|
Overall dimension |
2800x1050x1600(L×W×H) |
|
H.S. Code |
8462230000 |
Our technical service is always available at services@china-adewo.com
