400 Watts Laser Head Fixed Plywood Laser Cutting Machine

(ADW-LC400)400 watts Laser Head Fixed Plywood Laser Cutting Machine with fast cutting speed, around 30-35 meters/hour,18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise. China Adewo has been successful for many domestic and foreign enterprises to provide advanced Laser Cutting machine,Auto Bender Machine,Creasing Cutting Machine, technical support and excellent after sales service.

Send Inquiry

Product Description

400 watts Laser Head Fixed Plywood Laser Cutting Machine

You can rest assured to buy 400 Watts Laser Head Fixed Plywood Laser Cutting Machine from our factory and we will offer you the best after-sale service and timely delivery.Rich experience QA can help you audit the factory or check the goods quality before shipping.

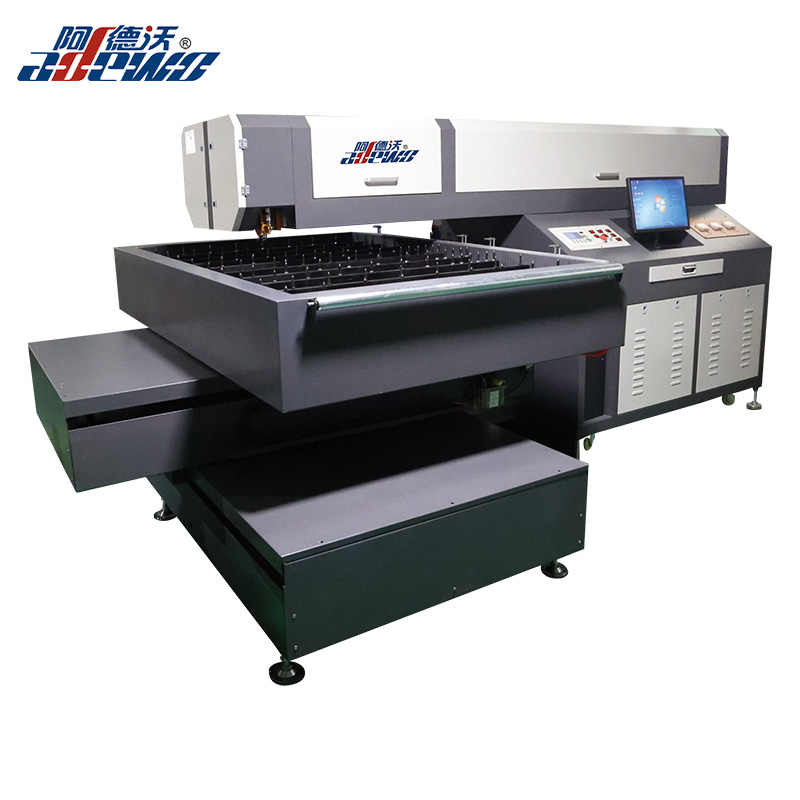

Picture of (ADW-LC400)400 watts Laser Head Fixed Plywood Laser Cutting Machinefor reference:



1.Product Features:

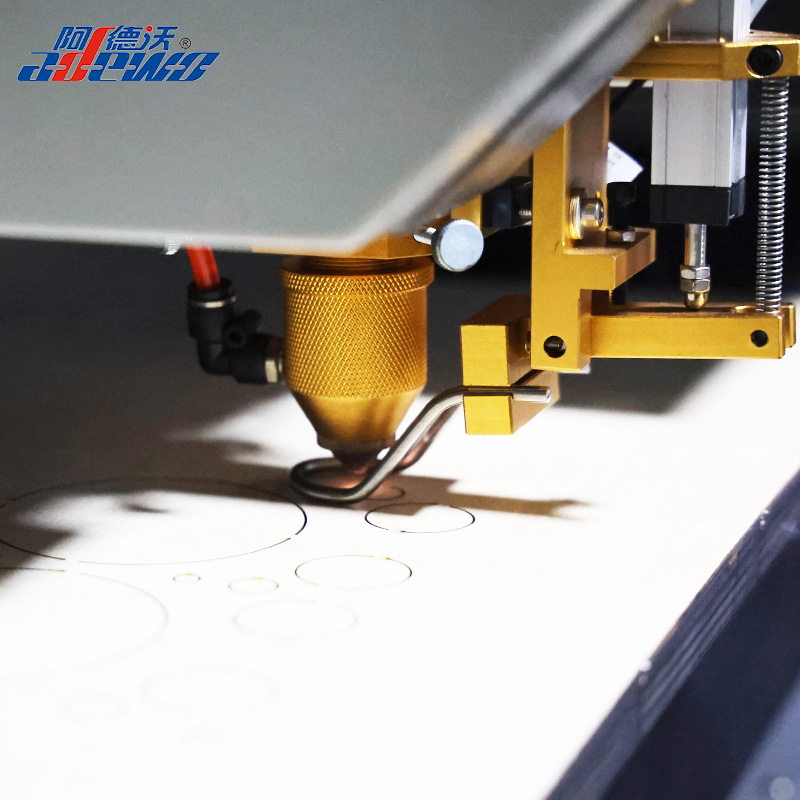

1.Fixed laser line path(the laser head fixed, the material body moved) of 400 watts Laser Head Fixed Plywood Laser Cutting Machine


2.400 watts Laser Head Fixed Plywood Laser Cutting Machine with fast cutting speed, around 30-35 meters/hour,18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.


3.Imported precision ball screw driving (more precise than general one), with the error of precision electronic mould of 0.05mm.


4.Low electricity consumption and low cost of 400 watts Laser Head Fixed Plywood Laser Cutting Machine, 220V single-phase electricity, 3KW/h (3000w power machine)


5.High-strength stable machine tool without deformation for long term working.


6.Real time regulation: Users can regulate the laser power, according to needs to improve the cutting effect.


2.Technical Parameters of 400 watts Laser Head Fixed Plywood Laser Cutting Machine

Model No.

ADW-LC400

Laser power

400W Single head

Working area

Width1200mm x Length1800mm

Driving style

Fixed laser line path(the laser head fixed, the material body moved)

Cutting speed

400watts:30-35 meters/hour,18mm plywood

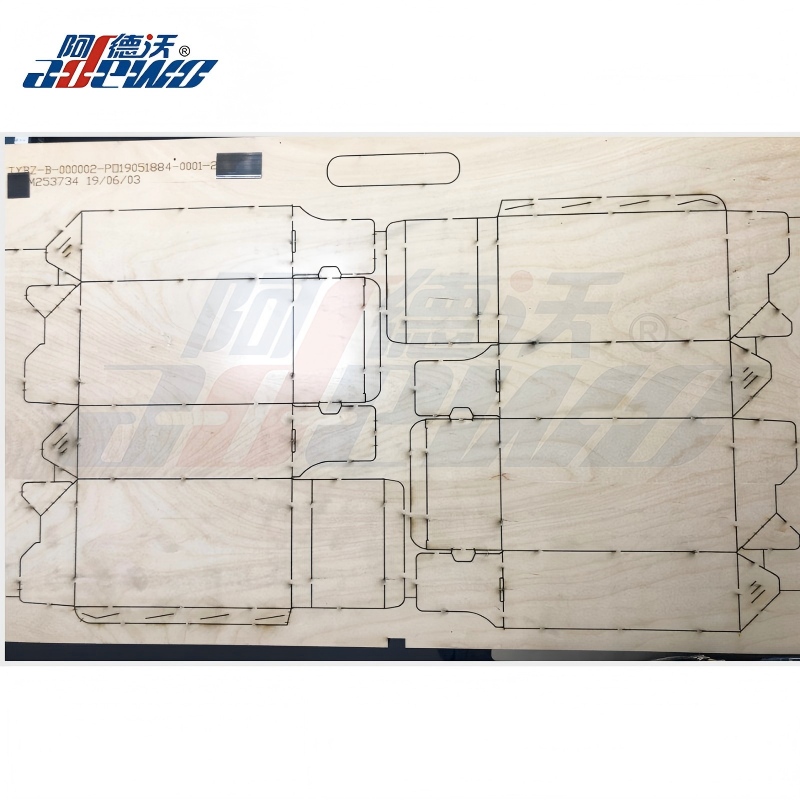

Cutting materials and thickness

6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule.

Cooling water temperature

5℃-30℃

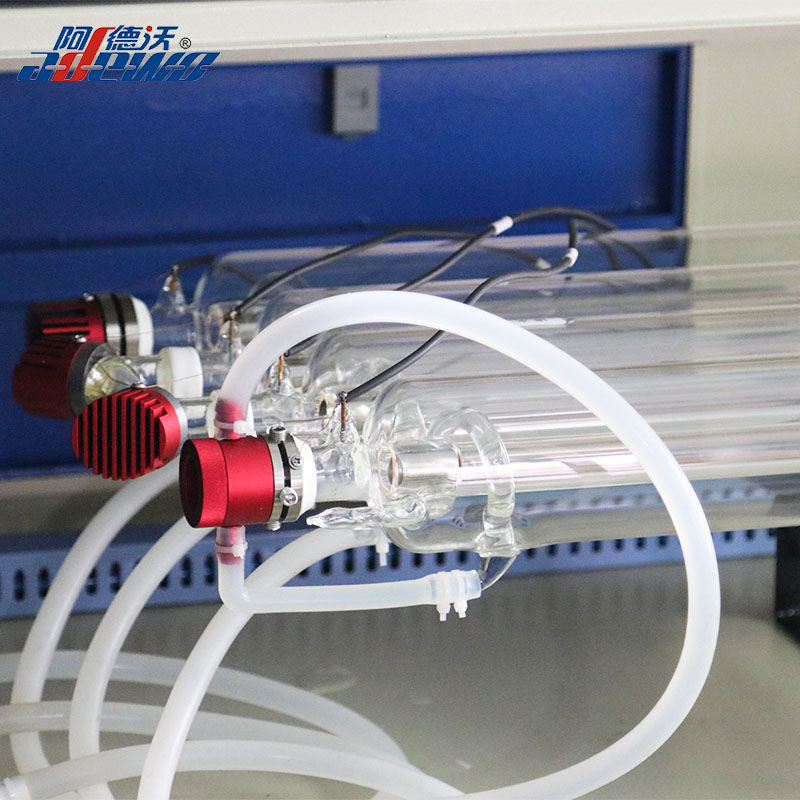

Laser type

CO2 sealed of glass laser

Driving system

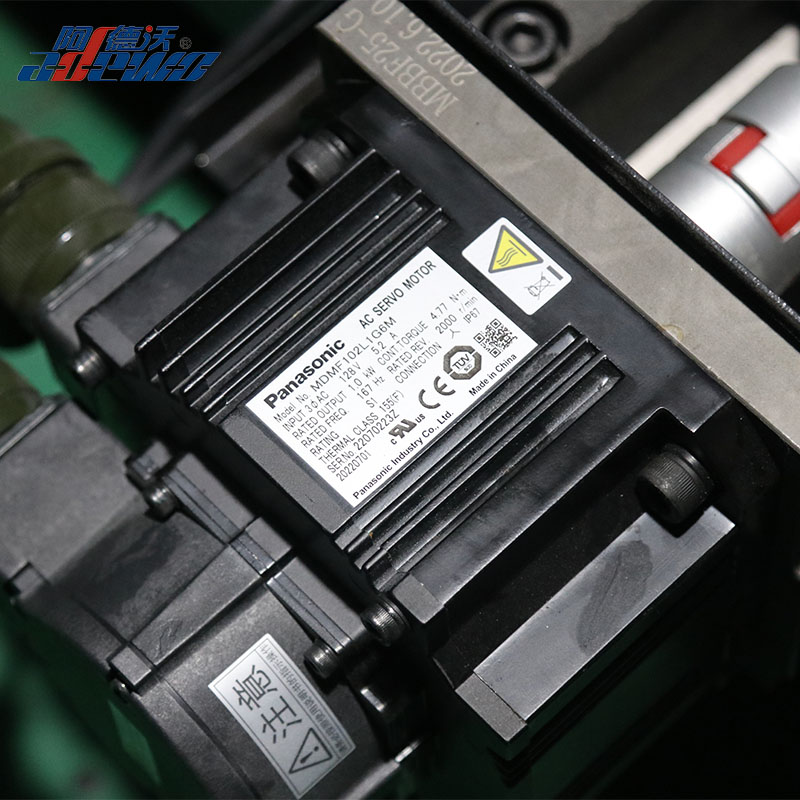

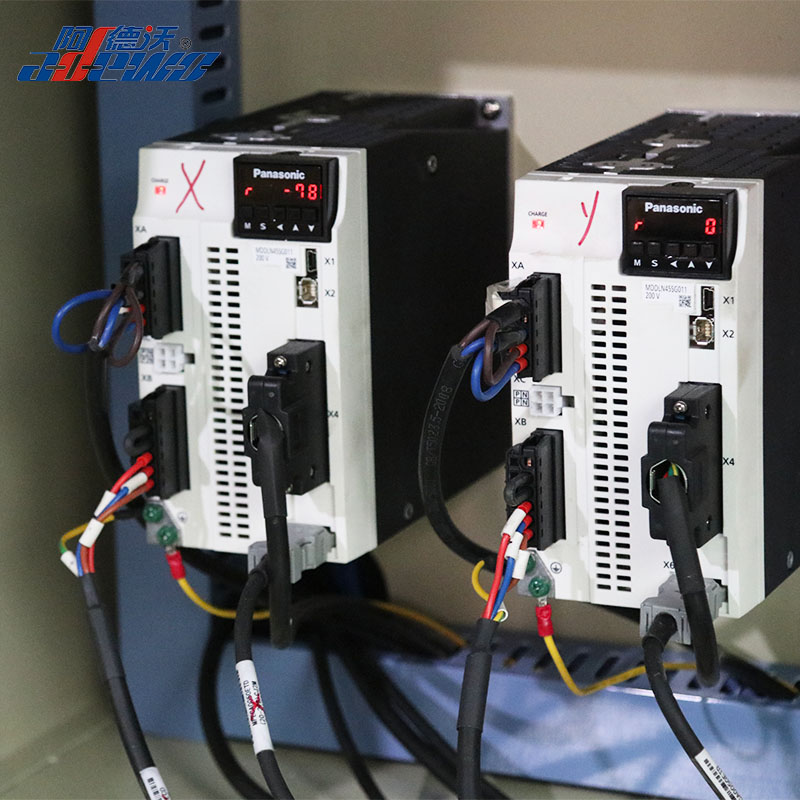

Servo motor system

Blade thickness

0.45mm,0.71mm,1.05mm,1.07mm…ect

Cutting precision

±0.05mm

Figure format

AL, DST, PLT, BMP, DXF

Supporting software

CorelDraw,AutoCAD,photoshop

Cooling system

Water cooling

Operating temperature

1℃~40℃

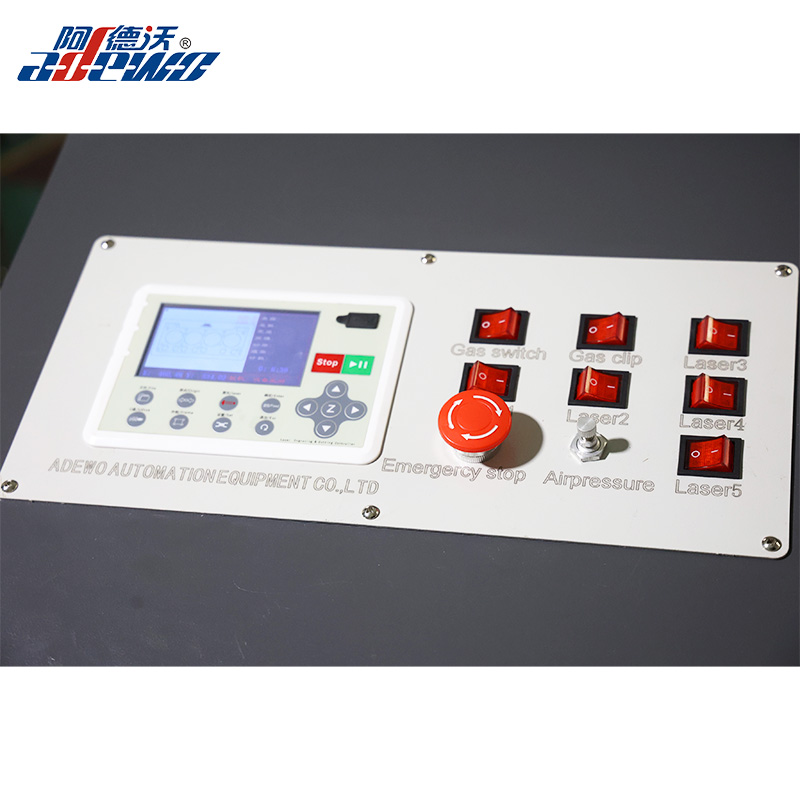

Numerical control panel

LCD screen,Light-touched key-press off-line condition

EMS memory

Attached 32MB memory, can work under off-line condition

Assistant equipments(Free)

Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter

Power supply

Single Phase220V,50Hz/60Hz 10A

Total power

5KW

Machine size(stand still)

L4120xW2800xH1530mm

Machine size(working)

L4320xW3880xH1530mm

Machine weight

1800kg

H.S. Code

8456110090


3.FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of 400 watts Laser Head Fixed Plywood Laser Cutting Machine?
10-15 working days.

4.How about installation and training of 400 watts Laser Head Fixed Plywood Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at services@china-adewo.com


5.What’s the cutting speed of this 400 watts Laser Head Fixed Plywood Laser Cutting Machine?
30-35 meters/hour,18mm plywood by 400 watts Laser Head Fixed Plywood Laser Cutting Machine ; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
